| 최소 주문 수량 : | 1개 | 가격 : | Please contact us to get the latest price. |
|---|---|---|---|
| 포장 세부 사항 : | 통에서 트레이 | 배달 시간 : | 10일 |
| 지불 조건 : | 전신환, D/P (지급도 조건), 인수 인도, L/C (신용장), 웨스턴 유니온, 머니그램 | 공급 능력 : | 10만 개/일 |
| 원래 장소: | 중국의 동완 | 브랜드 이름: | DGKYD |
|---|---|---|---|
| 인증: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | 모델 번호: | krj-usb2ygwtnl |
|
상세 정보 |
|||
| 접속구의 형태: | 두배 USB와 RJ45 | 금 도금법: | 글로드 순간 도금 |
|---|---|---|---|
| 작동 온도: | -40C 내지 +85C | 내구성: | 민. 750이지 사이클 |
| 방패: | 인광 구리 니켈 도금 | OEM/ODM: | 그래요 |
| 포지션의 수 / 접촉: | 8P8c (RJ45, 이더넷) | 접촉 핀 위의 금 도금법: | G/Fu |
| ~ 주도의: | 노랑 / 녹색 | 저장 온도: | -40' C~+85' Ｃ |
| 작동 온도: | -40' C~+85' Ｃ | ||
제품 설명

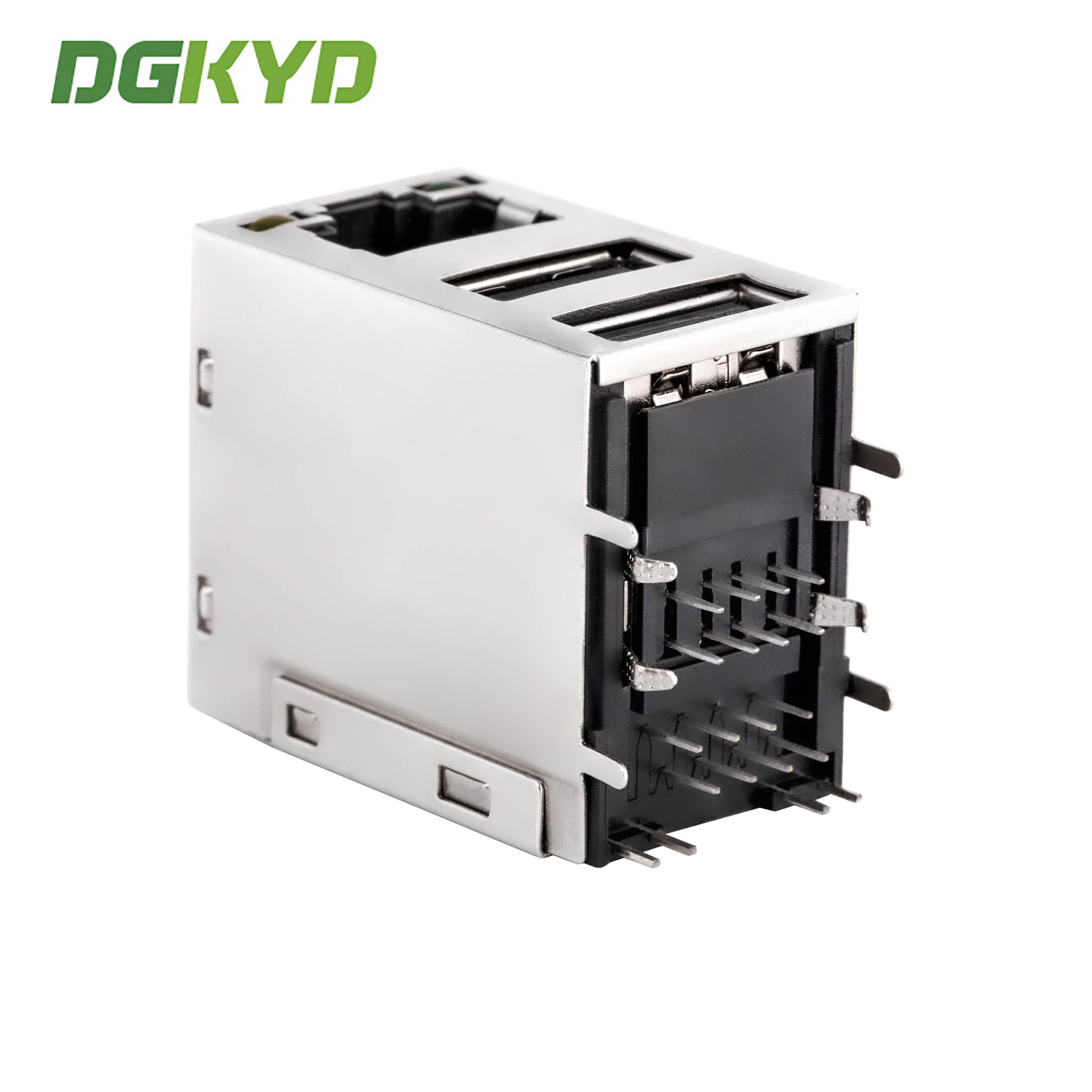

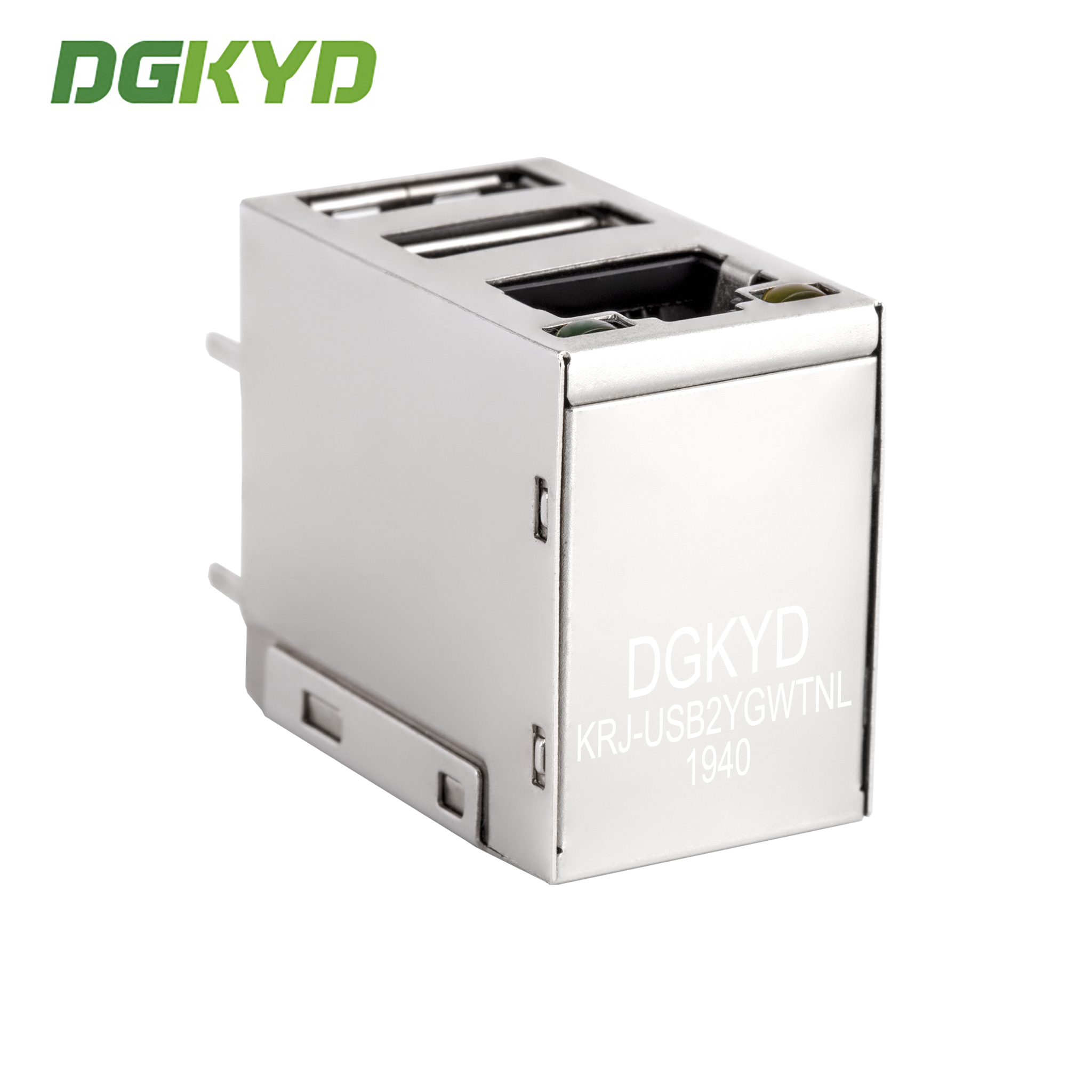

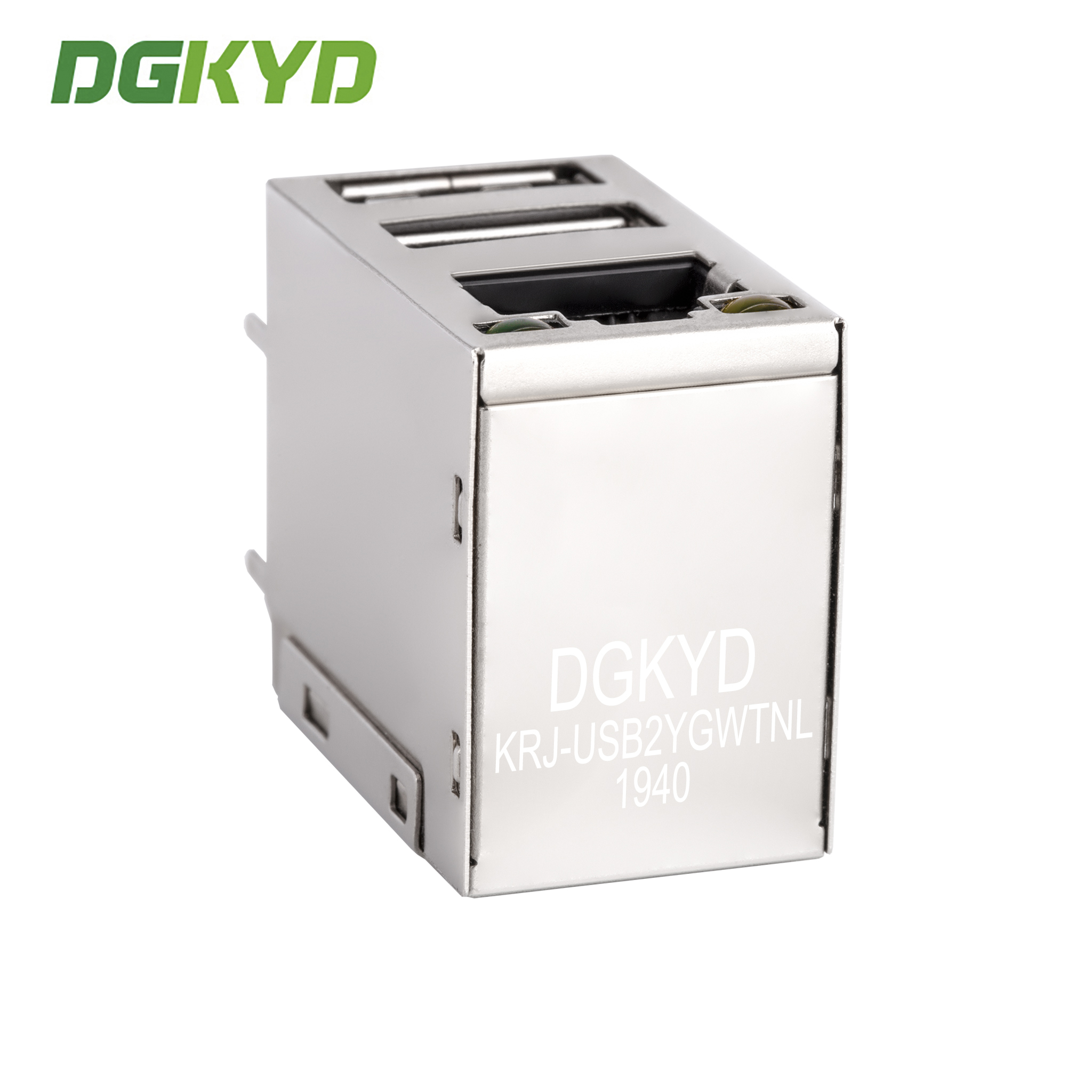

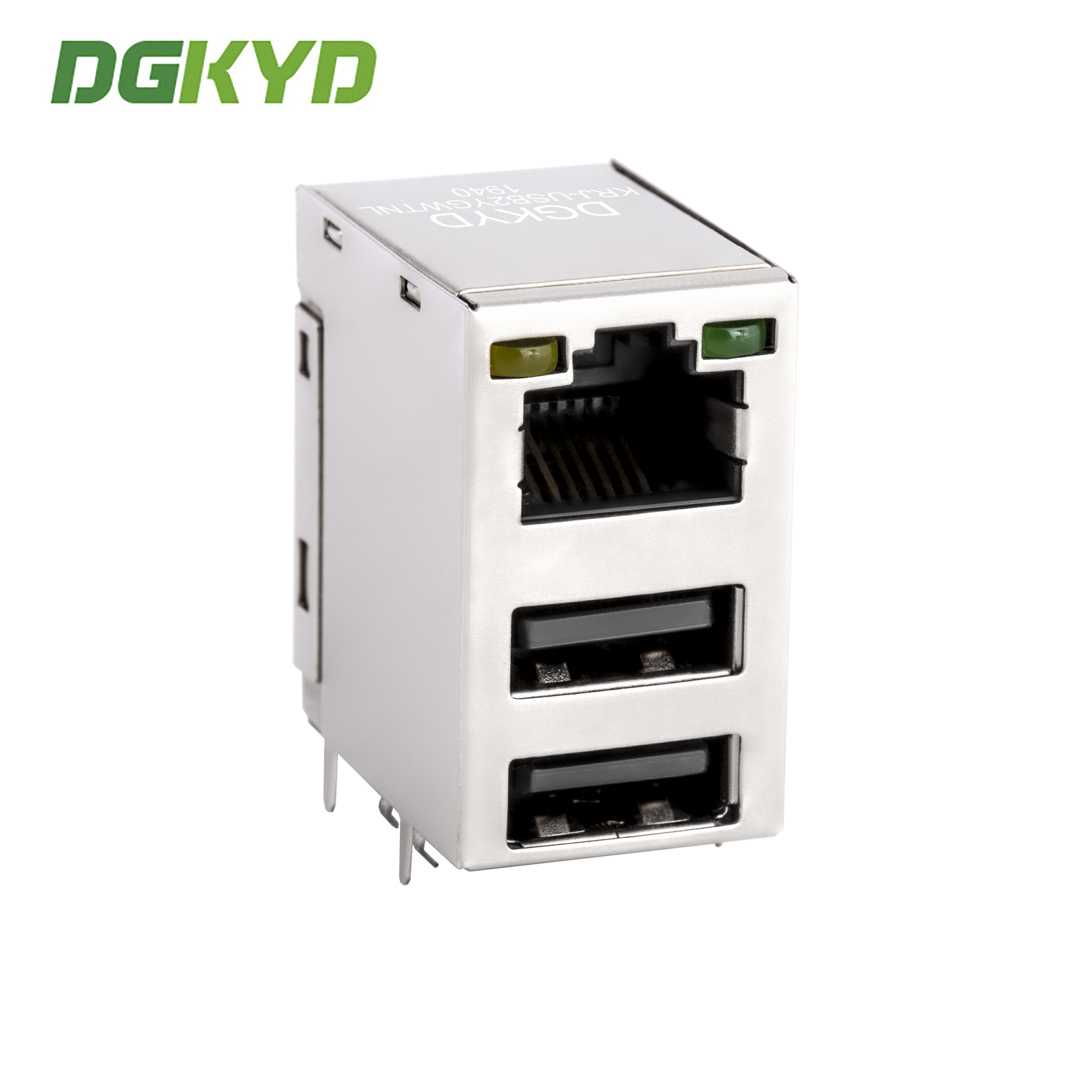

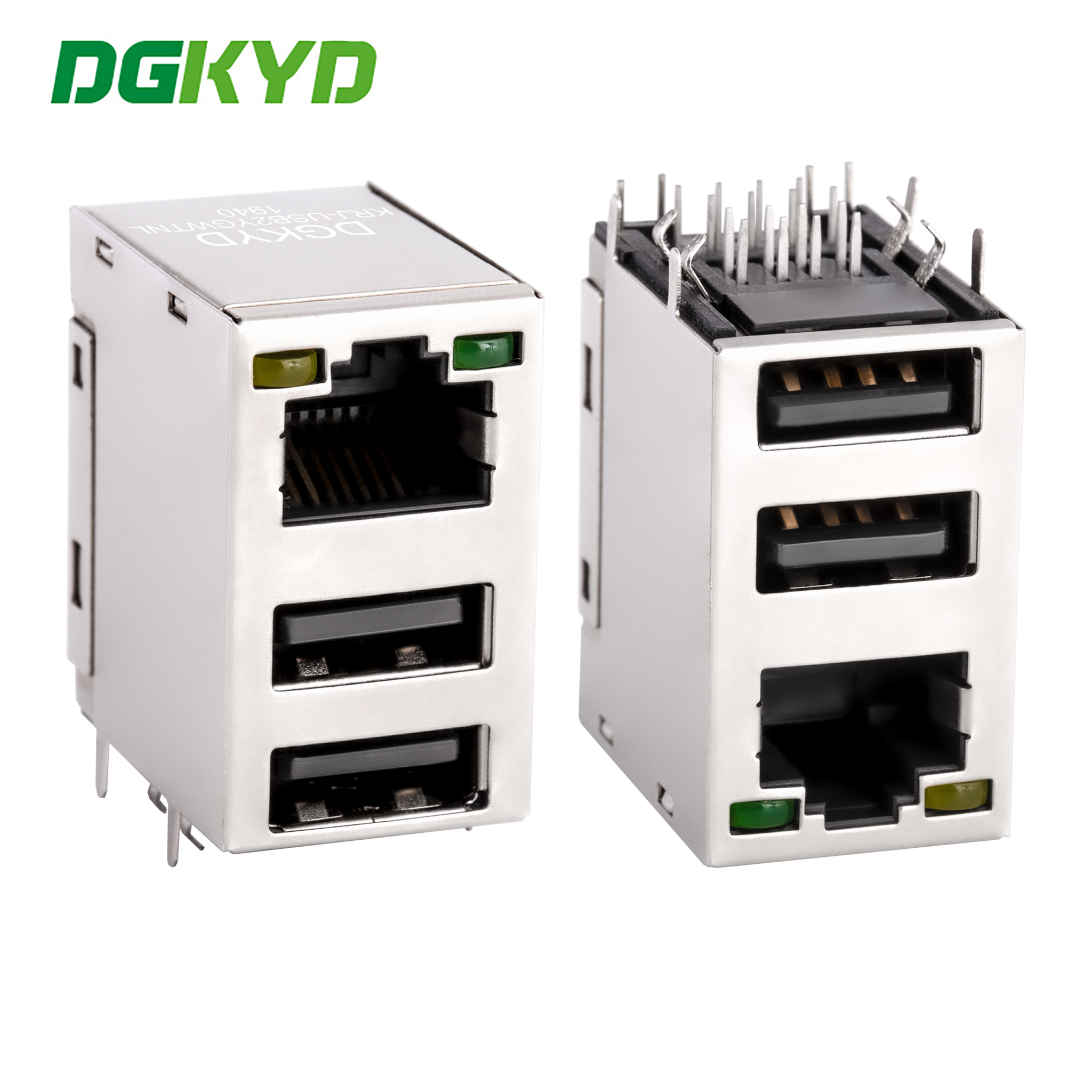

Three deck stacked USB RJ45 connector , RJ45 with double USB Jack USB2.0 KRJ-USB2YGWTNL
Product Specification Document
KRJ-USB2YGWTNL.pdf
Paramters
| Part Number | KRJ-USB2YGWTNL | Brand | DGKYD/OEM/ODM |
| Product Type | Connector-Modular | Connector Style | Jack |
| Jack Type | RJ45 | Connector Type | Modular Jack |
| Latch Style | Standard | Latch | TAB-UP |
| Filter |
Without Filter |
LED Option | With LED |
| LED Color | Yellow/Green | Panel Stops | With Panel Stops |
| Shielded | With metal shield | Applies To | Printedout Circuit Board |
| Port Configuration | 3X1 Ports | Number of Positions | 8 |
| Jack Configuration | 3X1 | Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel | PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating | Gold G/Fu | Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel | PCB Mounting Style | Through Hole |
| Termination Method to PC Board | Through Hole-Press-Fit | Board Lock | With/Without Board Lock |
| Housing Material | PBT Polyester | Housing Color | Black |
| Housing Material Temperature | Standard | UL Flammability Rating | UL 94V-0 |
Our strengths:
Interface type: crystal head application: 10 / 100 / 1000BASE-T Ethernet
Type: RJ45 built in magnetics
Working frequency: high frequency characteristic: filtering, anti-interference
Working temperature:- 40 ℃ - 85 ℃
Storage temperature: - 40 ℃ - 85 ℃
Lead free soldering: wave soldering height up to 265 ℃
RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply
1. Business mode: Manufacturer
2. Delivery time: on time delivery, around two weeks.
3. Specs for choices: LED indicator light(green, yellow, red, orange, blue, bi-color LED)
Shield with EMI fingers or not
coil ratio of magnetic core
magnetics circuit diversification optional
contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)
plastic housing material (PBT,PA46,PA9T, LCP)
4. The electrical properties of the products meet the industry standards, the appearance and mechanical properties meet the appearance dimensions, the mechanical manufacturing industry standards, and the environmental protection standards. Your satisfaction is the purpose of our service!
FAQ:
1. Q: Are you trading company or manufacture?
A: We are manufacture. Welcome to our factory.
2. Q: What about your lead time?
A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.
3. Q: Can you provide samples? Are they free?
A: Yes. Usually we can provide 2-3 samples of standard products free for testing.
4. Q: Can I put my own logo on it?
A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
