| 최소 주문 수량 : | 1개 | 가격 : | Please contact us to get the latest price. |
|---|---|---|---|
| 포장 세부 사항 : | 통에서 트레이 | 배달 시간 : | 10일 |
| 지불 조건 : | 전신환, D/P (지급도 조건), 인수 인도, L/C (신용장), 웨스턴 유니온, 머니그램 | 공급 능력 : | 10만 개/일 |
| 원래 장소: | 중국의 동완 | 브랜드 이름: | DGKYD |
|---|---|---|---|
| 인증: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | 모델 번호: | DGKYD211Q066GWA7CBST6057 |
|
상세 정보 |
|||
| 적용:: | 이더넷 | 성능 속도:: | 0/100/1000BASE-T |
|---|---|---|---|
| PCB는 증가합니다 :: | 직각 SMD | 표준:: | IEEE802.3ab |
| 접착장: | 6u 글로드 도금 | 래치: | TAB-위로 |
| 핀: | 10PIN | 필터: | 필터로 |
| 하우징 소재: | LCP 검정색 | 작동 온도: | -40' C~+85' Ｃ |
| 강조하다: | RJ45 Integrated Connector Without Light,RJ45 1000base Integrated Connector,RJ45 Patch Network Interface |
||
제품 설명

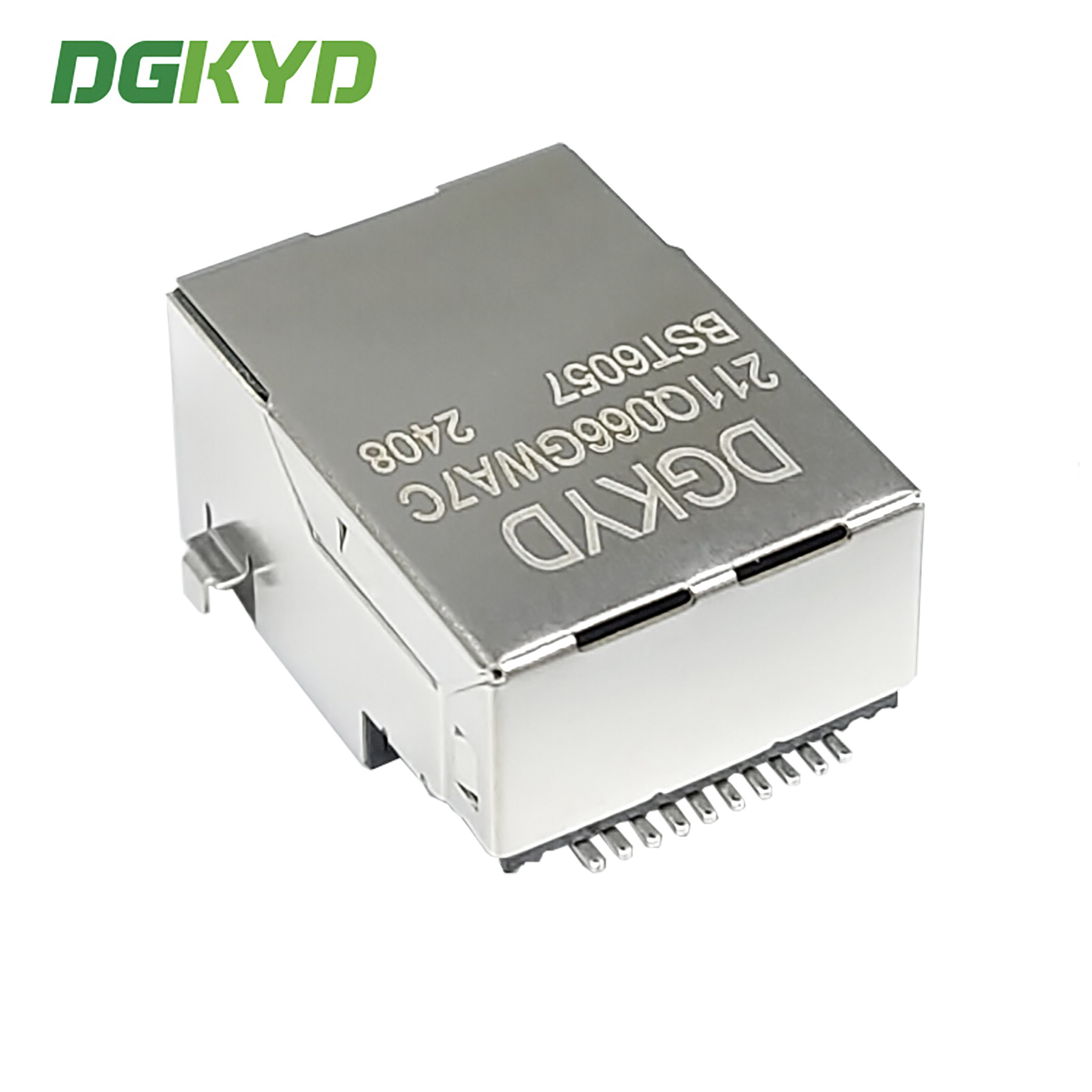

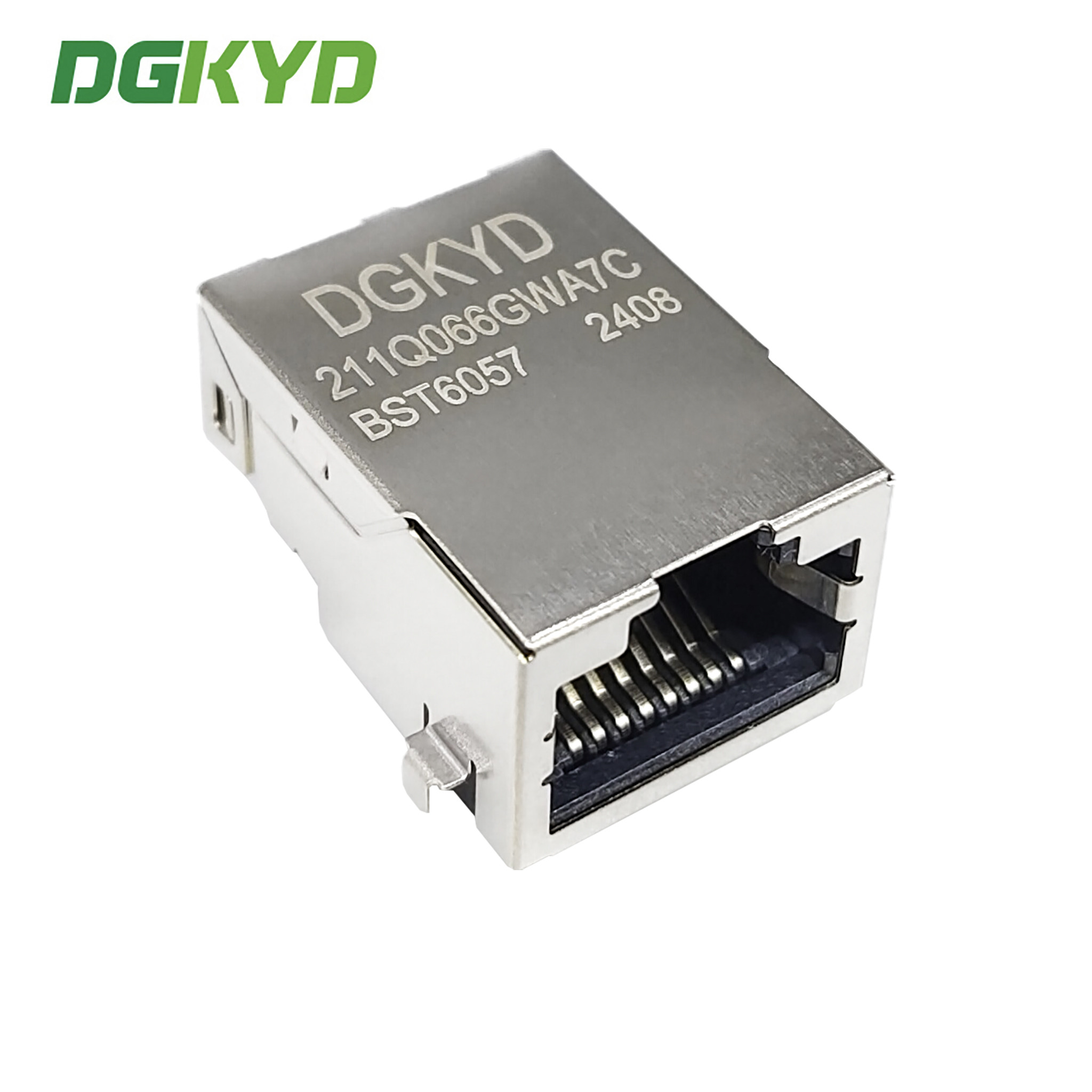

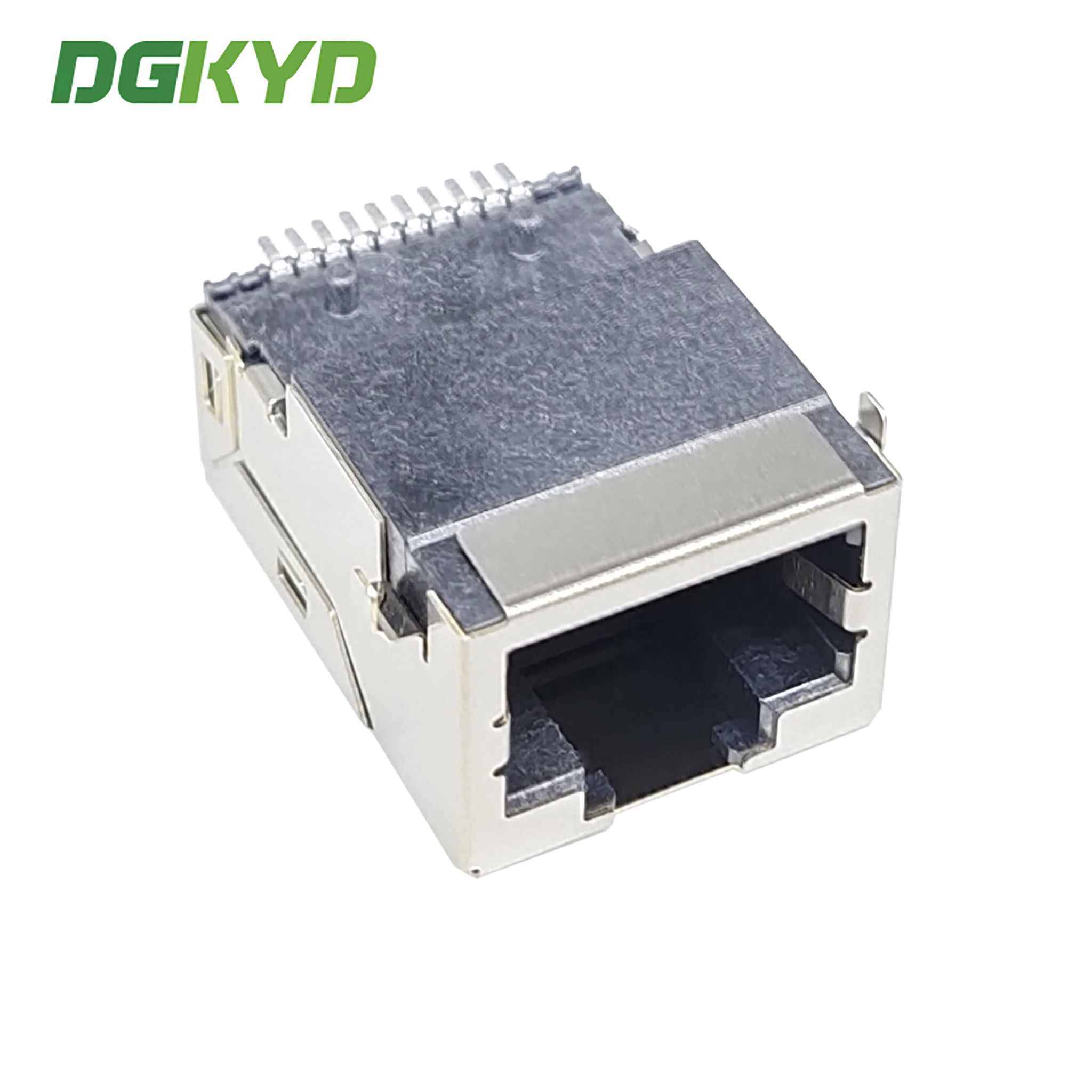

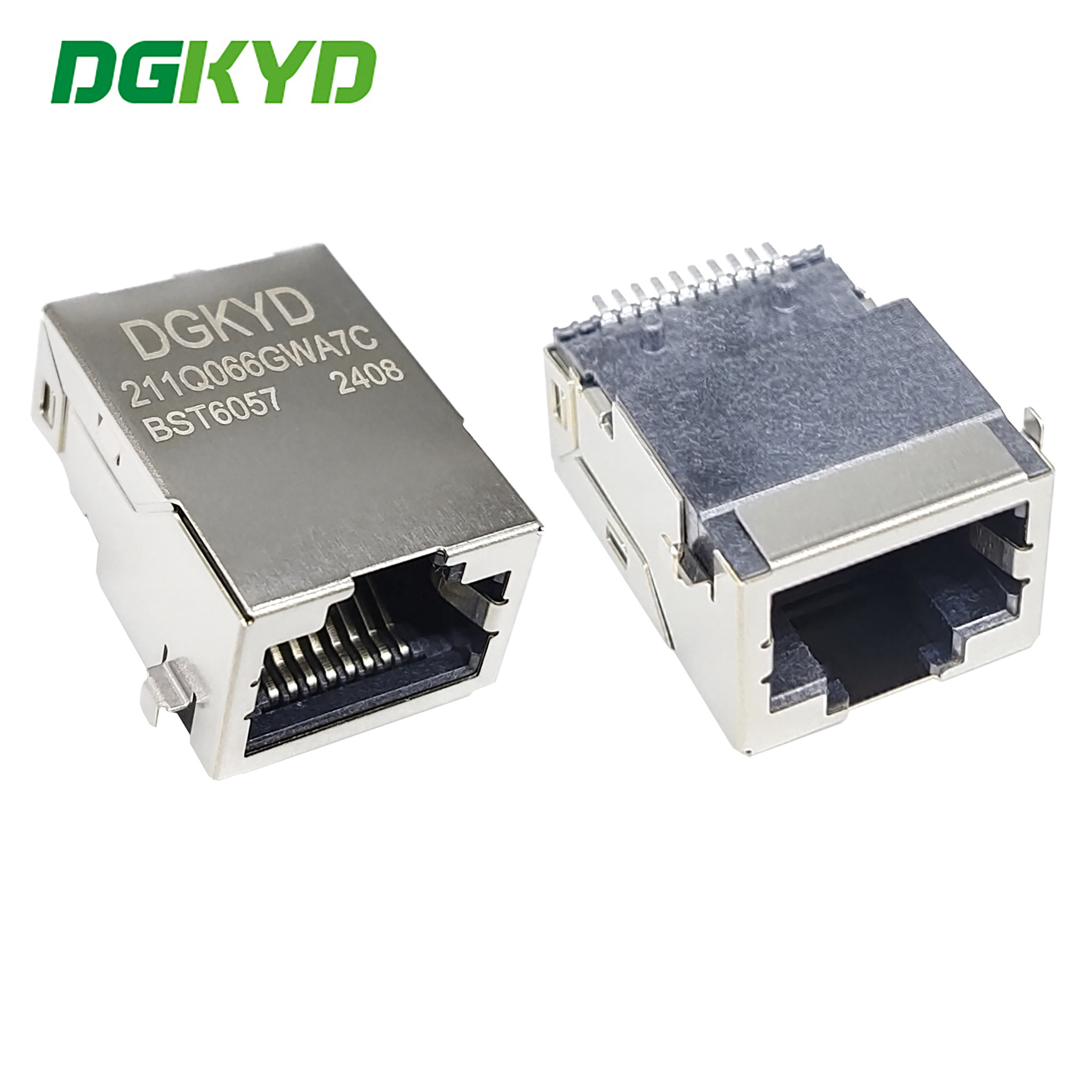

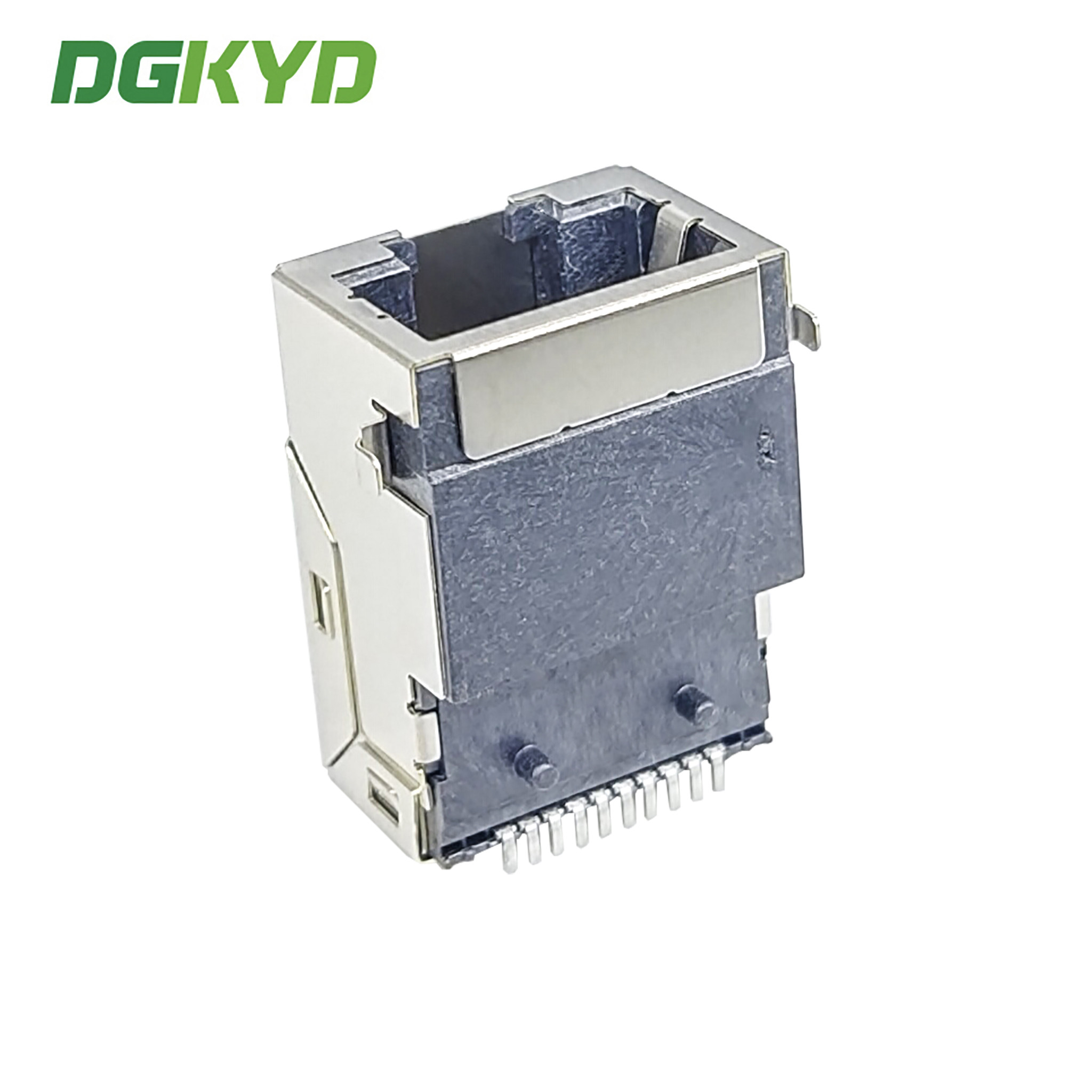

Product Specification Document
| Part Number | DGKYD211Q066GWA7CBST6057 | Brand | DGKYD/OEM/ODM |
| Place of Origin | Guangdong of China | Certification | ISO9001/ISO14001/CE /UL/FCC/Reach/RoHS |
| Product Type | Connector-Modular | Connector Style | Jack |
| Jack Type | RJ45 | Connector Type | Modular Jack |
| Latch Style | Standard | Latch | Down&Up |
| Filter | With Filter | LED Option |
Without LED |
| LED Color | No | Panel Stops | With Panel Stops |
| Shielded | Yes | Applies To | Printed Circuit Board |
| Performance Speed | 10/100/1000 BASE-T | Grounding Options | Panel Ground and PCB Ground |
| Port Configuration | single ports | Number of Positions | 10 |
| Jack Configuration | 1 x 1 | Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel | PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating Material | Gold 6u/15u/30u/50u | Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel | PCB Mounting Style | Through Hole |
| Termination Method to PC Board | Through Hole-Press-Fit | Board Lock | With/Without Board Lock |
| Housing Material | LCP Polyester | Housing Color | Black |
| Housing Material Temperature | Standard | UL Flammability Rating | UL 94V-0 |
| Packaging Type | Tray |
|---|---|
| Panel Mount | Spring |
| Plating min - Mating | 0.051µm (Au), 1.016µm (PdNi) |
| Ports | 1 |
| Positions / Loaded Contacts | 10/8 |
| Surface Mount Compatible (SMC) | No |
| Temperature Range - Operating | -40°C to +85°C |
| Termination Interface: Style | SMD |
