| 최소 주문 수량 : | 1 조각 | 가격 : | Please contact us to get the latest price. |
|---|---|---|---|
| 포장 세부 사항 : | 상자의 트레이 | 배달 시간 : | 10 일 |
| 지불 조건 : | T/T, D/P, D/A, L/C, Western Union, MoneyGram | 공급 능력 : | 100K PCS/DAY |
| 원래 장소: | 중국의 동복 | 브랜드 이름: | DGKYD |
|---|---|---|---|
| 인증: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | 모델 번호: | DGKYD111Q594AB2A12DB1 |
|
상세 정보 |
|||
| 모듈 식 잭 및 플러그 인터페이스 유형: | 변압기가있는 RJ45 | 커넥터 스타일: | RJ45 여성 잭 |
|---|---|---|---|
| 차폐: | 금속 차폐 | 속도: | cat6 |
| 상태 표시기: | 주도의 | 래치 방향: | 최상위 항목 |
| 위치/연락처 수: | 8p10c (RJ45, 이더넷) | OEM/ODM: | 예 |
| 콘택트 핀에 금도 도금: | 30U | 저장 온도: | -40 ° C ~+85 ° C |
| 작동 온도: | -40 ° C ~+85 ° C | ||
| 강조하다: | RJ45 connector 10G with transformer,shielded RJ45 connector with light,10G RJ45 connector with warranty |
||
제품 설명

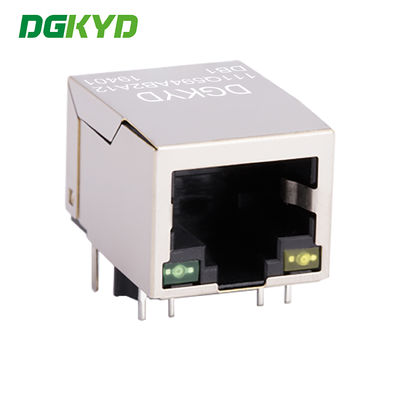

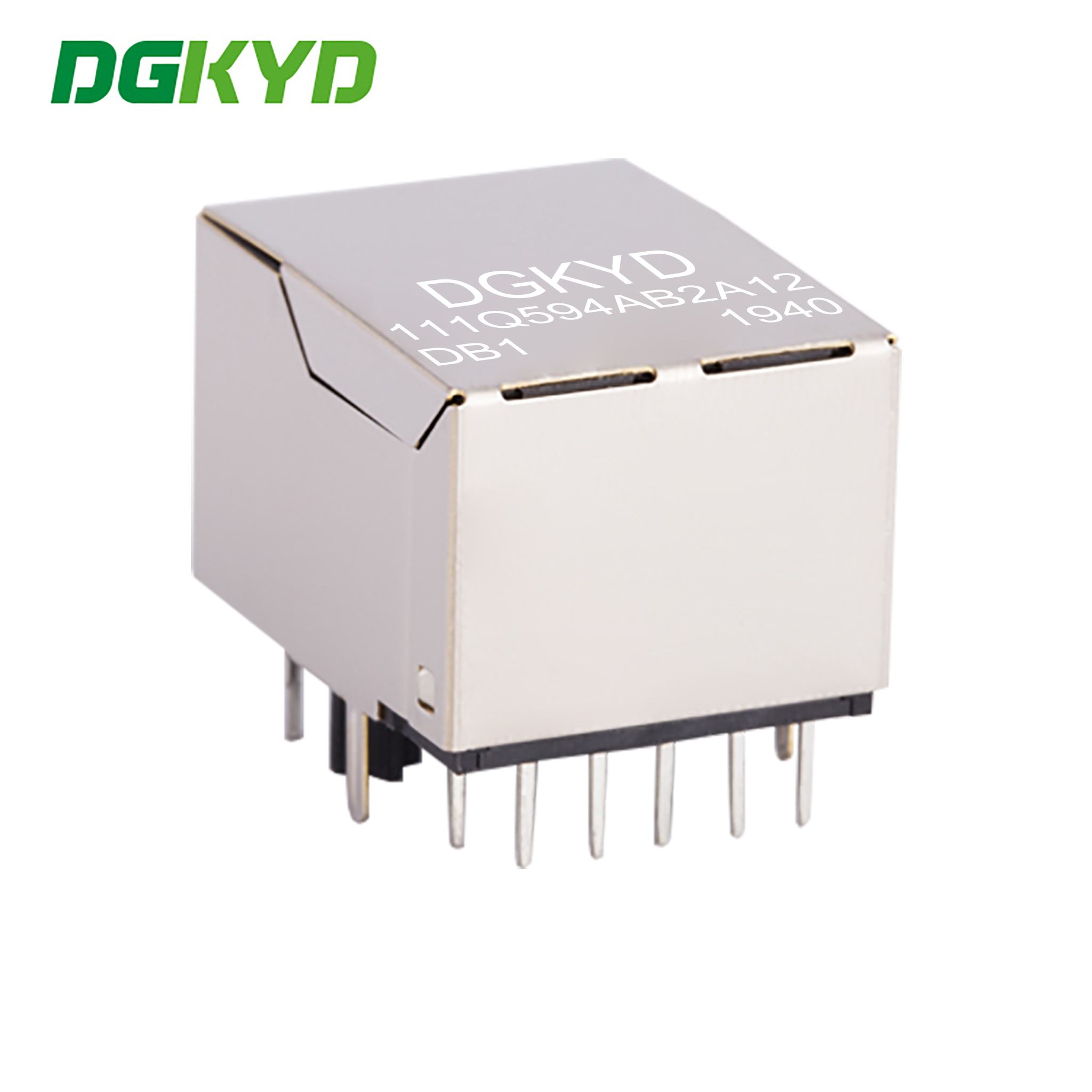

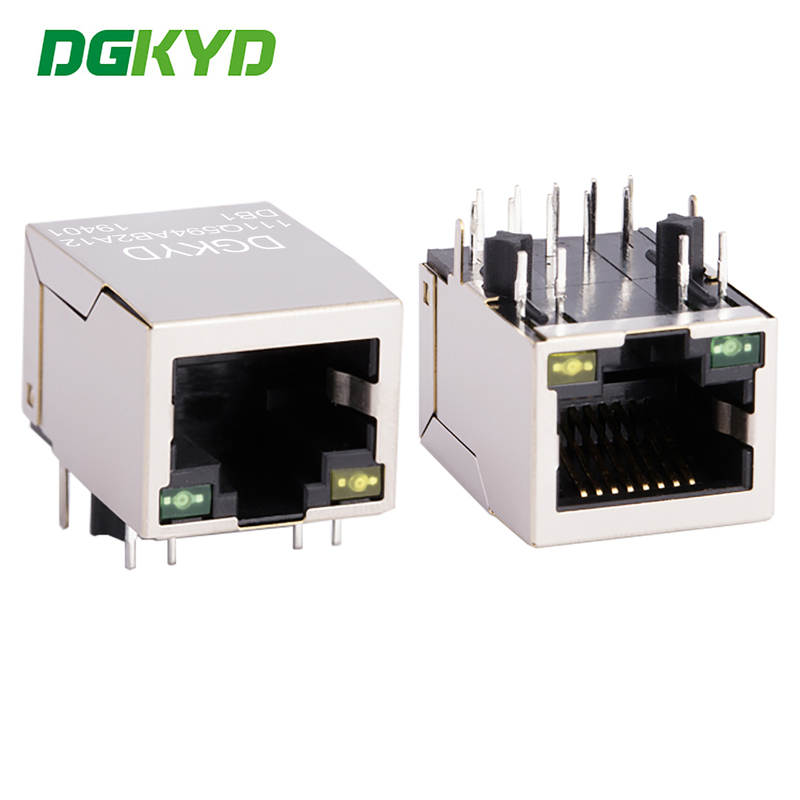

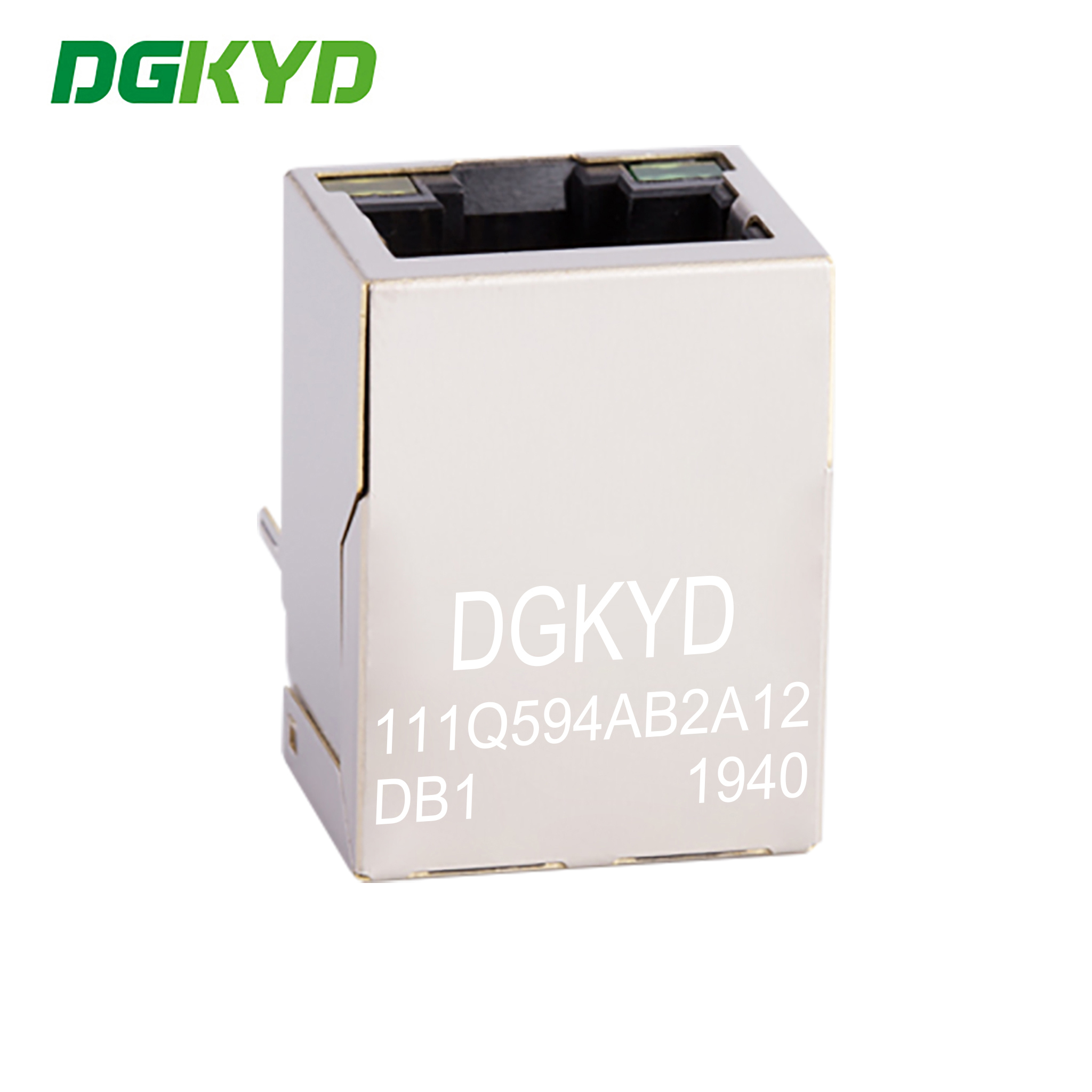

RJ45 connector with built-in 10G integrated transformer with light and shielding DGKYD111Q594AB2A12DB1
| Attribute | Value |
|---|---|
| Modular Jack & Plug Interface Type | RJ45 with transformer |
| Connector Style | RJ45 female Jack |
| Shielded | Metal Shielded |
| Speed | cat6 |
| Status Indicator | LED |
| Latch Orientation | Top Entry |
| Number of Positions/Contacts | 8p10c (RJ45, Ethernet) |
| OEM/ODM | Yes |
| Gold plating on contact pins | 30U |
| Storage temperature | -40°C~+85°C |
| Operating temperature | -40°C~+85°C |
Drawing: RJ45 connector with built-in 10G integrated transformer with light and shielding DGKYD111Q594AB2A12DB1
Product Specification Document: DGKYD111Q594AB2A12DB1(10G) .pdf
| Part Number | DGKYD111Q594AB2A12DB1 | Brand | DGKYD/OEM/ODM |
|---|---|---|---|
| Product Type | Connector-Modular | Connector Style | Jack |
| Jack Type | RJ45 | Connector Type | Modular Jack |
| Latch Style | Standard | Latch | TAB-DOWN |
| Filter | With Filter | LED Option | With LED |
| LED Color | Green/Yellow | Panel Stops | With Panel Stops |
| Shielded | With metal shield | Applies To | Printedout Circuit Board |
| Port Configuration | SIngle Ports | Number of Positions | 10 |
| Jack Configuration | 1X1 | Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel | PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating | Gold 30u | Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel | PCB Mounting Style | Through Hole |
| Termination Method to PC Board | Through Hole-Press-Fit | Board Lock | With/Without Board Lock |
| Housing Material | PA9T Polyester | Housing Color | Black |
| Housing Material Temperature | Standard | UL Flammability Rating | UL 94V-0 |
RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply
