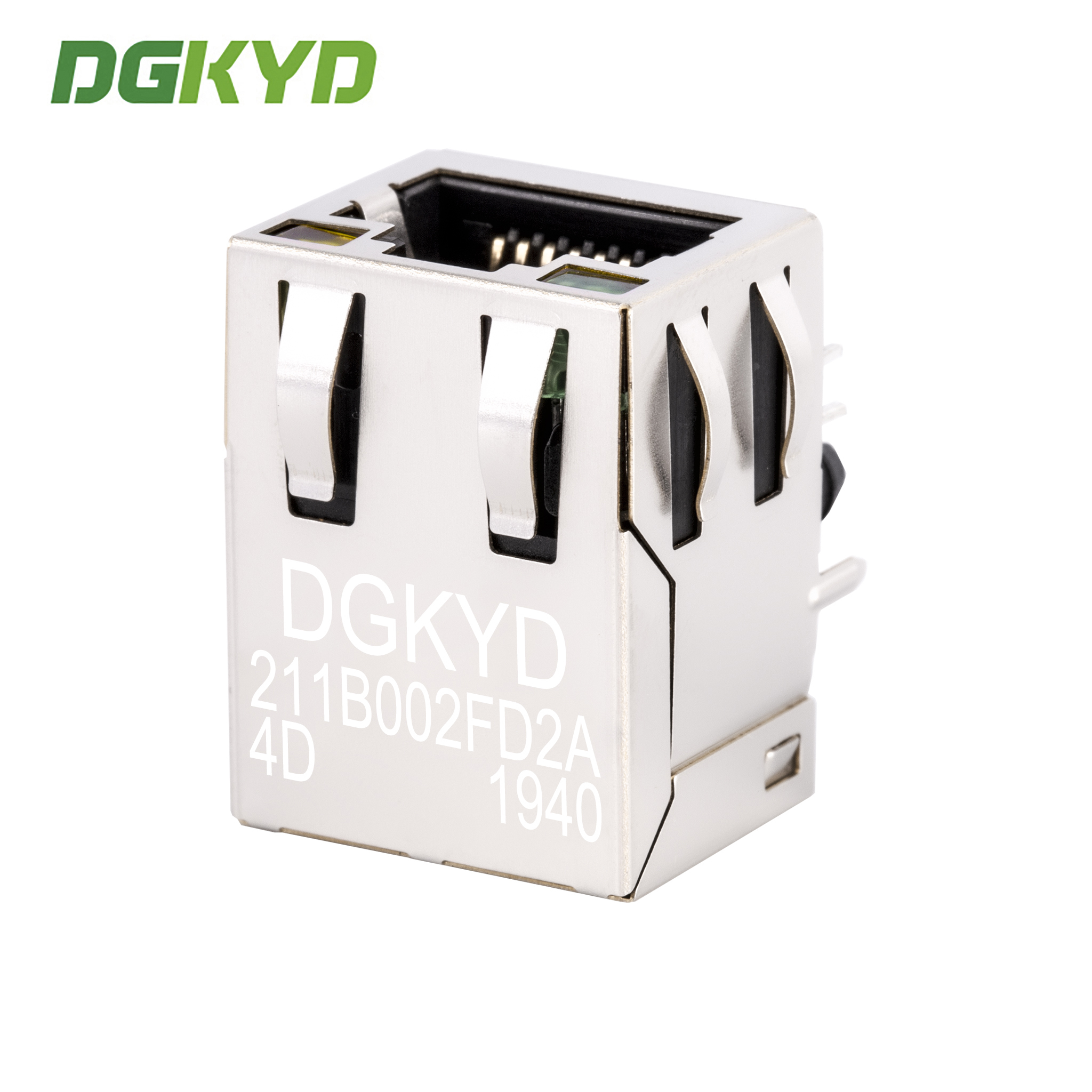

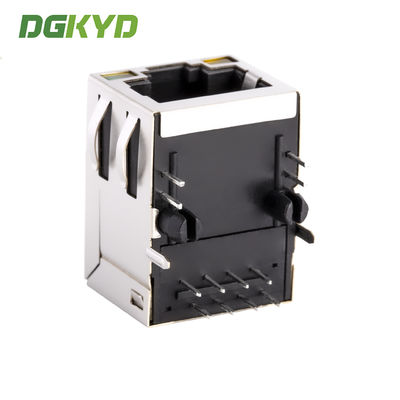

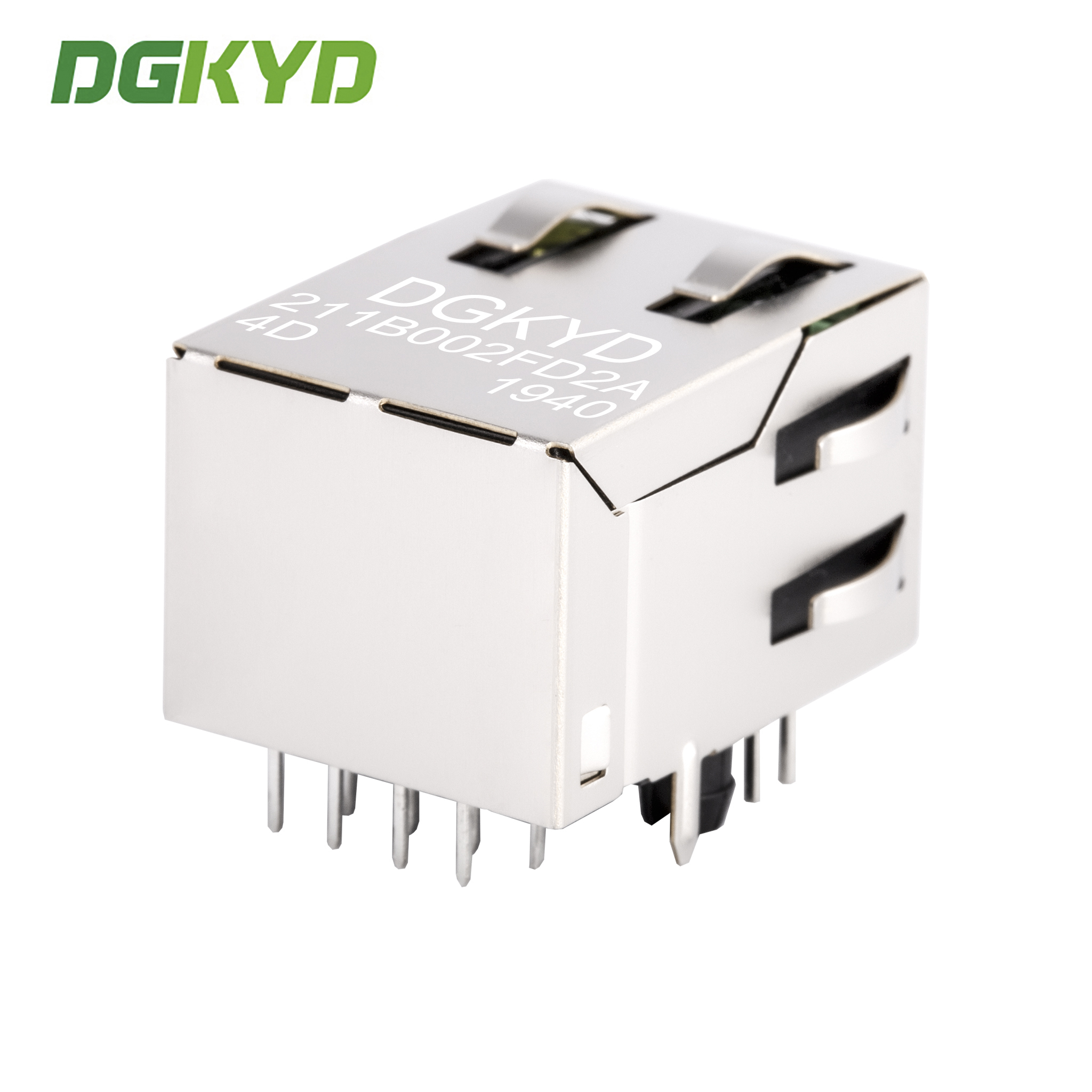

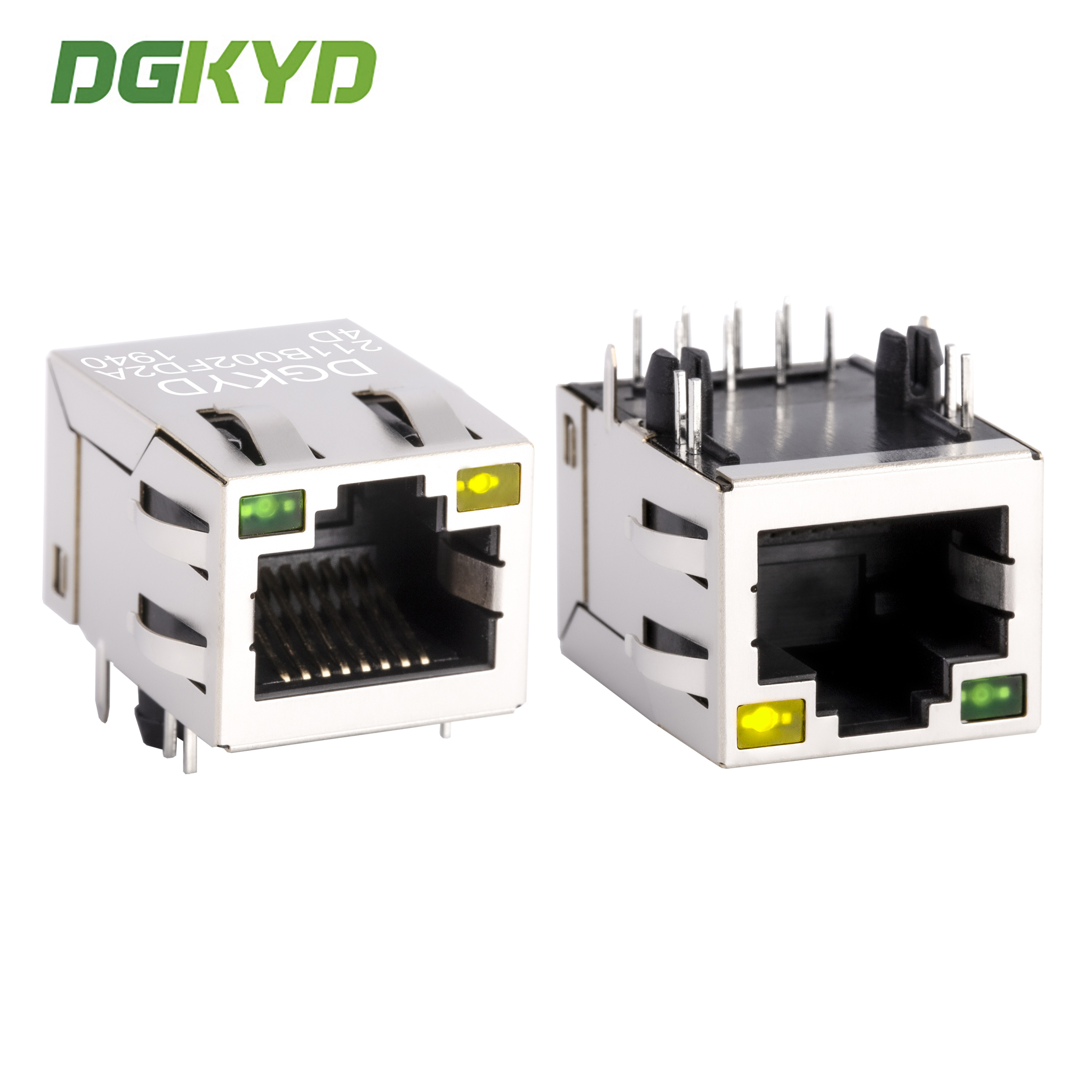

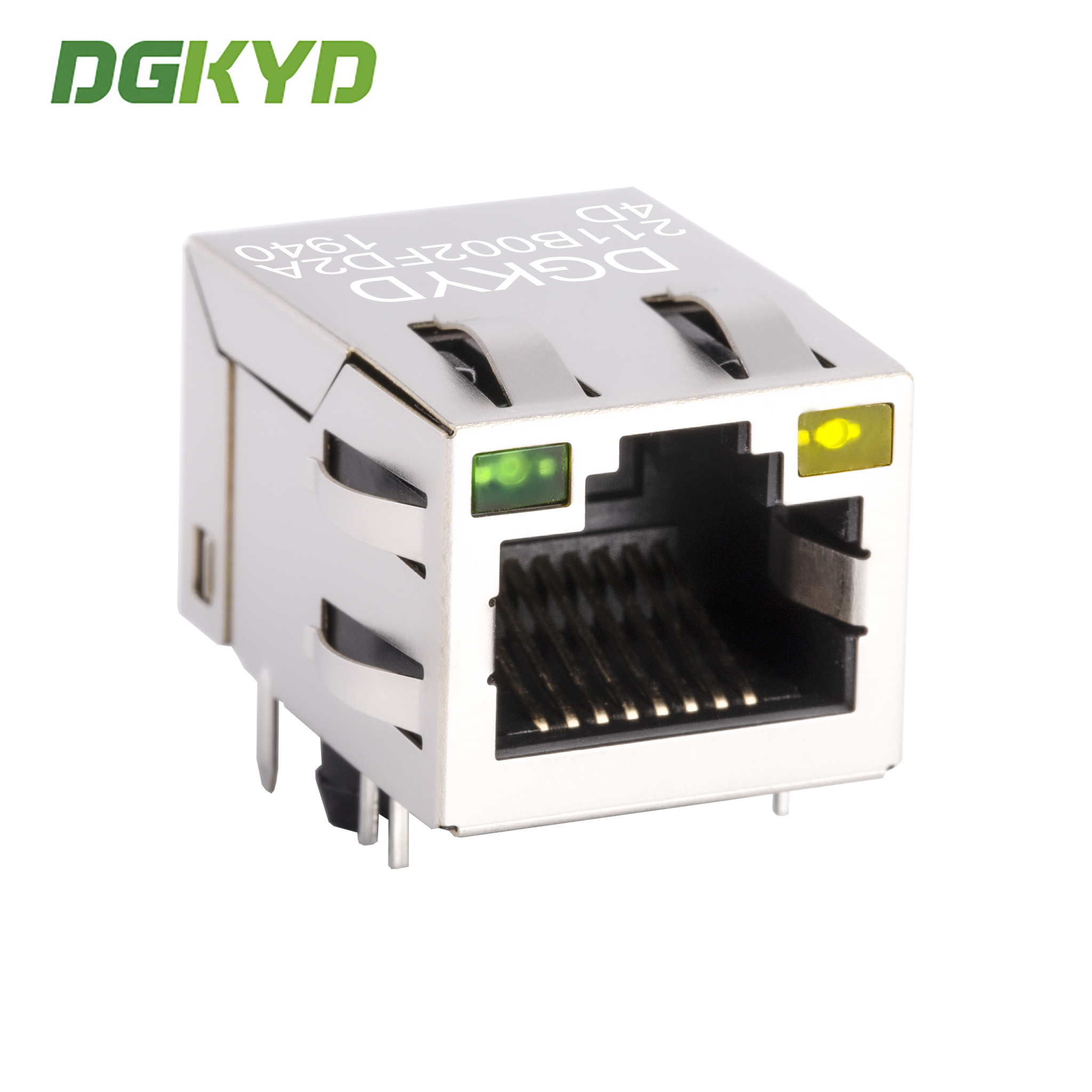

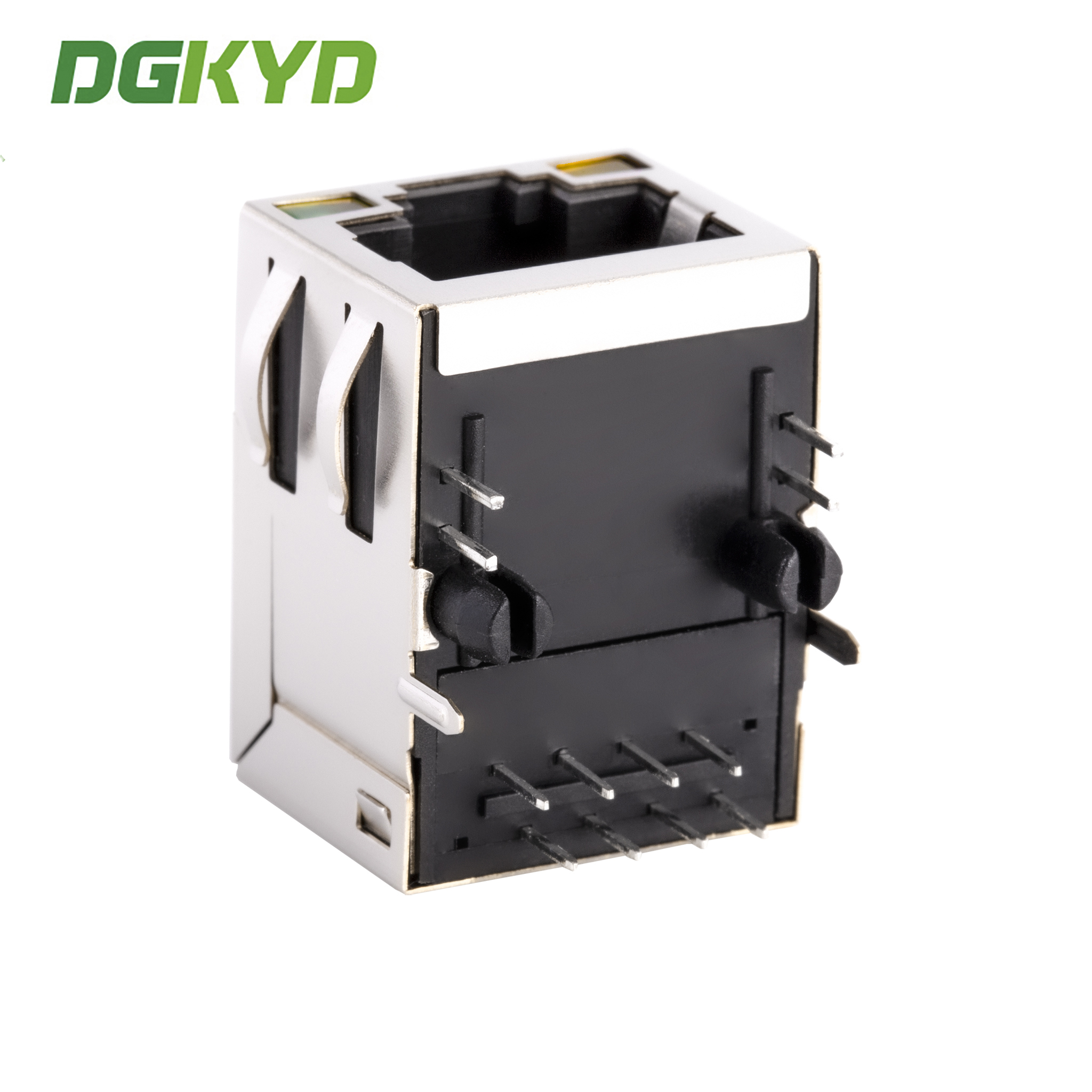

RJ45 network port socket with built-in 100Mbps integrated transformer and light DGKYD211B002FD2A4D
RJ45 network port socket with built-in 100Mbps integrated transformer and light DGKYD211B002FD2A4D RJ45 network port socket with built-in 100Mbps integrated transformer and light DGKYD211B002FD2A4D RJ45 network port socket with built-in 100Mbps integrated transformer and light DGKYD211B002FD2A4D RJ45 network port socket with built-in 100Mbps integrated transformer and light DGKYD211B002FD2A4D RJ45 network port socket with built-in 100Mbps integrated transformer and light DGKYD211B002FD2A4D
지금 연락

RJ45 network port socket with built-in 100Mbps integrated transformer and light DGKYD211B002FD2A4D

최소 주문 수량 : 1 조각 가격 : Please contact us to get the latest price.
포장 세부 사항 : 상자의 트레이 배달 시간 : 10 일
지불 조건 : T/T, D/P, D/A, L/C, Western Union, MoneyGram 공급 능력 : 100K PCS/DAY
원래 장소: 중국의 동복 브랜드 이름: DGKYD
인증: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 모델 번호: DGKYD211B002FD2A4D

상세 정보
제품 이름: RJ45 모듈 식 잭 성별: RJ45 리셉터클
유형: 멀티핀 RJ45 매그잭 애플리케이션: 광섬유, IP 카메라, DVR, DSL, 모뎀, WiFi 등
특징: 보호 된 RJ45 네트워크 포트 OEM/ODM: 예
콘택트 핀에 금도 도금: 6U 작동 온도: -40 ° C ~+85 ° C
저장 온도: -40 ° C ~+85 ° C 위치/연락처 수: 8P8c (RJ45, 이더넷)
방패: 포스 포어 구리 니켈 도금
강조하다:

RJ45 network port with 100Mbps transformer

,

RJ45 LAN jack with integrated transformer

,

RJ45 socket with built-in light indicator

제품 설명

RJ45 Network Port Socket with Built-in 100Mbps Integrated Transformer and Light DGKYD211B002FD2A4D
Product Description

RJ45 network port socket with built-in 100Mbps integrated transformer and light DGKYD211B002FD2A4D

Product Specification Document

Parameters
Part Number DGKYD211B002FD2A4D Brand DGKYD/OEM/ODM
Product Type Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type Modular Jack
Latch Style Standard Latch TAB-UP
Filter With Filter LED Option With LED
LED Color Green/Yellow Panel Stops With Panel Stops
Shielded With metal shield Applies To Printed Circuit Board
Port Configuration Single Ports Number of Positions 8
Jack Configuration 1X1 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation Side Entry (Right Angle)
Contact Mating Area Plating Gold 6u Contact Base Material Phosphor Bronze
Solder Tail Contact Plating Material Tin-Lead over Nickel PCB Mounting Style Through Hole
Termination Method to PC Board Through Hole-Press-Fit Board Lock With/Without Board Lock
Housing Material PBT Polyester Housing Color Black
Housing Material Temperature Standard UL Flammability Rating UL 94V-0
RJ45 network port socket with built-in 100Mbps integrated transformer and light DGKYD211B002FD2A4D 0 RJ45 network port socket with built-in 100Mbps integrated transformer and light DGKYD211B002FD2A4D 1
RJ45 network port socket with built-in 100Mbps integrated transformer and light DGKYD211B002FD2A4D 2 RJ45 network port socket with built-in 100Mbps integrated transformer and light DGKYD211B002FD2A4D 3 RJ45 network port socket with built-in 100Mbps integrated transformer and light DGKYD211B002FD2A4D 4 RJ45 network port socket with built-in 100Mbps integrated transformer and light DGKYD211B002FD2A4D 5 RJ45 network port socket with built-in 100Mbps integrated transformer and light DGKYD211B002FD2A4D 6 RJ45 network port socket with built-in 100Mbps integrated transformer and light DGKYD211B002FD2A4D 7 RJ45 network port socket with built-in 100Mbps integrated transformer and light DGKYD211B002FD2A4D 8 RJ45 network port socket with built-in 100Mbps integrated transformer and light DGKYD211B002FD2A4D 9
Product Features
  • Interface type: crystal head application: 10 / 100 / 1000BASE-T Ethernet
  • Type: RJ45 built in magnetics
  • Working frequency: high frequency characteristic: filtering, anti-interference
  • Working temperature: -40℃ to 85℃
  • Storage temperature: -40℃ to 85℃
  • Lead free soldering: wave soldering height up to 265℃
Product Advantages

RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply

  • Business mode: Manufacturer
  • Delivery time: on time delivery, around two weeks
  • Specs for choices: LED indicator light (green, yellow, red, orange, blue, bi-color LED)
  • Shield with EMI fingers or not
  • Coil ratio of magnetic core
  • Magnetics circuit diversification optional
  • Contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)
  • Plastic housing material (PBT, PA46, PA9T, LCP)

The electrical properties of the products meet the industry standards, the appearance and mechanical properties meet the appearance dimensions, the mechanical manufacturing industry standards, and the environmental protection standards. Your satisfaction is the purpose of our service!

Frequently Asked Questions
Q: Are you trading company or manufacture?
A: We are manufacture. Welcome to our factory.
Q: What about your lead time?
A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.
Q: Can you provide samples? Are they free?
A: Yes. Usually we can provide 2-3 samples of standard products free for testing.
Q: Can I put my own logo on it?
A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
