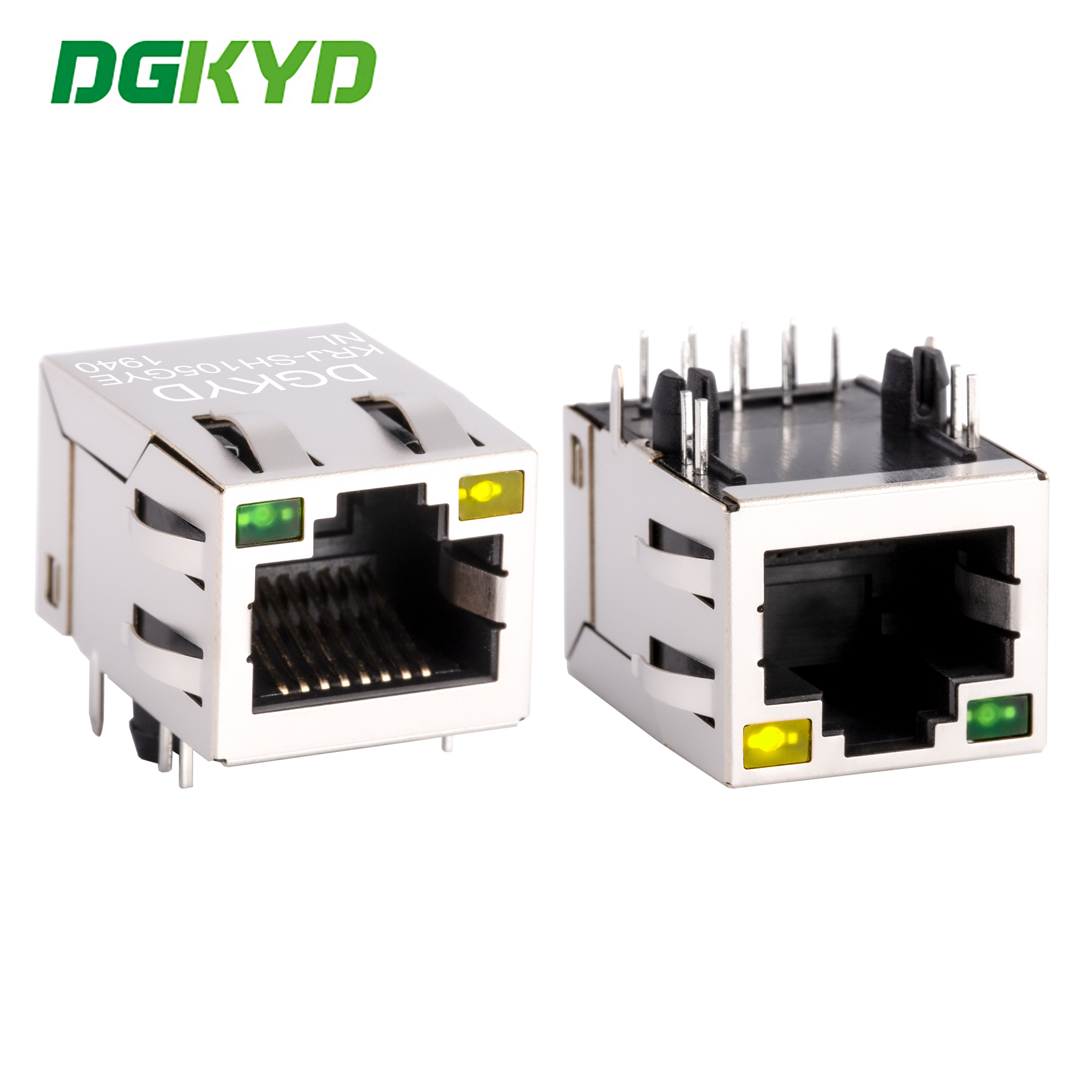

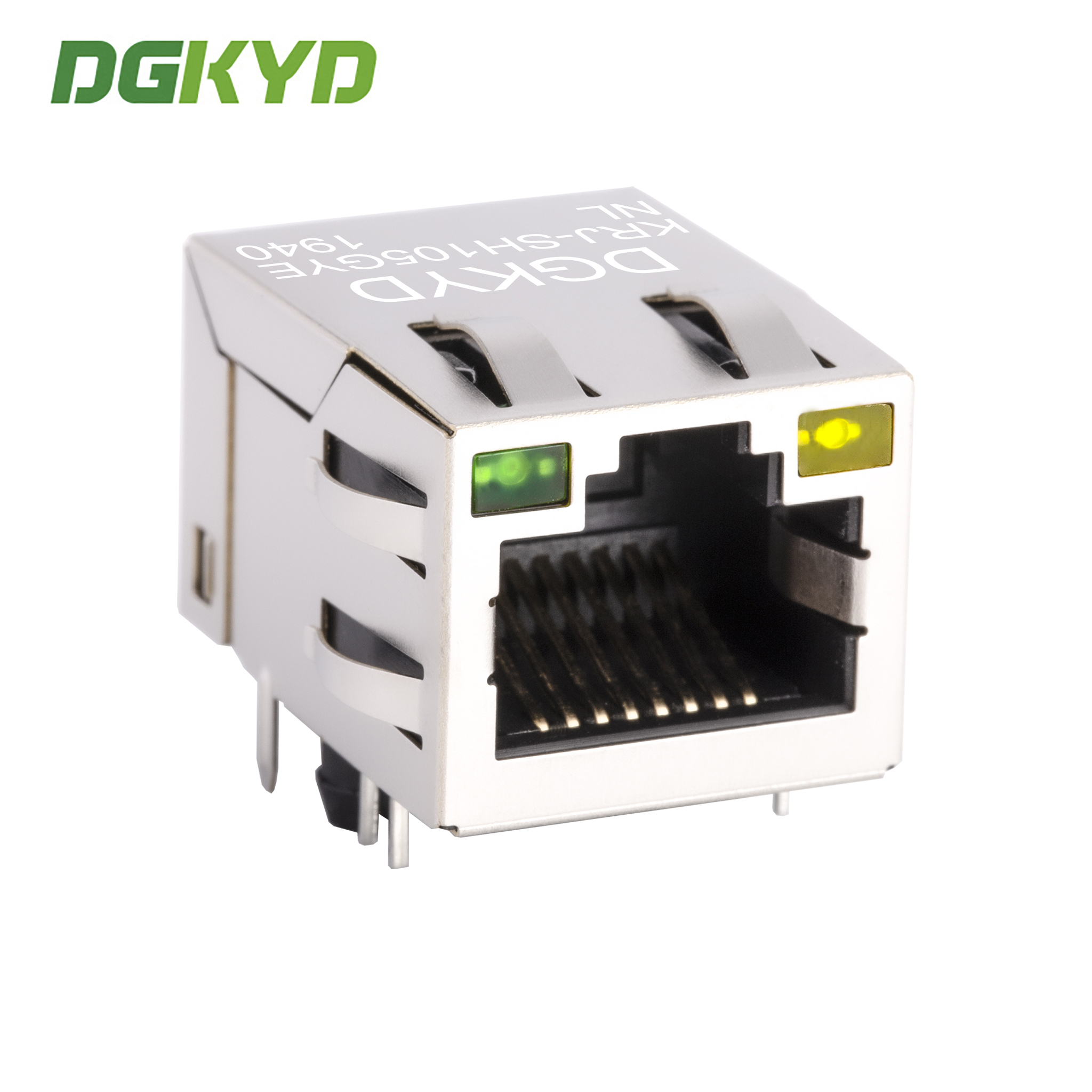

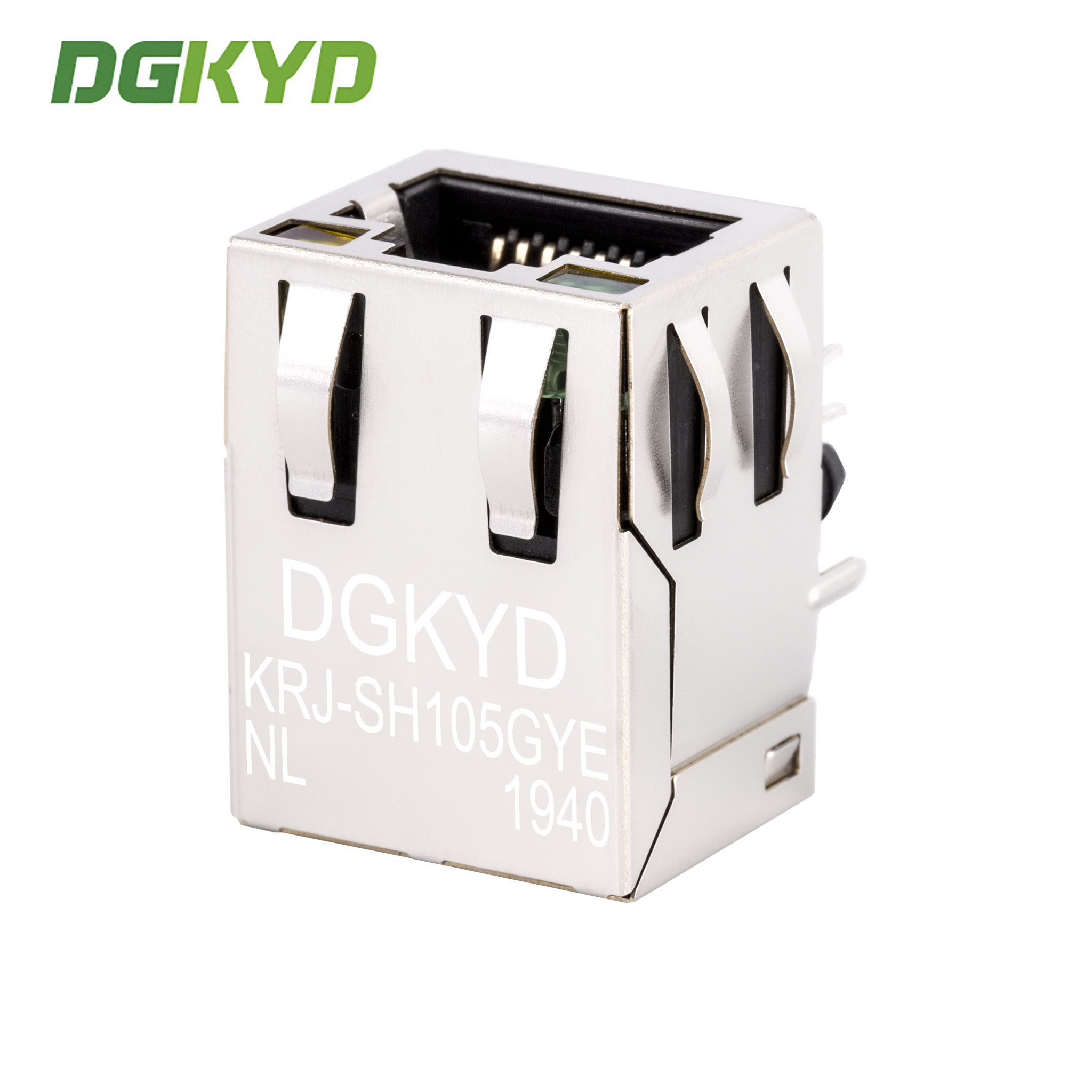

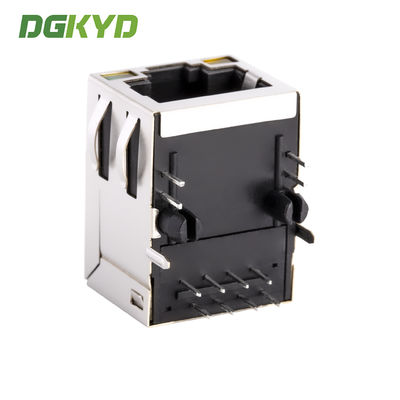

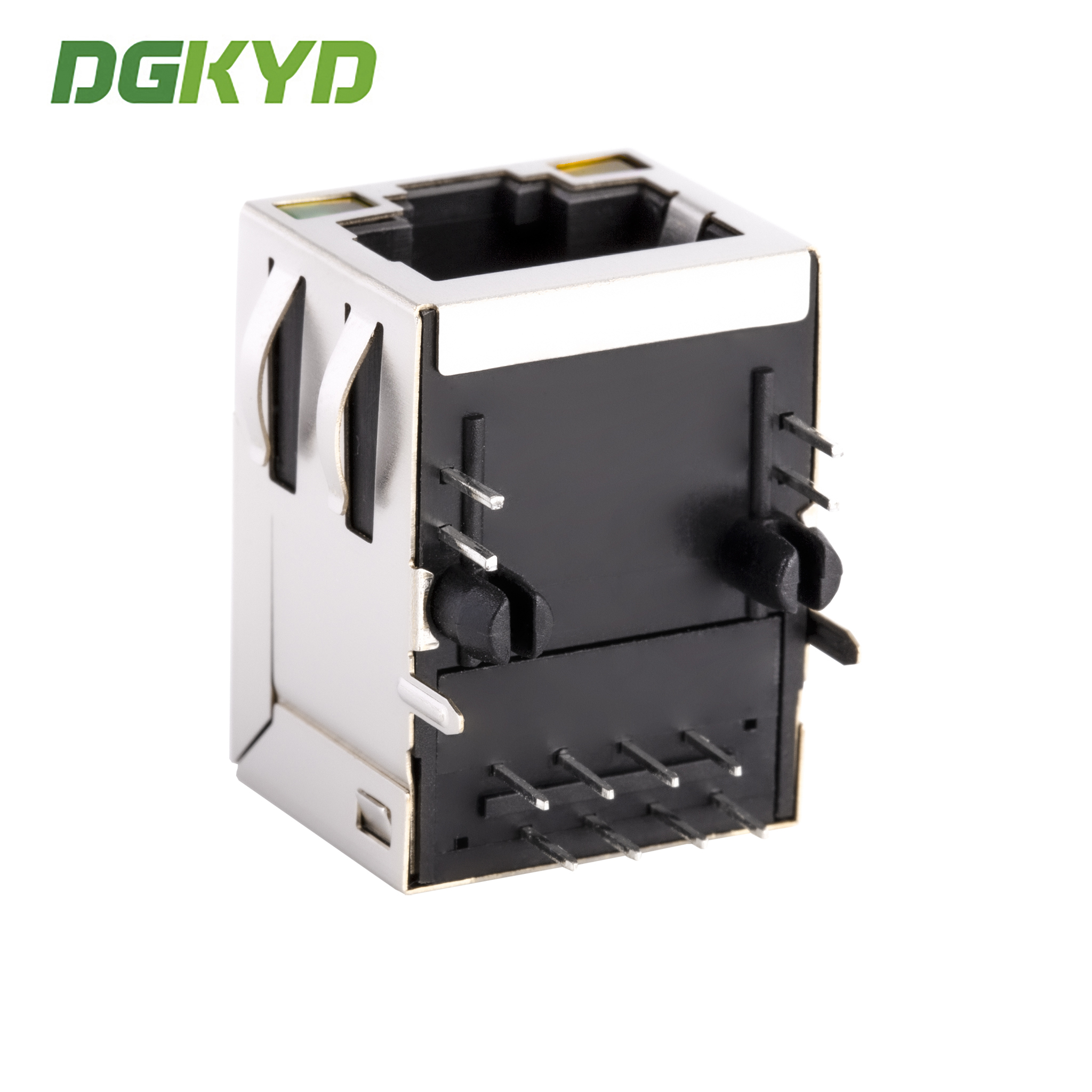

RJ45 network port socket with built-in 100Mbps integrated transformer with light and shielding KRJ-SH105GYENL

최소 주문 수량 :	1 조각	가격 :	Please contact us to get the latest price.
포장 세부 사항 :	상자의 트레이	배달 시간 :	10 일
지불 조건 :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	공급 능력 :	100K PCS/DAY

원래 장소:	중국의 동복	브랜드 이름:	DGKYD
인증:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	모델 번호:	KRJ-SH105GYENL

상세 정보
제품 이름:	RJ45 모듈 식 잭	성별:	RJ45 리셉터클
유형:	멀티핀 RJ45 매그잭	애플리케이션:	광섬유, IP 카메라, DVR, DSL, 모뎀, WiFi 등
특징:	보호 된 RJ45 네트워크 포트	OEM/ODM:	예
콘택트 핀에 금도 도금:	6U	작동 온도:	-40 ° C ~+85 ° C
저장 온도:	-40 ° C ~+85 ° C	위치/연락처 수:	8P8c (RJ45, 이더넷)
방패:	포스 포어 구리 니켈 도금
강조하다:	RJ45 female jack with shielding , 100Mbps RJ45 port with transformer , RJ45 network socket with LED indicator

제품 설명

RJ45 network port socket with built-in 100Mbps integrated transformer with light and shielding KRJ-SH105GYENL

Product Description

RJ45 network port socket with built-in 100Mbps integrated transformer with light and shielding KRJ-SH105GYENL

Parameters

Part Number	KRJ-SH105GYENL	Brand	DGKYD/OEM/ODM
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-UP
Filter	With Filter	LED Option	With LED
LED Color	Green/Yellow	Panel Stops	With Panel Stops
Shielded	With metal shield	Applies To	Printedout Circuit Board
Port Configuration	SIngle Ports	Number of Positions	8
Jack Configuration	1X1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating	Gold 6u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PBT Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

Our Strengths

Interface type: crystal head application: 10 / 100 / 1000BASE-T Ethernet
Type: RJ45 built in magnetics
Working frequency: high frequency characteristic: filtering, anti-interference
Working temperature: -40℃ - 85℃
Storage temperature: -40℃ - 85℃
Lead free soldering: wave soldering height up to 265℃

RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply

Business mode: Manufacturer
Delivery time: on time delivery, around two weeks.
Specs for choices:
- LED indicator light (green, yellow, red, orange, blue, bi-color LED)
- Shield with EMI fingers or not
- coil ratio of magnetic core
- magnetics circuit diversification optional
- contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)
- plastic housing material (PBT,PA46,PA9T, LCP)
The electrical properties of the products meet the industry standards, the appearance and mechanical properties meet the appearance dimensions, the mechanical manufacturing industry standards, and the environmental protection standards. Your satisfaction is the purpose of our service!

Q: Are you trading company or manufacture?

A: We are manufacture. Welcome to our factory.

Q: What about your lead time?

A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.

Q: Can you provide samples? Are they free?

A: Yes. Usually we can provide 2-3 samples of standard products free for testing.

Q: Can I put my own logo on it?

A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
