| 최소 주문 수량 : | 1개 조각 | 가격 : | Please contact us to get the latest price. |
|---|---|---|---|
| 포장 세부 사항 : | 상자의 트레이 | 배달 시간 : | 10 일 |
| 지불 조건 : | T/T, D/P, D/A, L/C, Western Union, MoneyGram | 공급 능력 : | 100K PCS/DAY |
| 원래 장소: | 중국의 동복 | 브랜드 이름: | DGKYD |
|---|---|---|---|
| 인증: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | 모델 번호: | DGKYD111B002DB1DDB |
|
상세 정보 |
|||
| 제품명: | 변압기가있는 RJ45 | 주택: | 페놀, PBT 황색(UL94V-0) |
|---|---|---|---|
| 플라스틱 코어: | 유리섬유 필러 PBT Yellow(UL94V-0),ROHS | 차폐 RJ45: | 예 |
| No.Port: | 1X1 | 유형: | 피메일 잭 |
| 주도의: | 노란색/녹색 | 위치/연락처 수: | 8P8c (RJ45, 이더넷) |
| 콘택트 핀에 금도 도금: | 6U | 작동 온도: | -40 ° C ~+85 ° C |
| 스토리지 저장 온도: | -40 ℃ ~ 85 ℃ | ||
| 강조하다: | RJ45 Ethernet socket with transformer,100Mbps industrial Ethernet socket,yellow RJ45 network interface |
||
제품 설명

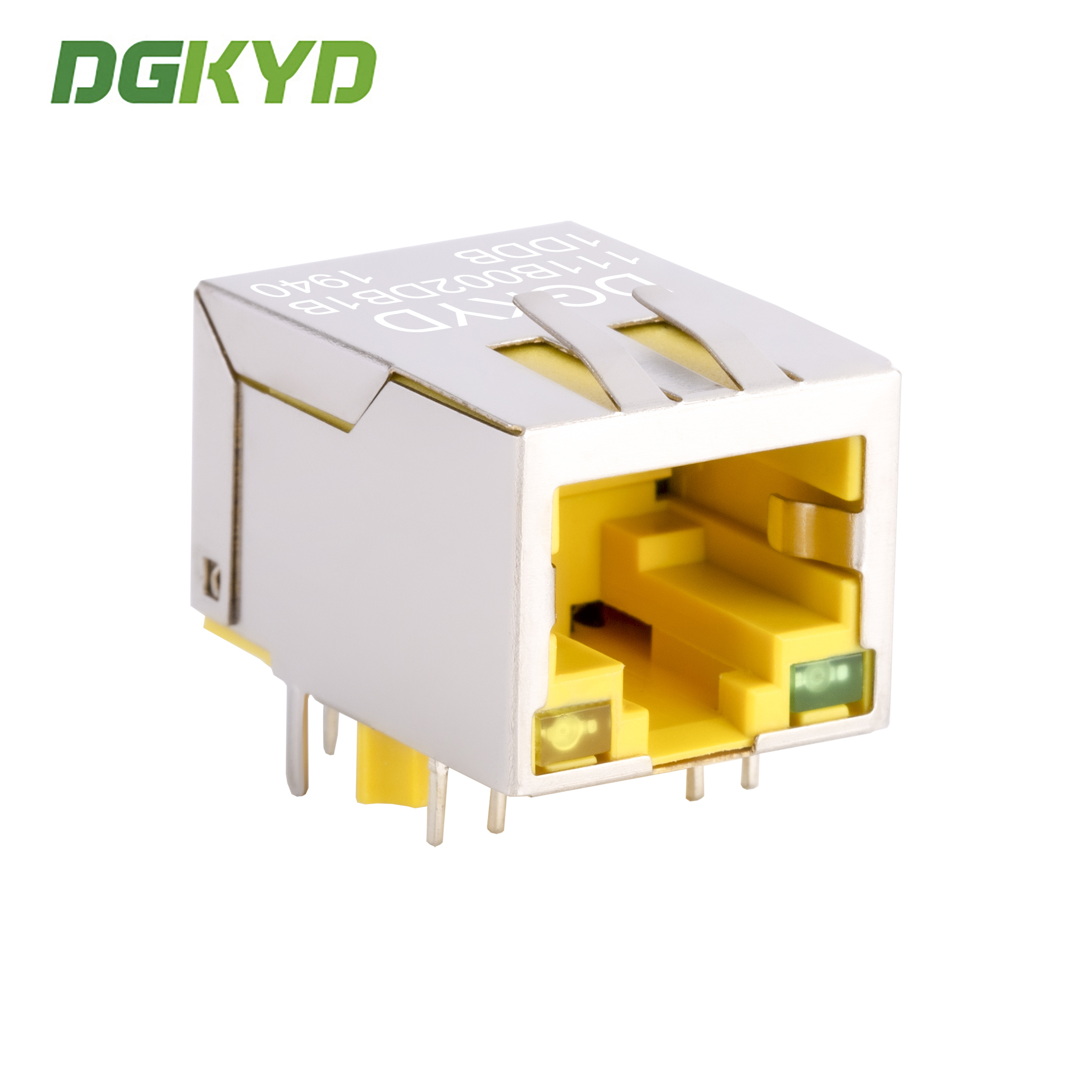

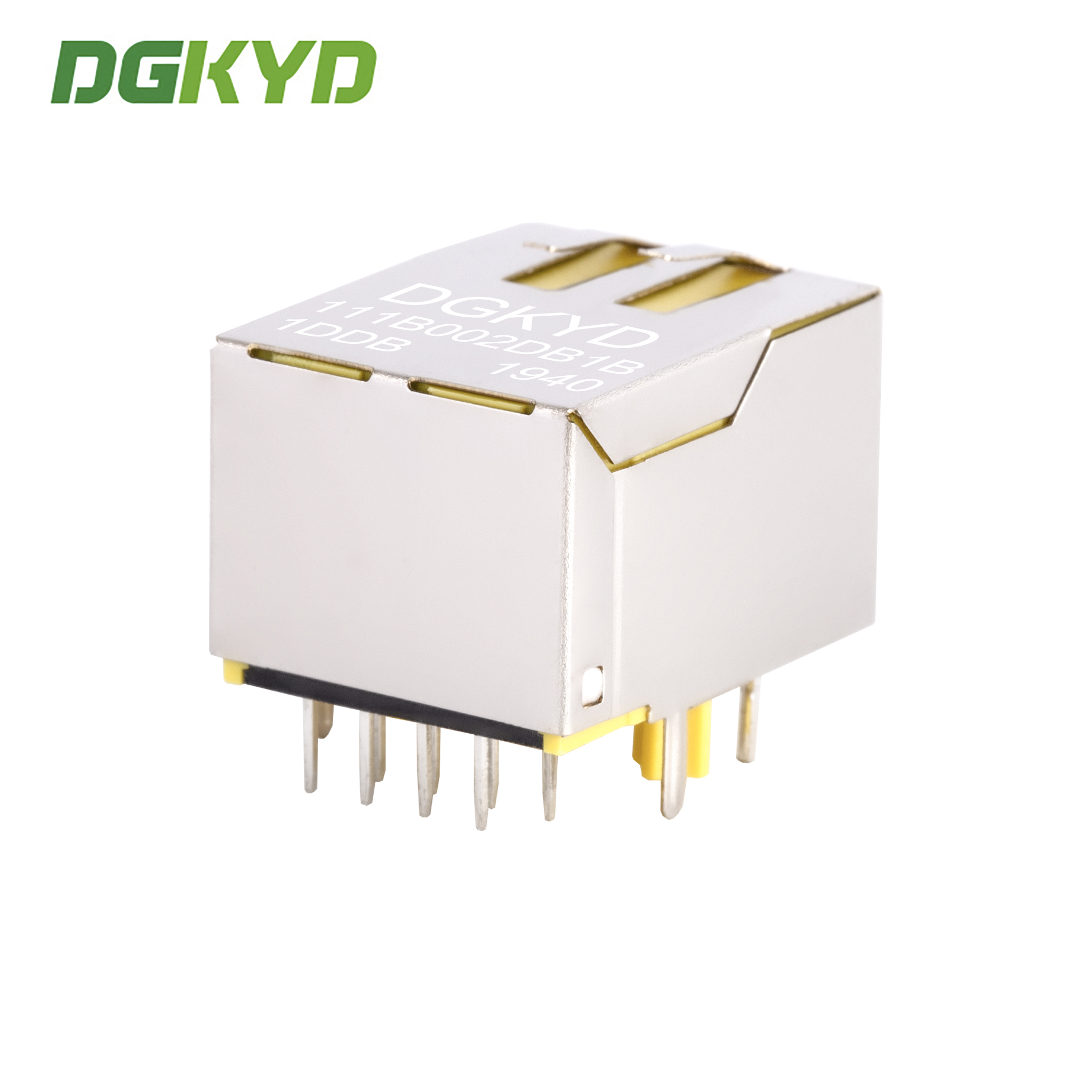

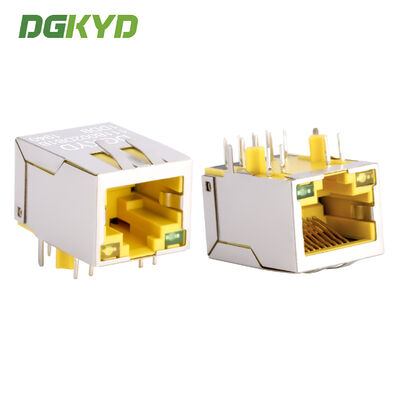

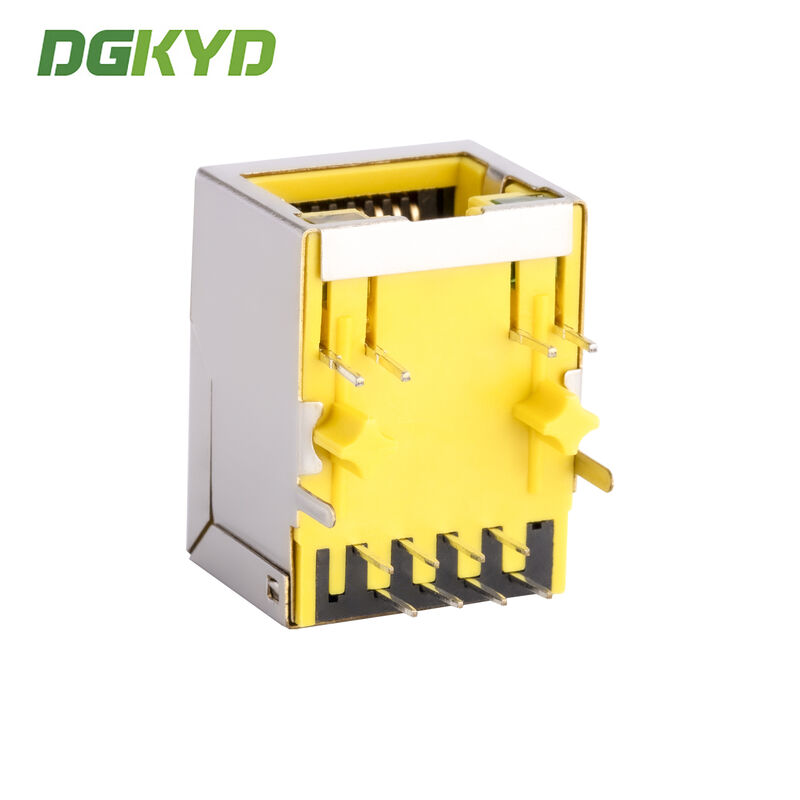

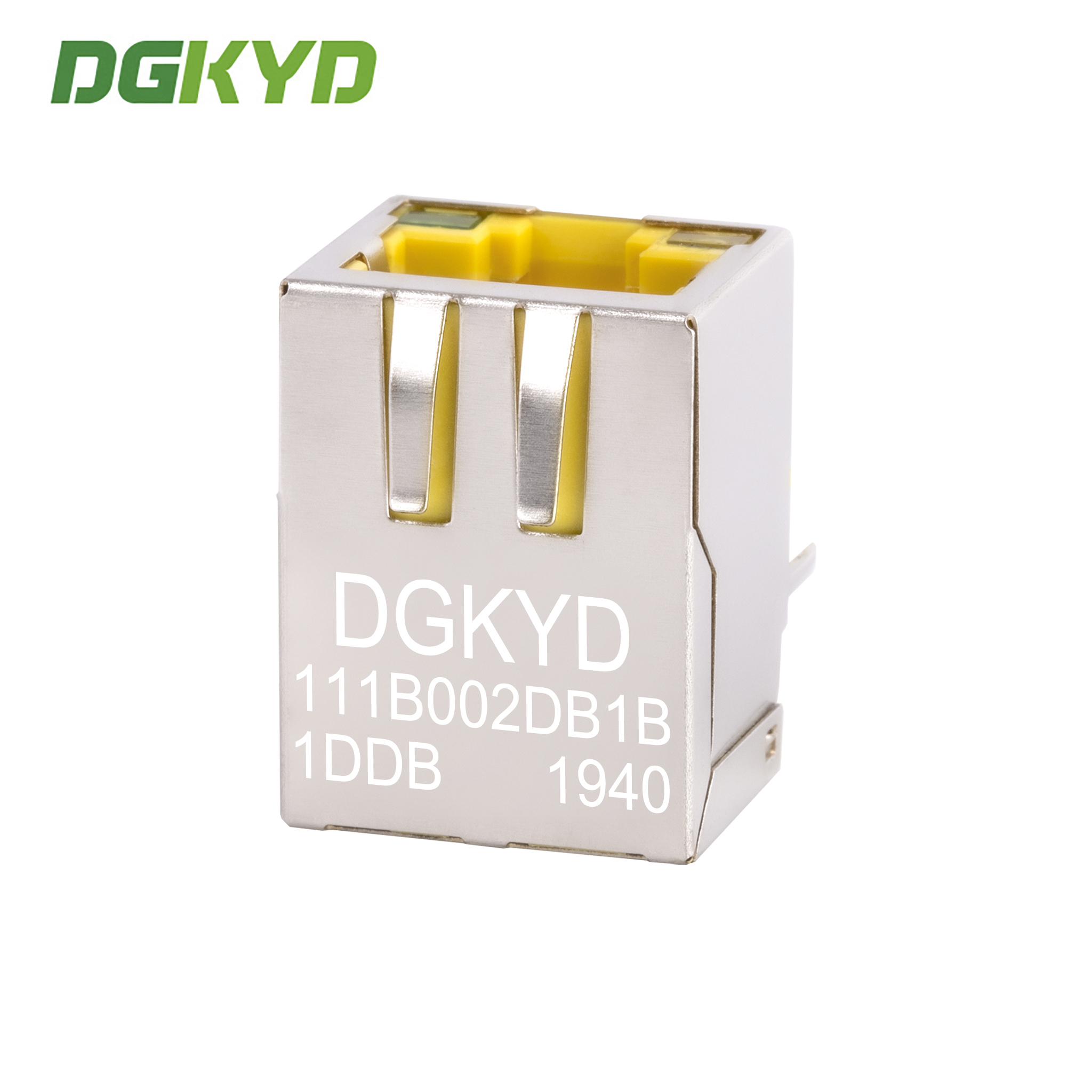

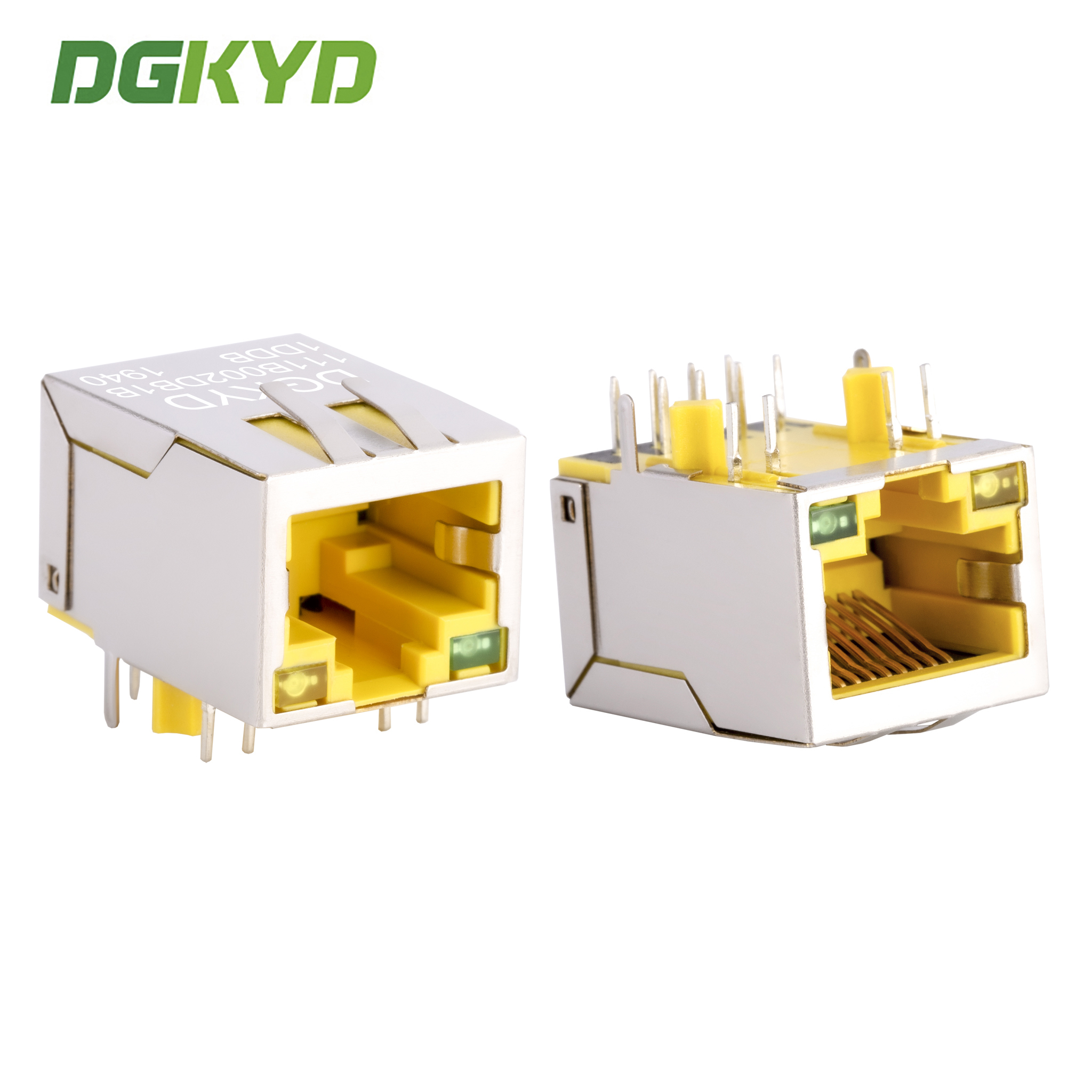

Part Number: DGKYD111B002DB1DDB | Brand: DGKYD/OEM/ODM
| Product Type | Connector-Modular |
|---|---|
| Connector Style | Jack |
| Jack Type | RJ45 |
| Connector Type | Modular Jack |
| Latch Style | Standard |
| Latch | TAB-DOWN |
| Filter | With Filter |
| LED Option | With LED |
| LED Color | Yellow/Green |
| Panel Stops | With Panel Stops |
| Shielded | With metal shield |
| Applies To | Printed Circuit Board |
| Port Configuration | 1X1 Ports |
| Number of Positions | 8 |
| Jack Configuration | 1X1 |
| Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel |
| PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating | Gold 6u |
| Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel |
| PCB Mounting Style | Through Hole |
| Termination Method to PC Board | Through Hole-Press-Fit |
| Board Lock | With/Without Board Lock |
| Housing Material | PBT Polyester |
| Housing Color | Yellow |
| Housing Material Temperature | Standard |
| UL Flammability Rating | UL 94V-0 |
RJ45, in order to keep good contact between gold finger and crystal head, should have gold plating on the surface. Available in 6u, 15u, 30u, 50u thicknesses (typically 6u used). Gold finger insert and pull life should be 750 times minimum.
| Emitting Color | Dominant Wavelength (nm) | Forward Voltage (v) | Forward Current (A) | Type |
|---|---|---|---|---|
| Green | 570-575 | 1.8-2.4 | 20mA | Squareness |
| Yellow | 585-590 | 1.8-2.4 | 20mA | Squareness |
A: We are manufacturer. Welcome to our factory.
A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.
A: Yes. Usually we can provide 2-3 samples of standard products free for testing.
A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
