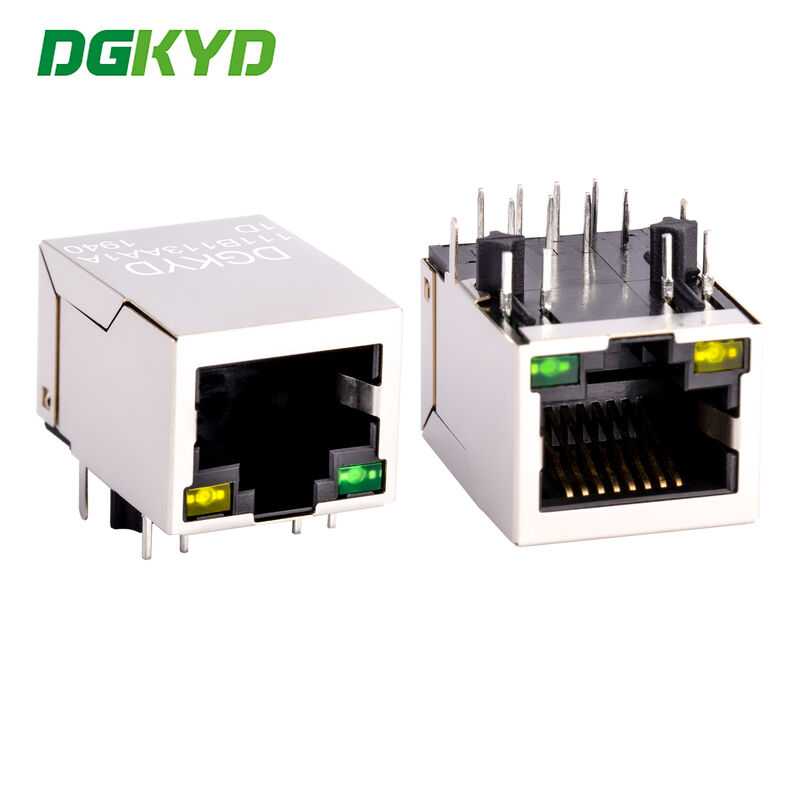

RJ45 network interface integrated 100Mbps filter network port socket horizontal DGKYD111B113AA1D

최소 주문 수량 :	1개 조각	가격 :	Please contact us to get the latest price.
포장 세부 사항 :	상자의 트레이	배달 시간 :	10 일
지불 조건 :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	공급 능력 :	100K PCS/DAY

원래 장소:	중국의 동복	브랜드 이름:	DGKYD
인증:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	모델 번호:	DGKYD111B113AA1A1D

상세 정보
성능:	고양이5	제품명:	RJ45 PCB 연결기
공항 배향:	측면 엔트리	방식을 탑재하세요:	PCB 마운트
차폐 RJ45:	예	유형:	RJ45
주도의:	노란색/녹색	위치/연락처 수:	8P8c (RJ45, 이더넷)
콘택트 핀에 금도 도금:	6U	작동 온도:	-40 ° C ~+85 ° C
스토리지 저장 온도:	-40 ℃ ~ 85 ℃
강조하다:	RJ45 network port socket 100Mbps , RJ45 PCB connector horizontal mount , RJ45 filter network port with warranty

제품 설명

Product Specifications

Part Number	DGKYD111B113AA1D	Brand	DGKYD/OEM/ODM
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-DOWN
Filter	With Filter	LED Option	With LED
LED Color	Yellow/Green	Panel Stops	With Panel Stops
Shielded	With metal shield	Applies To	Printed Circuit Board
Port Configuration	1X1 Ports	Number of Positions	8
Jack Configuration	1X1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating	Gold 6u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PBT Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

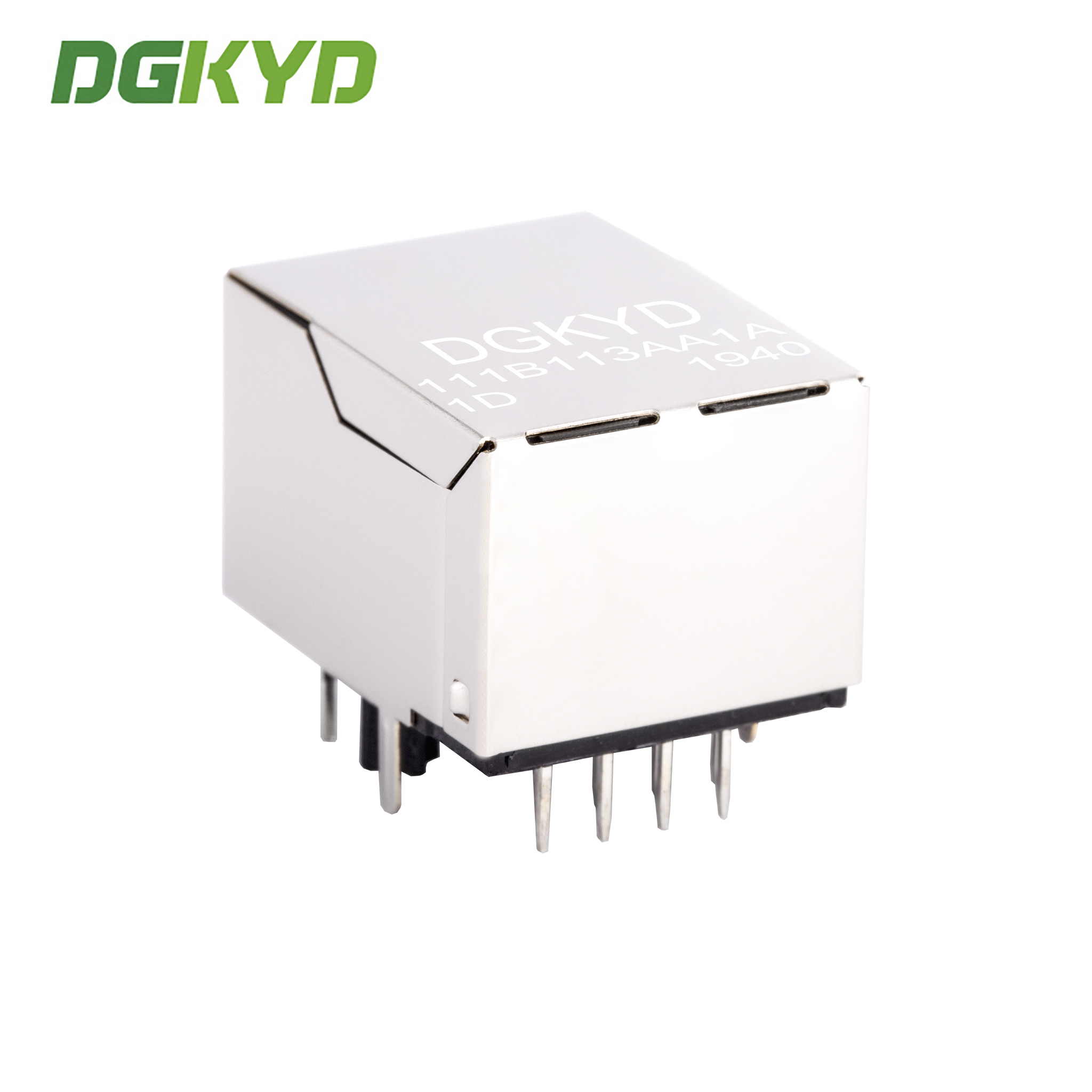

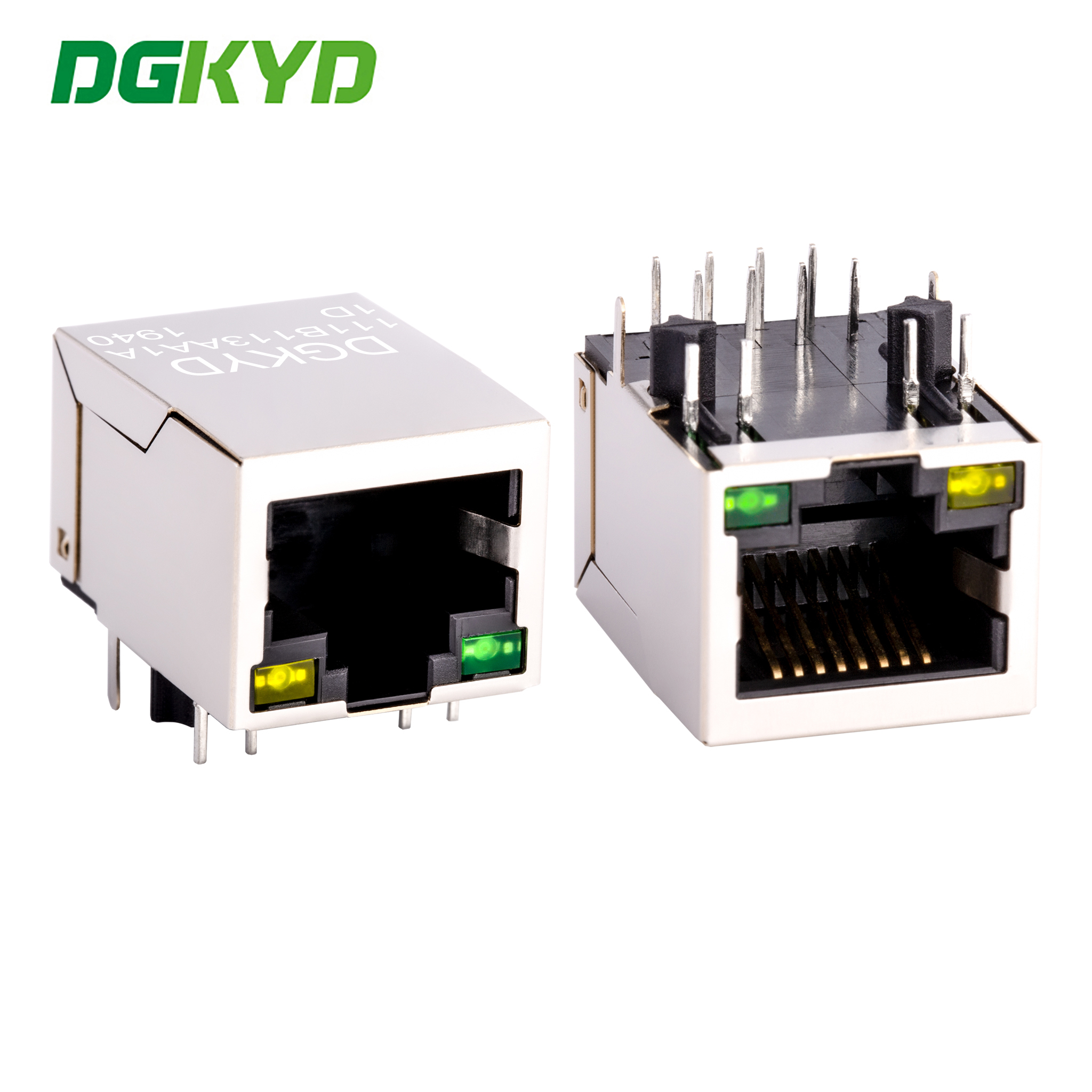

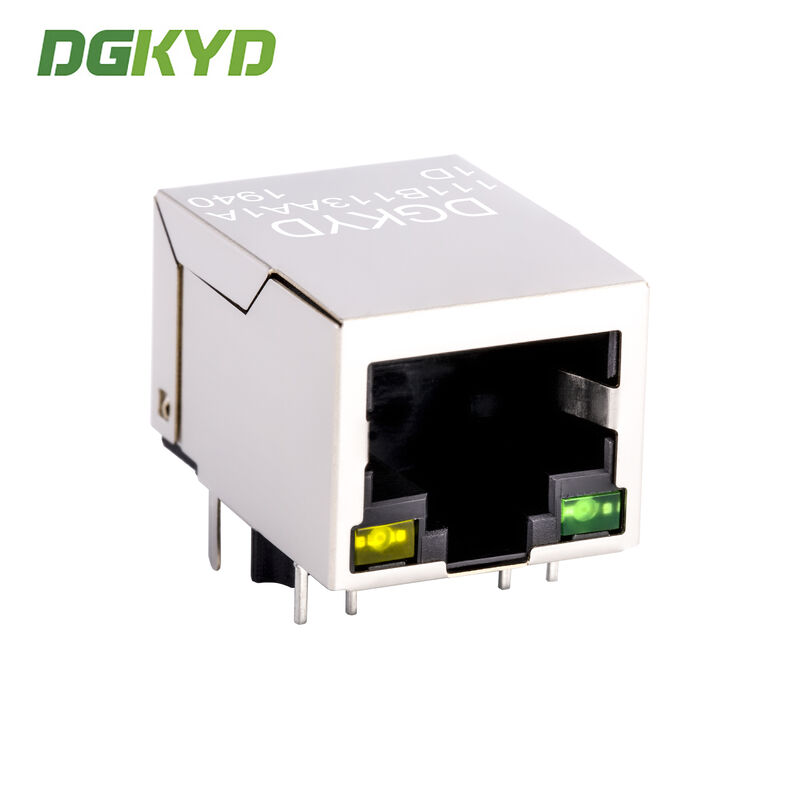

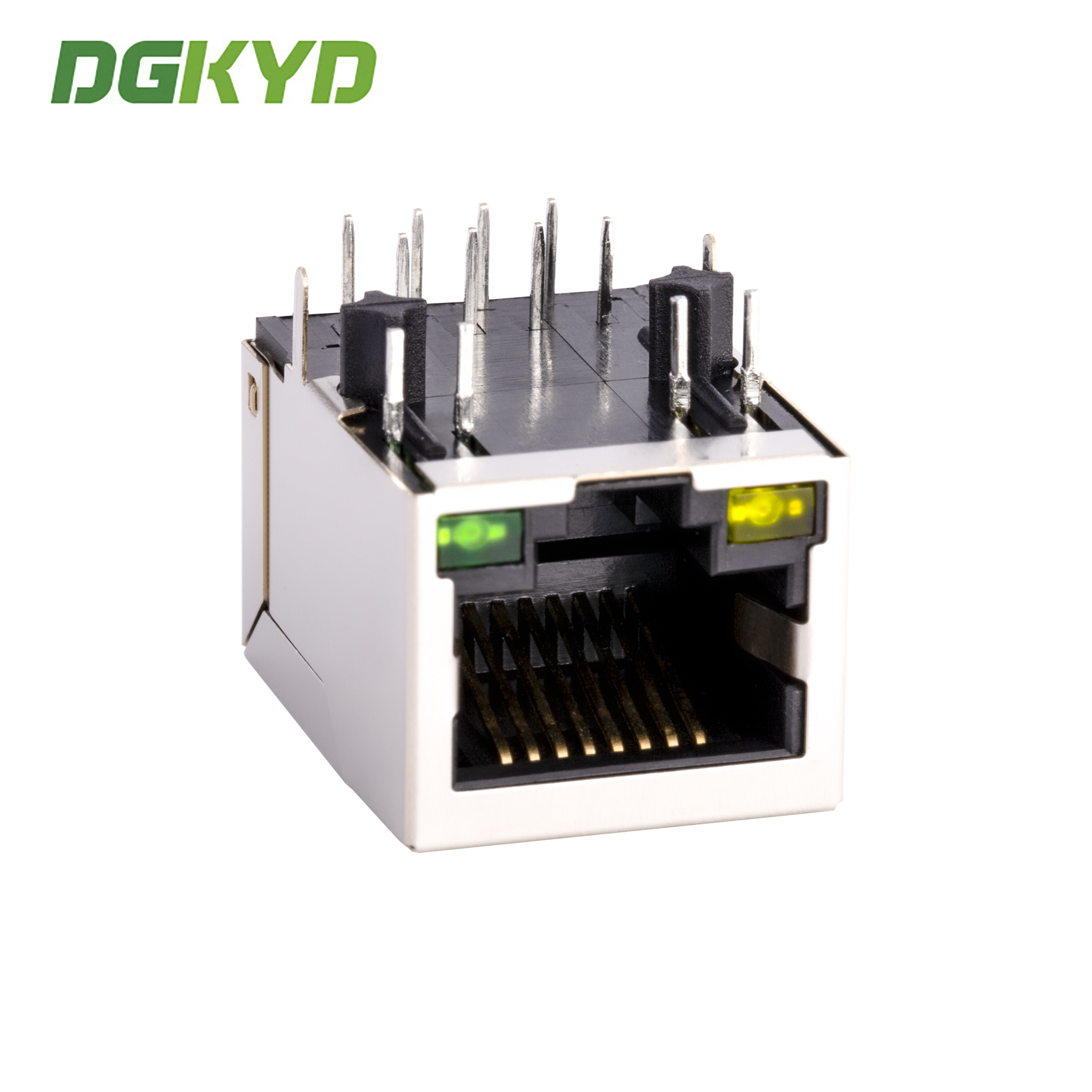

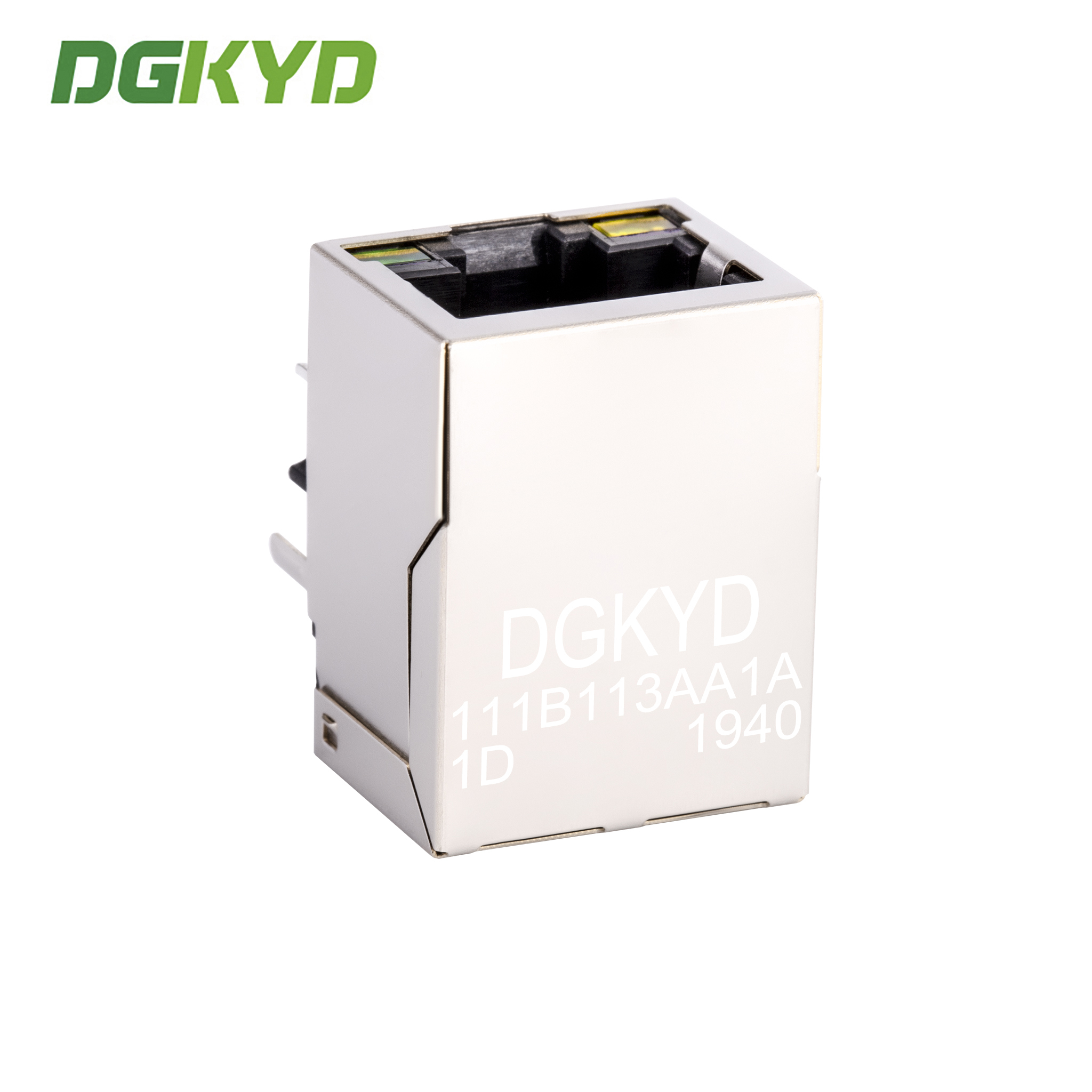

Product Images

LED Specifications

Emitting color	Dominant wavelength(nm) (min/max)	Forward voltage (v)	Forward current (A)	Type
Green	570-575	1.8-2.4	20mA	Squareness
Yellow	585-590	1.8-2.4	20mA	Squareness

Product Features

Manufacturing Advantages

RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply
Business mode: Manufacturer
Delivery time: on time delivery, around two weeks
Customization options available for LED indicator lights, shielding, magnetic core ratios, contact plating, and housing materials
Products meet industry standards for electrical properties, mechanical properties, and environmental protection

RJ45 network port socket 100Mbps
