KRJ-1812QGGOYNL Vertical RJ45 Connector Gigabit Network Interface Industrial Ethernet Socket Vertical entry cat6 RJ45 connector Gigabit Magnetic Jack w / bi - color LED

최소 주문 수량 :	1개 조각	가격 :	Please contact us to get the latest price.
포장 세부 사항 :	상자의 트레이	배달 시간 :	10 일
지불 조건 :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	공급 능력 :	100K PCS/DAY

원래 장소:	중국의 동복	브랜드 이름:	DGKYD
인증:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	모델 번호:	KRJ-1812QGGOYNL

상세 정보
범주:	모듈러 잭	구성 요소 유형:	PCB 잭
성능 카테고리:	5E&6	인세션 타입:	프테르티칼 180 degree/
차폐 RJ45:	예	유형:	RJ45
주도의:	녹색/녹색-주황색	위치/연락처 수:	8p10c (RJ45, 이더넷)
콘택트 핀에 금도 도금:	6U	작동 온도:	-40 ° C ~+85 ° C
스토리지 저장 온도:	-40 ℃ ~ 85 ℃
강조하다:	vertical RJ45 connector gigabit , industrial Ethernet socket cat6 , RJ45 magnetic jack LED

제품 설명

KRJ-1812QGGOYNL Vertical RJ45 Connector

Gigabit Network Interface Industrial Ethernet Socket Vertical entry cat6 RJ45 connector Gigabit Magnetic Jack with bi-color LED

Product Specifications

Part Number	KRJ-1812QGGOYNL	Brand	DGKYD/OEM/ODM
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-UP
Filter	With Filter	LED Option	With LED
LED Color	Green/Green-Orange	Panel Stops	With Panel Stops
Shielded	With metal shield	Applies To	Printed Circuit Board
Port Configuration	1X1 Ports	Number of Positions	10
Jack Configuration	1X1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating	Gold 6u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PBT Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

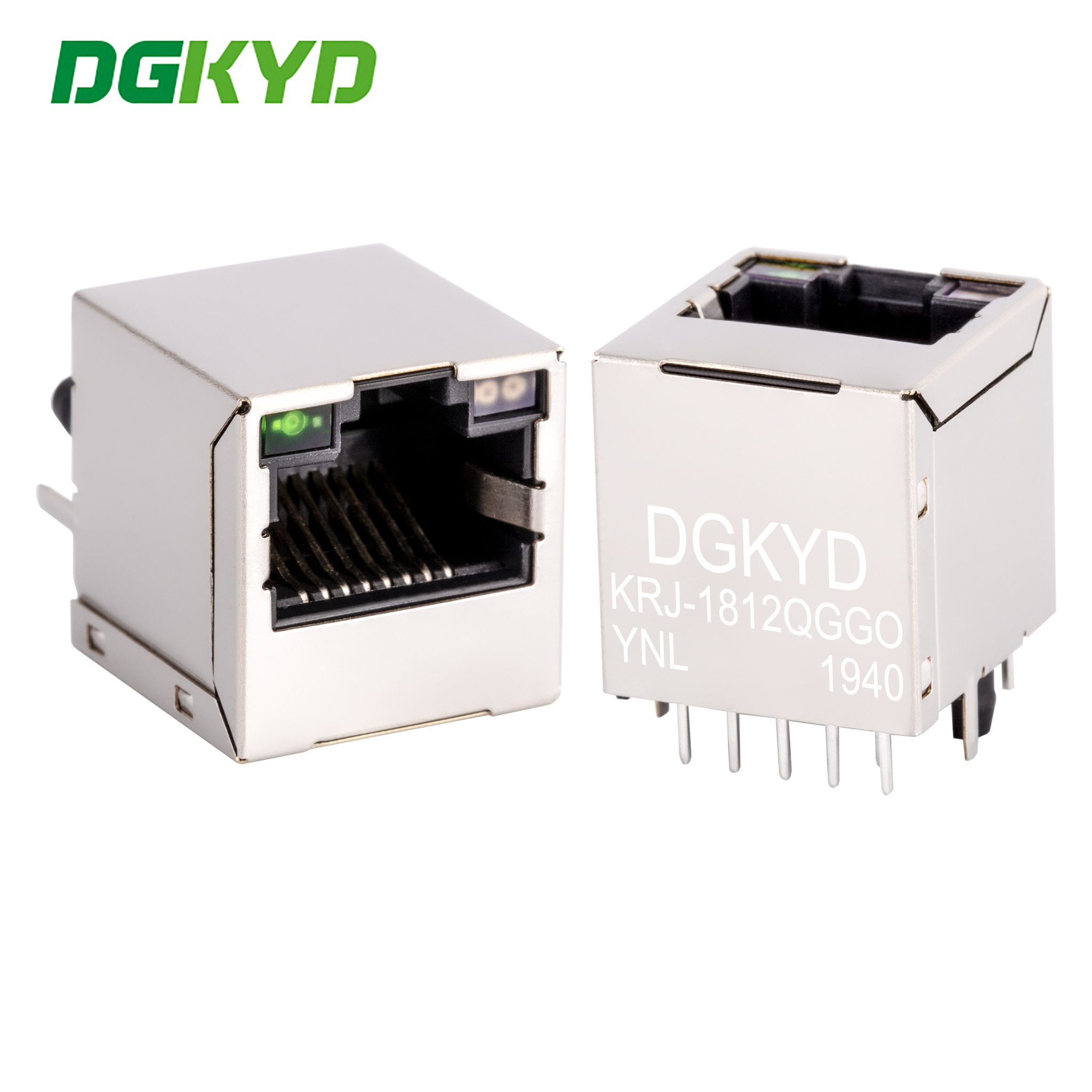

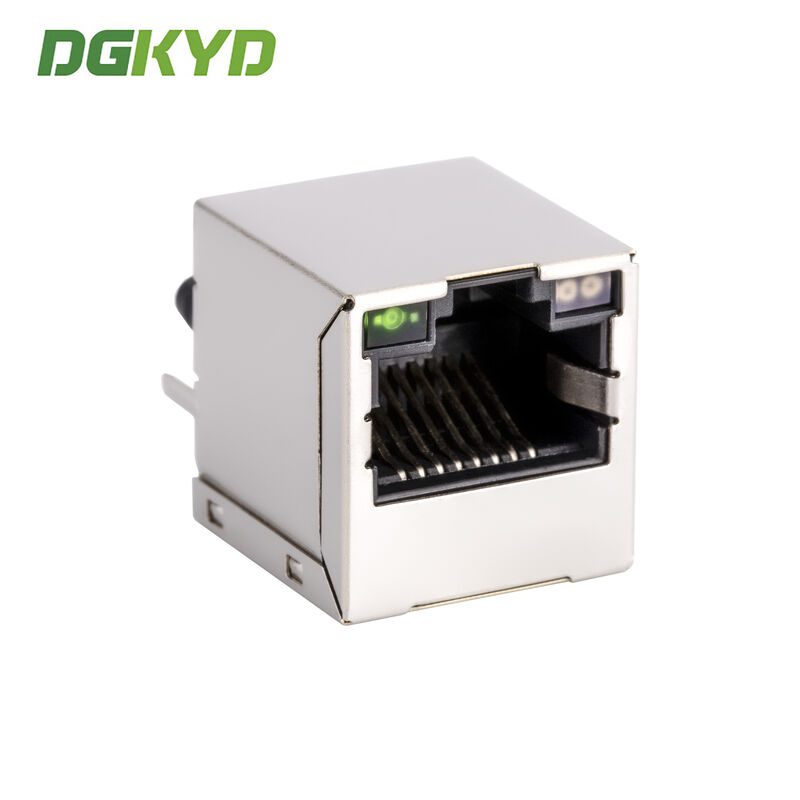

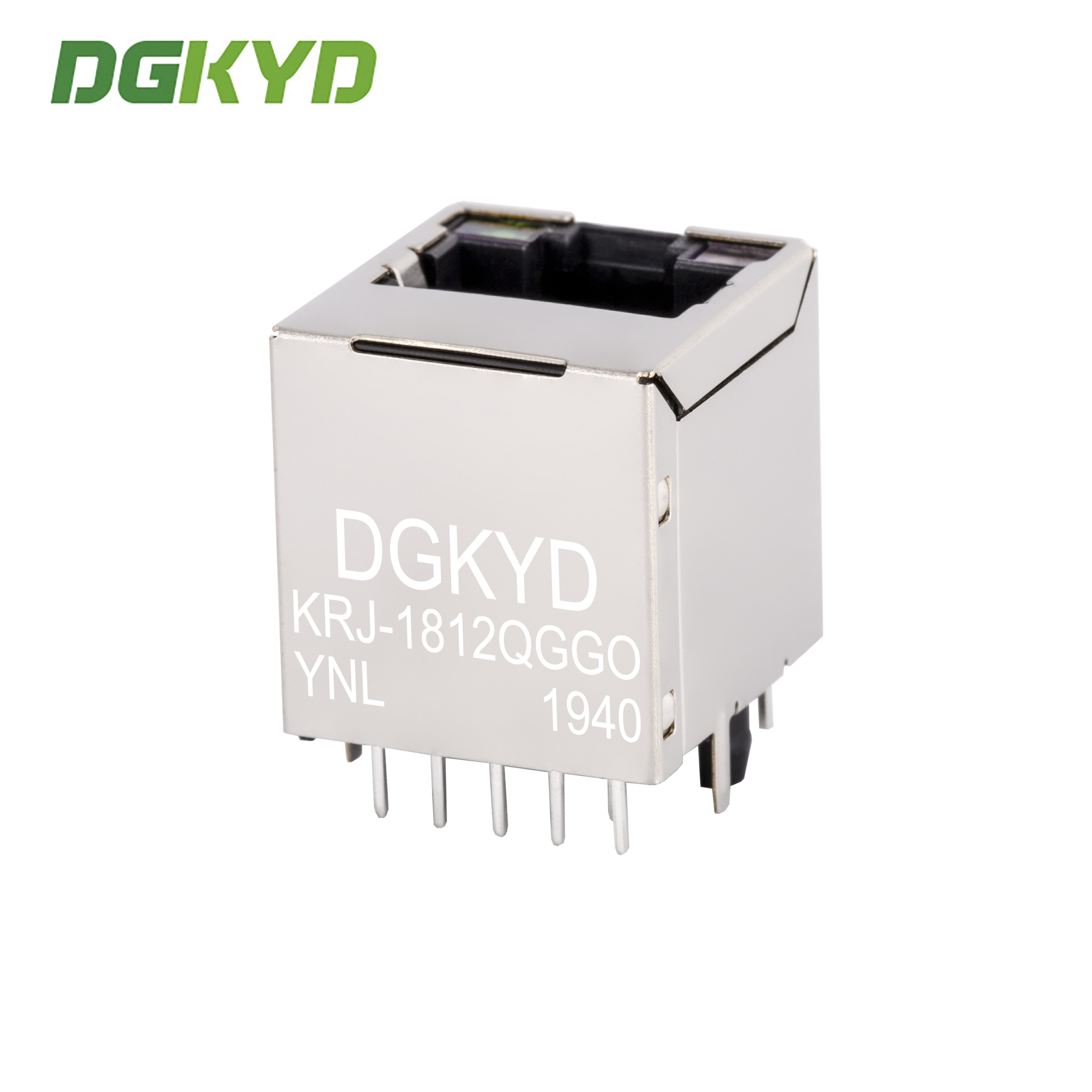

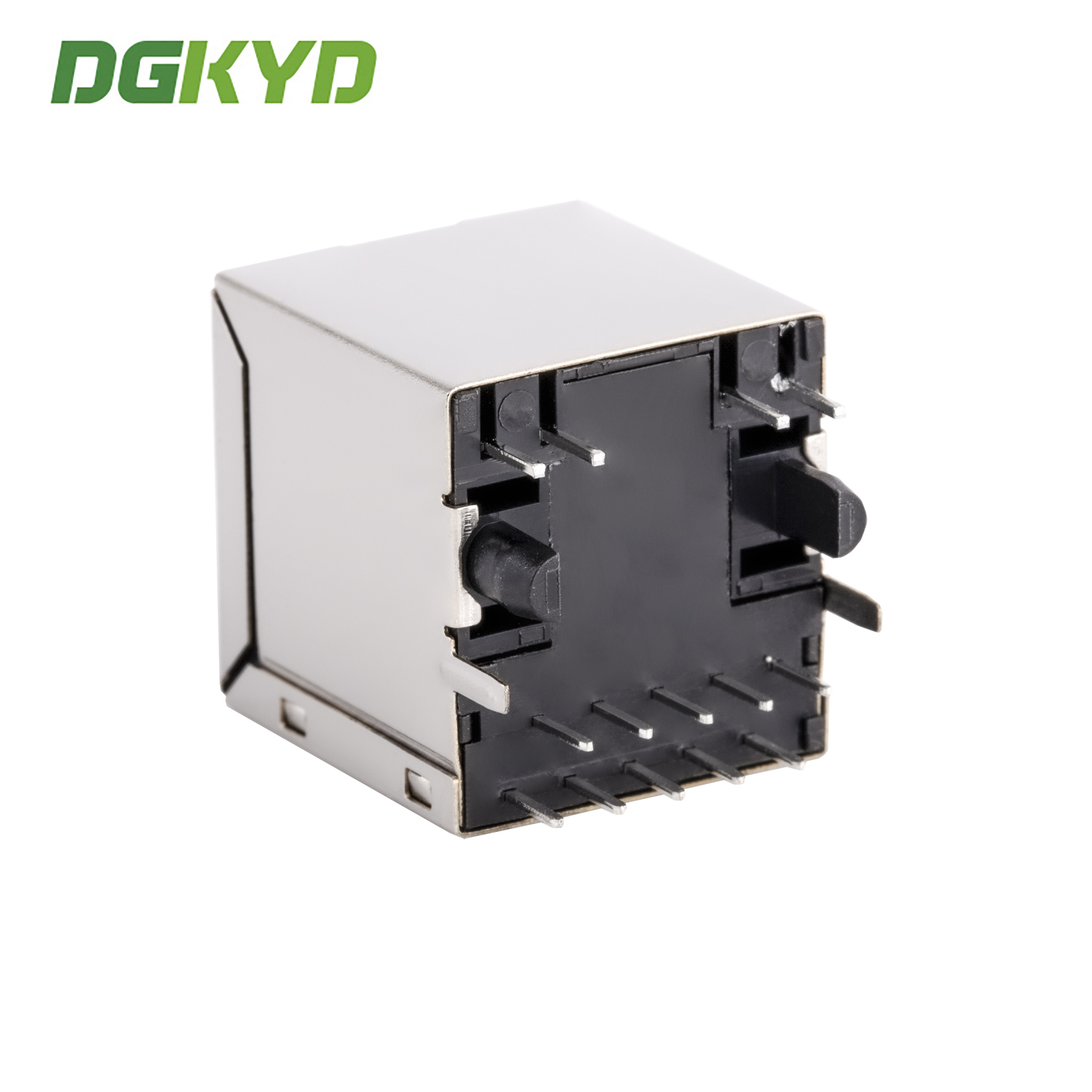

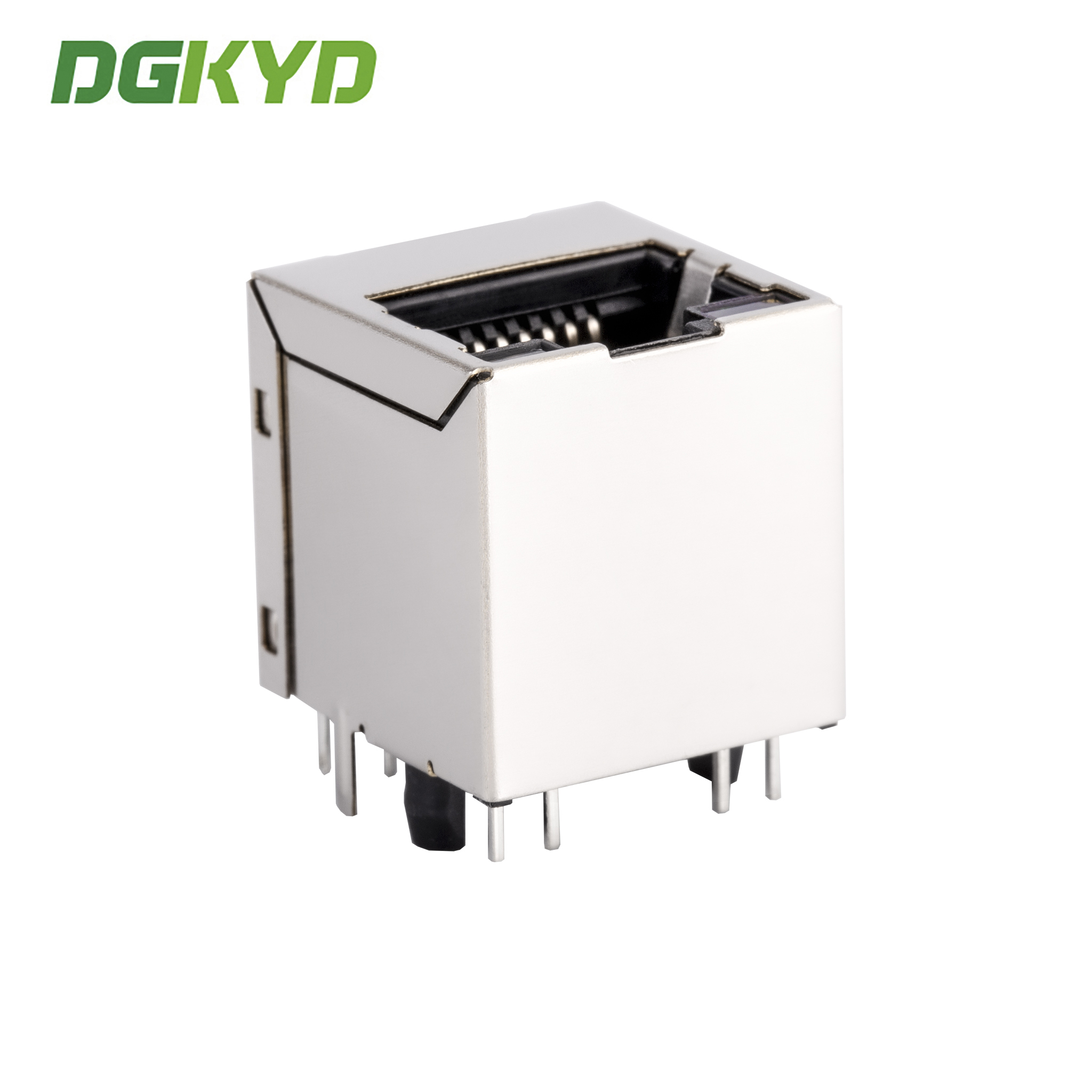

Product Images

Key Features

Interface type: RJ45 crystal head
Application: 10/100/1000BASE-T Ethernet
Type: RJ45 built-in magnetics
Working frequency: High frequency characteristic with filtering and anti-interference
Working temperature: -40℃ to 85℃
Storage temperature: -40℃ to 85℃
Lead-free soldering: Wave soldering height up to 265℃

Manufacturer Advantages

RJ45 full series of integrated circuit accessories
Manufacturer direct supply
Business mode: Manufacturer
Delivery time: On-time delivery, typically around two weeks
Customization options available for LED indicators, shielding, coil ratio, magnetic circuits, contact plating, and housing materials
Products meet industry standards for electrical properties, mechanical specifications, and environmental requirements
