| 최소 주문 수량 : | 협상 | 가격 : | Please contact us to get the latest price. |
|---|---|---|---|
| 포장 세부 사항 : | 판지에 있는 1080Tray | 배달 시간 : | 10일 |
| 지불 조건 : | T/T, D/P, D/A, L/C, Western Union, MoneyGram | 공급 능력 : | 100,000개/일 |
| 원래 장소: | 중국의 동복 | 브랜드 이름: | DGKYD |
|---|---|---|---|
| 인증: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | 모델 번호: | DGKYD211B039HWA4DP |
|
상세 정보 |
|||
| 제품 유형: | RJ45 | 캡슐화 방법: | 단일 인라인 패키지 |
|---|---|---|---|
| PCB 마운트 스타일: | 담그다 | 모양: | 구형 |
| 방패: | 놋쇠 | 핀 수: | 10 |
| 코어 수: | 8 | 치수(mm): | 15.95*21.35*13.6 |
| 콘택트 핀에 금도 도금: | 6U | 작동 온도: | -40 ℃ ~ 85 ℃ |
| 보관 온도: | -40 ℃ ~ 85 ℃ | ||
| 강조하다: | RJ45 shielded connector with POE,industrial Ethernet socket connector,RJ45 Ethernet connector waterproof |
||
제품 설명

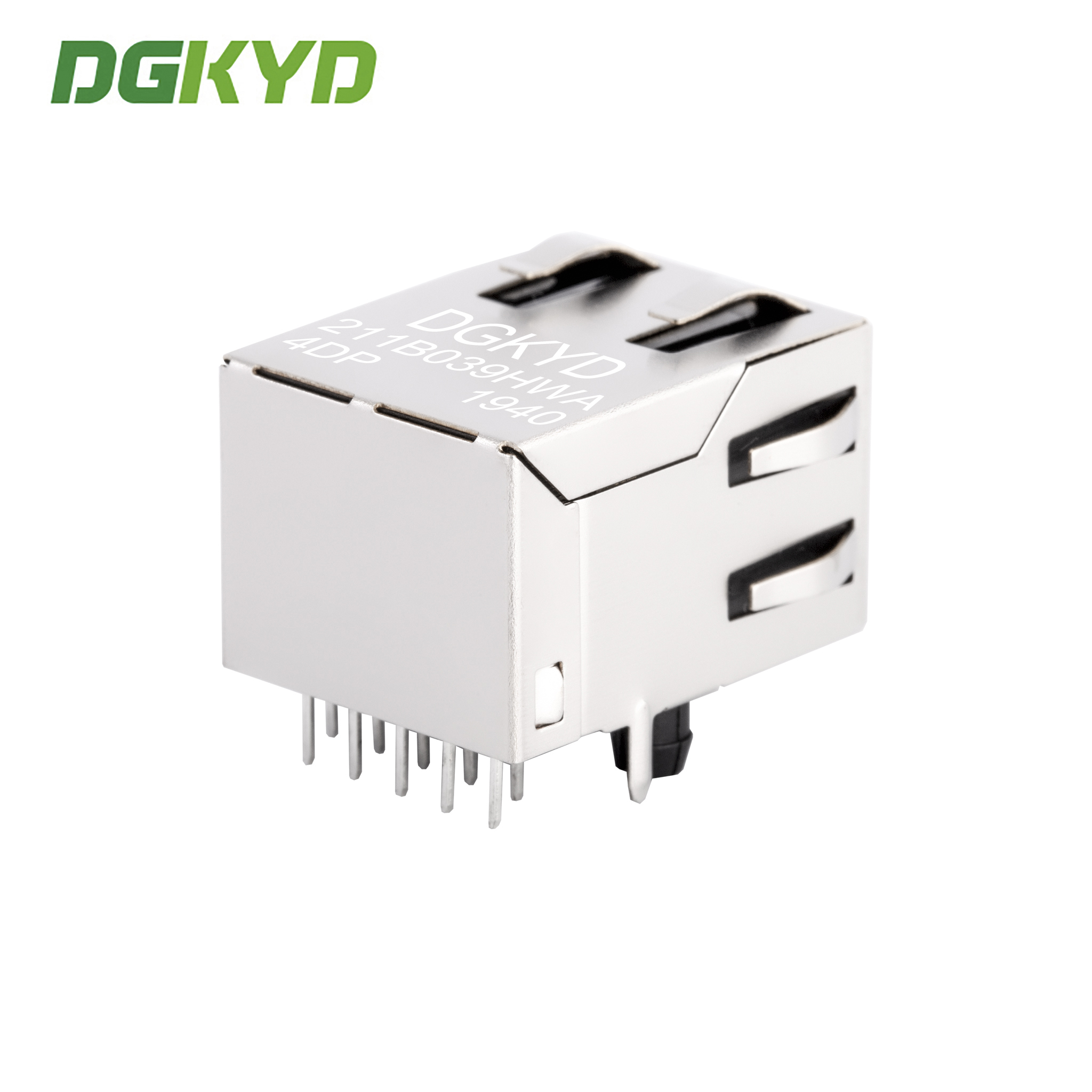

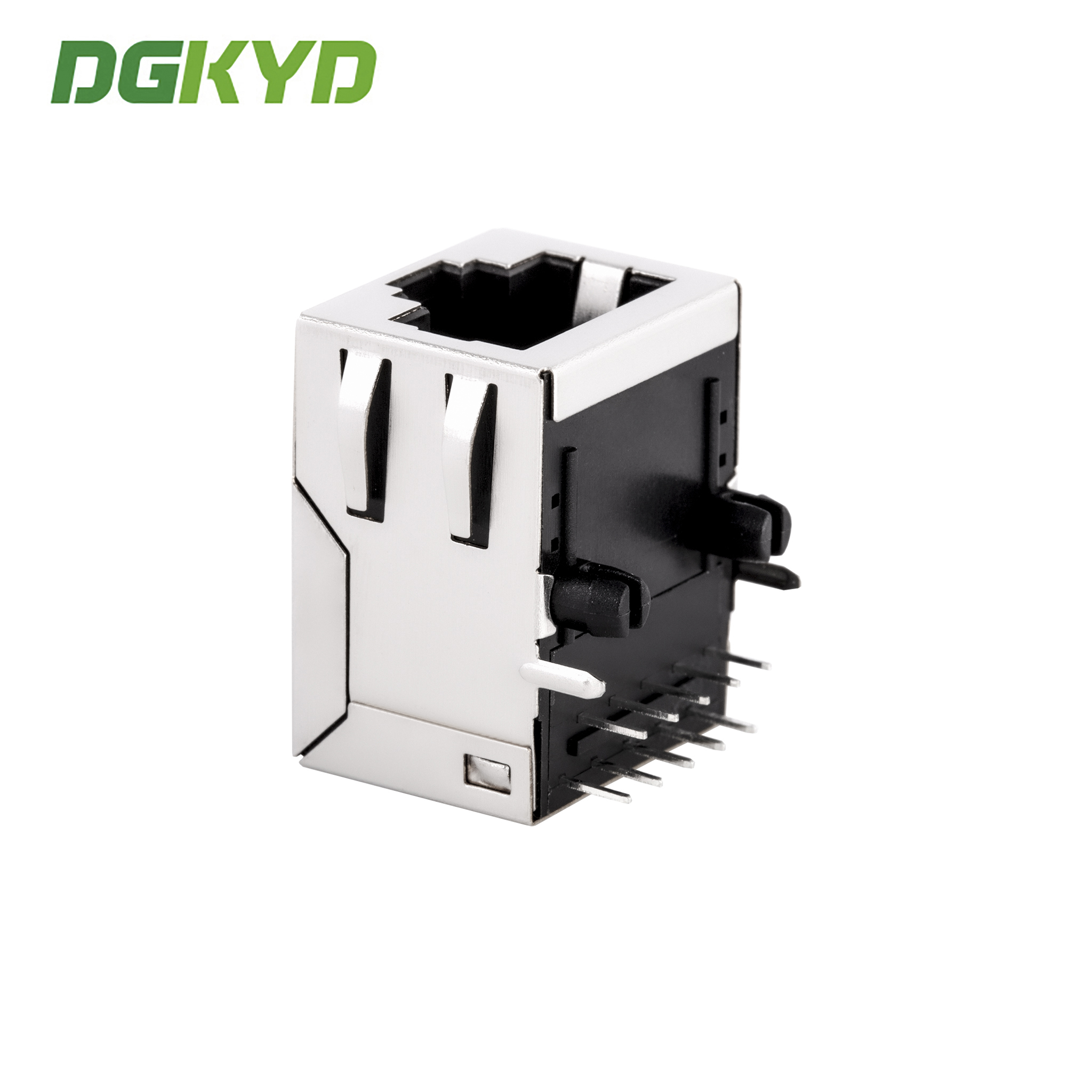

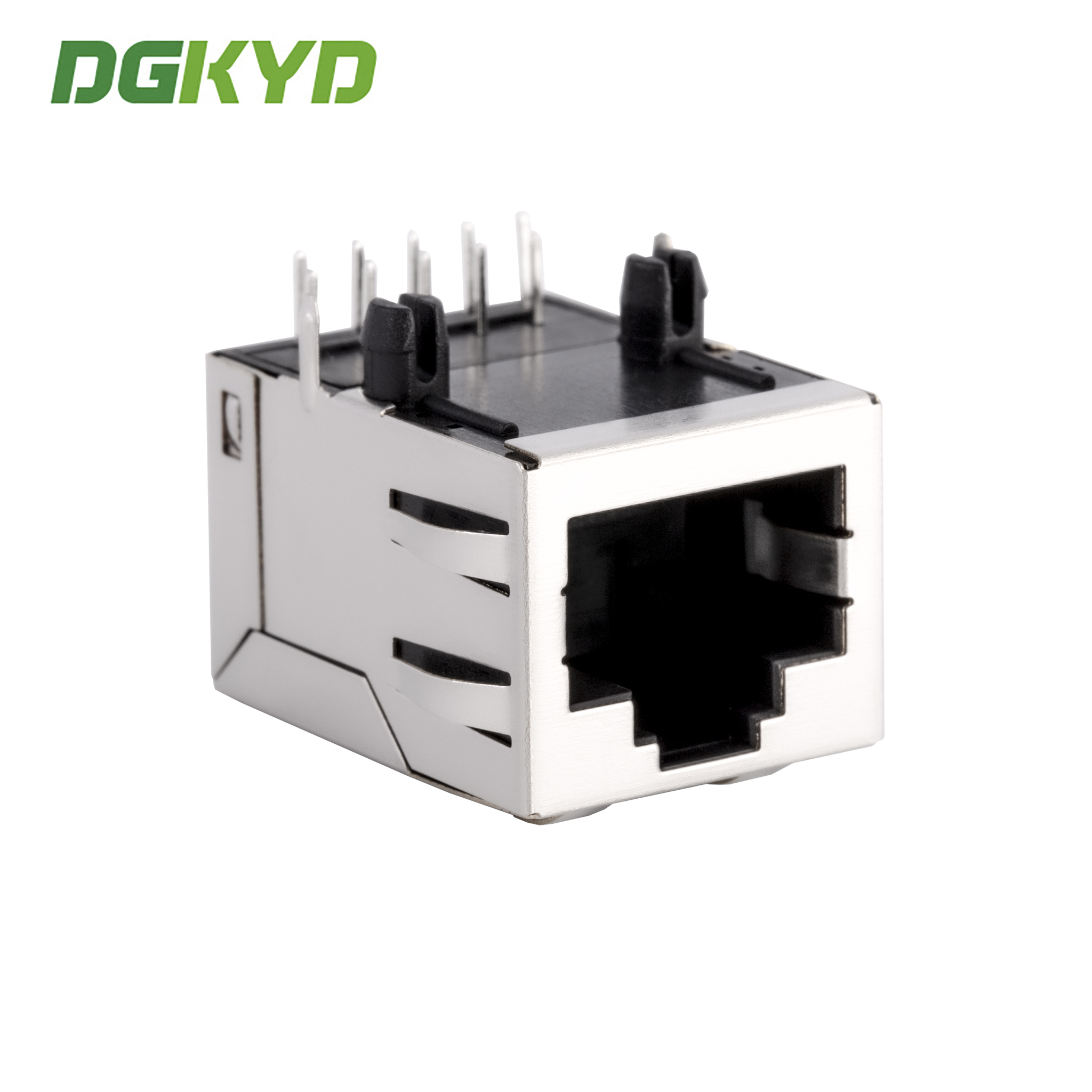

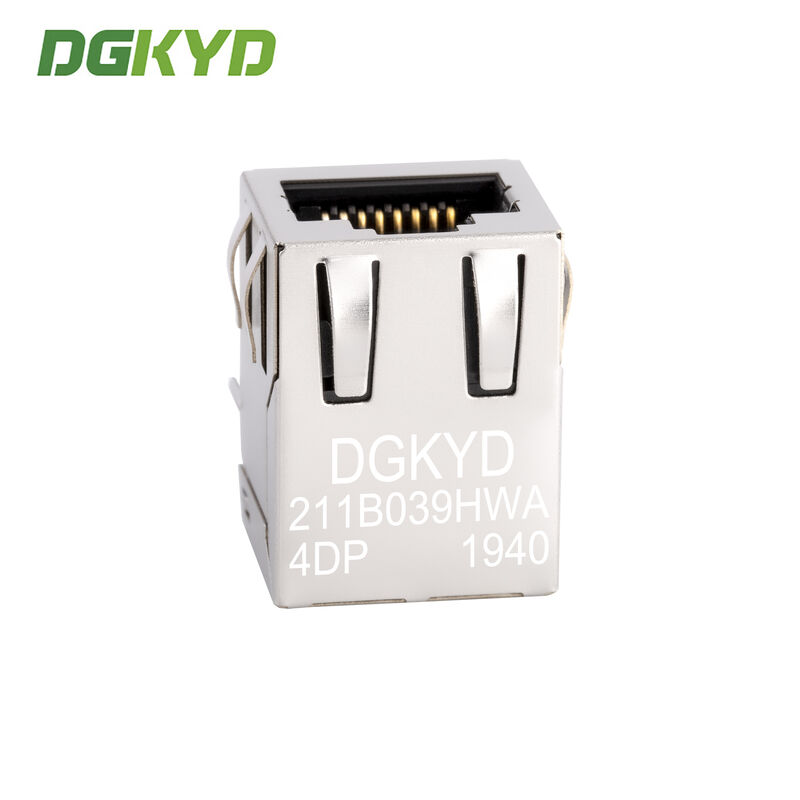

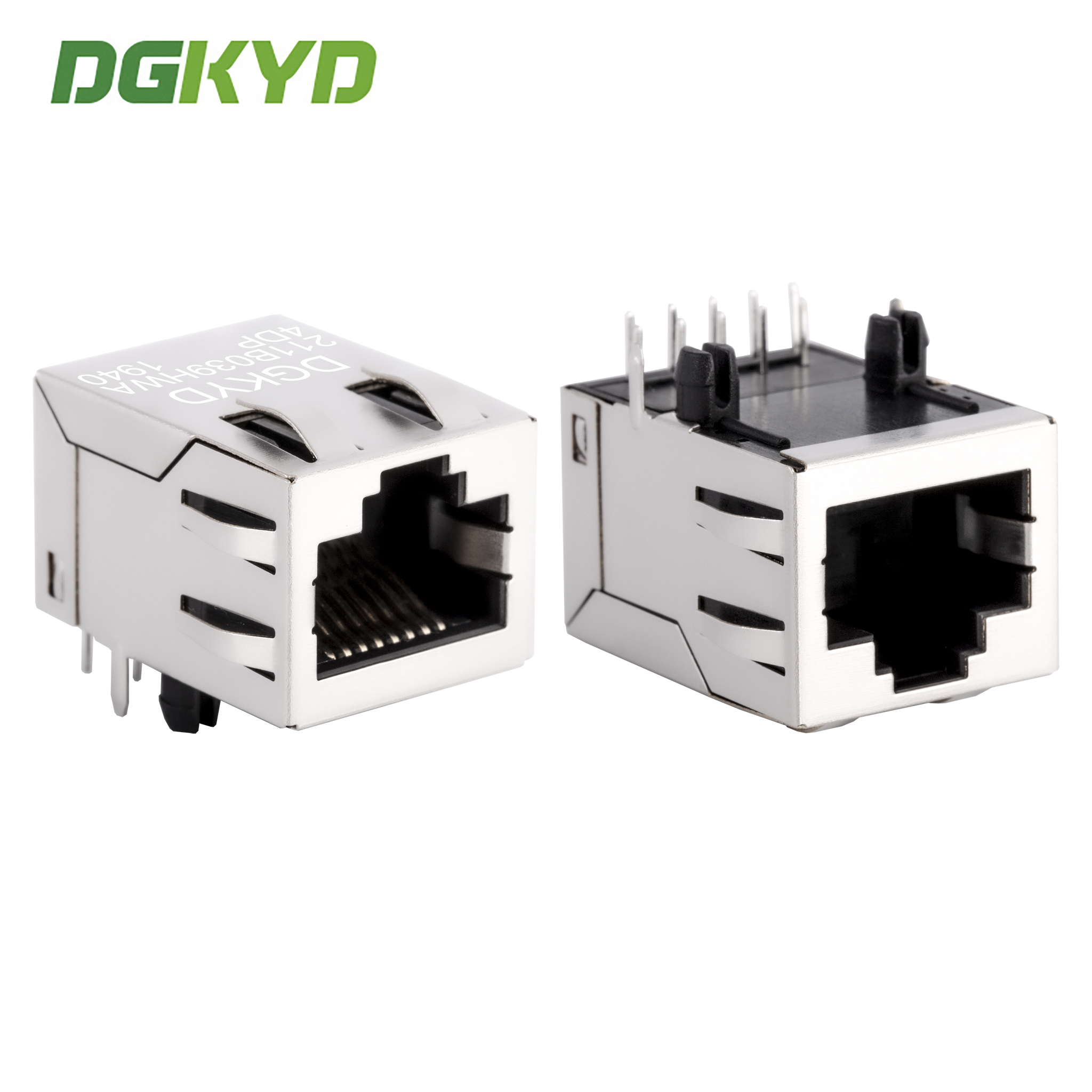

RJ45 Ethernet connector with POE power supply industrial Ethernet socket DGKYD211B039HWA4DP
Download Product Specification PDF| Specification | Details |
|---|---|
| Part Number | DGKYD211B039HWA4DP |
| Brand | DGKYD/OEM/ODM |
| Product Type | Connector-Modular |
| Connector Style | Jack |
| Jack Type | RJ45 |
| Connector Type | Modular Jack |
| Latch Style | Standard |
| Latch | TAB-UP |
| Filter | With Filter |
| LED Option | Without LED |
| LED Color | No |
| Panel Stops | With Panel Stops |
| Shielded | With metal shield |
| Applies To | Printed Circuit Board |
| Port Configuration | Single Ports |
| Number of Positions | 10 |
| Jack Configuration | 1X1 |
| Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel |
| PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating | Gold 6u |
| Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel |
| PCB Mounting Style | Through Hole |
| Termination Method to PC Board | Through Hole-Press-Fit |
| Board Lock | With/Without Board Lock |
| Housing Material | PBT Polyester |
| Housing Color | Black |
| Housing Material Temperature | Standard |
| UL Flammability Rating | UL 94V-0 |
The electrical properties of the products meet the industry standards, the appearance and mechanical properties meet the appearance dimensions, the mechanical manufacturing industry standards, and the environmental protection standards. Your satisfaction is the purpose of our service!
