Customized 1000M 33.0mm Single Port 6 Pin Rj45 Connector with Transformer / Leds KRJ-3302NL

지금 연락

Customized 1000M 33.0mm Single Port 6 Pin Rj45 Connector with Transformer / Leds KRJ-3302NL

최소 주문 수량 :	1개 조각	가격 :	Please contact us to get the latest price.
포장 세부 사항 :	상자의 트레이	배달 시간 :	10일
지불 조건 :	T/T,D/P,D/A,L/C,웨스턴 유니온,MoneyGram	공급 능력 :	100,000개/일

원래 장소:	중국의 동복	브랜드 이름:	DGKYD
인증:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	모델 번호:	KRJ-3302NL

상세 정보
커넥터 길이:	33mm	추천된 IR 리플로우 온도:	260 ℃
추천된 PCB 트힉키네스스:	1.6mm	작동 온도 범위:	-40℃~+85℃
성별:	여성	응용:	스위치, 송수신기, 노트북, 컴퓨터 RJ45 기타 등등
특징:	메탈 피씨비 MOUNTABLE 알제이 사십오 잭	제품명:	RJ45 실드형 커넥터
하우징 재료:	PBT 폴리에스테르	필터:	필터 포함
보관 온도:	-40°C~+85°C
강조하다:	33mm RJ45 connector with transformer , 6 pin RJ45 connector with LEDs , customized 1000M RJ45 connector

제품 설명

Customized 1000M 33.0mm Single Port 6 Pin RJ45 Connector with Transformer / LEDs KRJ-3302NL

Part Number: KRJ-3302NL

Product Documentation

Technical Parameters

Part Number	KRJ-3302NL	Brand	DGKYD/OEM/ODM
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-UP
Filter	With Filter	LED Option	Without LED
LED Color	No	Panel Stops	With Panel Stops
Shielded	With metal shield	Applies To	Printed Circuit Board
Port Configuration	Single Port	Number of Positions	6
Jack Configuration	1X1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating	Gold 6u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PBT Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

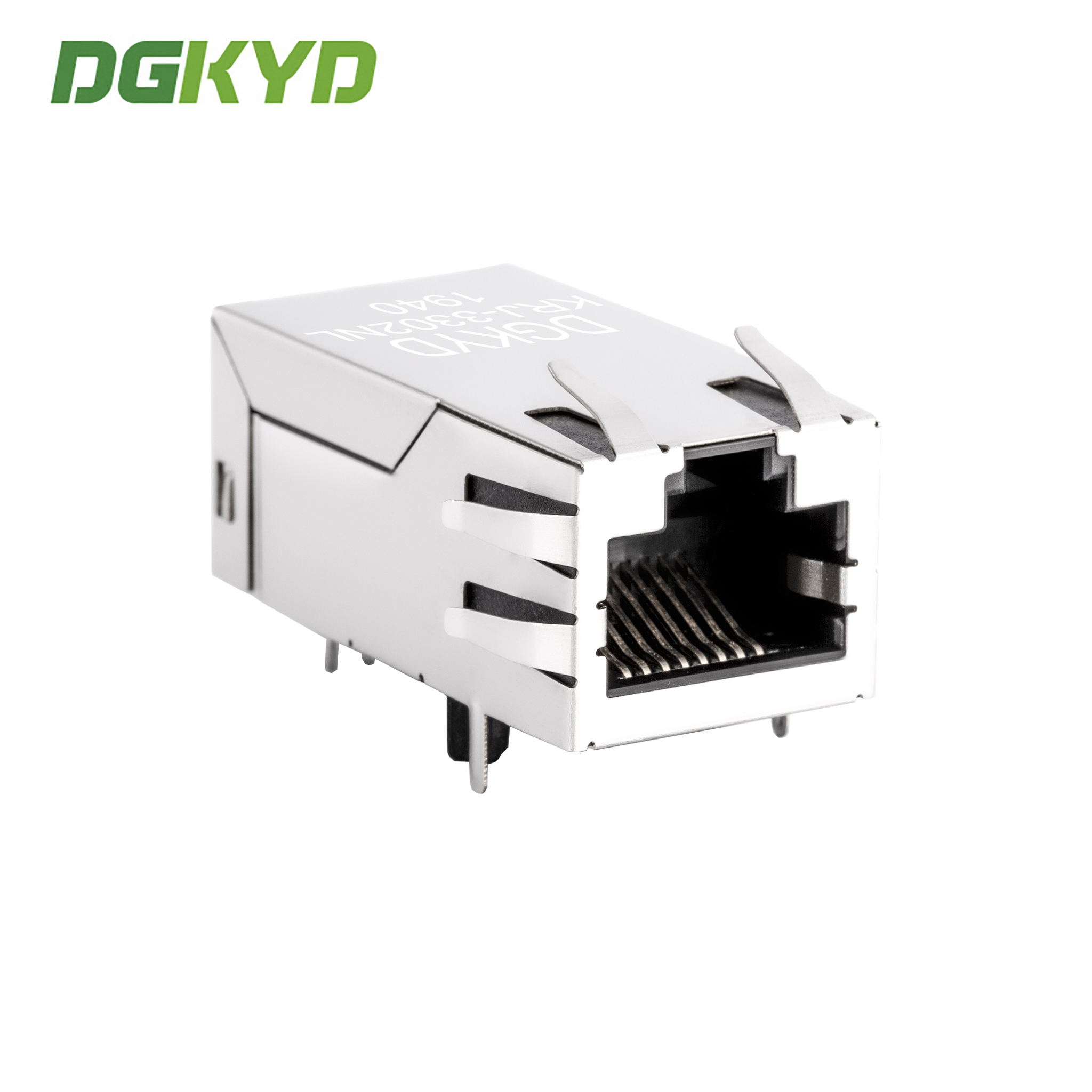

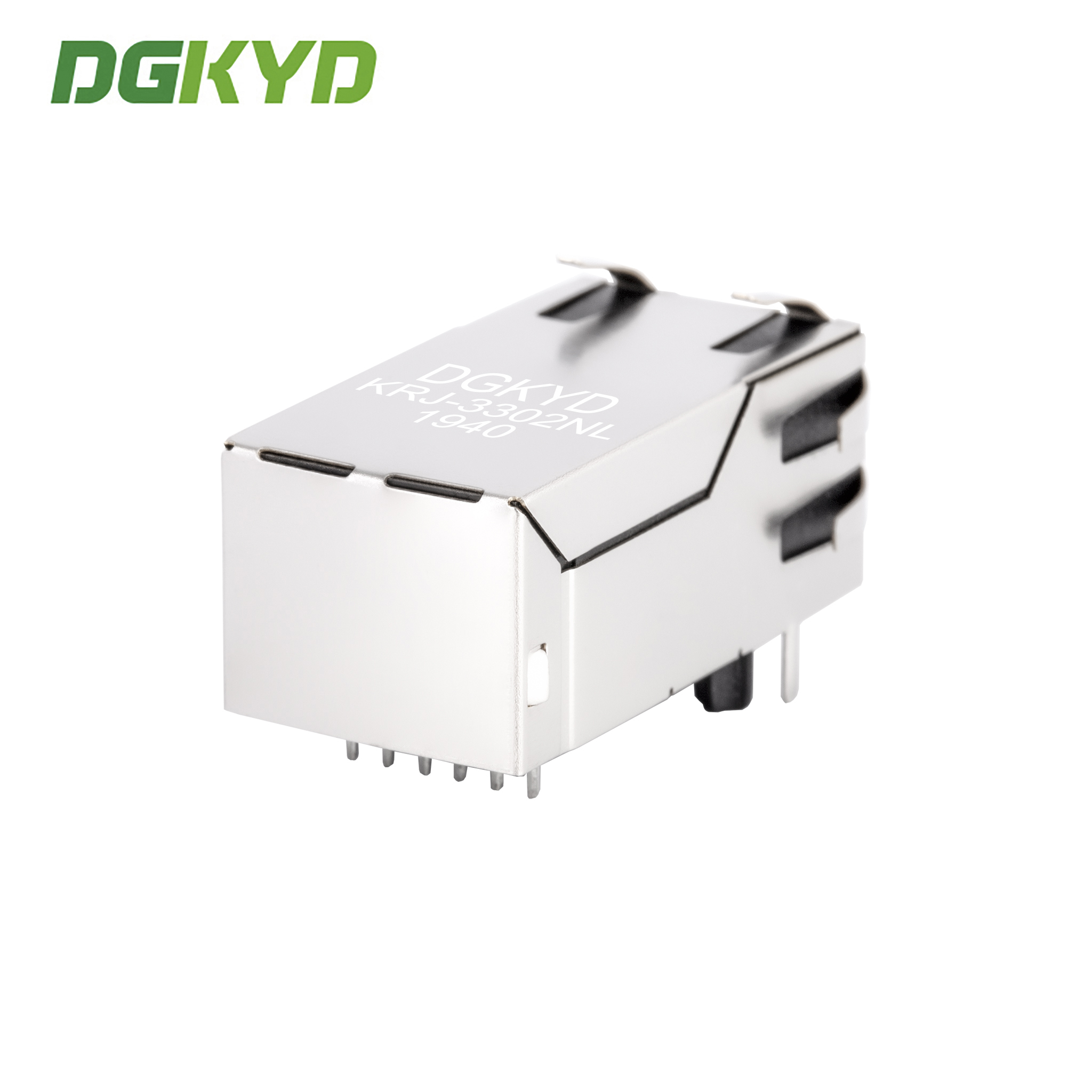

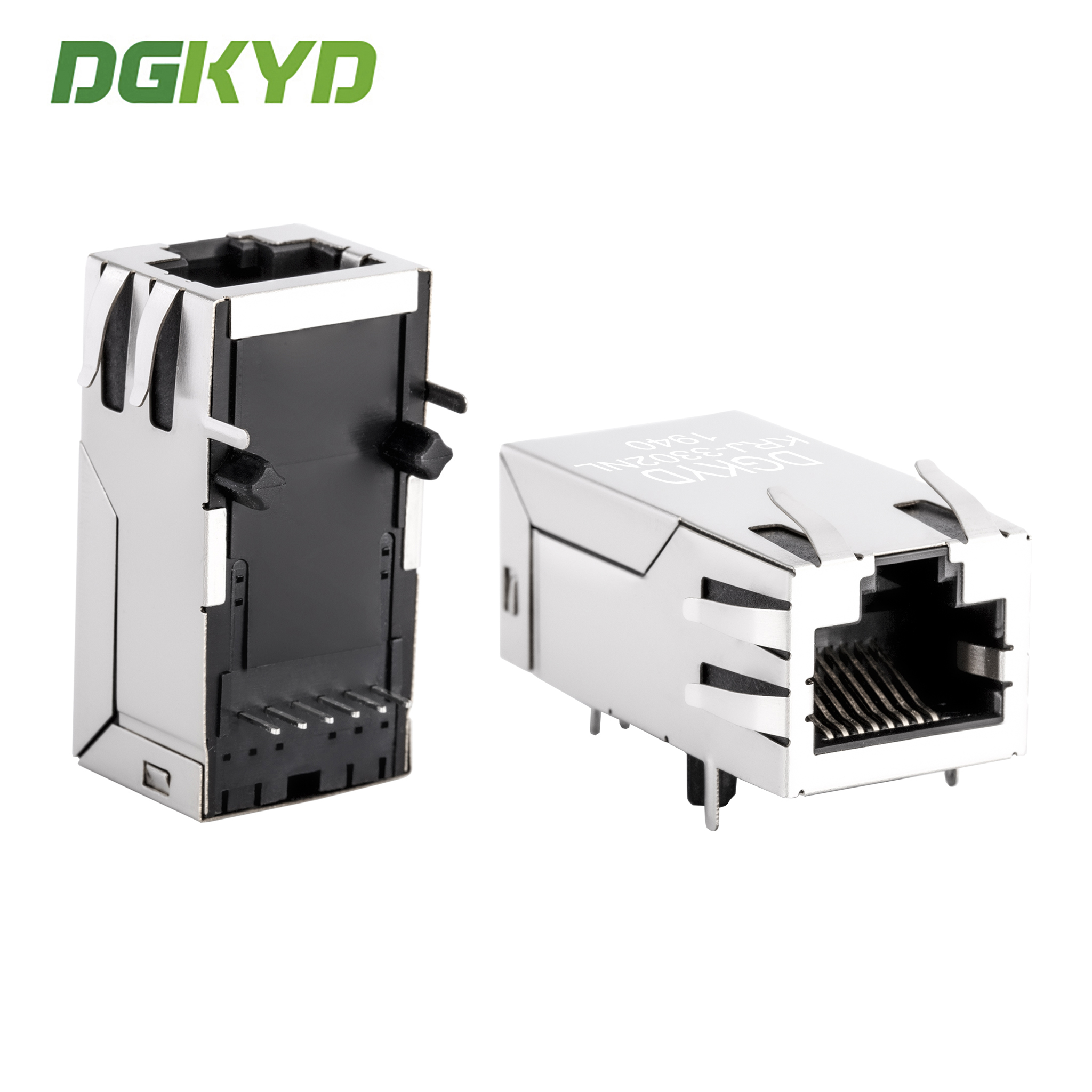

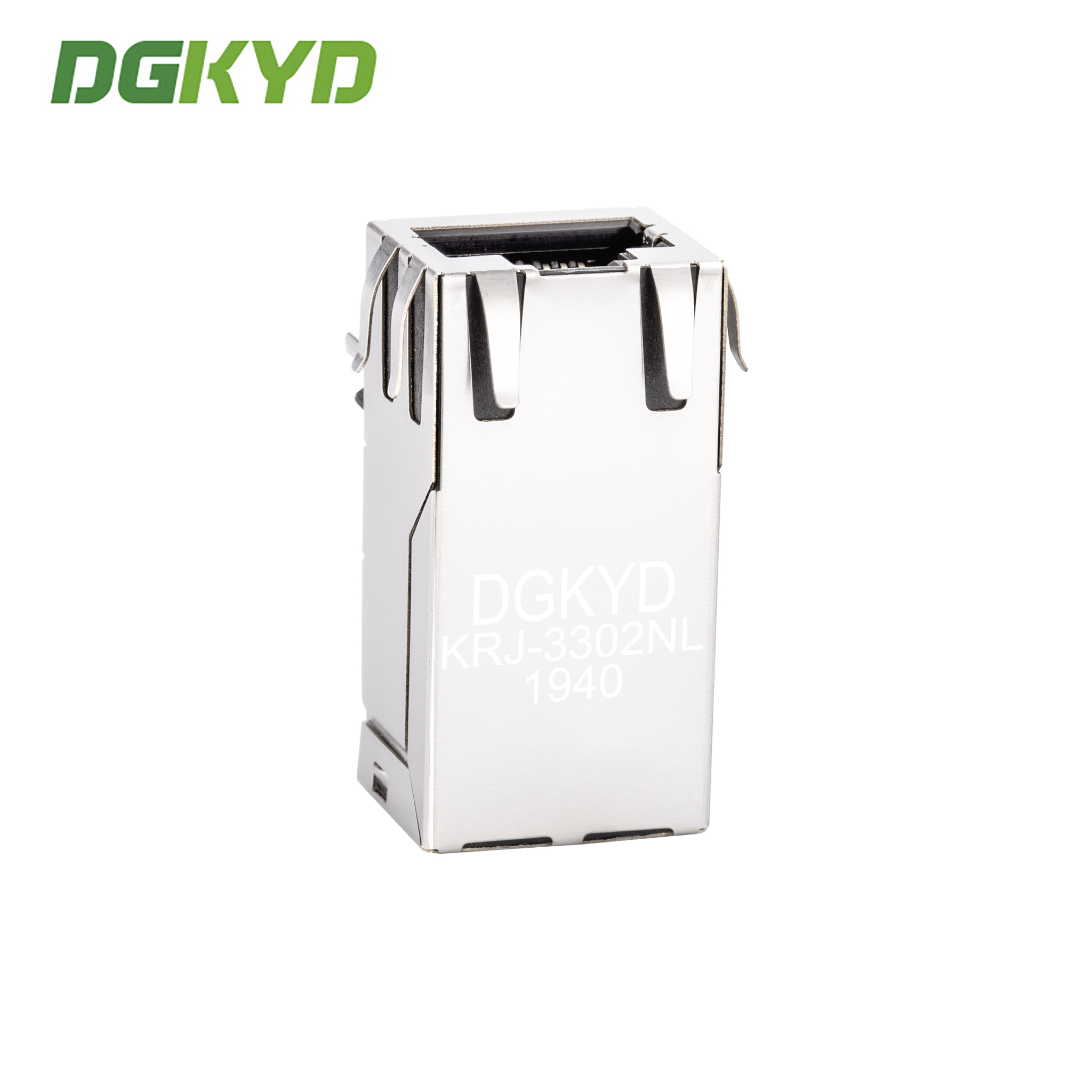

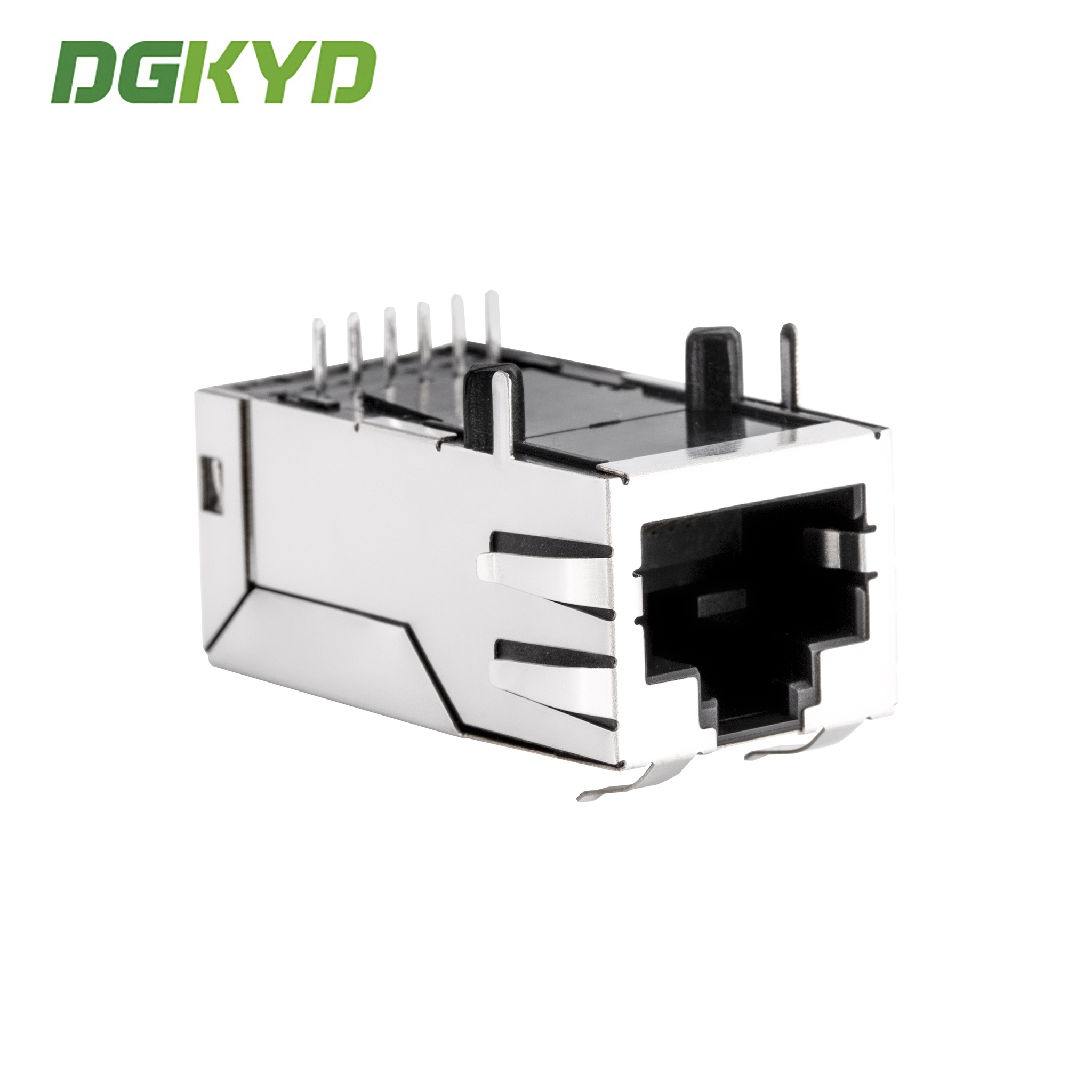

Product Images

Technical Specifications

Interface Type: RJ45 connector for 10/100/1000BASE-T Ethernet
Type: RJ45 with built-in magnetics
Working Frequency: High frequency with filtering and anti-interference characteristics
Working Temperature: -40°C to 85°C
Storage Temperature: -40°C to 85°C
Lead-Free Soldering: Wave soldering height up to 265°C

Manufacturing Capabilities

RJ45 full series of integrated circuit accessories, manufacturer direct supply

Business Mode: Manufacturer
Delivery Time: Approximately two weeks for standard orders
Customization Options:
- LED indicator light (green, yellow, red, orange, blue, bi-color LED)
- Shield with EMI fingers or without
- Coil ratio of magnetic core
- Magnetics circuit diversification options
- Contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)
- Plastic housing material (PBT, PA46, PA9T, LCP)

Our products meet industry standards for electrical properties, mechanical dimensions, and environmental compliance. Your satisfaction is our primary service objective!

Frequently Asked Questions

Q: Are you a trading company or manufacturer?

A: We are a manufacturer. Welcome to visit our factory.

Q: What about your lead time?

A: For products in stock, delivery within 5-7 working days after payment. For customized and out-of-stock products, delivery time is confirmed based on order quantity.

Q: Can you provide samples? Are they free?

A: Yes. We typically provide 2-3 samples of standard products free for testing purposes.

Q: Can I put my own logo on it?

A: Yes. As a manufacturer with 11 years of OEM experience, we are fully capable of customizing products to your specifications.
