담당자 : Nicole Zhuo
전화 번호 : +86 18925835585
WhatsApp : +8618925835585
| 최소 주문 수량 : | 1개 조각 | 가격 : | Please contact us to get the latest price. |
|---|---|---|---|
| 포장 세부 사항 : | 상자의 트레이 | 배달 시간 : | 10일 |
| 지불 조건 : | T/T,D/P,D/A,L/C,웨스턴 유니온,MoneyGram | 공급 능력 : | 100,000개/일 |
| 원래 장소: | 중국의 동복 | 브랜드 이름: | DGKYD |
|---|---|---|---|
| 인증: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | 모델 번호: | KRJ-H56NL |
| 문서: | KRJ-H56NL.pdf |
|
상세 정보 |
|||
| 애플리케이션: | LAN, 브리지, PC, 라우터, USB 허브 네트워크 rj45 | LED/EMI 핑거: | 당신의 필요로서의, 관습 |
|---|---|---|---|
| 성별: | 여성 RJ45 | 제품명: | RJ45 이더넷 잭 |
| 특징: | 자기를 띠 고성능 | RJ45 적합: | CAT5&6 이더넷 케이블 또는 UTP용 |
| OEM/ODM: | 예 | LED 옵션: | 녹황색 |
| 변신 로봇: | 트랜스로 | 작동 온도: | -40°C~+85°C |
| 보관 온도: | -40°C~+85°C | ||
제품 설명
Right Angle CAT5e RJ45 Ethernet Connector female Jack with Led, Network Filter KRJ-H56NL
Right Angle CAT5e RJ45 Ethernet Connector female Jack with Led, Network Filter KRJ-H56NL
Part Number: KRJ-H56NL
Product Documentation
KRJ-H56NL.pdf
Technical Parameters
Parameter
Value
Part Number
KRJ-H56NL
Brand
DGKYD/OEM/ODM
Product Type
Connector-Modular
Connector Style
Jack
Jack Type
RJ45
Connector Type
Modular Jack
Latch Style
Standard
Latch
TAB-UP
Filter
With Filter
LED Option
Without LED
LED Color
Yellow-Green
Panel Stops
With Panel Stops
Shielded
With metal shield
Applies To
Printed Circuit Board
Port Configuration
Single Port
Number of Positions
8
Jack Configuration
1X1
Terminals per Port
8
Shield Material
Copper Alloy preplated with Nickel
PCB Mounting Orientation
Side Entry (Right Angle)
Contact Mating Area Plating
Gold 6u
Contact Base Material
Phosphor Bronze
Solder Tail Contact Plating Material
Tin-Lead over Nickel
PCB Mounting Style
Through Hole
Termination Method to PC Board
Through Hole-Press-Fit
Board Lock
With/Without Board Lock
Housing Material
PBT Polyester
Housing Color
Black
Housing Material Temperature
Standard
UL Flammability Rating
UL 94V-0

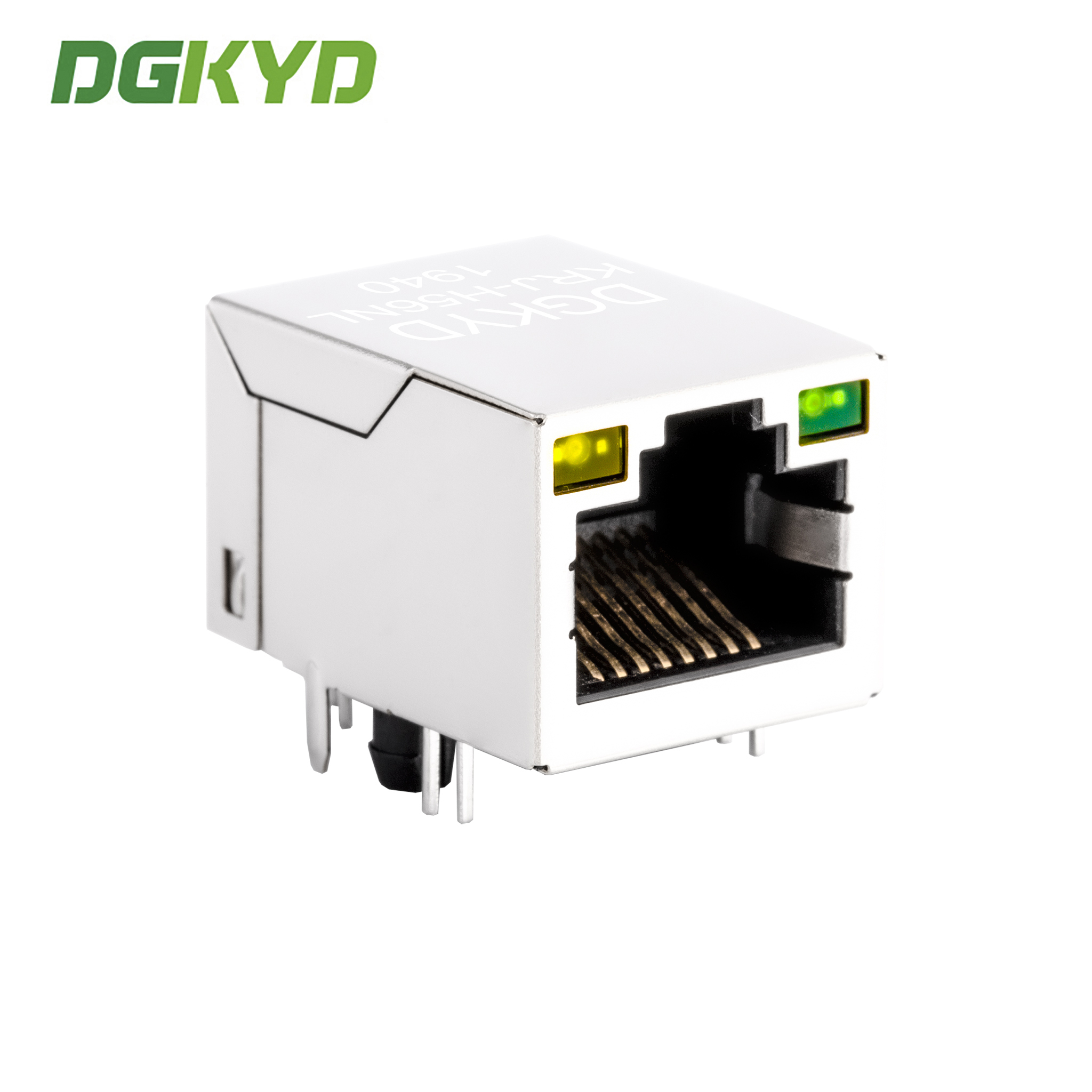

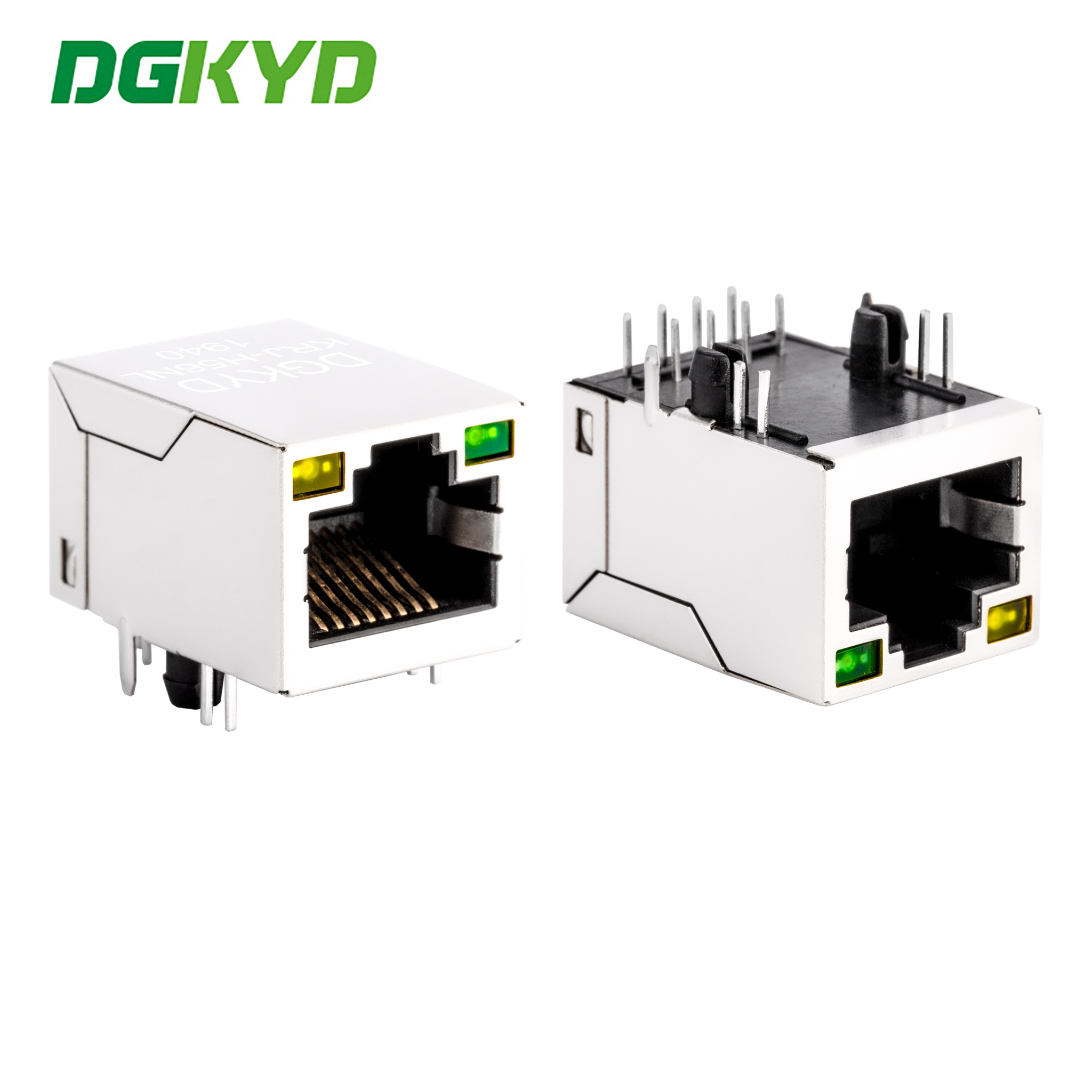

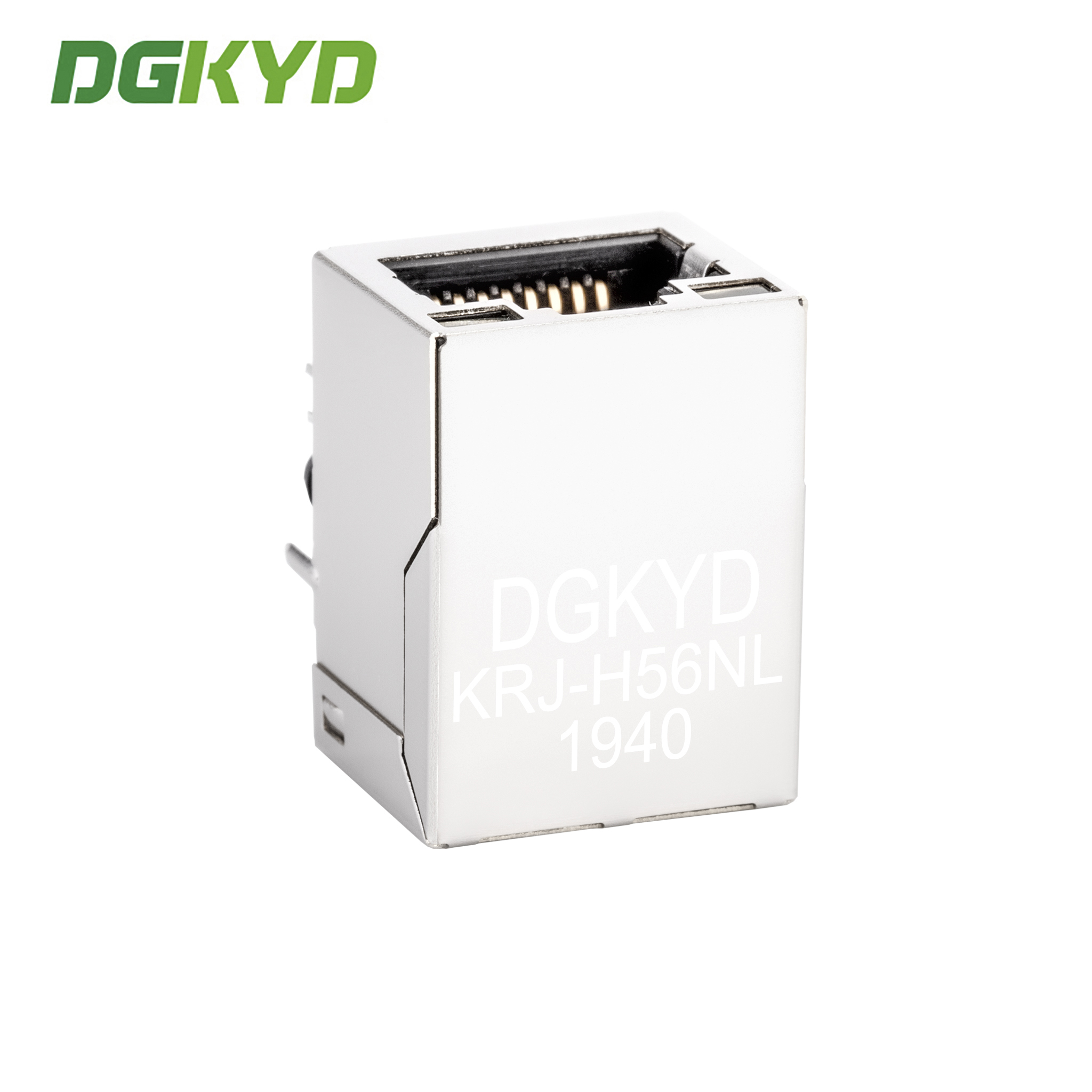

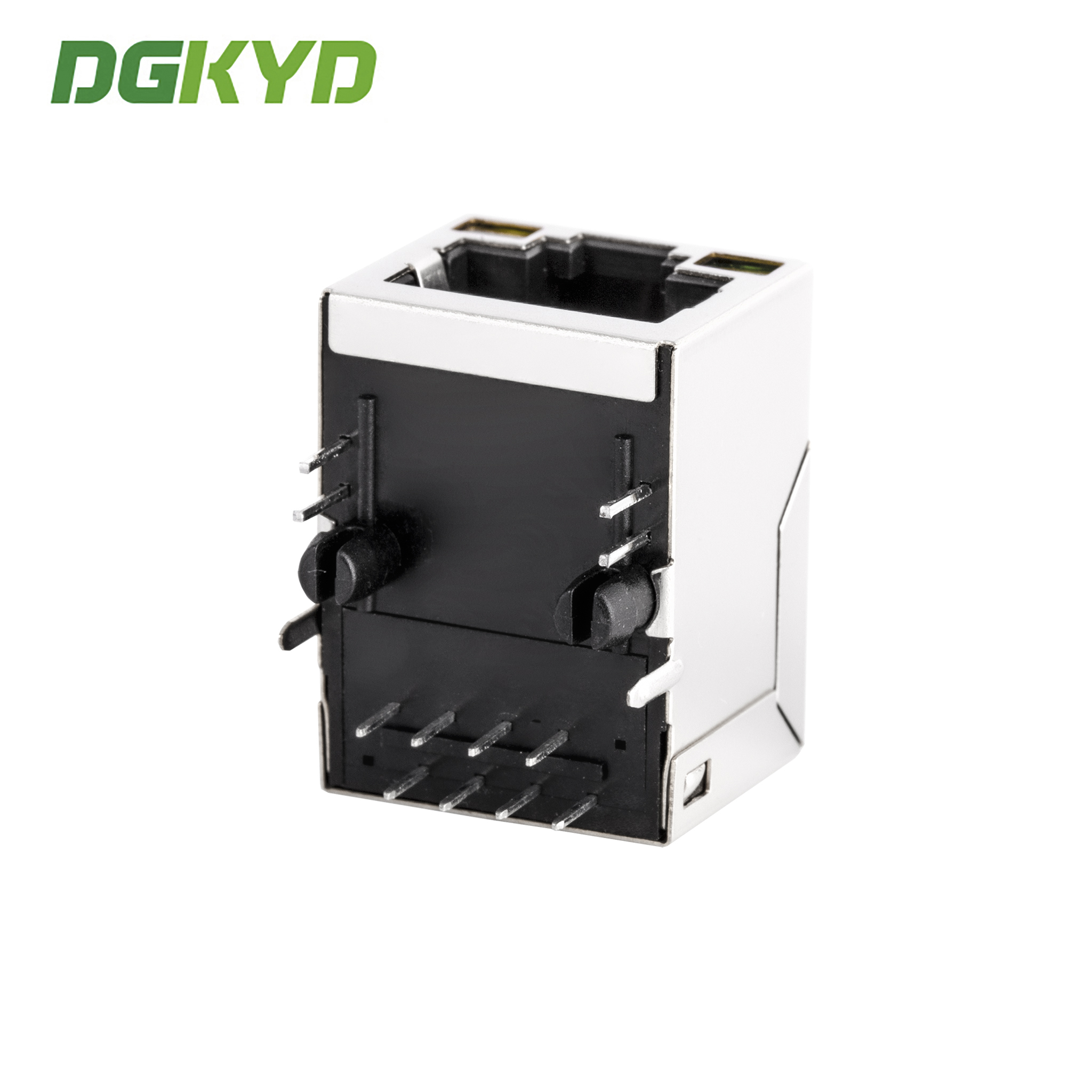

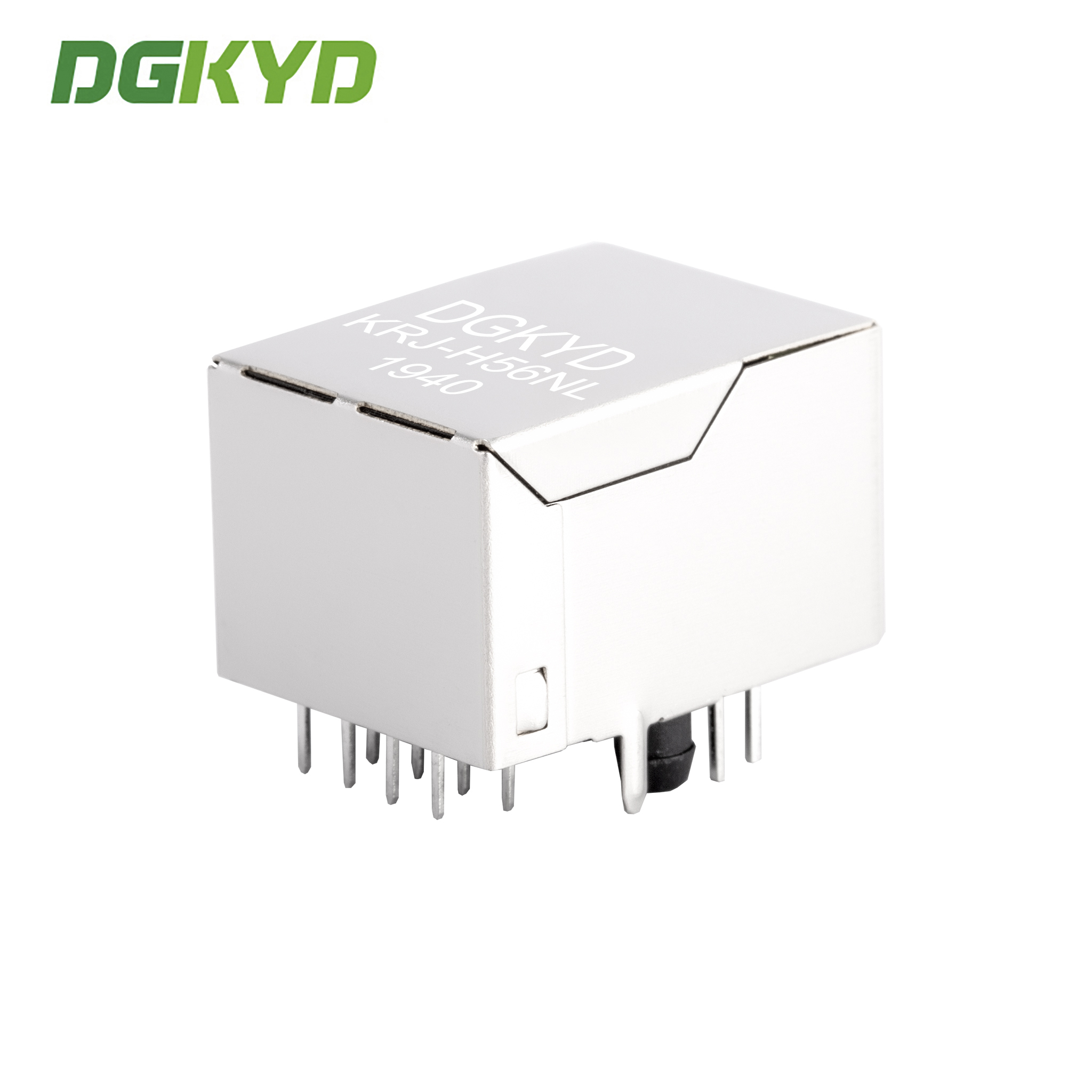

Product Images
Technical Specifications
Manufacturing Capabilities
RJ45 full series of integrated circuit accessories, manufacturer direct supply
Our products meet industry standards for electrical properties, mechanical dimensions, and environmental compliance. Your satisfaction is our primary service objective!
Frequently Asked Questions
Q: Are you a trading company or manufacturer?
A: We are a manufacturer. Welcome to visit our factory.
Q: What about your lead time?
A: For products in stock, delivery within 5-7 working days after payment. For customized and out-of-stock products, delivery time is confirmed based on order quantity.
Q: Can you provide samples? Are they free?
A: Yes. We typically provide 2-3 samples of standard products free for testing purposes.
Q: Can I put my own logo on it?
A: Yes. As a manufacturer with 11 years of OEM experience, we are fully capable of customizing products to your specifications.
