| 최소 주문 수량 : | 1개 조각 | 가격 : | Please contact us to get the latest price. |
|---|---|---|---|
| 포장 세부 사항 : | 상자의 트레이 | 배달 시간 : | 10일 |
| 지불 조건 : | T/T,D/P,D/A,L/C,웨스턴 유니온,MoneyGram | 공급 능력 : | 100,000개/일 |
| 원래 장소: | 중국의 동복 | 브랜드 이름: | DGKYD |
|---|---|---|---|
| 인증: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | 모델 번호: | KRJ-SH105GYLENL |
| 문서: | KRJ-SH105GYLENL.pdf |
|
상세 정보 |
|||
| 모듈러 잭 유형: | 통합된 자기학과 RJ45 | 속도: | Cat 5 |
|---|---|---|---|
| 걸쇠: | 위로 | 마운트 스타일: | 구멍을 통해 |
| OEM/ODM: | 예 | 유형: | 멀티핀 RJ45 매그잭 |
| 성별: | RJ45 리셉터클 | 제품명: | RJ45 모듈 식 잭 |
| 작동 온도: | -40°C~+85°C | 보관 온도: | -40°C~+85°C |
| LED 옵션: | 녹색 / 노랑색 | ||
제품 설명
10/100 BASE Ethernet Cable Connection Female Jack 8P8C RJ45 With Transformer KRJ-SH105GYLENL
10/100 BASE Ethernet Cable Connection Female Jack 8P8C RJ45 With Transformer KRJ-SH105GYLENL
Part Number: KRJ-SH105GYLENL
Product Documentation
KRJ-SH105GYLENL.pdf
Technical Parameters
Part Number
KRJ-SH105GYLENL
Brand
DGKYD/OEM/ODM
Product Type
Connector-Modular
Connector Style
Jack
Jack Type
RJ45
Connector Type
Modular Jack
Latch Style
Standard
Latch
TAB-UP
Filter
With Filter
LED Option
With LED
LED Color
Green/Yellow
Panel Stops
With Panel Stops
Shielded
With metal shield
Applies To
Printed Circuit Board
Port Configuration
Single Port
Number of Positions
8
Jack Configuration
1X1
Terminals per Port
8
Shield Material
Copper Alloy preplated with Nickel
PCB Mounting Orientation
Side Entry (Right Angle)
Contact Mating Area Plating
Gold 6u
Contact Base Material
Phosphor Bronze
Solder Tail Contact Plating Material
Tin-Lead over Nickel
PCB Mounting Style
Through Hole
Termination Method to PC Board
Through Hole-Press-Fit
Board Lock
With/Without Board Lock
Housing Material
PBT Polyester
Housing Color
Black
Housing Material Temperature
Standard
UL Flammability Rating
UL 94V-0

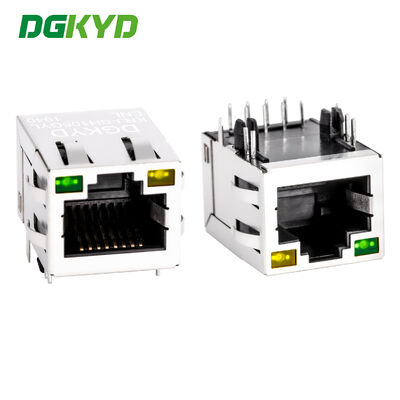

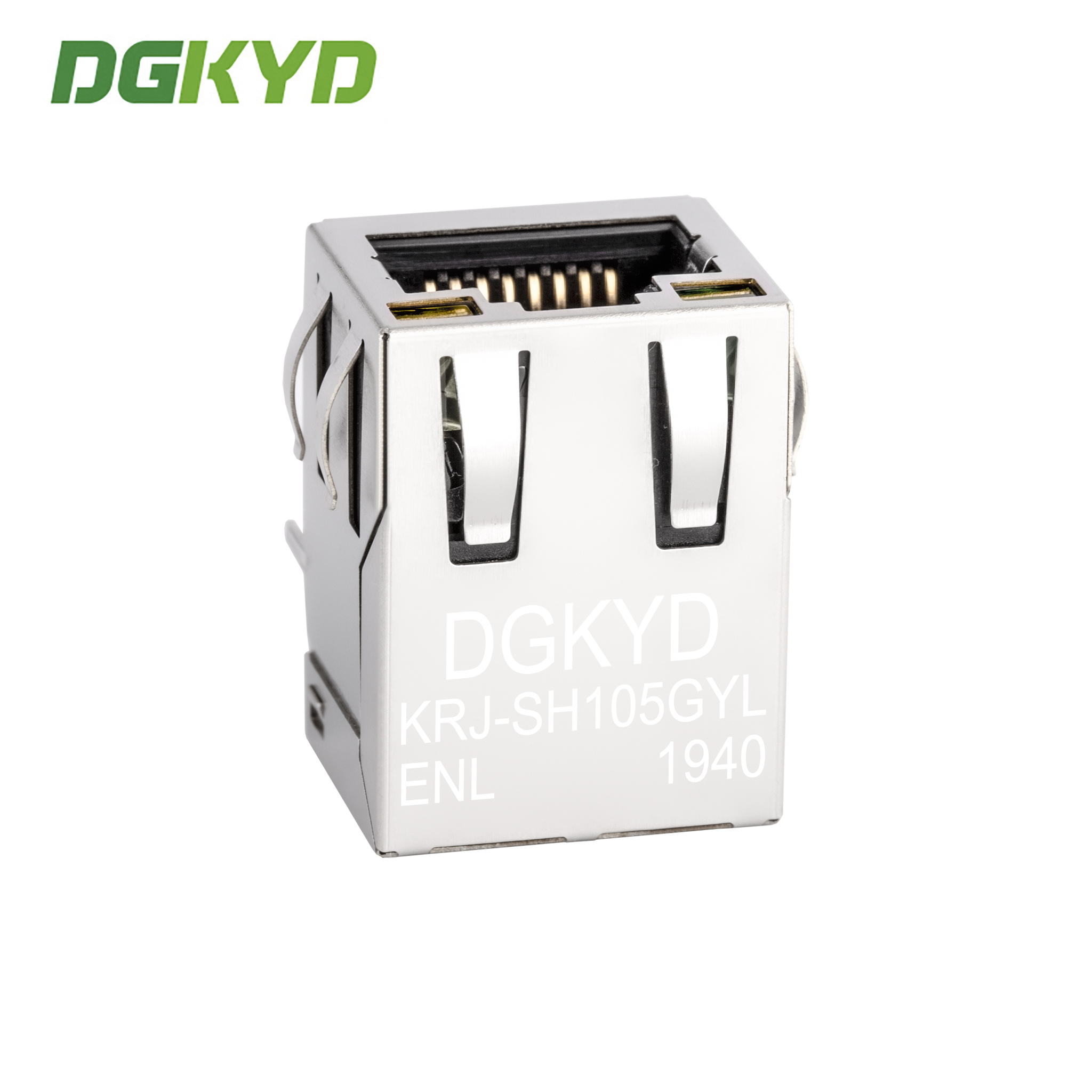

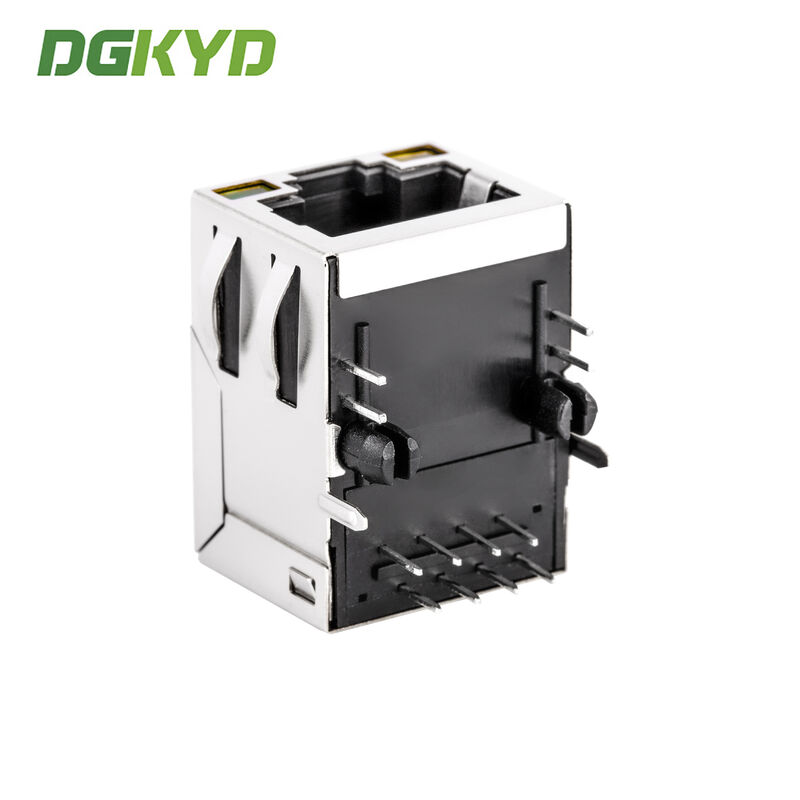

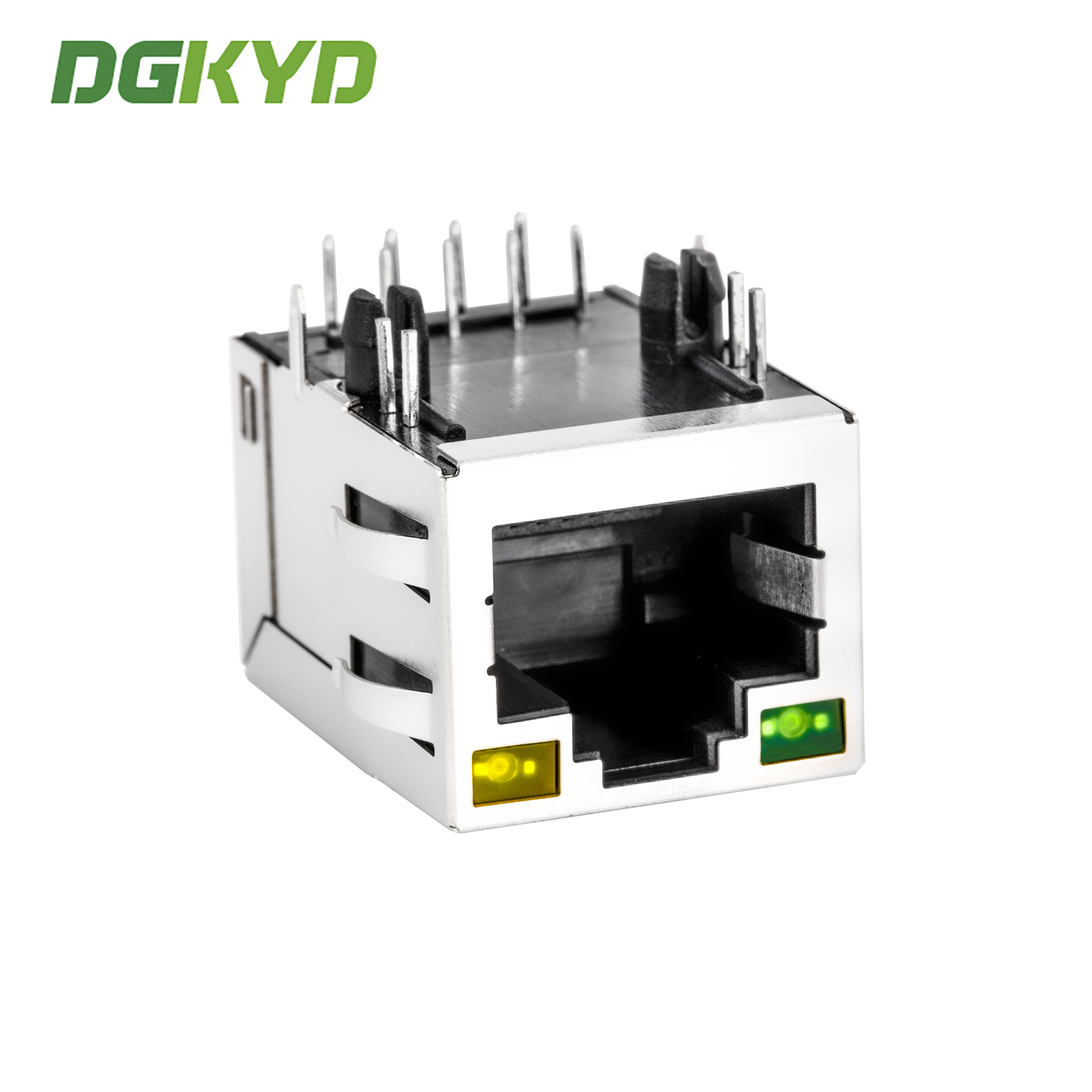

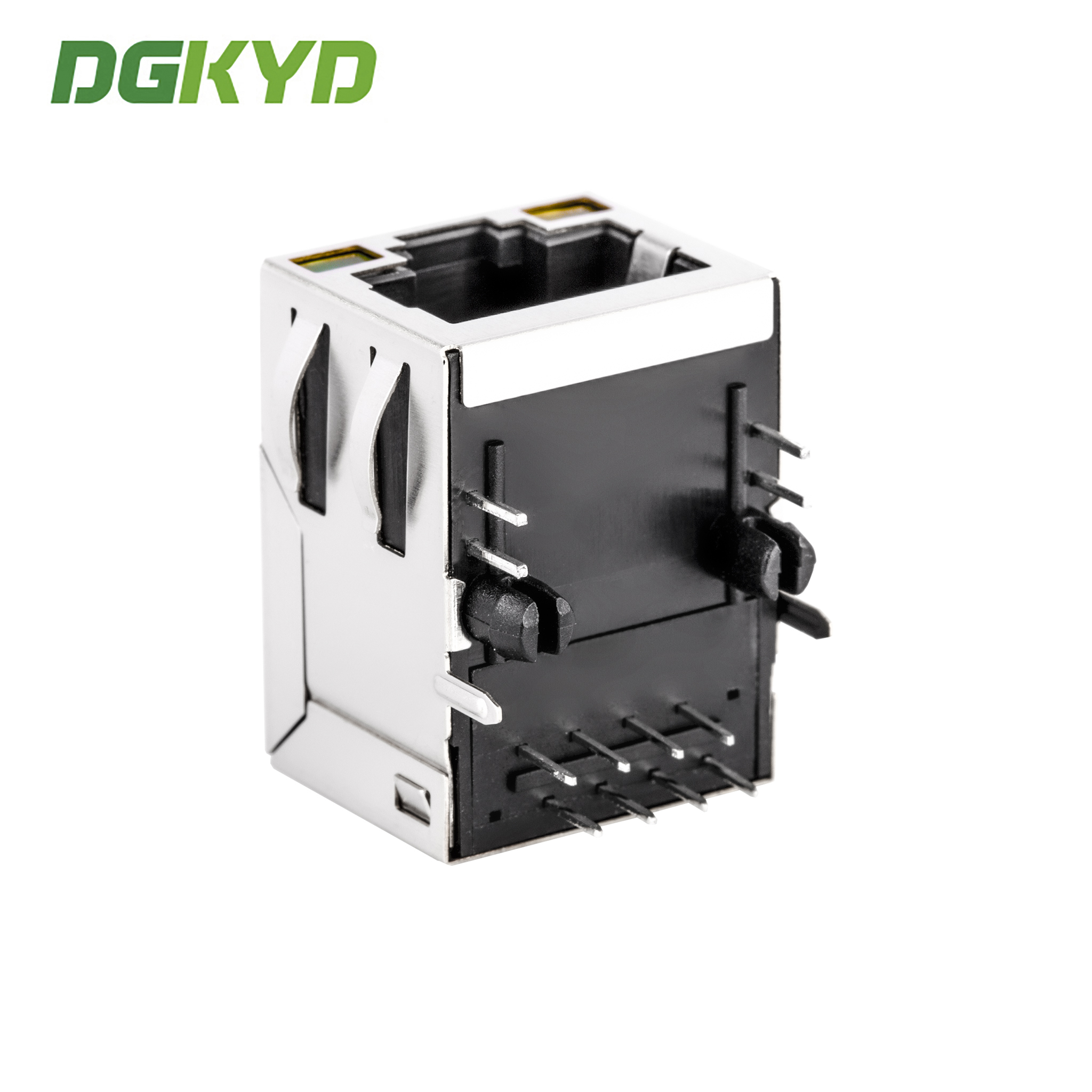

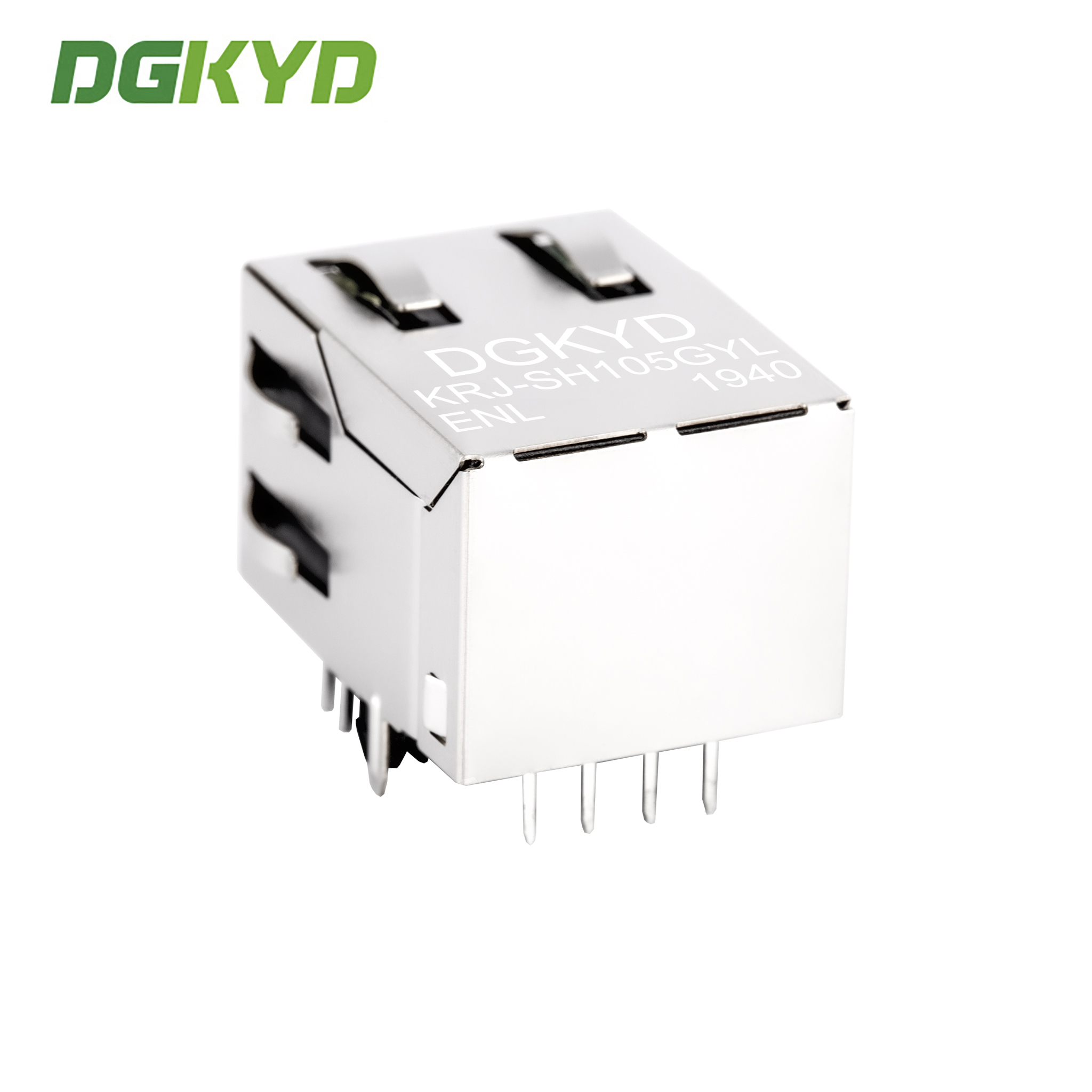

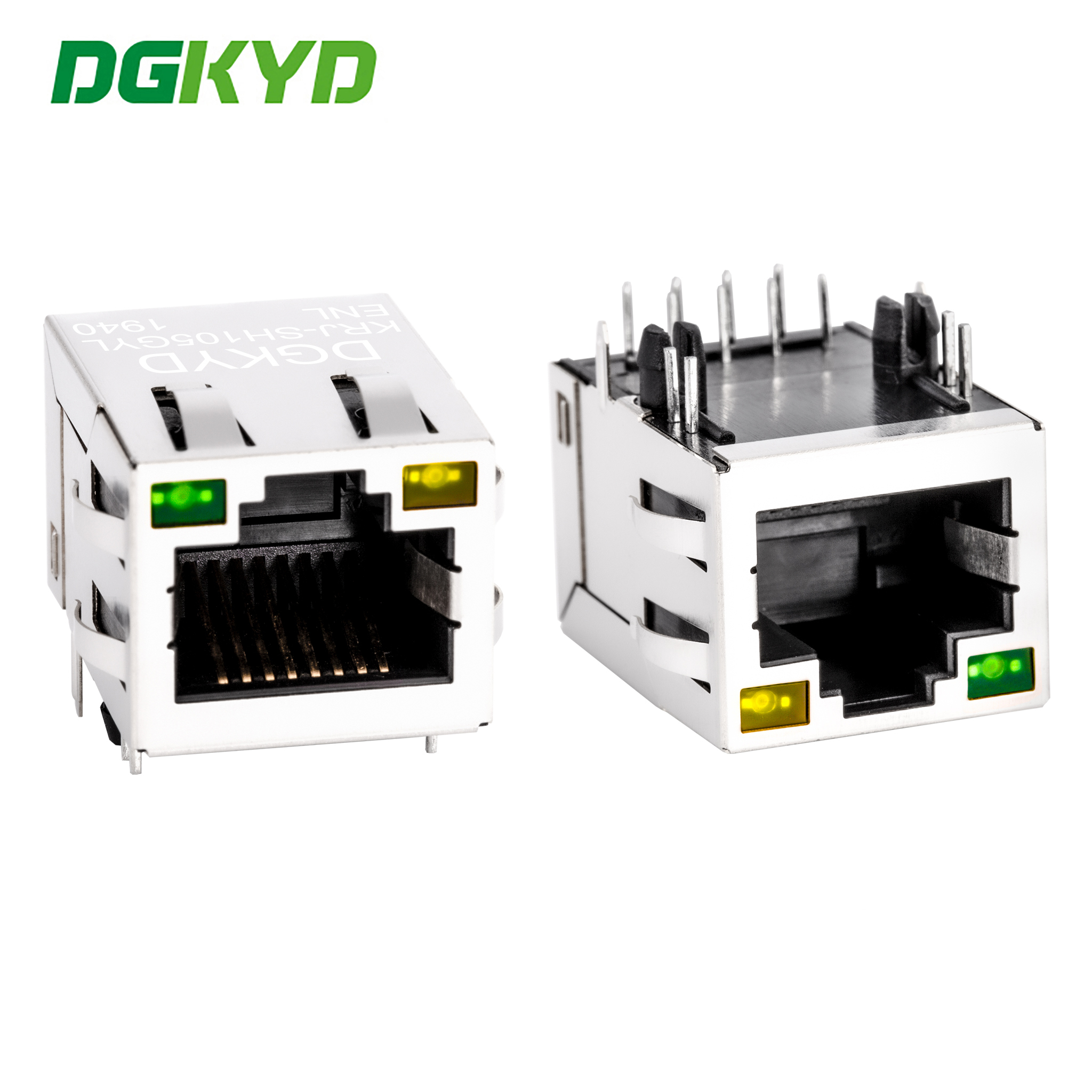

Product Images
Technical Specifications
Manufacturing Capabilities
RJ45 full series of integrated circuit accessories, manufacturer direct supply
Our products meet industry standards for electrical properties, mechanical dimensions, and environmental compliance. Your satisfaction is our primary service objective!
Frequently Asked Questions
Q: Are you a trading company or manufacturer?
A: We are a manufacturer. Welcome to visit our factory.
Q: What about your lead time?
A: For products in stock, delivery within 5-7 working days after payment. For customized and out-of-stock products, delivery time is confirmed based on order quantity.
Q: Can you provide samples? Are they free?
A: Yes. We typically provide 2-3 samples of standard products free for testing purposes.
Q: Can I put my own logo on it?
A: Yes. As a manufacturer with 11 years of OEM experience, we are fully capable of customizing products to your specifications.
Applications
Integrated RJ45 connector mainly used for:
