| 최소 주문 수량 : | 1개 | 가격 : | Please contact us to get the latest price. |
|---|---|---|---|
| Packaging Details : | Tray in Carton | Delivery Time : | 10 days |
| 지불 조건 : | 전신환, D/P (지급도 조건), 인수 인도, L/C (신용장), 웨스턴 유니온, 머니그램 | Supply Ability : | 100K pcs/day |
| Place of Origin: | DongGuan of China | 브랜드 이름: | DGKYD |
|---|---|---|---|
| 인증: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | Model Number: | DGKYD59211166IWA1DY1 |
|
상세 정보 |
|||
| Category: | Phone Jacks | Component Type: | PCB Jack |
|---|---|---|---|
| Type: | RJ11 | 자기를 띠: | 아무 것도 |
| Performance Category: | cat 5 | 인세션 타입: | 측면 엔트리 |
| Color: | Black | 전류 등급 (Amps): | 1.5A |
| Material: | PBT | Termination: | DIP |
| 모델 번호: | 5921 | operation temperature: | -40°C~+85°C |
| 강조하다: | 6P6C RJ11 connector,lightless mesh port RJ11 connector,all plastic RJ11 connector |
||
제품 설명

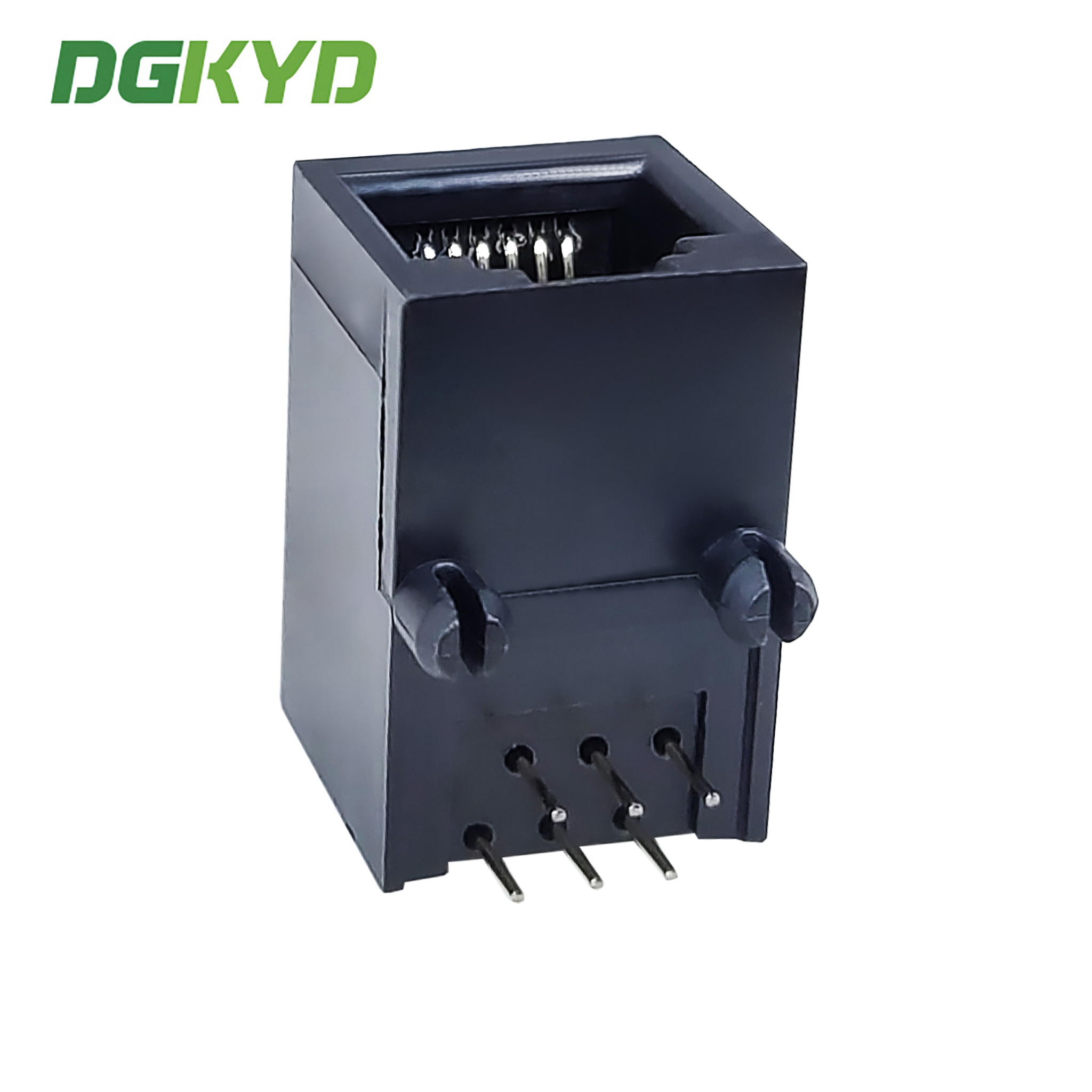

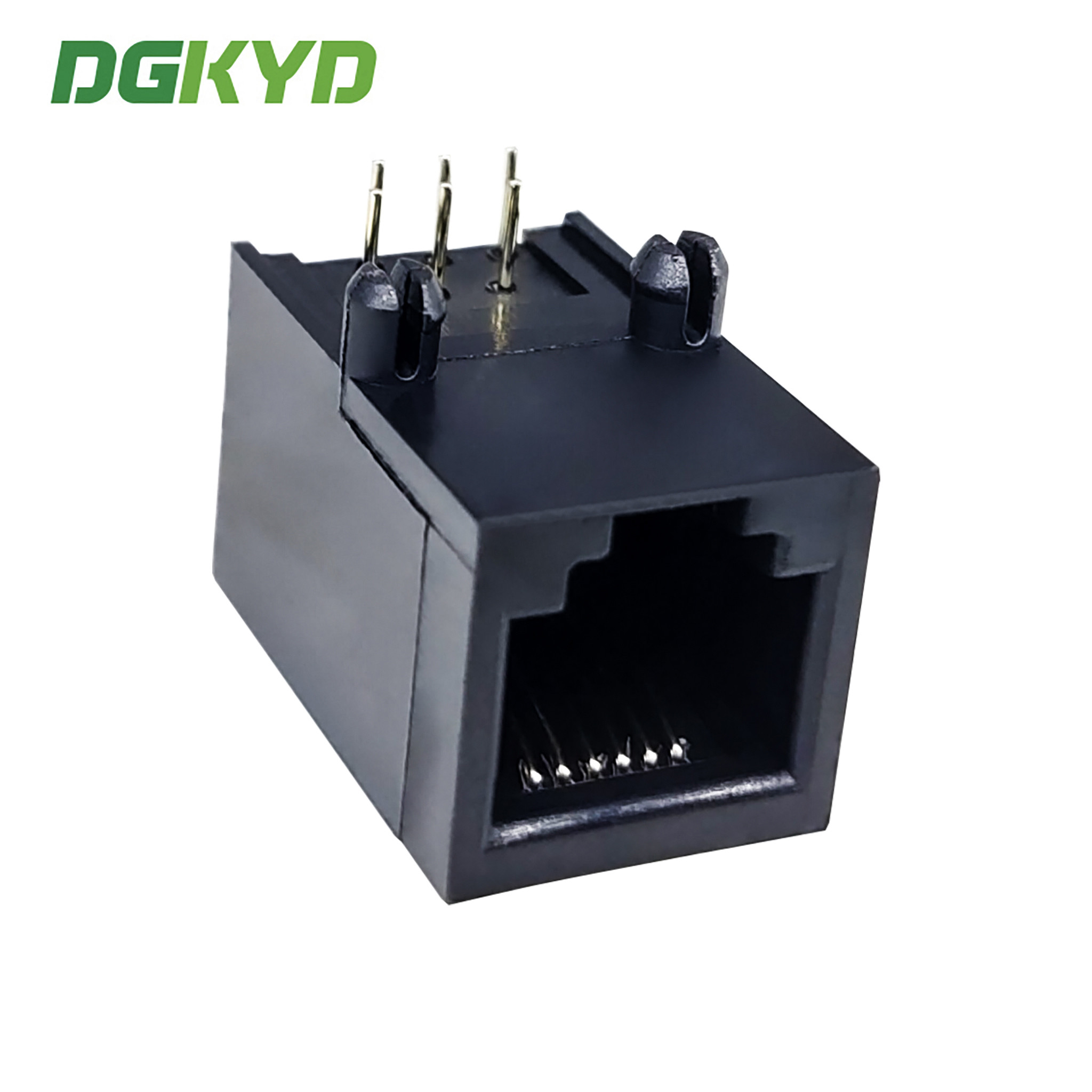

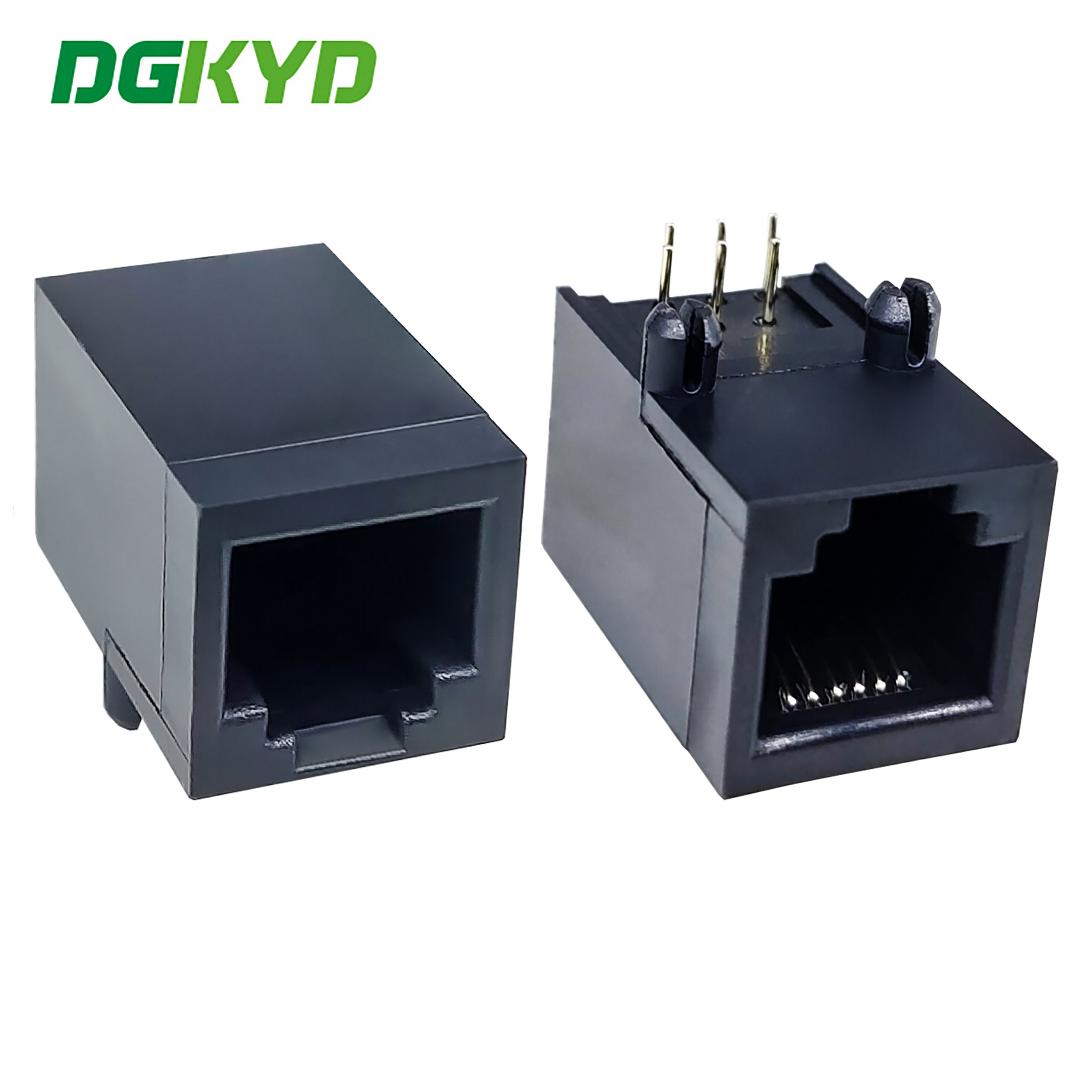

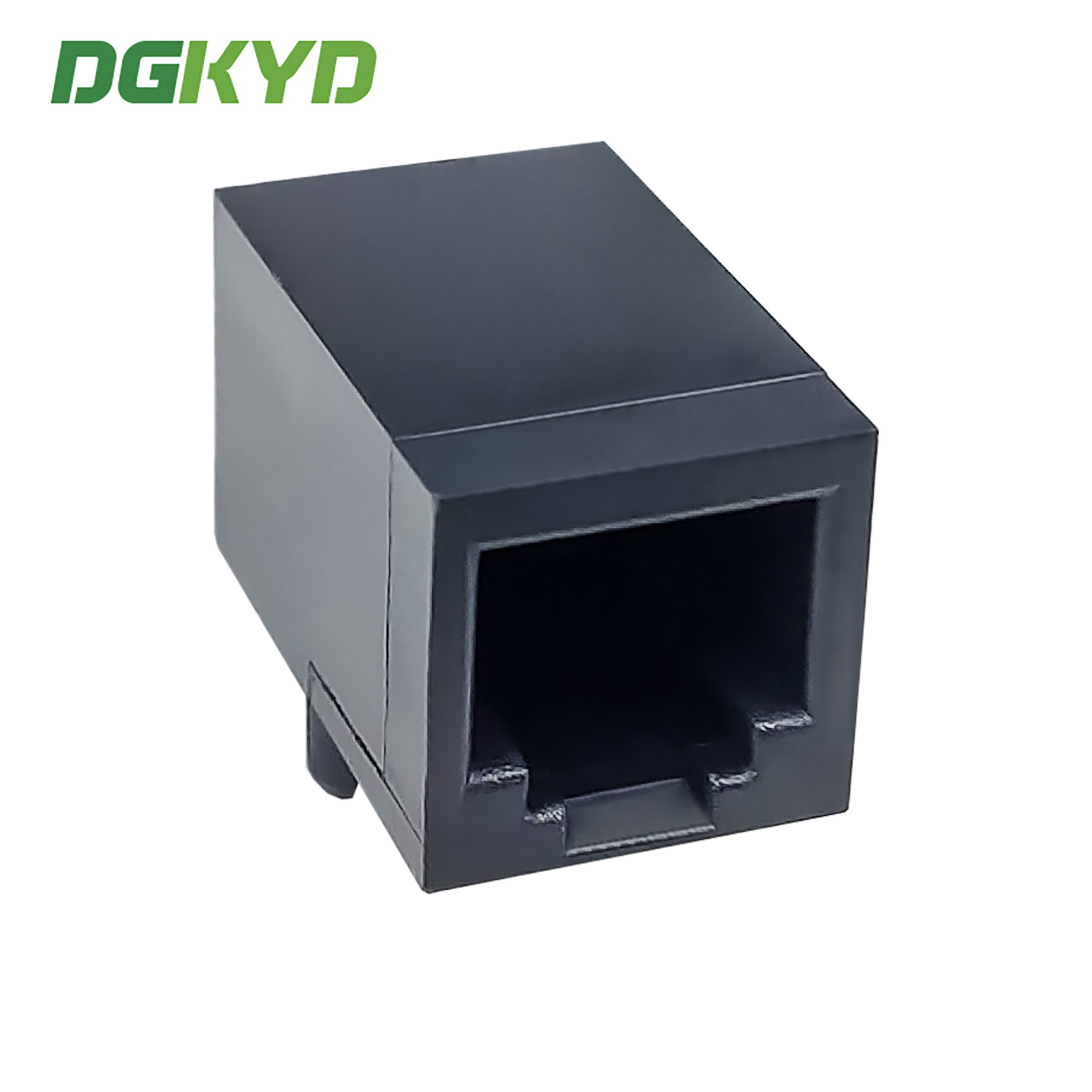

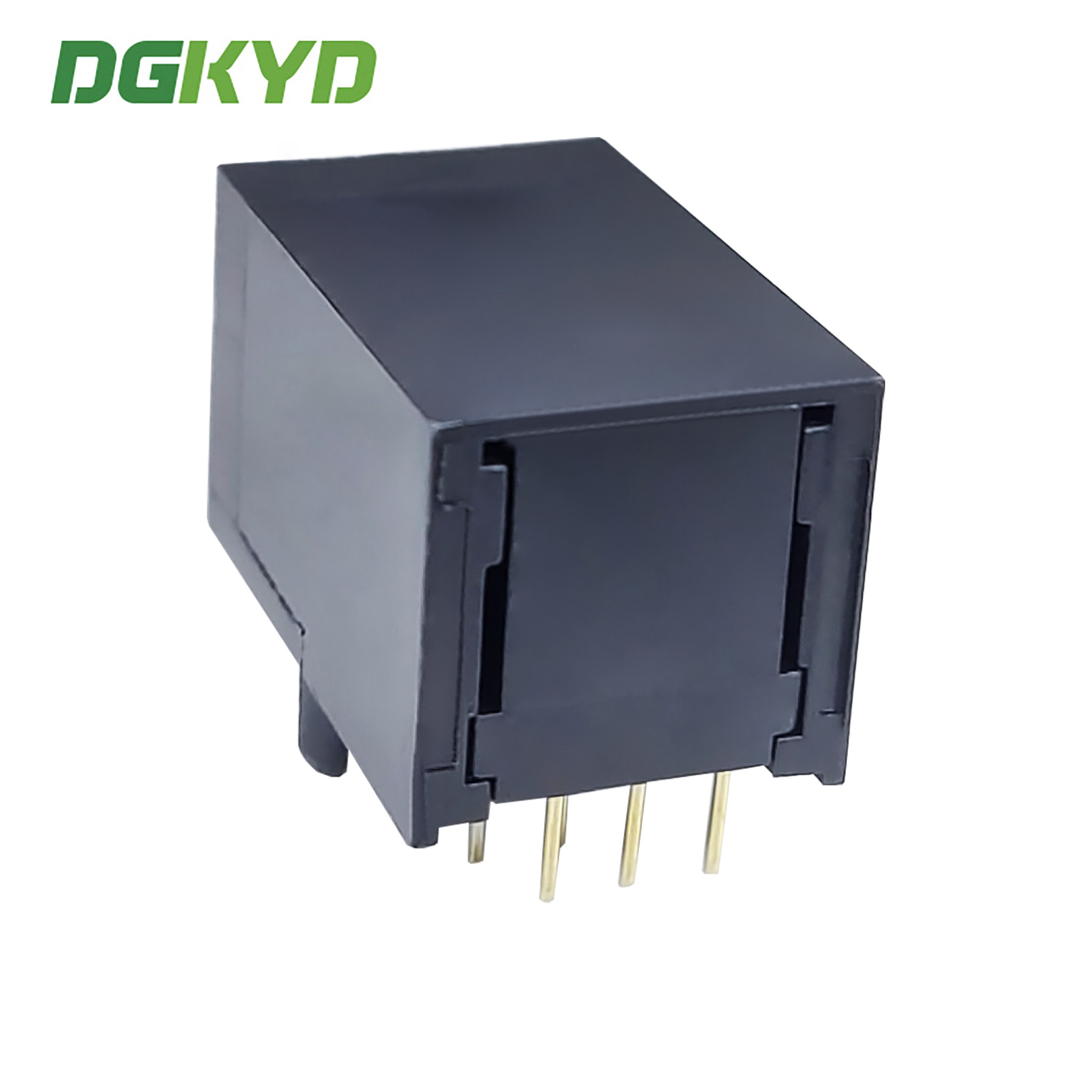

RJ11 connector all plastic lightless mesh port connector 6P6C without reinforcement ribs DGKYD59211166IWA1DY1
Product Specification Document
Parameters
| Part Number | DGKYD59211166IWA1DY1 | Brand | DGKYD/OEM/ODM |
| Place of Origin | Guangdong of China | Certification | RoHS/CE/FCC/CE/ISO9001/ISO14001 |
| Product Type | Connector-Modular | Connector Style | Jack |
| Jack Type | RJ11 | Connector Type | Modular Jack |
| Latch Style | Standard | Latch | TAB-DOWN |
| Filter | Without Filter | LED Option | Without LED |
| LED Color | No | Panel Stops | With Panel Stops |
| Shielded | No | Applies To | Printed Circuit Board |
| Performance Speed | 10/100/1000BASE-T/TX | Suitable for welding type | Reflowsolding(Alternative). |
| Port Configuration | Single Ports | Number of Positions | 6 |
| Jack Configuration | 1X1 | Terminals per Port | 6 |
| Shield Material | Copper Alloy preplated with Nickel | PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating Material | Gold 0.6u | Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel | PCB Mounting Style | Through Hole |
| Termination Method to PC Board | Through Hole-Press-Fit | Board Lock | With/Without Board Lock |
| Housing Material | PBT Polyester | Housing Color | Black |
| Housing Material Temperature | Standard | UL Flammability Rating | UL 94V-0 |
FAQ:
1. Q: Are you trading company or manufacture?
A: We are manufacture. Welcome to our factory.
2. Q: What about your lead time?
A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.
3. Q: Can you provide samples? Are they free?
A: Yes. Usually we can provide 2-3 samples of standard products free for testing.
4. Q: Can I put my own logo on it?
A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
