| 최소 주문 수량 : | 1개 조각 | 가격 : | Please contact us to get the latest price. |
|---|---|---|---|
| 포장 세부 사항 : | 상자의 트레이 | 배달 시간 : | 10일 |
| 지불 조건 : | T/T, D/P, D/A, L/C, Western Union, MoneyGram | 공급 능력 : | 100K PCS/DAY |
| 원래 장소: | 중국의 동복 | 브랜드 이름: | DGKYD |
|---|---|---|---|
| 인증: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | 모델 번호: | DGKYD52T1188AB1A1D20Y1 |
|
상세 정보 |
|||
| 범주: | 모듈러 잭 | 구성 요소 유형: | PCB 잭 |
|---|---|---|---|
| 유형: | RJ45 | 자기: | 없음 |
| 성능 카테고리: | 고양이 3시 5분 | 인세션 타입: | 측면 엔트리 |
| 방식을 탑재하세요: | 담그다 | OEM/ODM: | 예 |
| 위치/연락처 수: | 8P8c (RJ45, 이더넷) | 콘택트 핀에 금도 도금: | 부 |
| 보관 온도: | -40 ° C ~+85 ° C | 작동 온도: | -40 ° C ~+85 ° C |
| 강조하다: | RJ45 shielded industrial network socket,vertical 8P8C network port,52 series industrial RJ45 socket |
||
제품 설명

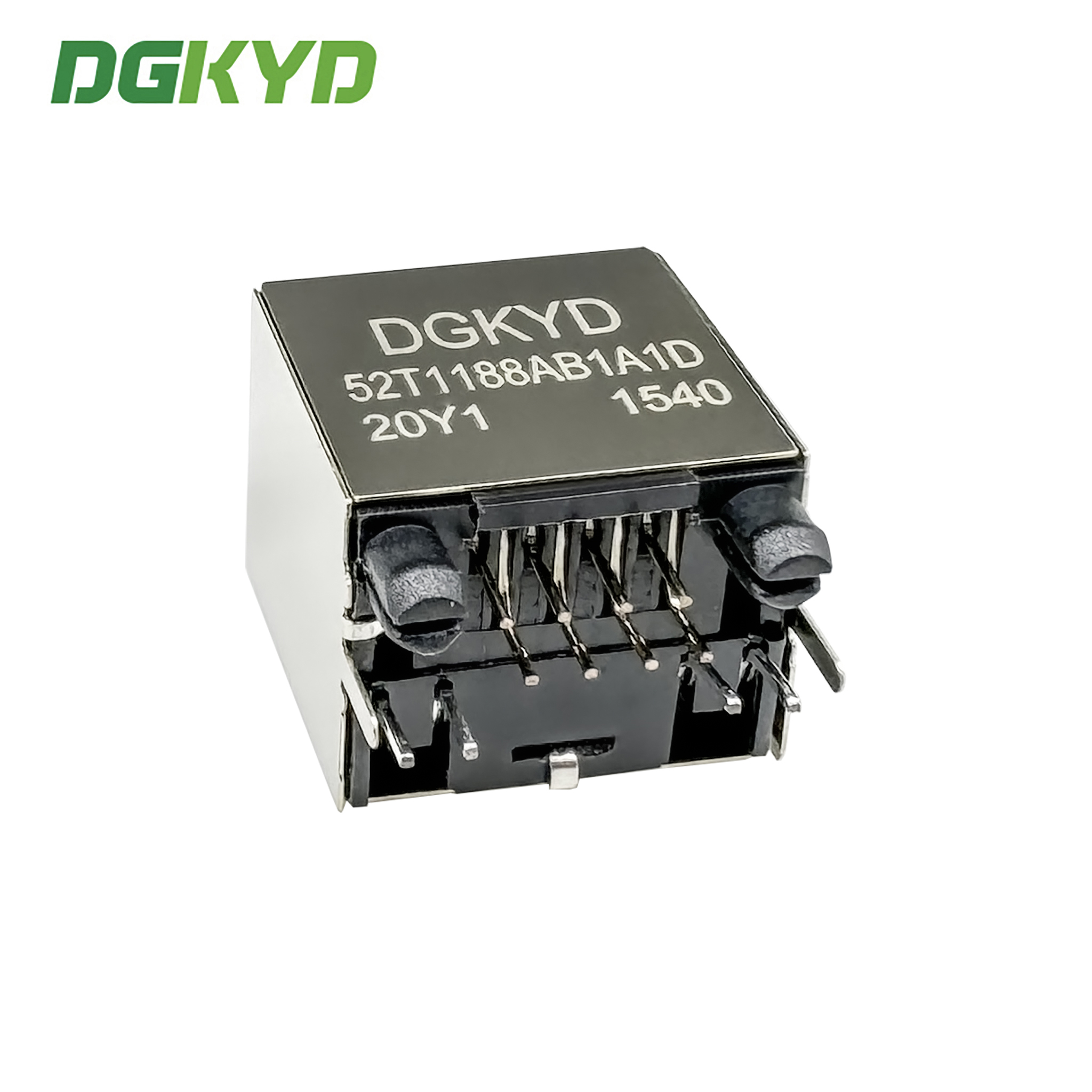

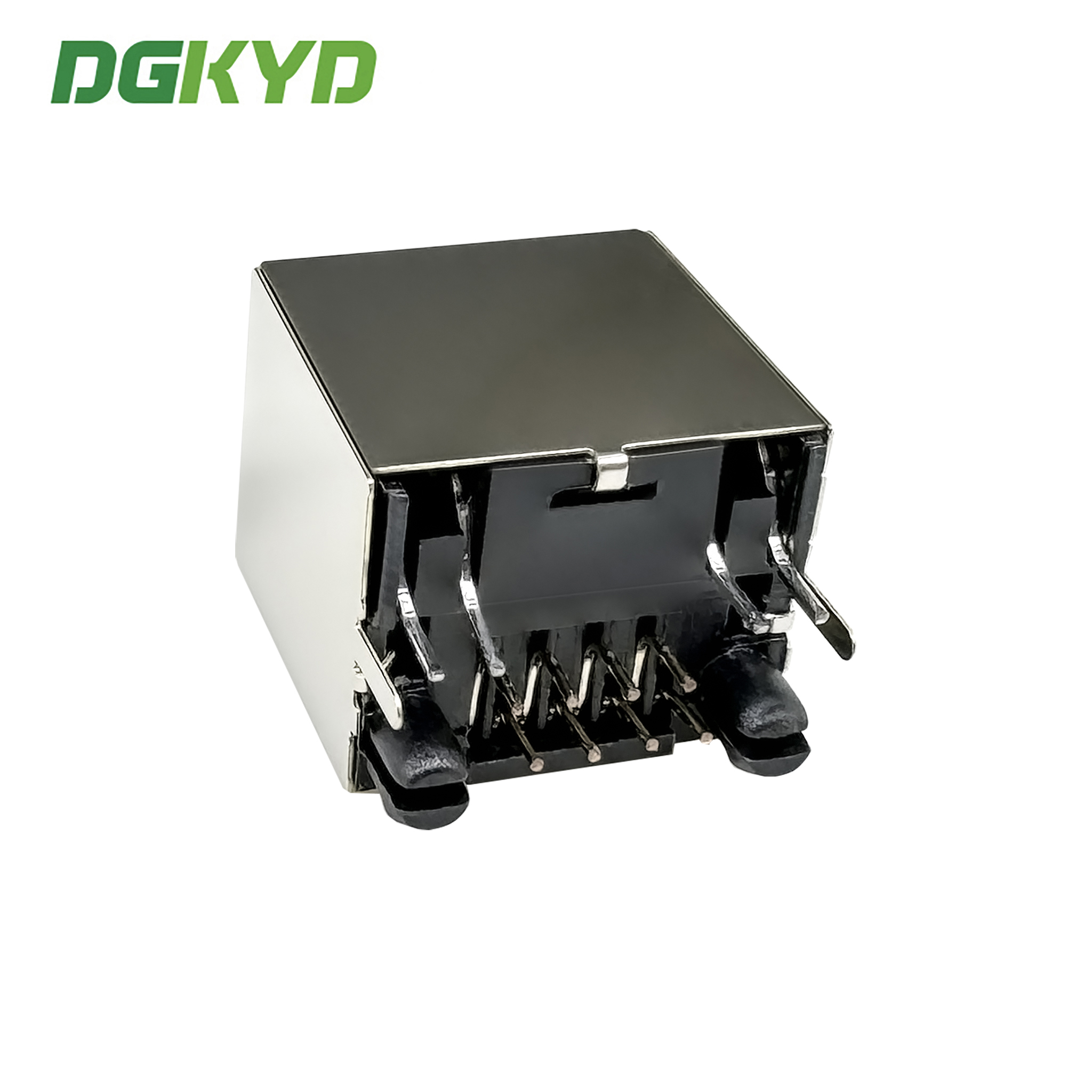

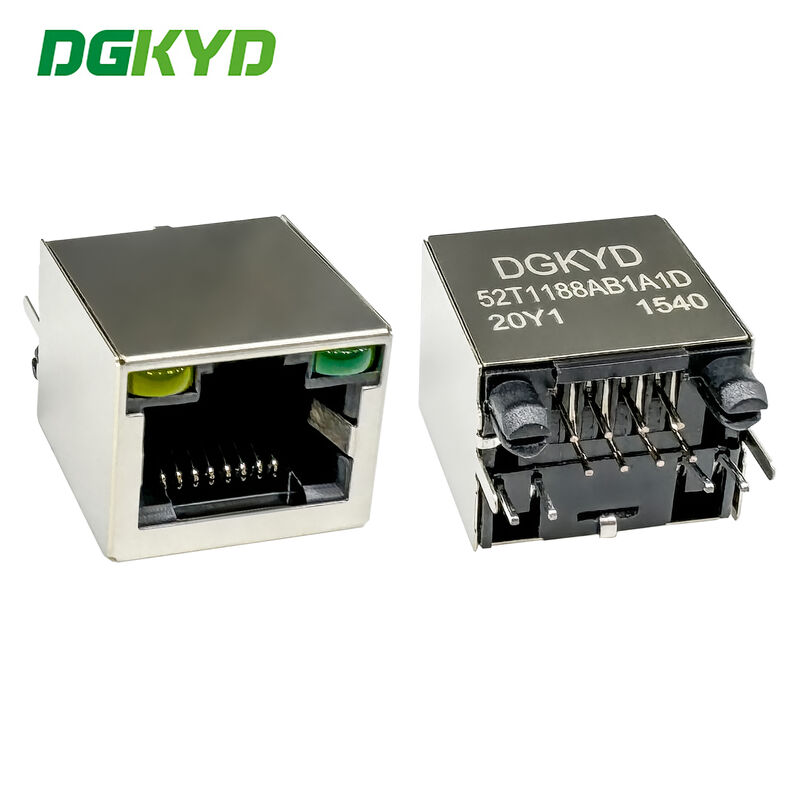

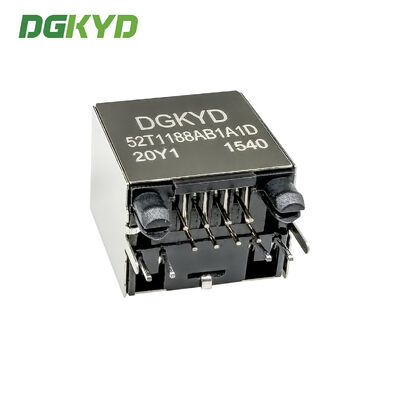

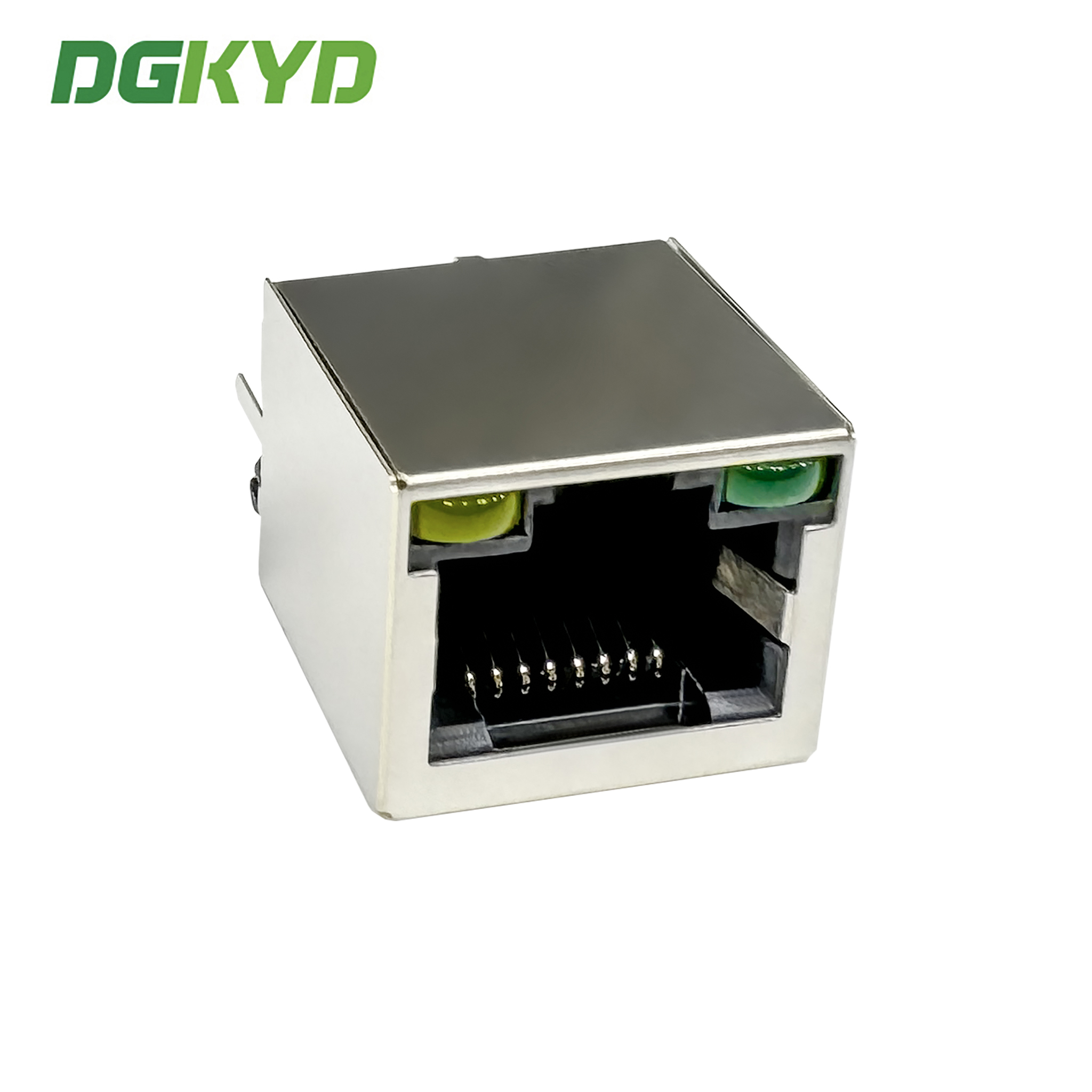

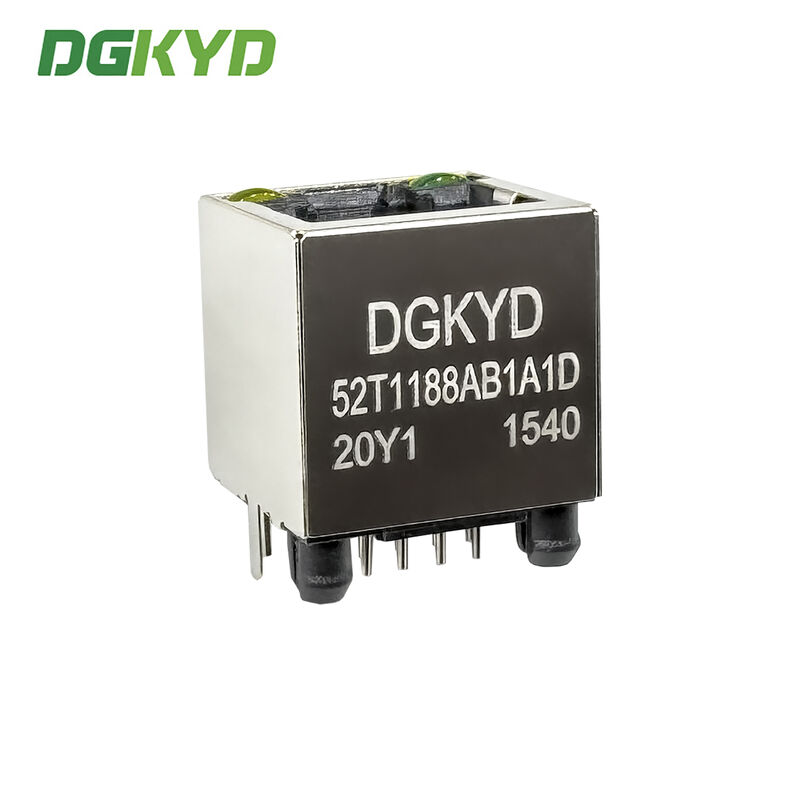

RJ45 vertical network socket 8P8C with shielded industrial network port DGKYD52T1188AB1A1D20Y1. This industrial-grade connector is designed for reliable performance in demanding environments.
View Product Specification Document| Part Number | DGKYD52T1188AB1A1D20Y1 | Brand | DGKYD/OEM/ODM |
| Product Type | Connector-Modular | Connector Style | Jack |
| Jack Type | RJ45 | Connector Type | Modular Jack |
| Latch Style | Standard | Latch | TAB-UP |
| Filter | Without Filter | LED Option | With LED |
| LED Color | Yellow/Green | Panel Stops | With Panel Stops |
| Shielded | With metal shield | Applies To | Printed Circuit Board |
| Port Configuration | Single Ports | Number of Positions | 8 |
| Jack Configuration | 1X1 | Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel | PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating | Gold Fu | Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel | PCB Mounting Style | Through Hole |
| Termination Method to PC Board | Through Hole-Press-Fit | Board Lock | With/Without Board Lock |
| Housing Material | PBT Polyester | Housing Color | Black |
| Housing Material Temperature | Standard | UL Flammability Rating | UL 94V-0 |
RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply.
The electrical properties of our products meet industry standards, with appearance and mechanical properties conforming to dimensional specifications and environmental protection standards. Your satisfaction is the purpose of our service!
