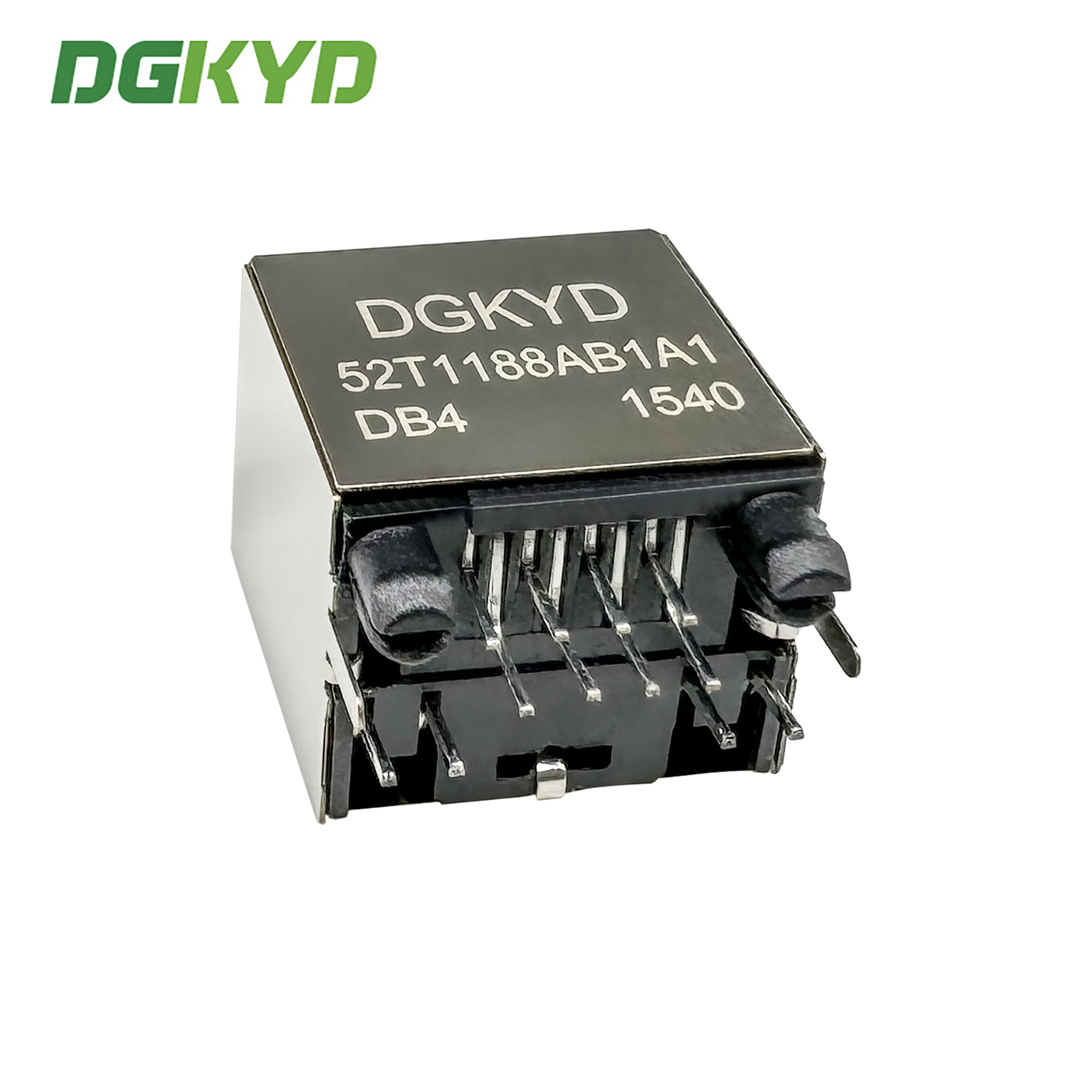

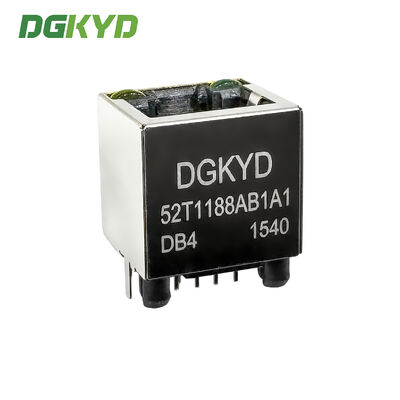

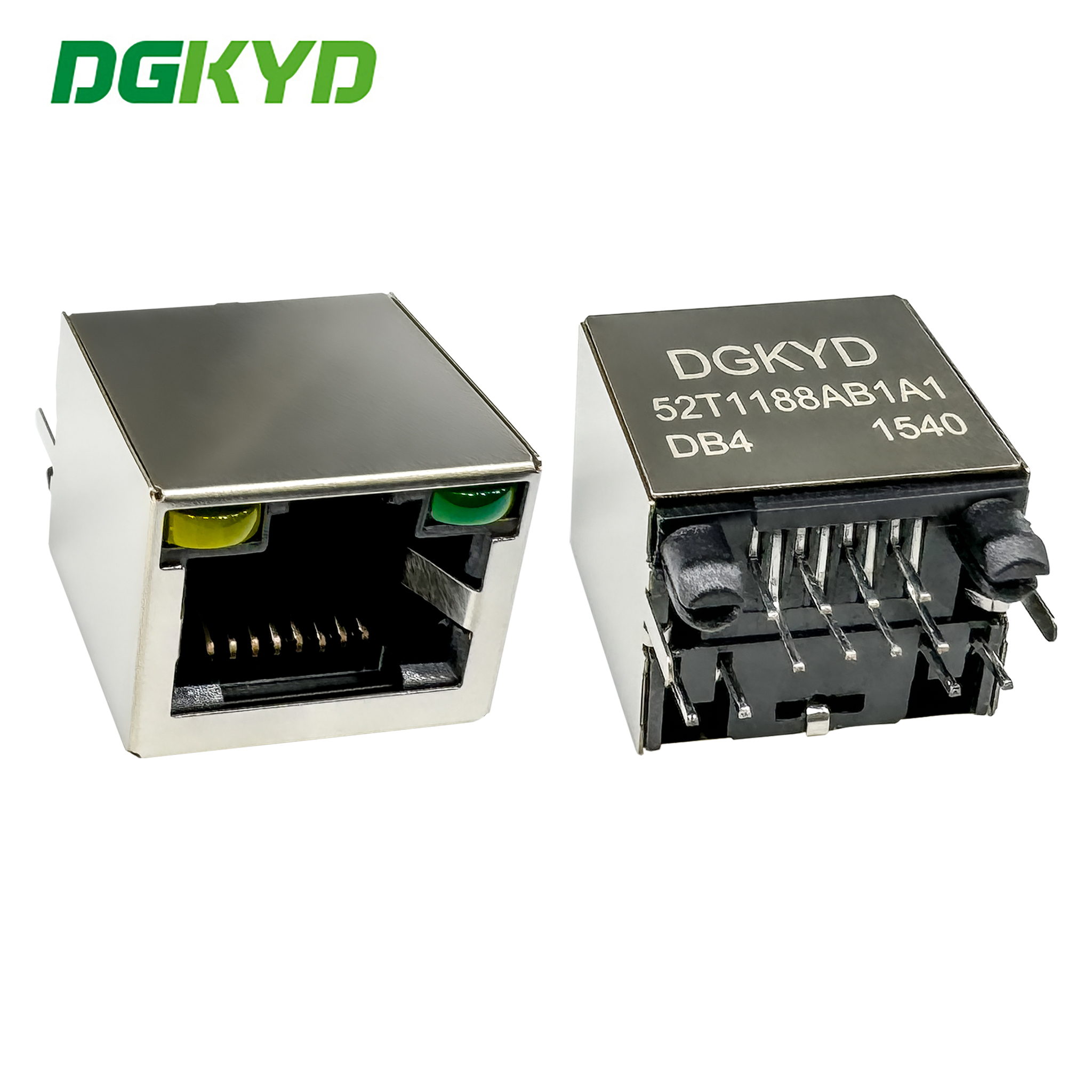

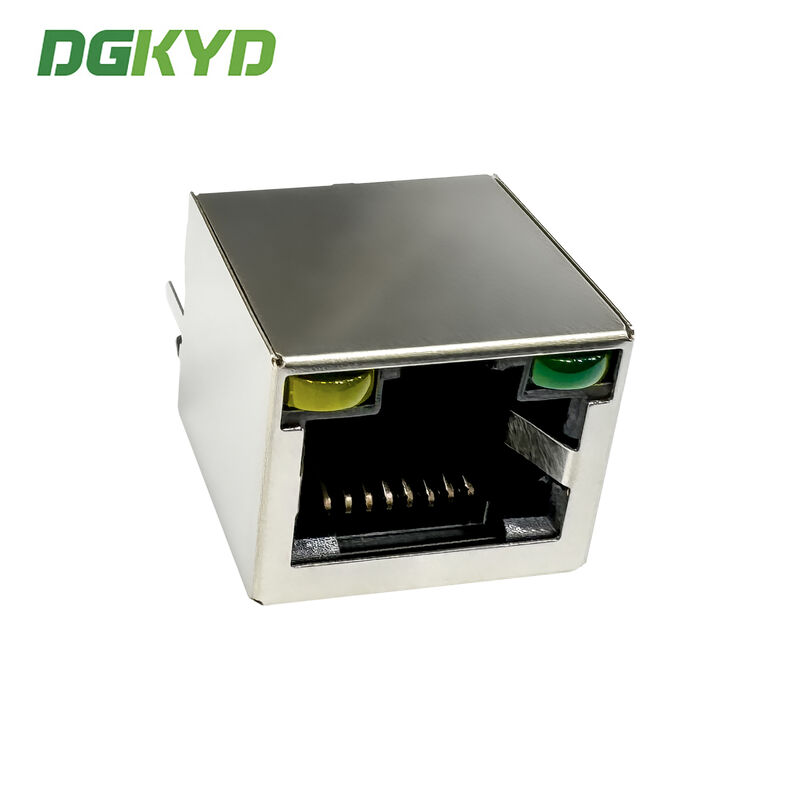

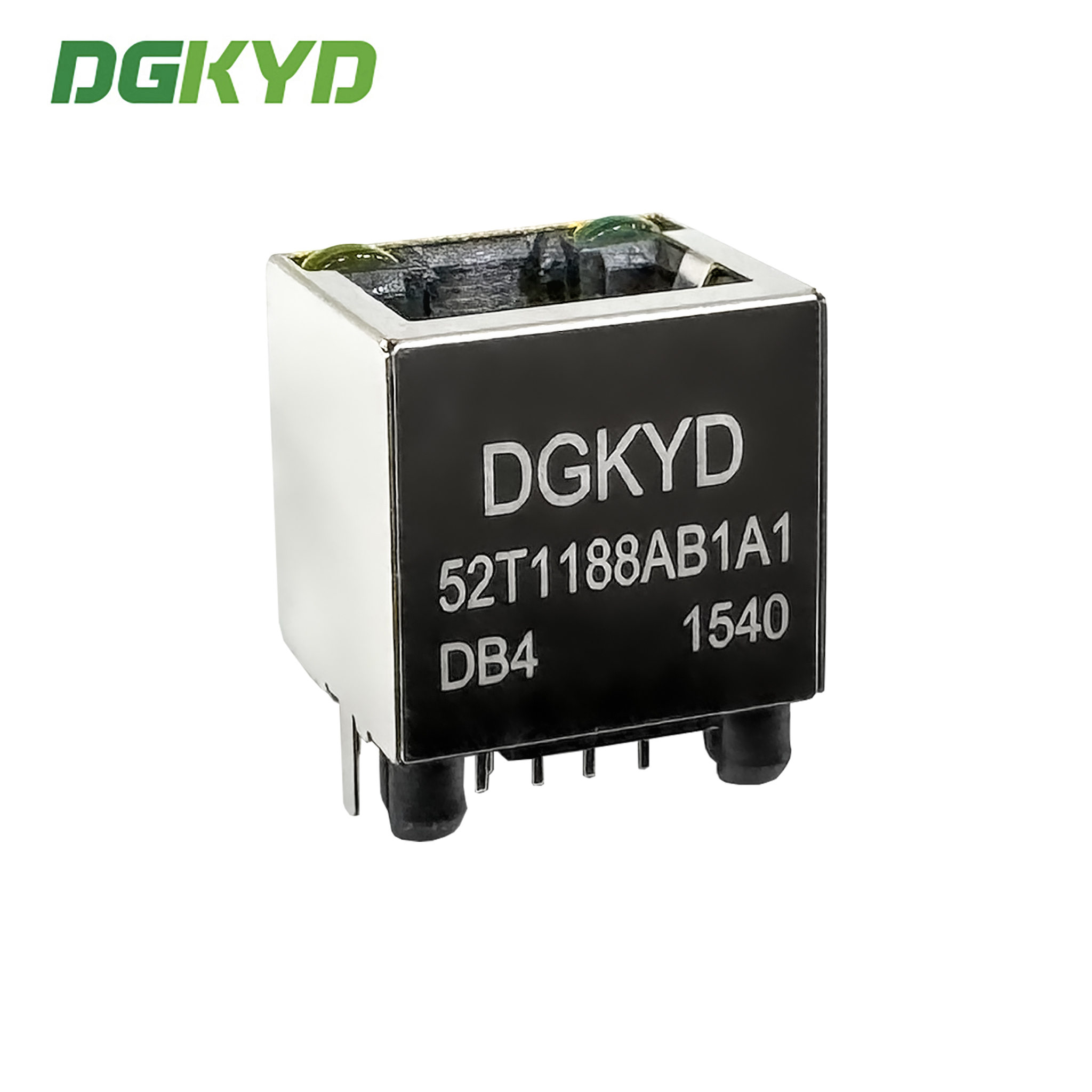

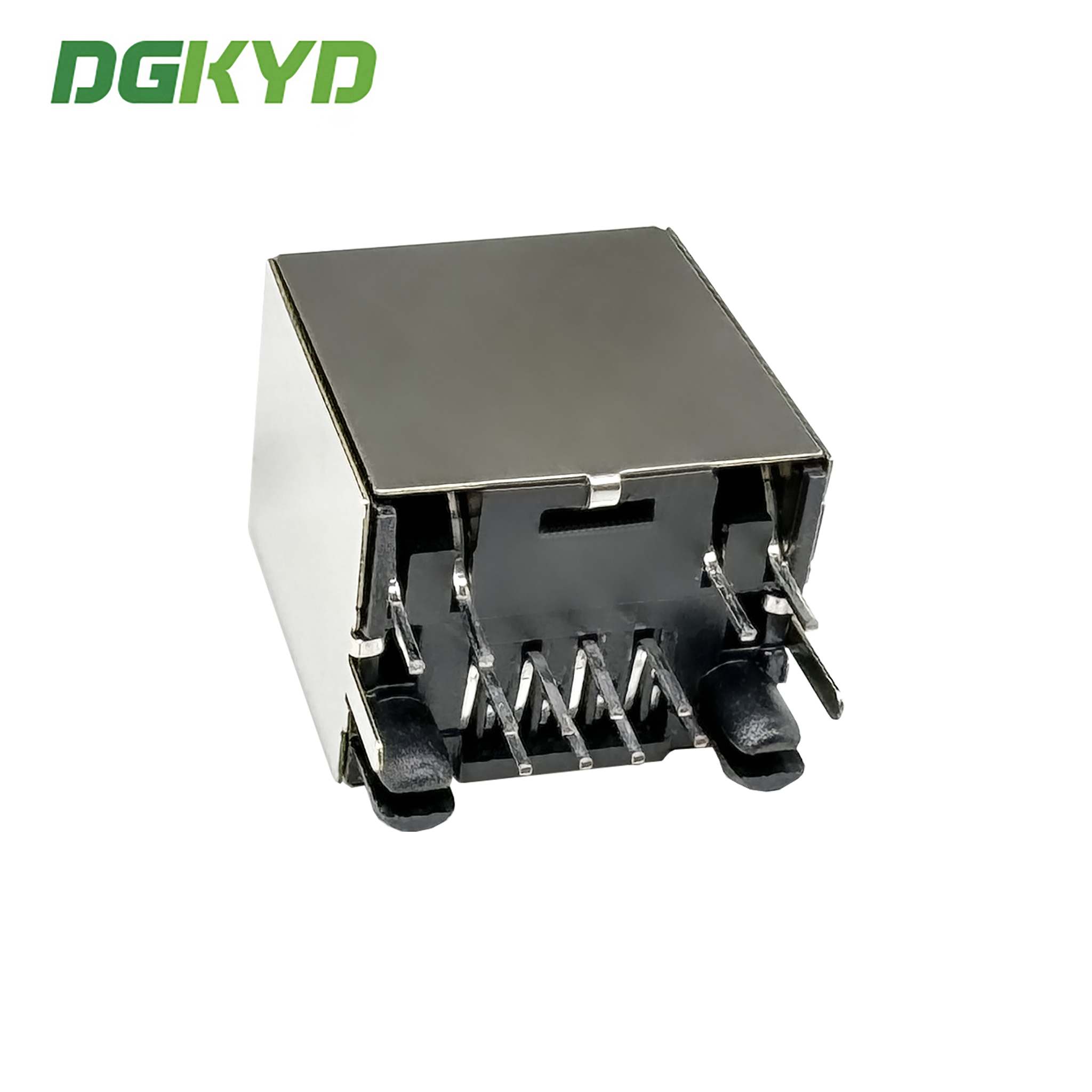

RJ45 single port socket 8P8C with light strip shielding flat pin gold-plated 6U DGKYD52T1188AB1A1DB4

최소 주문 수량 :	1개 조각	가격 :	Please contact us to get the latest price.
포장 세부 사항 :	상자의 트레이	배달 시간 :	10일
지불 조건 :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	공급 능력 :	100K PCS/DAY

원래 장소:	중국의 동복	브랜드 이름:	DGKYD
인증:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	모델 번호:	DGKYD52T1188AB1A1DB4

상세 정보
범주:	모듈러 잭	구성 요소 유형:	PCB 잭
유형:	RJ45	자기:	없음
성능 카테고리:	고양이 3시 5분	인세션 타입:	측면 엔트리
방식을 탑재하세요:	담그다	OEM/ODM:	예
위치/연락처 수:	8P8c (RJ45, 이더넷)	콘택트 핀에 금도 도금:	6U
보관 온도:	-40 ° C ~+85 ° C	작동 온도:	-40 ° C ~+85 ° C
강조하다:	RJ45 single port socket gold-plated , 8P8C shielded socket with light strip , flat pin RJ45 socket 6U

제품 설명

RJ45 Single Port Socket 8P8C with Light Strip Shielding Flat Pin Gold-Plated 6U DGKYD52T1188AB1A1DB4

Product Overview

RJ45 single port socket 8P8C with light strip shielding, flat pin gold-plated 6U DGKYD52T1188AB1A1DB4

Technical Specifications

Part Number	DGKYD52T1188AB1A1DB4
Brand	DGKYD/OEM/ODM
Product Type	Connector-Modular
Connector Style	Jack
Jack Type	RJ45
Connector Type	Modular Jack
Latch Style	Standard
Latch	TAB-UP
Filter	Without Filter
LED Option	With LED
LED Color	Yellow/Green
Panel Stops	With Panel Stops
Shielded	With metal shield
Applies To	Printed Circuit Board
Port Configuration	Single Ports
Number of Positions	8
Jack Configuration	1X1
Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel
PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating	Gold 6u
Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel
PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit
Board Lock	With/Without Board Lock
Housing Material	PBT Polyester
Housing Color	Black
Housing Material Temperature	Standard
UL Flammability Rating	UL 94V-0

Company Information

Product Features

Interface type: crystal head application: 10/100/1000BASE-T Ethernet
Type: RJ45 built in magnetics
Working frequency: high frequency characteristic: filtering, anti-interference
Working temperature: -40℃ to 85℃
Storage temperature: -40℃ to 85℃
Lead free soldering: wave soldering height up to 265℃

RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply

Business mode: Manufacturer
Delivery time: on time delivery, around two weeks
Specs for choices: LED indicator light (green, yellow, red, orange, blue, bi-color LED)
Shield with EMI fingers or not
Coil ratio of magnetic core
Magnetics circuit diversification optional
Contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)
Plastic housing material (PBT, PA46, PA9T, LCP)

The electrical properties of the products meet the industry standards, the appearance and mechanical properties meet the appearance dimensions, the mechanical manufacturing industry standards, and the environmental protection standards. Your satisfaction is the purpose of our service!

Frequently Asked Questions

Q: Are you trading company or manufacture?

A: We are manufacture. Welcome to our factory.

Q: What about your lead time?

A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.

Q: Can you provide samples? Are they free?

A: Yes. Usually we can provide 2-3 samples of standard products free for testing.

Q: Can I put my own logo on it?

A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
