| 최소 주문 수량 : | 1개 | 가격 : | Please contact us to get the latest price. |
|---|---|---|---|
| 포장 세부 사항 : | 통에서 트레이 | 배달 시간 : | 10일 |
| 지불 조건 : | 전신환, D/P (지급도 조건), 인수 인도, L/C (신용장), 웨스턴 유니온, 머니그램 | 공급 능력 : | 10만 개/일 |
| 원래 장소: | 중국의 동완 | 브랜드 이름: | DGKYD |
|---|---|---|---|
| 인증: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | 모델 번호: | KRJ-401QGYENL |
|
상세 정보 |
|||
| 차폐 RJ45: | 그래요 | No.Port: | 4곳 공항 |
|---|---|---|---|
| 제품 이름: | 트랜스와 RJ45 | 종류: | RJ45 여성 |
| 주택: | 페놀릭, PBT 검은 (UL94V-0) | 플라스틱 코어: | 유리 섬유 필러 PBT 검정색(UL94V-0), ROHS |
| 저장 온도: | -40' C~+85' Ｃ | 한 바늘의 수: | 8p10c |
| 작동 온도: | -40°C~+85°C | ~ 주도의: | 녹색 / 노랑색 |
| 강조하다: | Quad Port RJ45 Network Connector,Integrated Transformer RJ45 Network Connector,RJ45 Network Port Socket With Transformer |
||
제품 설명

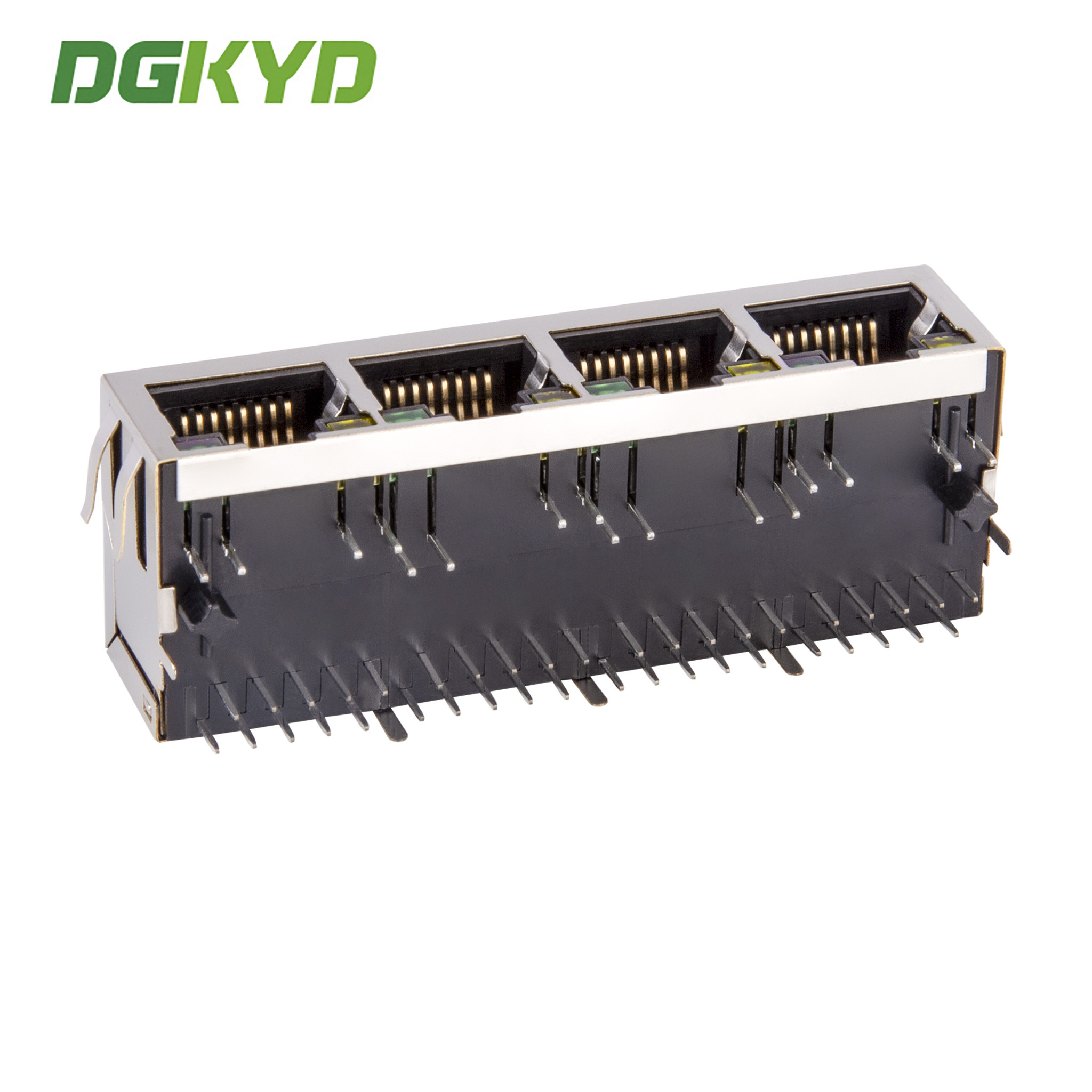

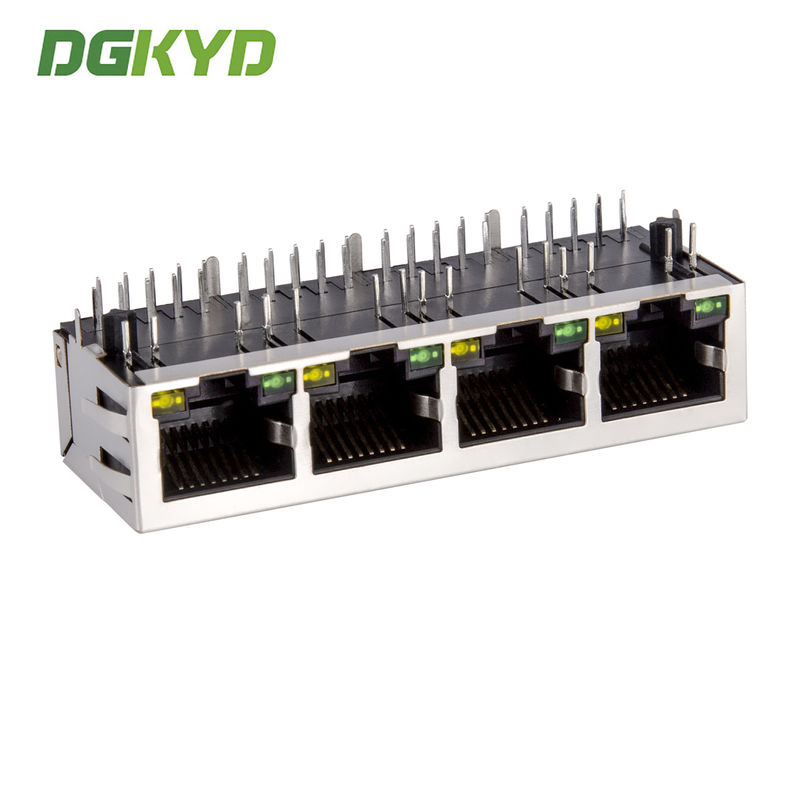

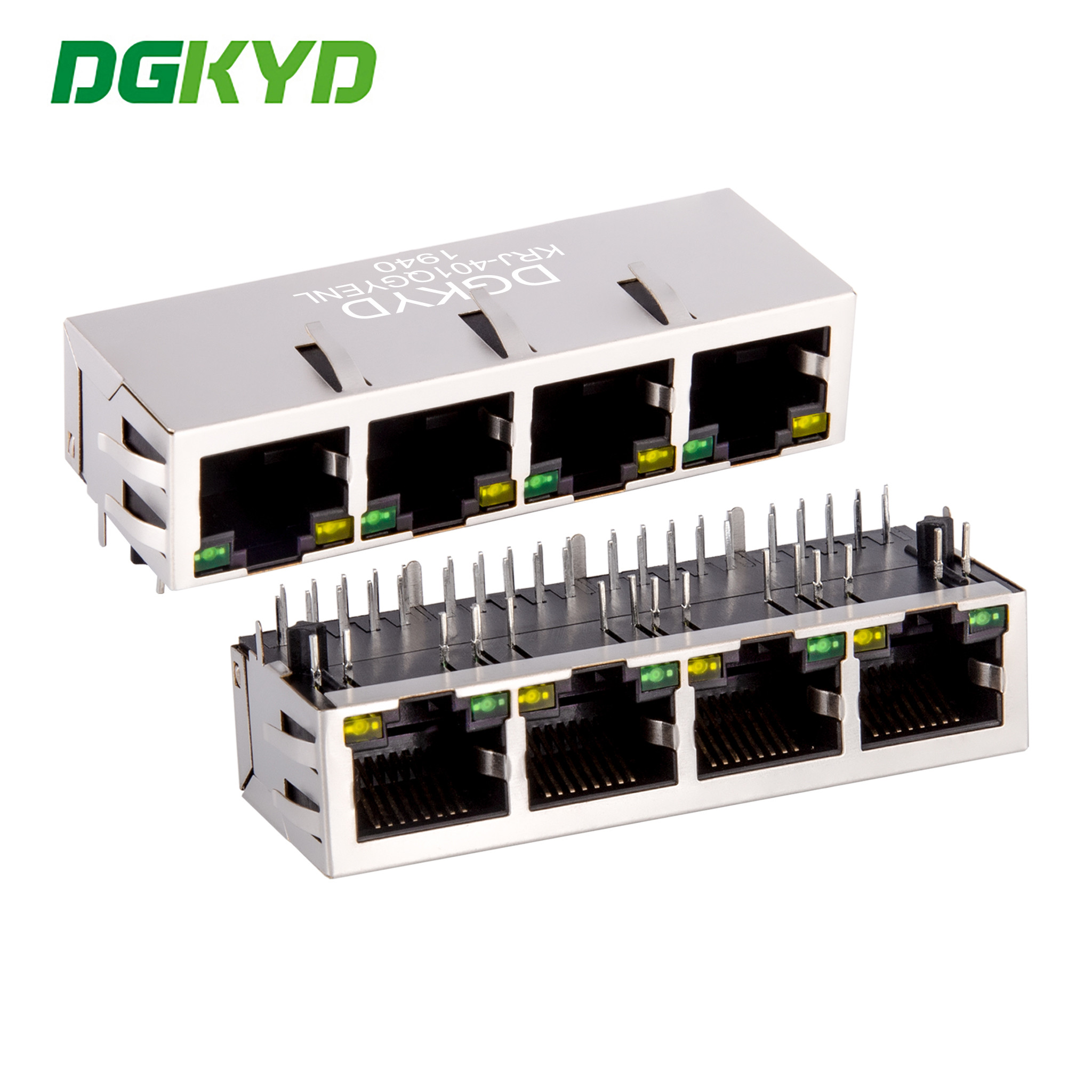

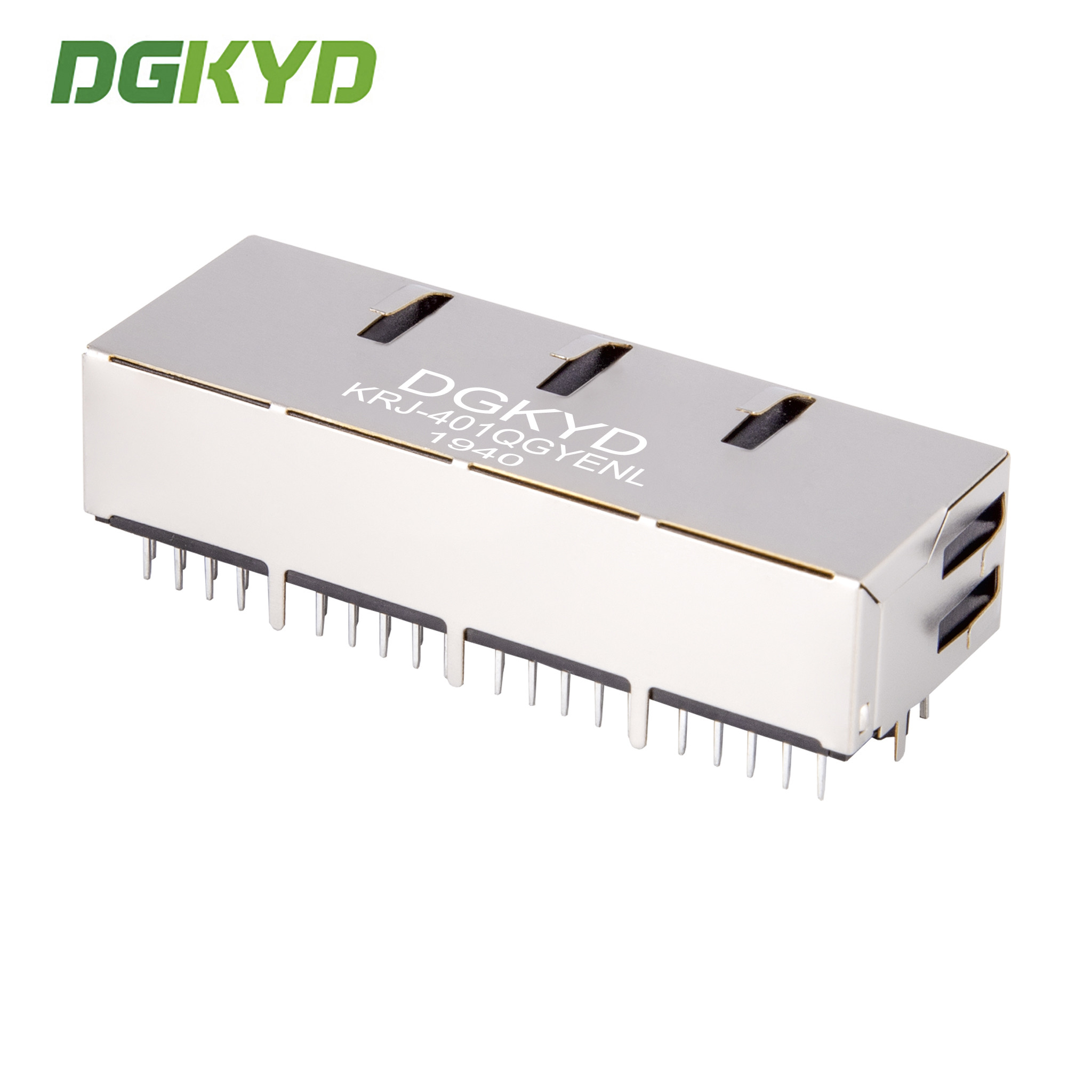

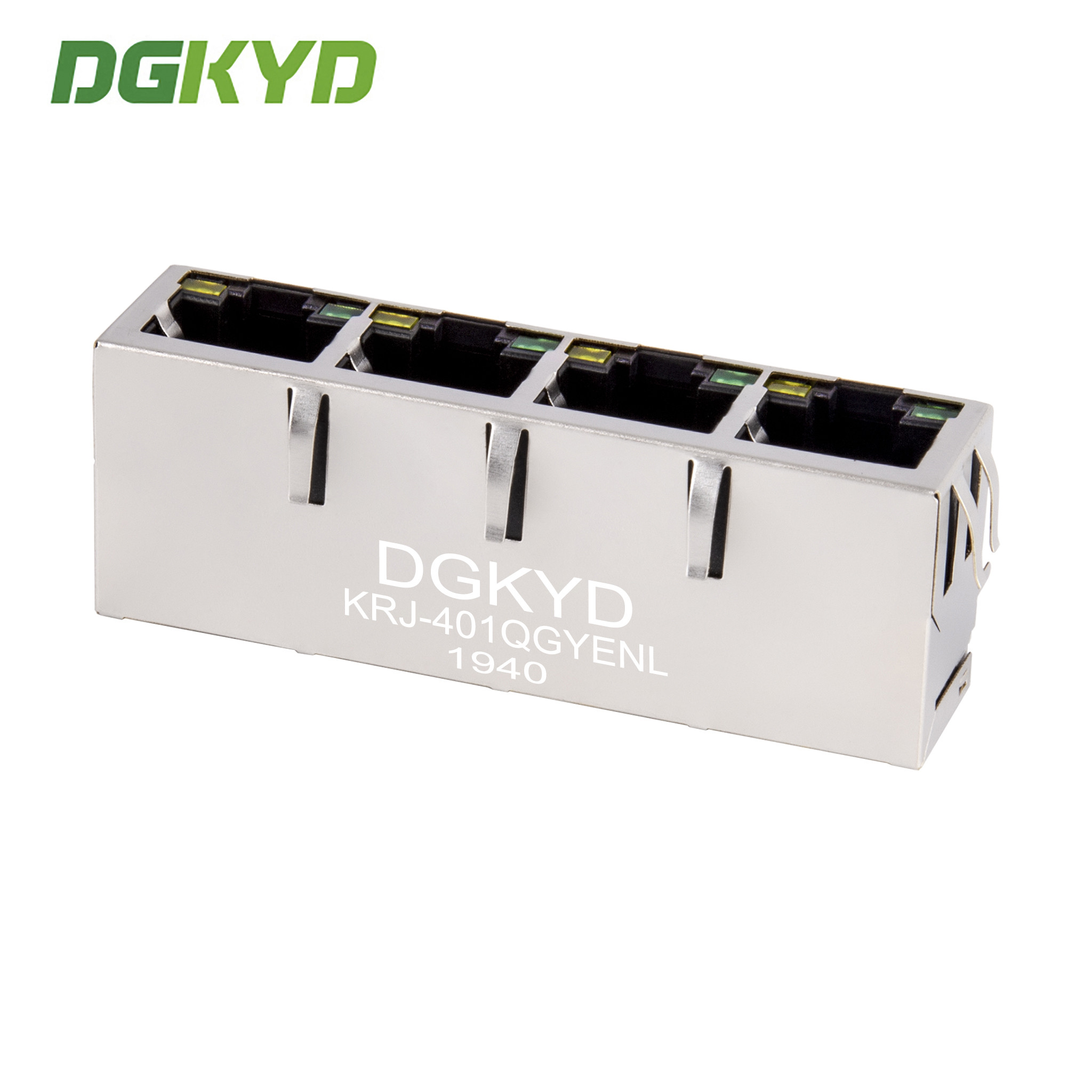

RJ45 quad port integrated gigabit transformer network connector network port socket With Transformer For Ethernet Switc KRJ-401QGYENL
Product Specification Document
| Part Number | KRJ-401QGYENL | Brand | DGKYD/OEM/ODM |
| Product Type | Connector-Modular | Connector Style | Jack |
| Jack Type | RJ45 | Connector Type | Modular Jack |
| Latch Style | Standard | Latch | TAB-DOWN |
| Filter | With Filter | LED Option | With LED |
| LED Color | Green/Yellow | Panel Stops | With Panel Stops |
| Shielded | With metal shield | Applies To | Printedout Circuit Board |
| Port Configuration | 1X4 Ports | Number of Positions | 10 |
| Jack Configuration | 1X4 | Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel | PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating | Gold 6u | Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel | PCB Mounting Style | Through Hole |
| Termination Method to PC Board | Through Hole-Press-Fit | Board Lock | With/Without Board Lock |
| Housing Material | PBT Polyester | Housing Color | Black |
| Housing Material Temperature | Standard | UL Flammability Rating | UL 94V-0 |
FAQ:
1. Q: Are you trading company or manufacture?
A: We are manufacture. Welcome to our factory.
2. Q: What about your lead time?
A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.
3. Q: Can you provide samples? Are they free?
A: Yes. Usually we can provide 2-3 samples of standard products free for testing.
4. Q: Can I put my own logo on it?
A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
