담당자 : Nicole Zhuo
전화 번호 : +86 18925835585
WhatsApp : +8618925835585
| 최소 주문 수량 : | 1개 | 가격 : | Please contact us to get the latest price. |
|---|---|---|---|
| 포장 세부 사항 : | 상자의 트레이 | 배달 시간 : | 10일 |
| 지불 조건 : | T/T, D/P, D/A, L/C, Western Union, MoneyGram | 공급 능력 : | 100,000개/일 |
| 원래 장소: | 중국의 동복 | 브랜드 이름: | DGKYD |
|---|---|---|---|
| 인증: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | 모델 번호: | KRJ-007DUSBNL |
|
상세 정보 |
|||
| 하우징 재질: | PBT 검정색 | 메이팅 영역 도금과 연락하세요: | 선택적인 것을 위한 금 6u / 15u / 30u / 50u |
|---|---|---|---|
| 금속 실드: | 주석 도금된 인광 BROZNE | LED 색상: | 녹색 및 노란색 |
| 걸쇠: | 위로 | PCB 각도 장착대: | 측면 엔트리 |
| 스틀예를 탑재하세요: | 구멍 | 잭 타입: | RJ45 + USB |
| 콘택트 핀에 금도 도금: | 6U | 보관 온도: | -40°C~+85°C |
| 작동 온도: | -40°C~+85°C | ||
| 강조하다: | shielded RJ45 USB Ethernet socket,RJ45 USB 2.0 light strip,100Mbps transformer RJ45 socket |
||
제품 설명

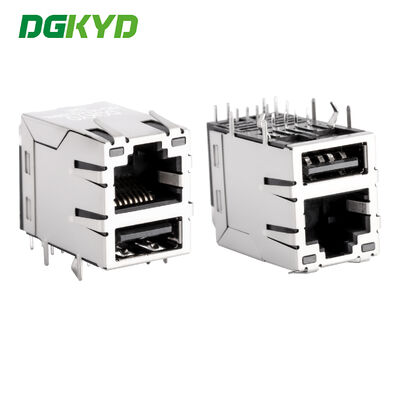

RJ45 with Single USB 2.0, Light Strip, Shielded Ethernet Socket, 100Mbps Transformer KRJ-007YGUSBNL
RJ45 with Single USB 2.0 Sockets
Part Number: KRJ-007YGUSBNL
Download Product Datasheet
Technical Specifications
Specification
Details
Part Number
KRJ-007YGUSBNL
Brand
DGKYD/OEM/ODM
Product Type
Connector-Modular
Connector Style
Jack
Jack Type
RJ45
Connector Type
Modular Jack
Latch Style
Standard
Latch
TAB-UP
Filter
With Filter
LED Option
With LED
LED Color
Yellow-Green
Panel Stops
With Panel Stops
Shielded
With metal shield
Applies To
Printed Circuit Board
Port Configuration
Single Ports
Number of Positions
6
Jack Configuration
1X1
Terminals per Port
8
Shield Material
Copper Alloy preplated with Nickel
PCB Mounting Orientation
Side Entry (Right Angle)
Contact Mating Area Plating
Gold 6u
Contact Base Material
Phosphor Bronze
Solder Tail Contact Plating Material
Tin-Lead over Nickel
PCB Mounting Style
Through Hole
Termination Method to PC Board
Through Hole-Press-Fit
Board Lock
With/Without Board Lock
Housing Material
PBT Polyester
Housing Color
Black
Housing Material Temperature
Standard
UL Flammability Rating
UL 94V-0

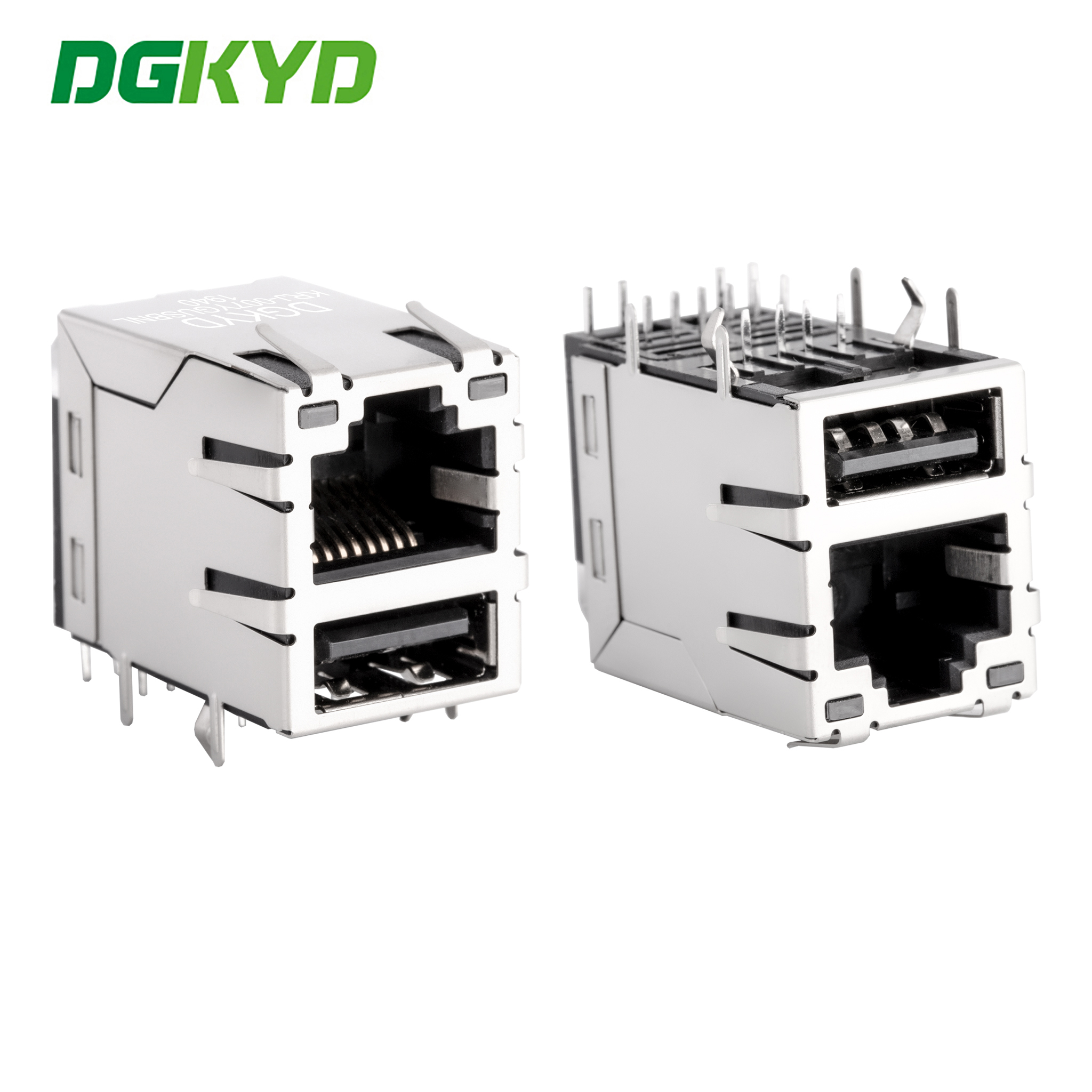

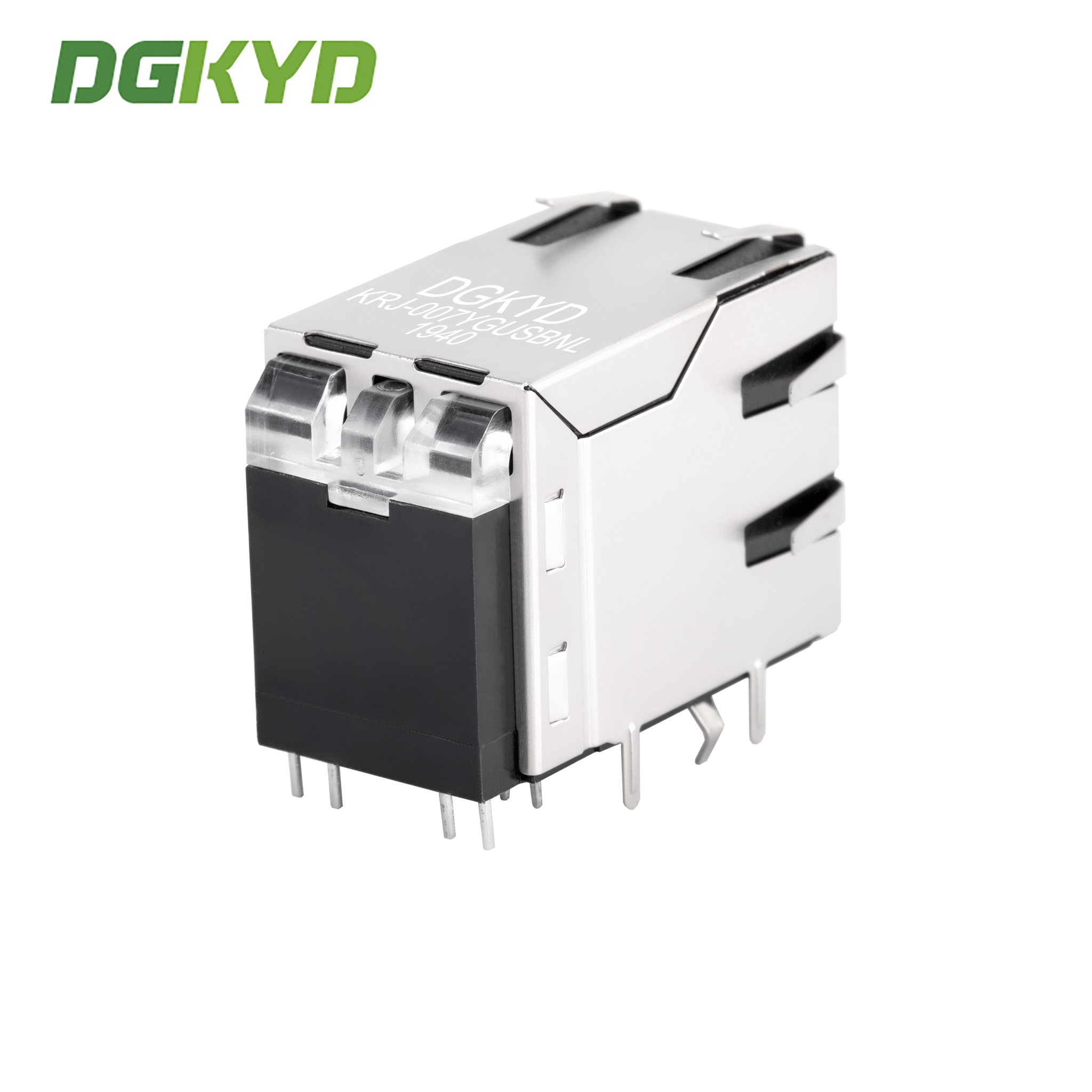

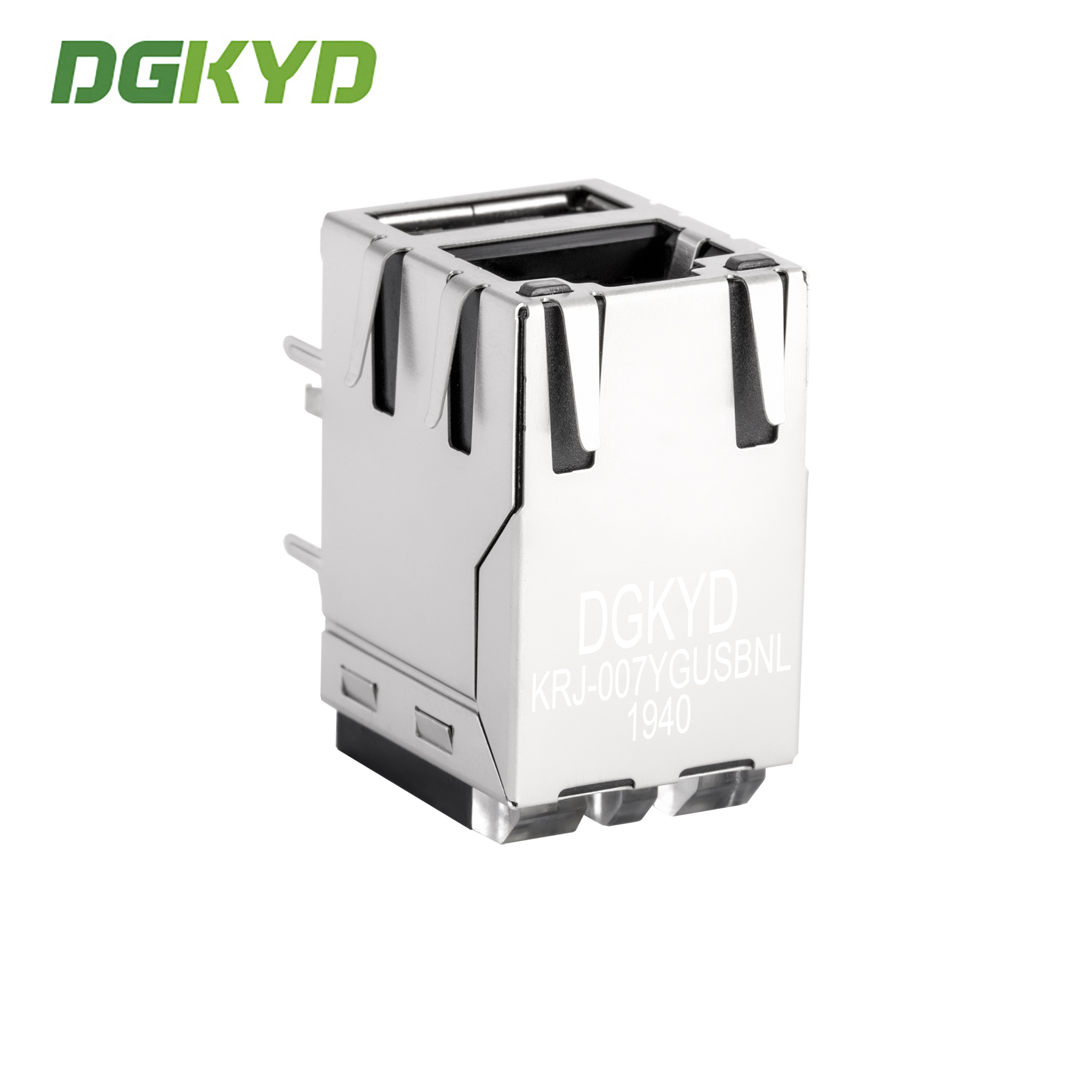

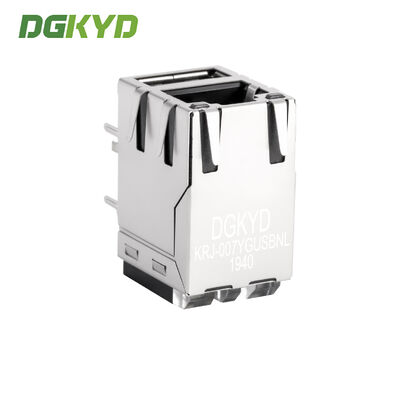

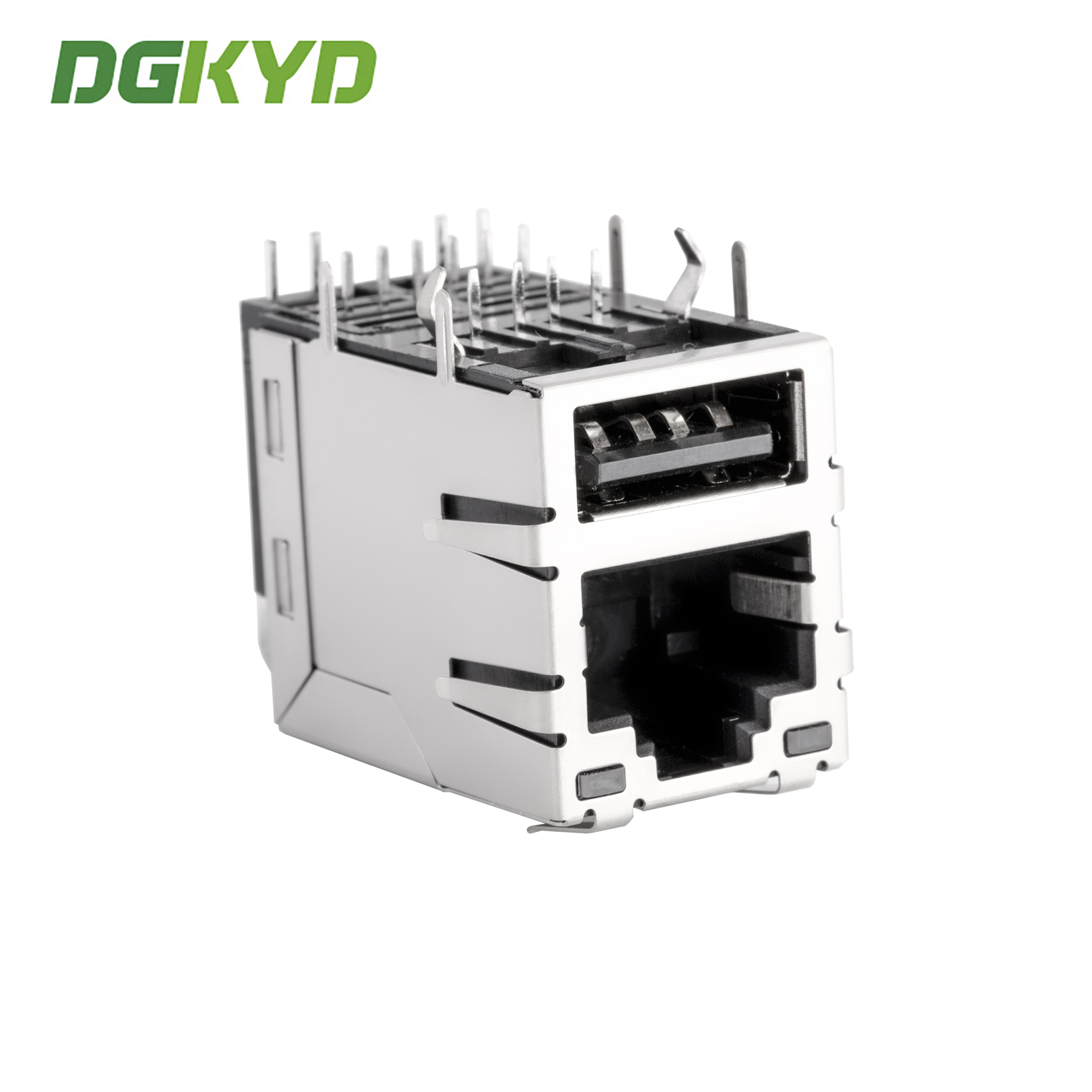

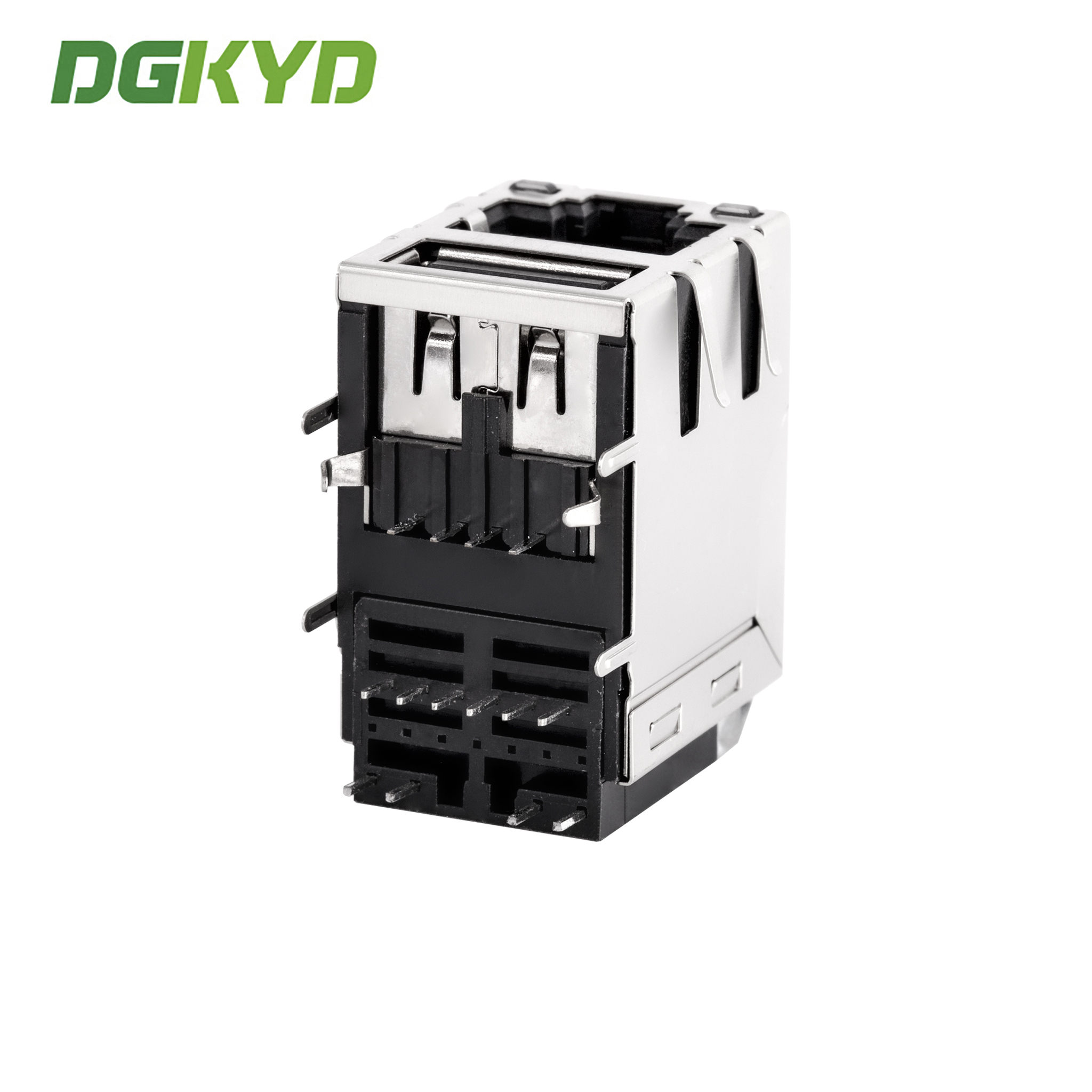

Product Images
Manufacturer Information
Product Features
The electrical properties of the products meet the industry standards, the appearance and mechanical properties meet the appearance dimensions, the mechanical manufacturing industry standards, and the environmental protection standards. Your satisfaction is the purpose of our service!
Frequently Asked Questions
Q: Are you trading company or manufacture?
A: We are manufacture. Welcome to our factory.
Q: What about your lead time?
A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.
Q: Can you provide samples? Are they free?
A: Yes. Usually we can provide 2-3 samples of standard products free for testing.
Q: Can I put my own logo on it?
A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
