| 최소 주문 수량 : | 1개 | 가격 : | Please contact us to get the latest price. |
|---|---|---|---|
| 포장 세부 사항 : | 상자의 트레이 | 배달 시간 : | 10일 |
| 지불 조건 : | T/T, D/P, D/A, L/C, Western Union, MoneyGram | 공급 능력 : | 100,000개/일 |
| 원래 장소: | 중국의 동복 | 브랜드 이름: | DGKYD |
|---|---|---|---|
| 인증: | RoHS/CE/UL/FCC/CE/ISO 9001/ISO 14001 | 모델 번호: | DGKYD711U2Q032AB2WD080 |
|
상세 정보 |
|||
| No.Port: | RJ45 단일 포트 | 제품명: | 변압기가있는 RJ45 |
|---|---|---|---|
| 유형: | RJ45 여성 | 주택: | 페놀릭, PBT 검은 (UL94V-0) |
| 플라스틱 코어: | 유리 섬유 필러 PBT 검정색(UL94V-0), ROHS | 차폐 RJ45: | 예 |
| featrue: | 이더넷의 전원 | 위치/연락처 수: | 8p10c (RJ45, 이더넷) |
| 콘택트 핀에 금도 도금: | 6U | 보관 온도: | -40°C~+85°C |
| 작동 온도: | -40°C~+85°C | ||
| 강조하다: | RJ45 dual USB 2.0 adapter,Gigabit network USB hub,shielded RJ45 USB connector |
||
제품 설명

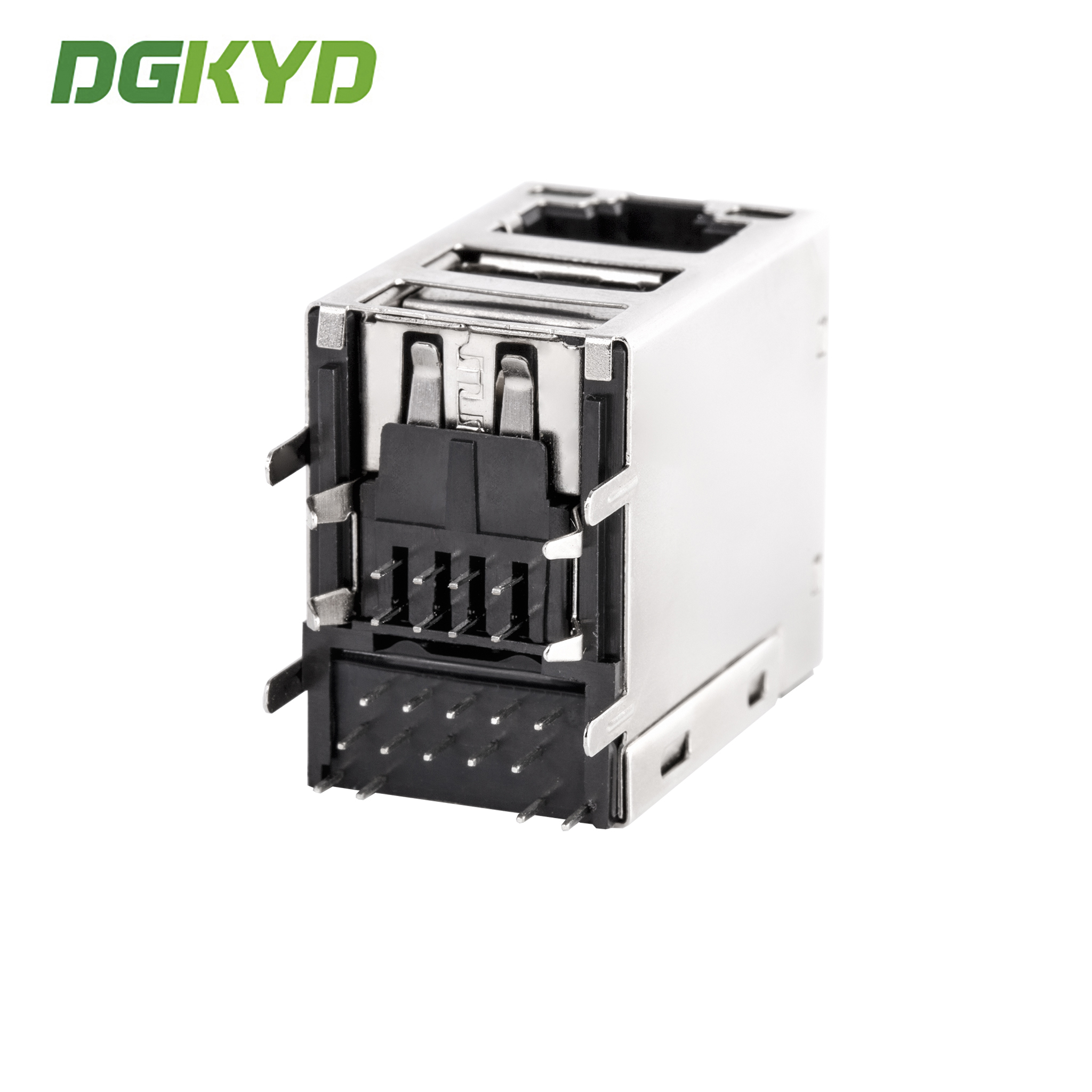

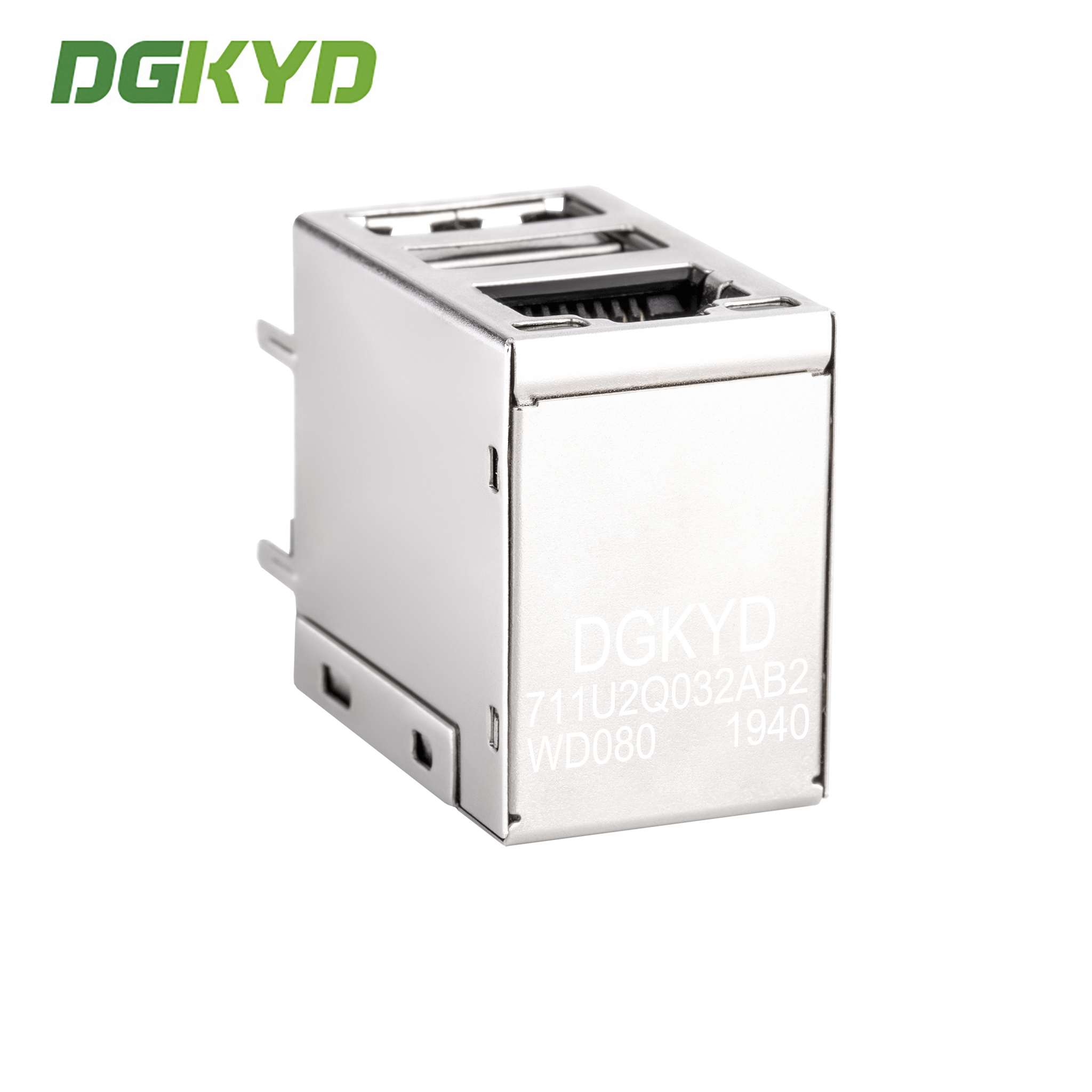

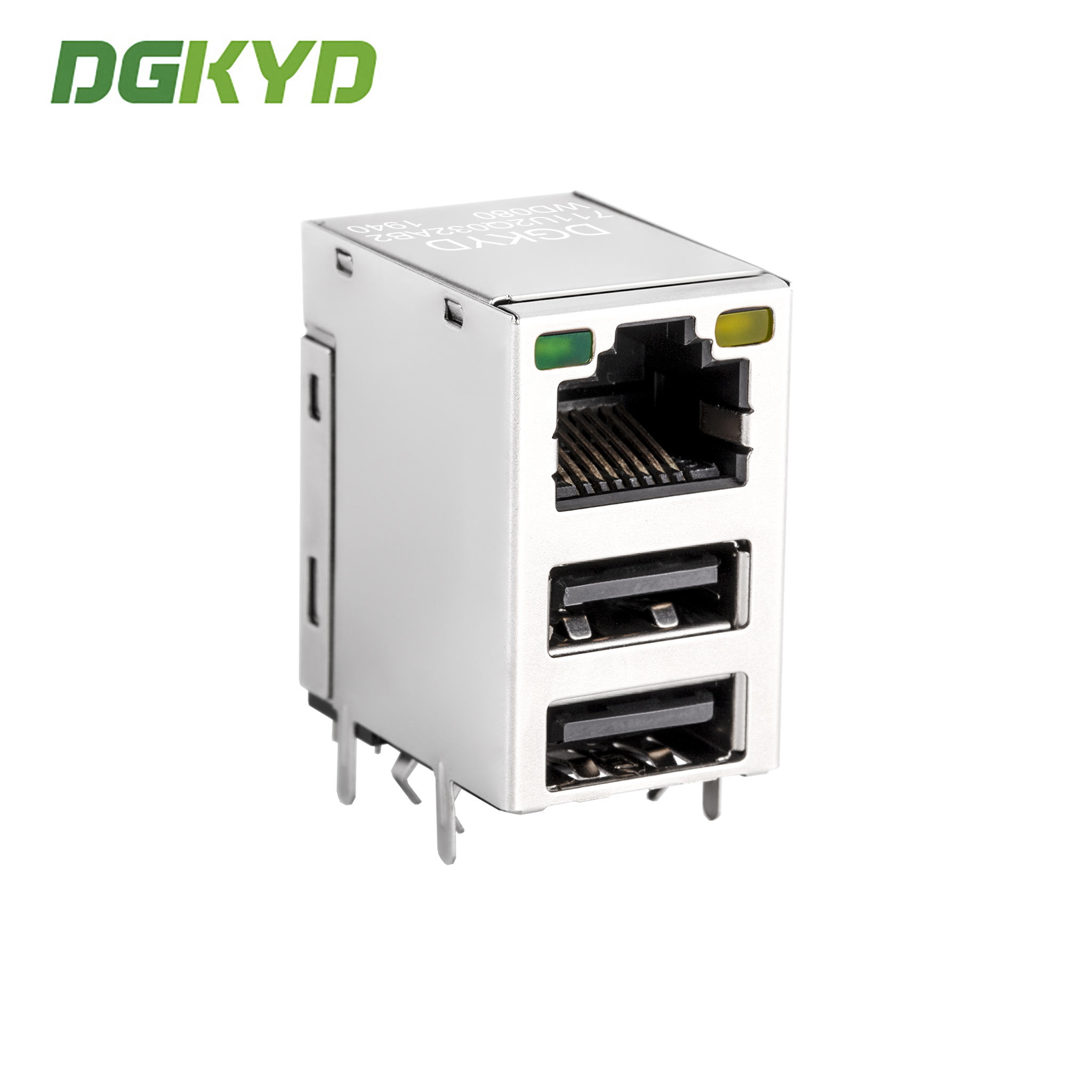

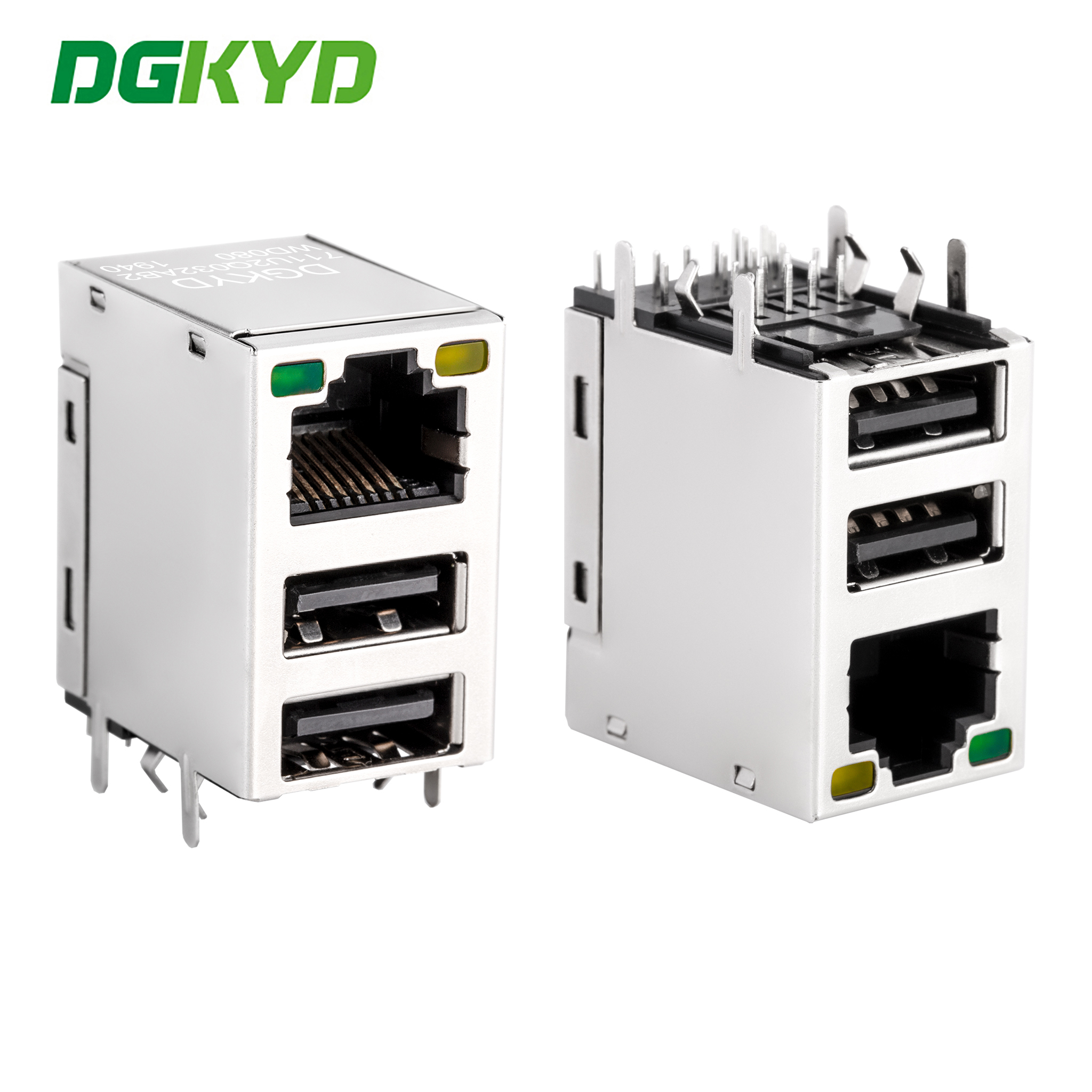

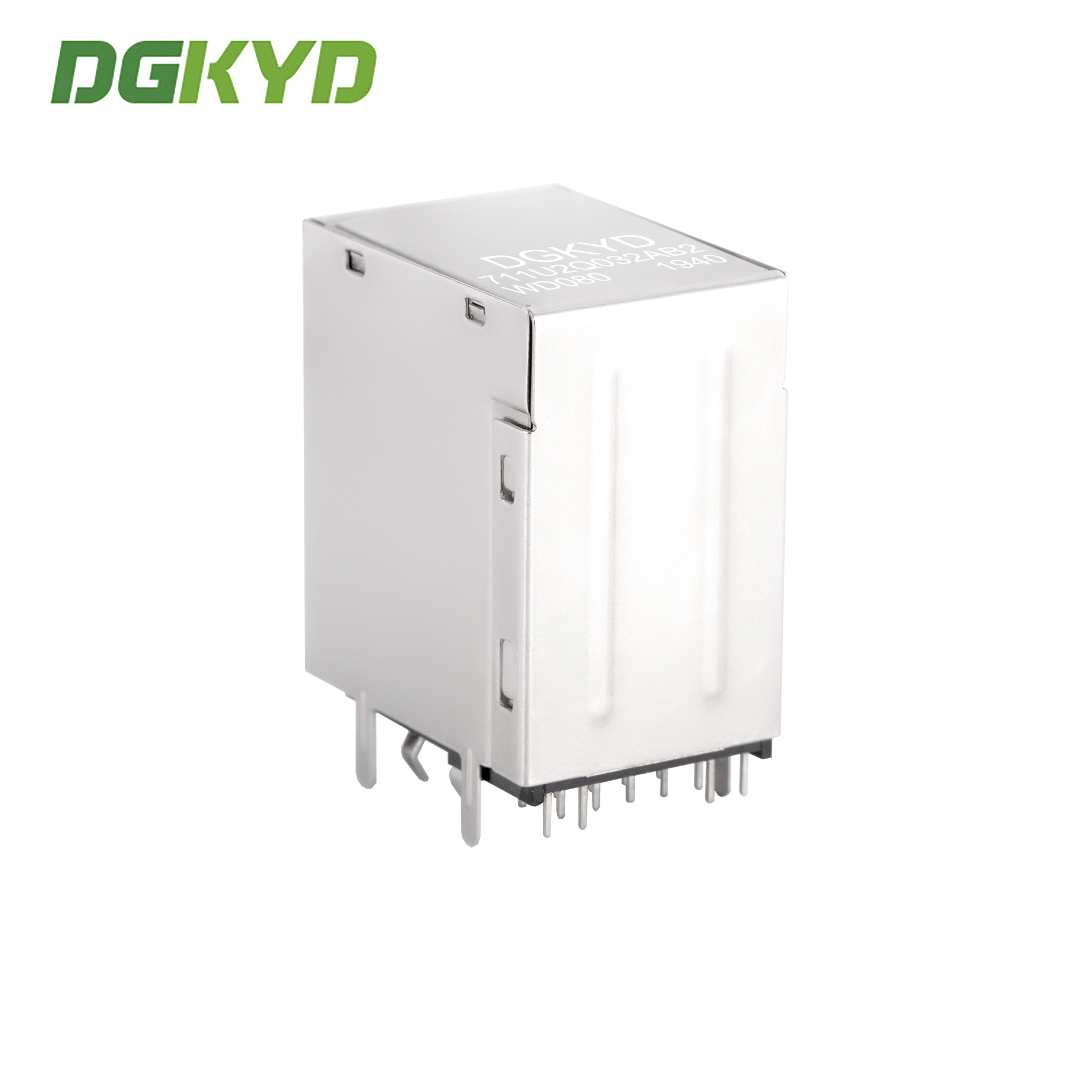

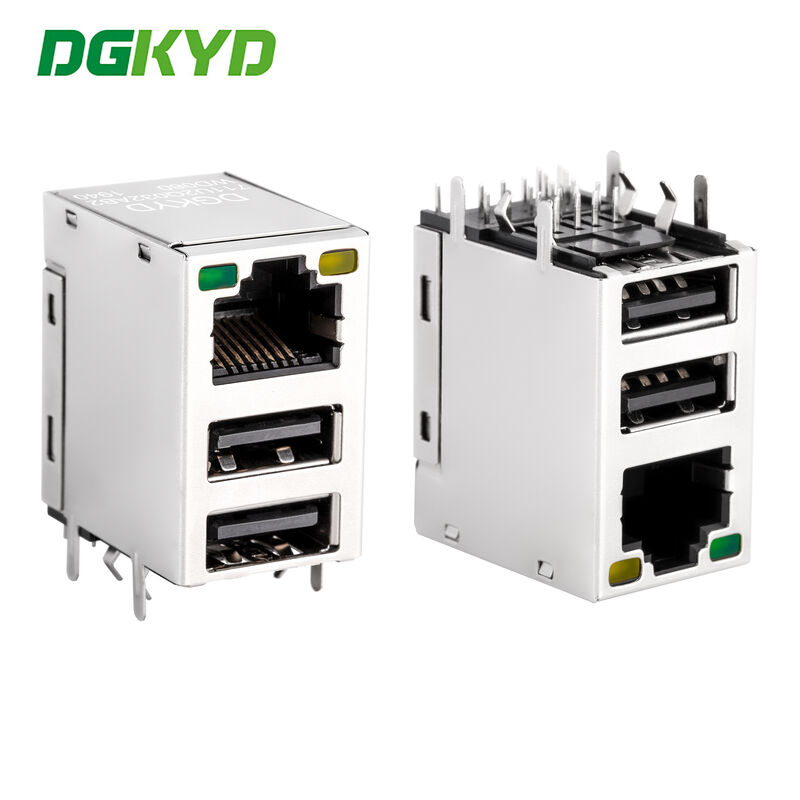

RJ45 connector with dual USB 2.0 sockets featuring Gigabit network interface with metal shielding. Part Number: DGKYD711U2Q032AB2WD080
Download Product Datasheet (PDF)| Specification | Details |
|---|---|
| Part Number | DGKYD711U2Q032AB2WD080 |
| Brand | DGKYD/OEM/ODM |
| Product Type | Connector-Modular |
| Connector Style | Jack |
| Jack Type | RJ45 |
| Connector Type | Modular Jack |
| Latch Style | Standard |
| Latch | TAB-UP |
| Filter | With Filter |
| LED Option | With LED |
| LED Color | Green/Yellow |
| Panel Stops | With Panel Stops |
| Shielded | With metal shield |
| Applies To | Printed Circuit Board |
| Port Configuration | Single Ports |
| Number of Positions | 10 |
| Jack Configuration | 1X1 |
| Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel |
| PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating | Gold 6u |
| Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel |
| PCB Mounting Style | Through Hole |
| Termination Method to PC Board | Through Hole-Press-Fit |
| Board Lock | With/Without Board Lock |
| Housing Material | PBT Polyester |
| Housing Color | Black |
| Housing Material Temperature | Standard |
| UL Flammability Rating | UL 94V-0 |
The electrical properties of the products meet the industry standards, the appearance and mechanical properties meet the appearance dimensions, the mechanical manufacturing industry standards, and the environmental protection standards. Your satisfaction is the purpose of our service!
