| 최소 주문 수량 : | 1개 | 가격 : | Please contact us to get the latest price. |
|---|---|---|---|
| 포장 세부 사항 : | 통에서 트레이 | 배달 시간 : | 10일 |
| 지불 조건 : | 전신환, D/P (지급도 조건), 인수 인도, L/C (신용장), 웨스턴 유니온, 머니그램 | 공급 능력 : | 10만 개/일 |
| 원래 장소: | 중국의 동완 | 브랜드 이름: | DGKYD |
|---|---|---|---|
| 인증: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | 모델 번호: | DGKYD21B083AC2A2DQ057 |
|
상세 정보 |
|||
| 모듈러 잭 & 플러그 인터페이스 타입: | 트랜스와 RJ45 | 포트 구성: | 더블-포트 |
|---|---|---|---|
| 연결기 방식: | 잭 | 성별: | 여성 |
| 보호해야 합니다: | 그래요 | 하우징 재질: | PA66 폴리에스테르 |
| 상태 표시기: | 녹색 / 노랑색 | 음량 조정: | 구글 어시스턴트, 아마존 알렉사 |
| 색상: | 블랙 | 분류: | 전화기 잭스 |
| 소재: | PA66 | 종결: | DIP |
| 작동 온도: | -40' C~+85' Ｃ | 이더넷: | 100베이스 T/TX |
| 인세션 타입: | 측면 엔트리 | 종류: | RJ45 |
| 강조하다: | RJ45 2X1 modular socket,100Mbps RJ45 modular socket,Multi port 2X1 RJ45 connector |
||
제품 설명

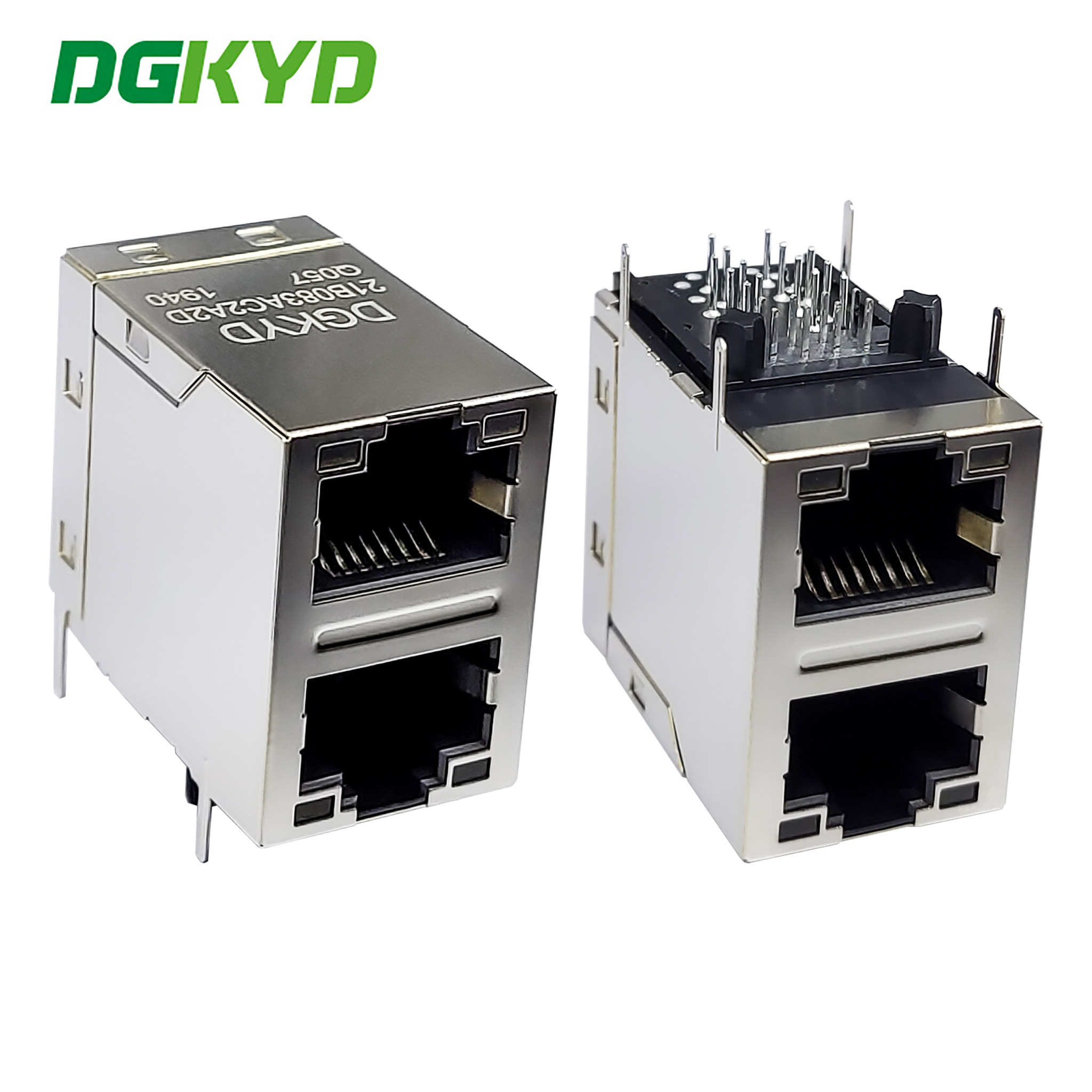

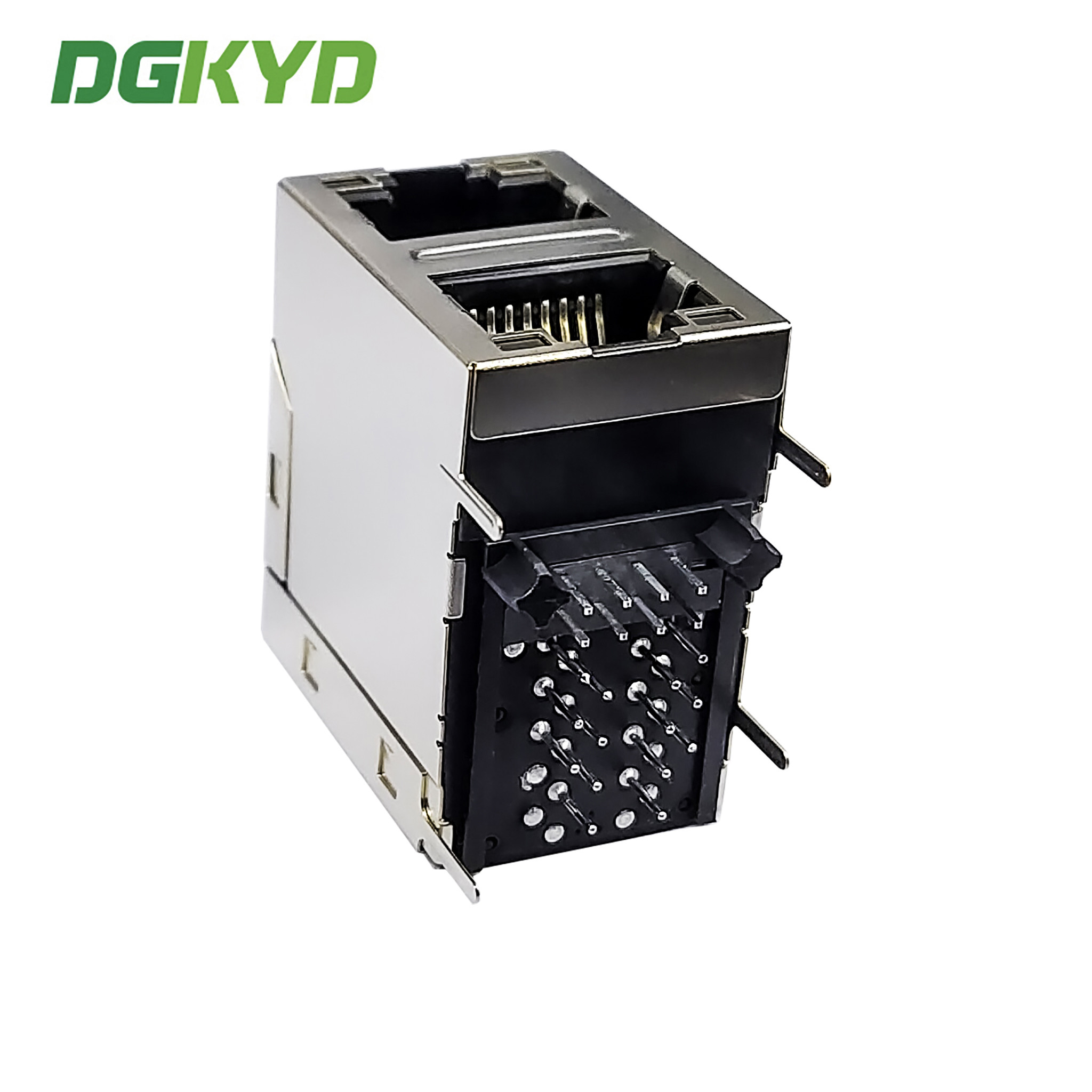

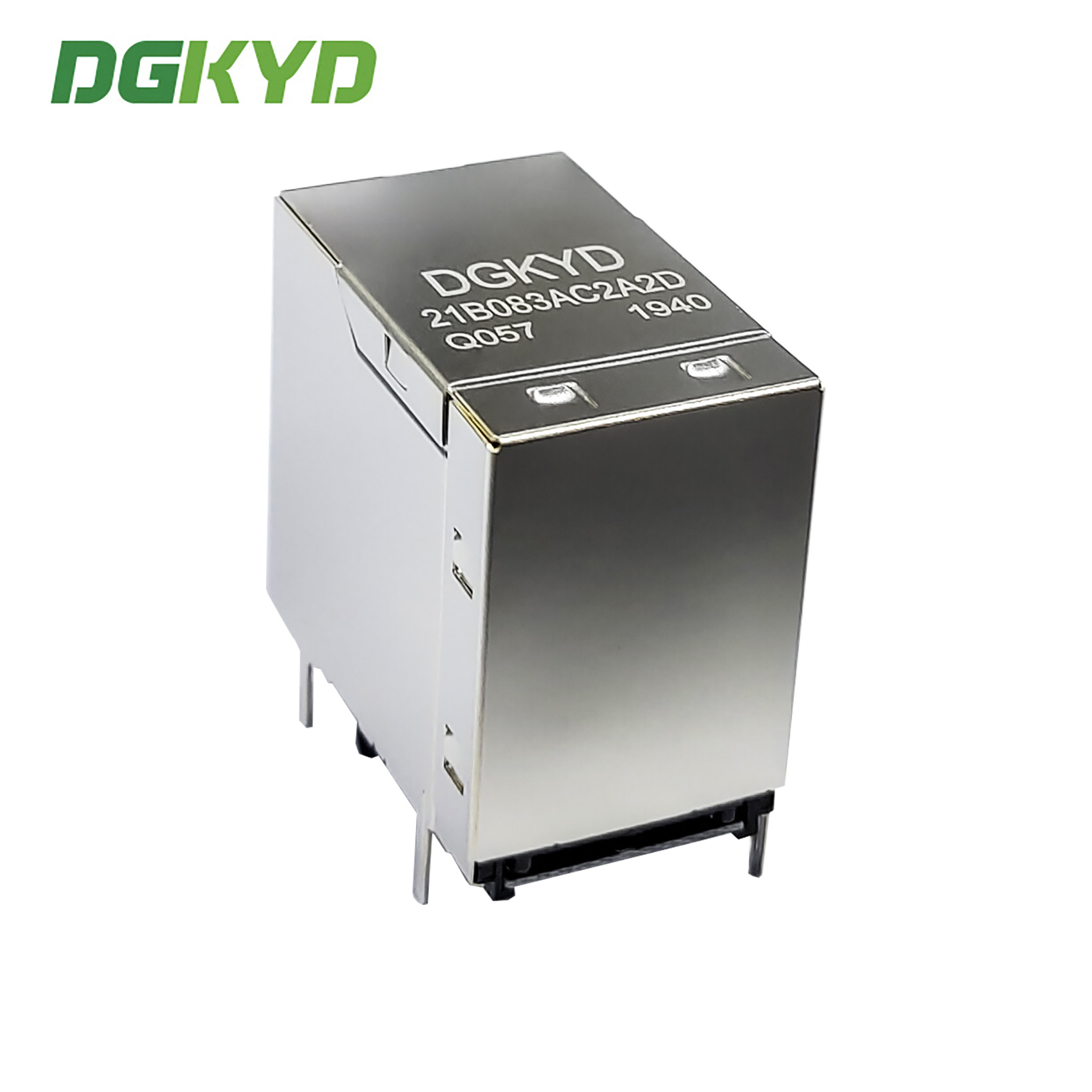

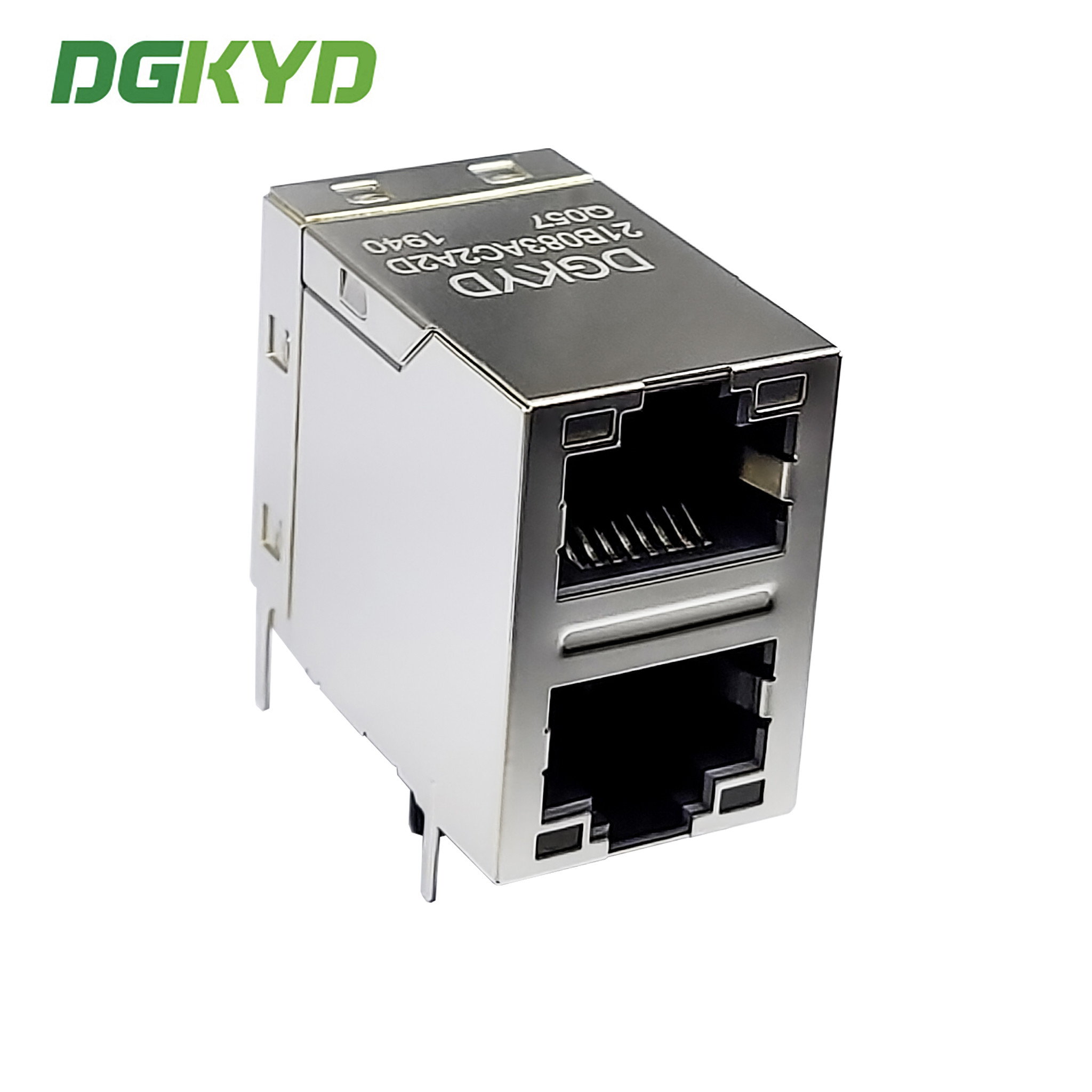

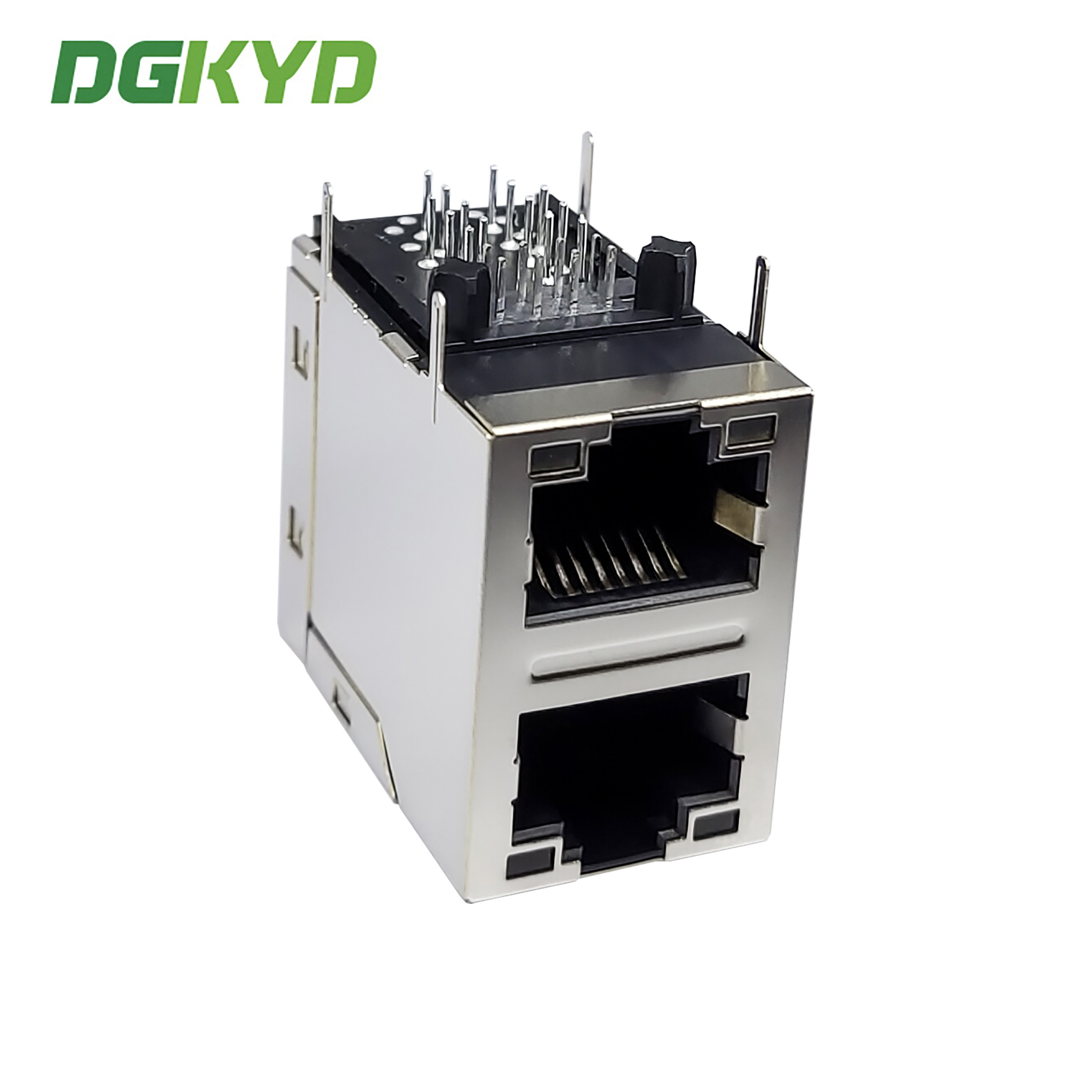

Multi port Ethernet filter RJ45 8P7C 100Mbps connector 6U 2X1 modular socket RJ45 network port connection DGKYD21B083AC2A2DQ057
Product Specification Document
Our strengths:
Interface type: crystal head application: 10 / 100 / 1000BASE-T Ethernet
Type: RJ45 built in magnetics
Working frequency: high frequency characteristic: filtering, anti-interference
Working temperature: - 40 ℃ - 85 ℃
Storage temperature: - 40 ℃ - 85 ℃
Lead free soldering: wave soldering height up to 265 ℃
Parameters
| Part Number | DGKYD21B083AC2A2DQ057 | Brand | DGKYD/OEM/ODM |
| Place of Origin | Guangdong of China | Certification | RoHS/CE/FCC/CE/ISO9001/ISO14001 |
| Product Type | Connector-Modular | Connector Style | Jack |
| Jack Type | RJ45 | Connector Type | Modular Jack |
| Latch Style | Standard | Latch | TAB-UP/DOWN |
| Filter | With Filter | LED Option | With LED |
| LED Color | Grenn-Yellow | Panel Stops | With Panel Stops |
| Shielded | Yes | Applies To | Printed Circuit Board |
| Performance Speed | 10/100/ BASE-T/TX | Suitable for welding type | Reflowsolding(Alternative). |
| Port Configuration | Double Ports | Number of Positions | 7 |
| Jack Configuration | 2X1 | Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel | PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating Material | Gold 6u | Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel | PCB Mounting Style | Through Hole |
| Termination Method to PC Board | Through Hole-Press-Fit | Board Lock | With/Without Board Lock |
| Housing Material | PA66 Polyester | Housing Color | Black |
| Housing Material Temperature | Standard | UL Flammability Rating | UL 94V-0 |
FAQ:
1. Q: Are you trading company or manufacture?
A: We are manufacture. Welcome to our factory.
2. Q: What about your lead time?
A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.
3. Q: Can you provide samples? Are they free?
A: Yes. Usually we can provide 2-3 samples of standard products free for testing.
4. Q: Can I put my own logo on it?
A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
