| 최소 주문 수량 : | 1 조각 | 가격 : | Please contact us to get the latest price. |
|---|---|---|---|
| 포장 세부 사항 : | 상자의 트레이 | 배달 시간 : | 10 일 |
| 지불 조건 : | T/T, D/P, D/A, L/C, Western Union, MoneyGram | 공급 능력 : | 100K PCS/DAY |
| 원래 장소: | 중국의 동복 | 브랜드 이름: | DGKYD |
|---|---|---|---|
| 인증: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | 모델 번호: | DGKYD21Q085DA1A2D057 |
|
상세 정보 |
|||
| 모듈 식 잭 및 플러그 인터페이스 유형: | 변압기가있는 RJ45 | 포트 구성: | 더블-포트 |
|---|---|---|---|
| 커넥터 스타일: | 잭 | 성별: | 여성 |
| 차폐: | 예 | 하우징 재질: | PA66 폴리에스테르 |
| 상태 표시기: | 노란색/녹색 | 음성 제어: | 구글 어시스턴트, 아마존 알렉사 |
| 색상: | 검은색 | 범주: | 전화기 잭스 |
| 재료: | PA66 | 종료: | 담그다 |
| 작동 온도: | -40 ° C ~+85 ° C | 이더넷: | 1000 BASE-T/TX |
| 인세션 타입: | 측면 엔트리 | 유형: | RJ45 |
| 강조하다: | RJ45 stacked Ethernet socket,gigabit integrated transformer socket,RJ45 2x1 Ethernet connector |
||
제품 설명

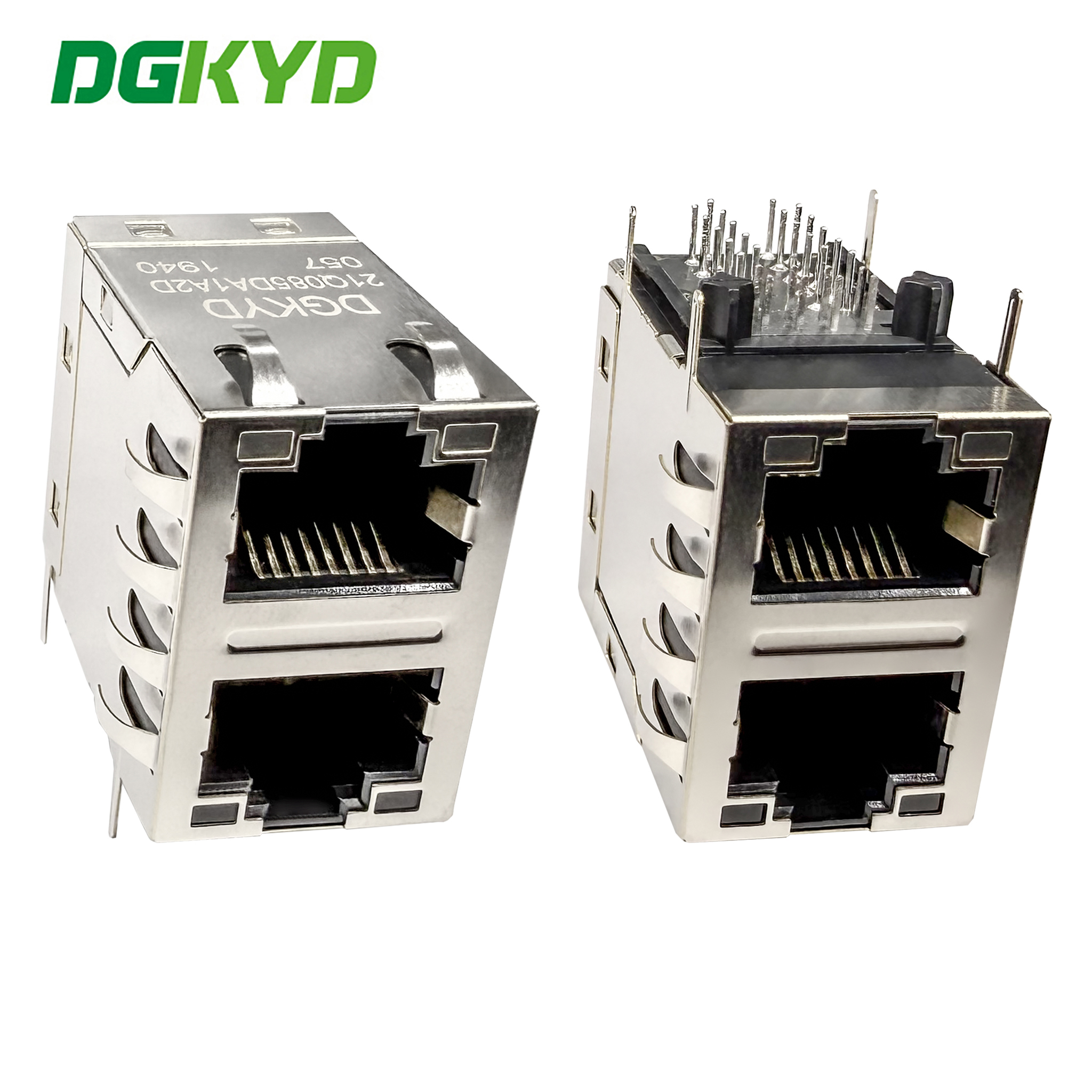

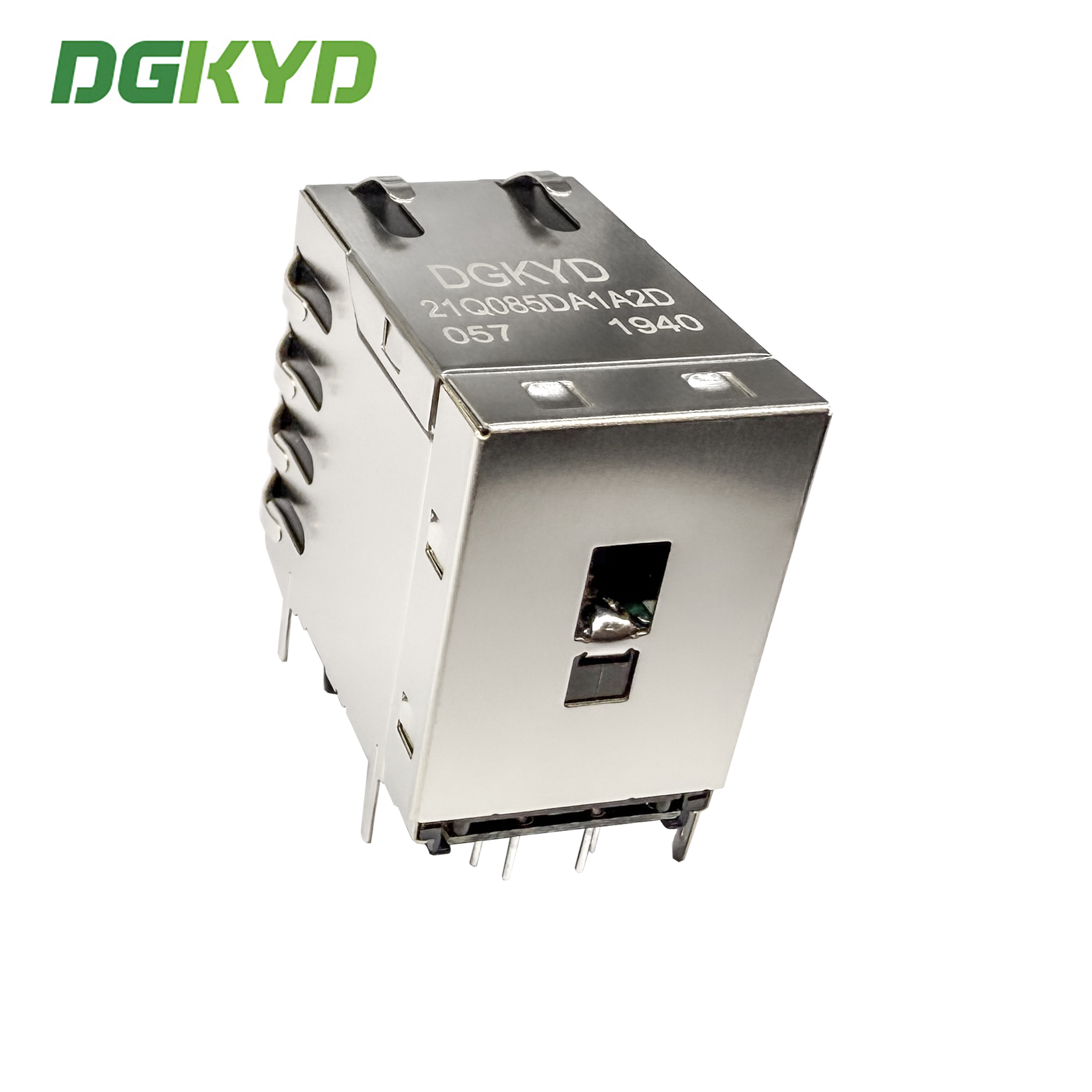

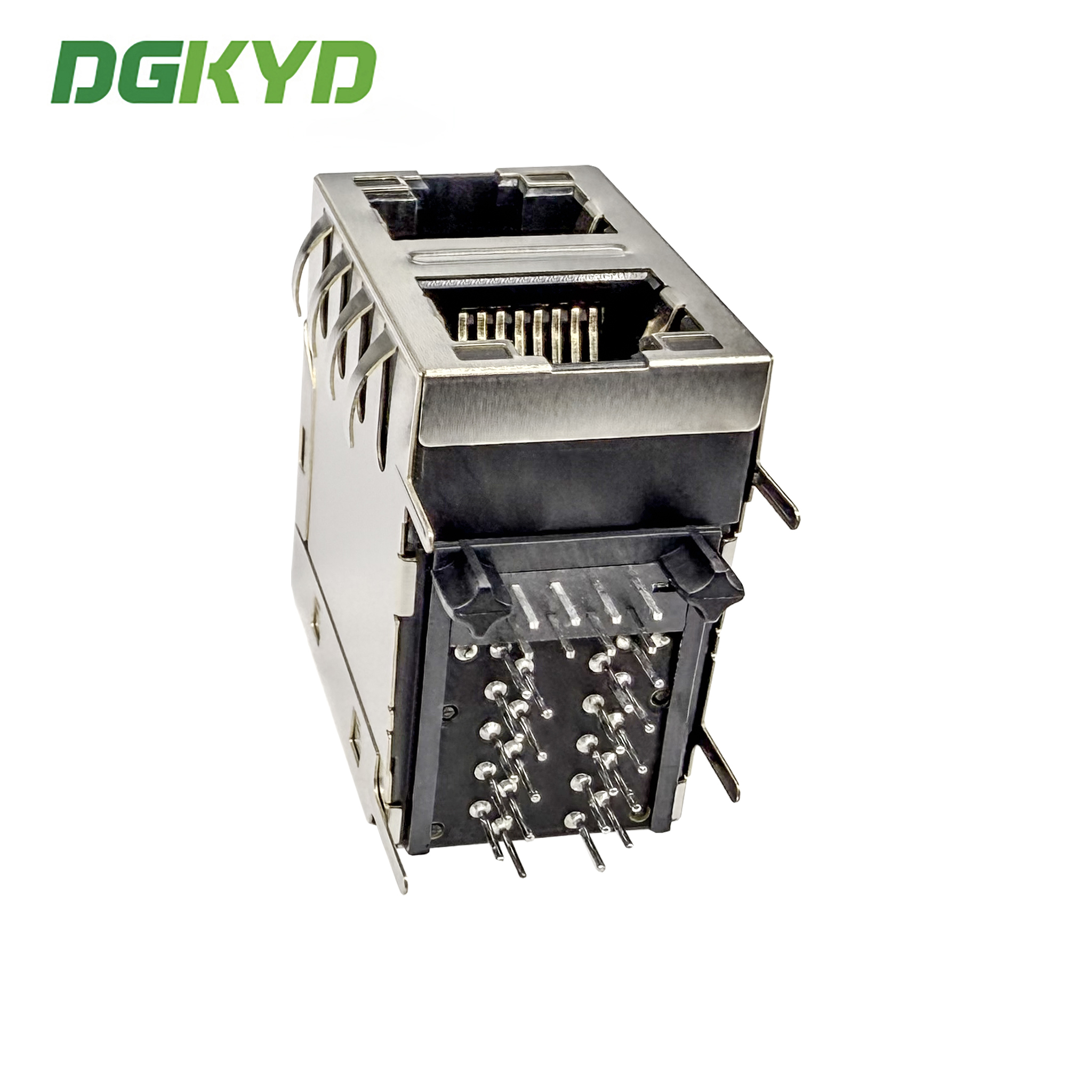

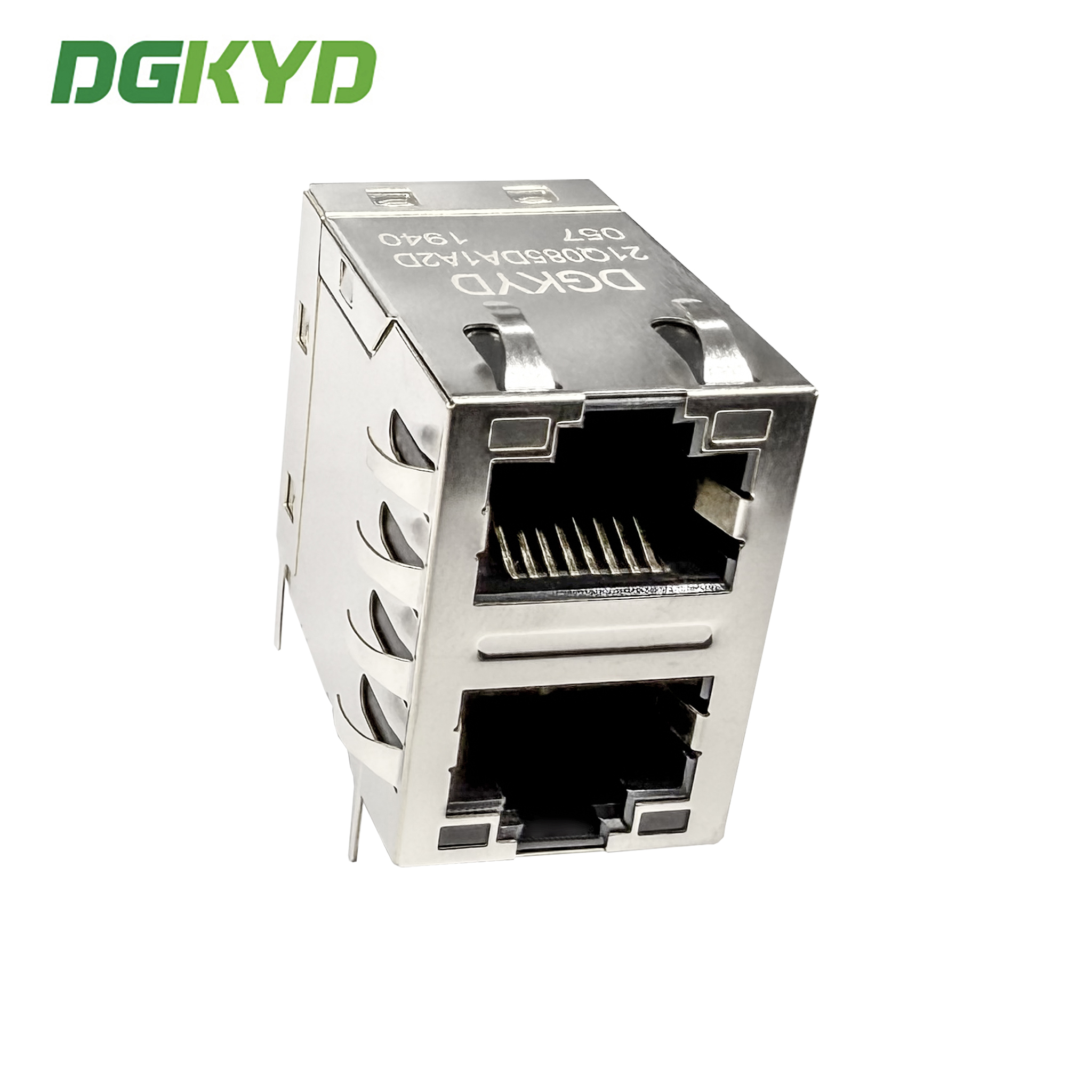

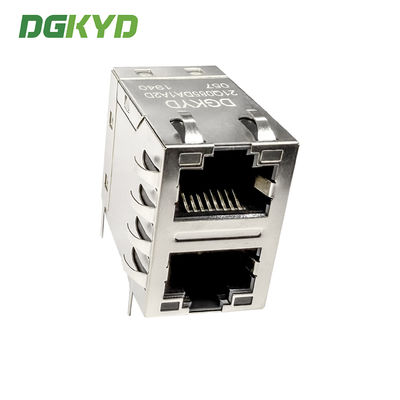

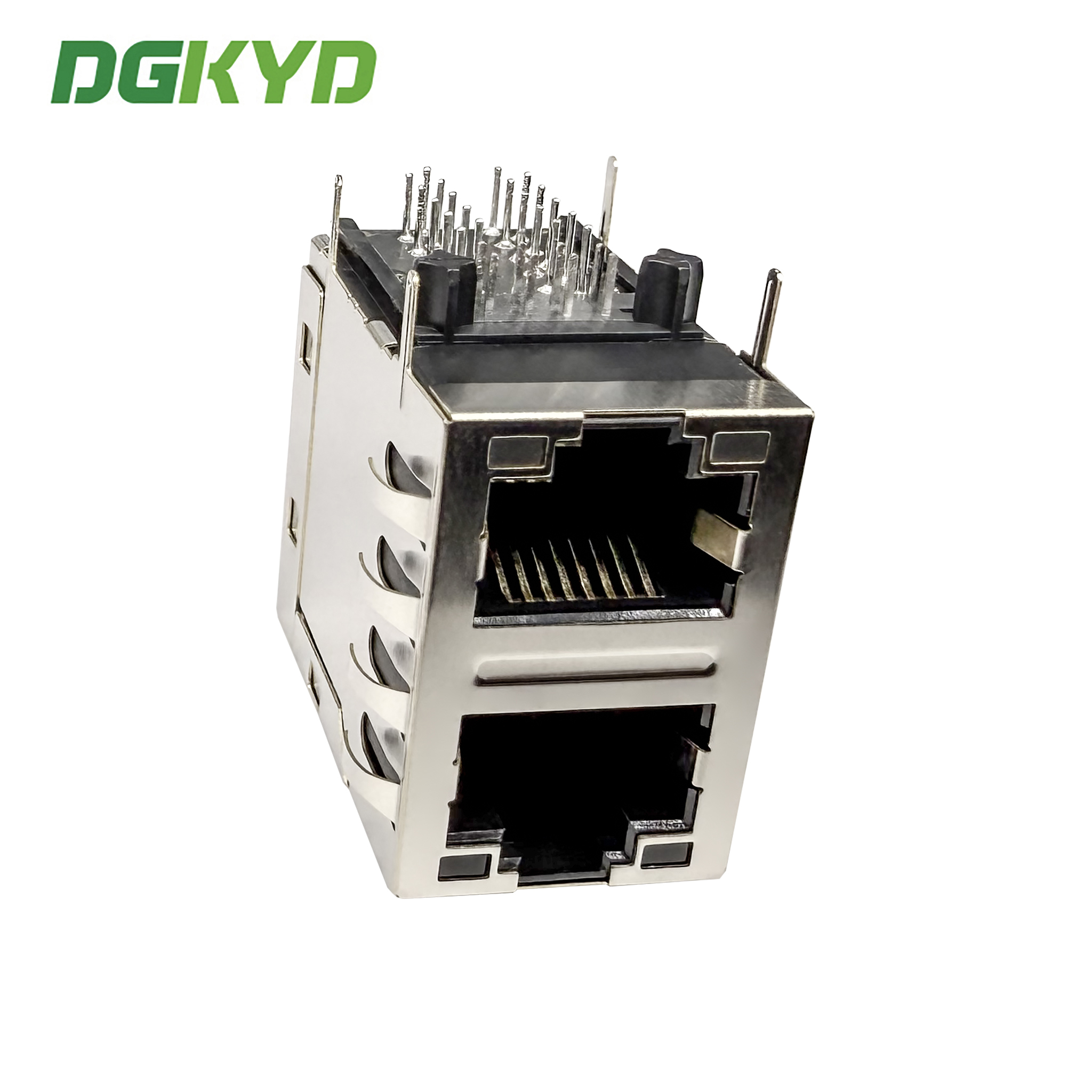

RJ45 stacked Ethernet socket with built-in gigabit integrated transformer DGKYD21Q085DA1A2D057
Product Specification Document| Part Number | DGKYD21Q085DA1A2D057 | Brand | DGKYD/OEM/ODM |
|---|---|---|---|
| Place of Origin | Guangdong of China | Certification | RoHS/CE/FCC/CE/ISO9001/ISO14001 |
| Product Type | Connector-Modular | Connector Style | Jack |
| Jack Type | RJ45 | Connector Type | Modular Jack |
| Latch Style | Standard | Latch | TAB-UP/DOWN |
| Filter | With Filter | LED Option | With LED |
| LED Color | Yellow-Green | Panel Stops | With Panel Stops |
| Shielded | Yes | Applies To | Printed Circuit Board |
| Performance Speed | 10/100/1000 BASE-T/TX | Suitable for welding type | Reflowsolding(Alternative) |
| Port Configuration | Double Ports | Number of Positions | 10 |
| Jack Configuration | 2X1 | Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel | PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating Material | Gold 6u | Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel | PCB Mounting Style | Through Hole |
| Termination Method to PC Board | Through Hole-Press-Fit | Board Lock | With/Without Board Lock |
| Housing Material | PA66 Polyester | Housing Color | Black |
| Housing Material Temperature | Standard | UL Flammability Rating | UL 94V-0 |
A: We are manufacture. Welcome to our factory.
A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.
A: Yes. Usually we can provide 2-3 samples of standard products free for testing.
A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
