| 최소 주문 수량 : | 1개 | 가격 : | Please contact us to get the latest price. |
|---|---|---|---|
| 포장 세부 사항 : | 통에서 트레이 | 배달 시간 : | 10일 |
| 지불 조건 : | 전신환, D/P (지급도 조건), 인수 인도, L/C (신용장), 웨스턴 유니온, 머니그램 | 공급 능력 : | 10만 개/일 |
| 원래 장소: | 중국의 동완 | 브랜드 이름: | DGKYD |
|---|---|---|---|
| 인증: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | 모델 번호: | DGKYD5521E1188IWA1DY1017 |
|
상세 정보 |
|||
| 분류: | 전화기 잭스 | 컴포넌트 형식: | PCB 잭 |
|---|---|---|---|
| 종류: | RJ45 | 자기를 띠: | 아무 것도 |
| 성능 카테고리: | Cat 5 | 인세션 타입: | 측면 엔트리 |
| 색상: | 블랙 | 전류 등급 (Amps): | 1.5A |
| 소재: | PBT | 종결: | DIP |
| 모델 번호: | 5521 | 작동 온도: | -40' C~+85' Ｃ |
| 강조하다: | RJ45 8P8C communication interface,RJ45 ear mesh port connector,all plastic RJ45 connector |
||
제품 설명

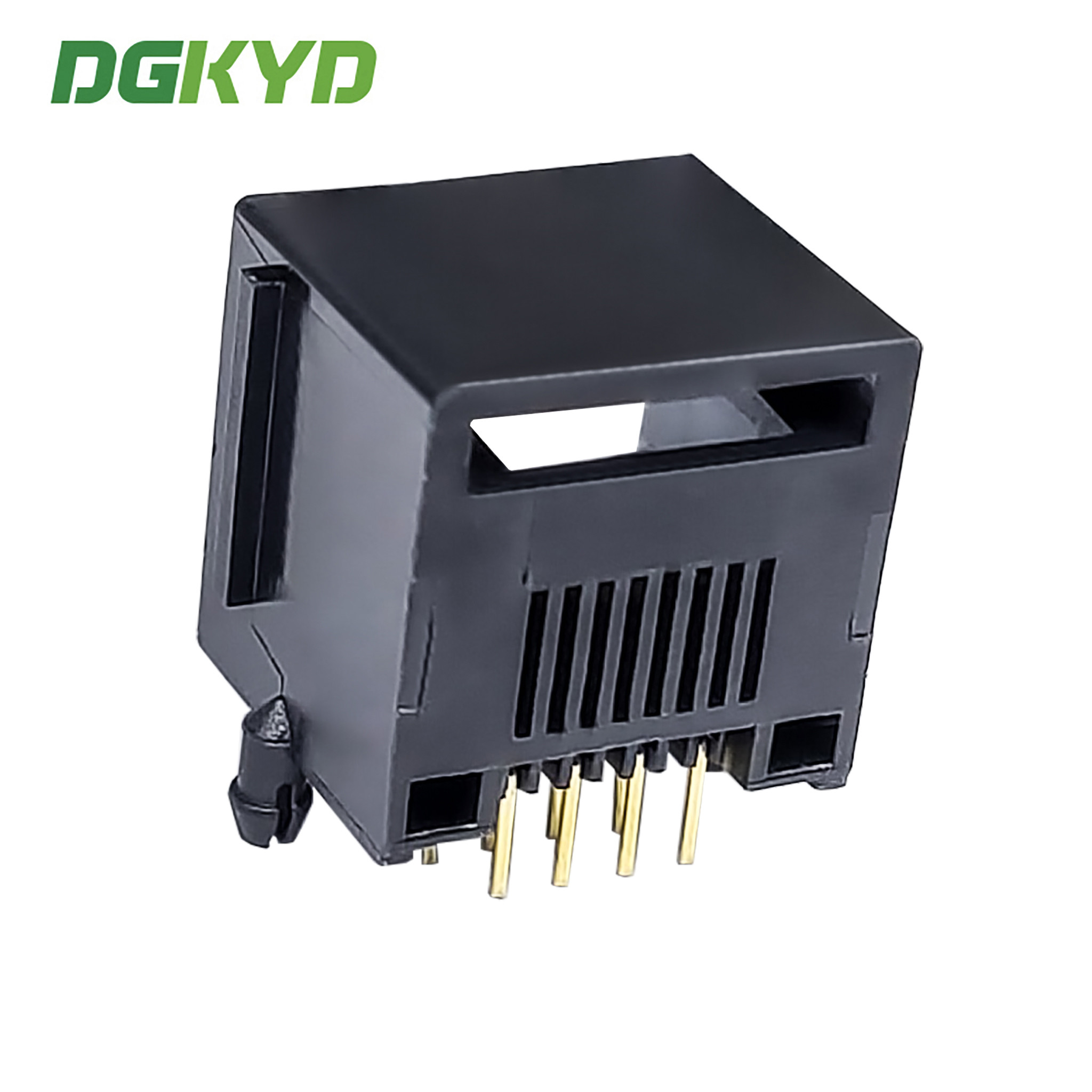

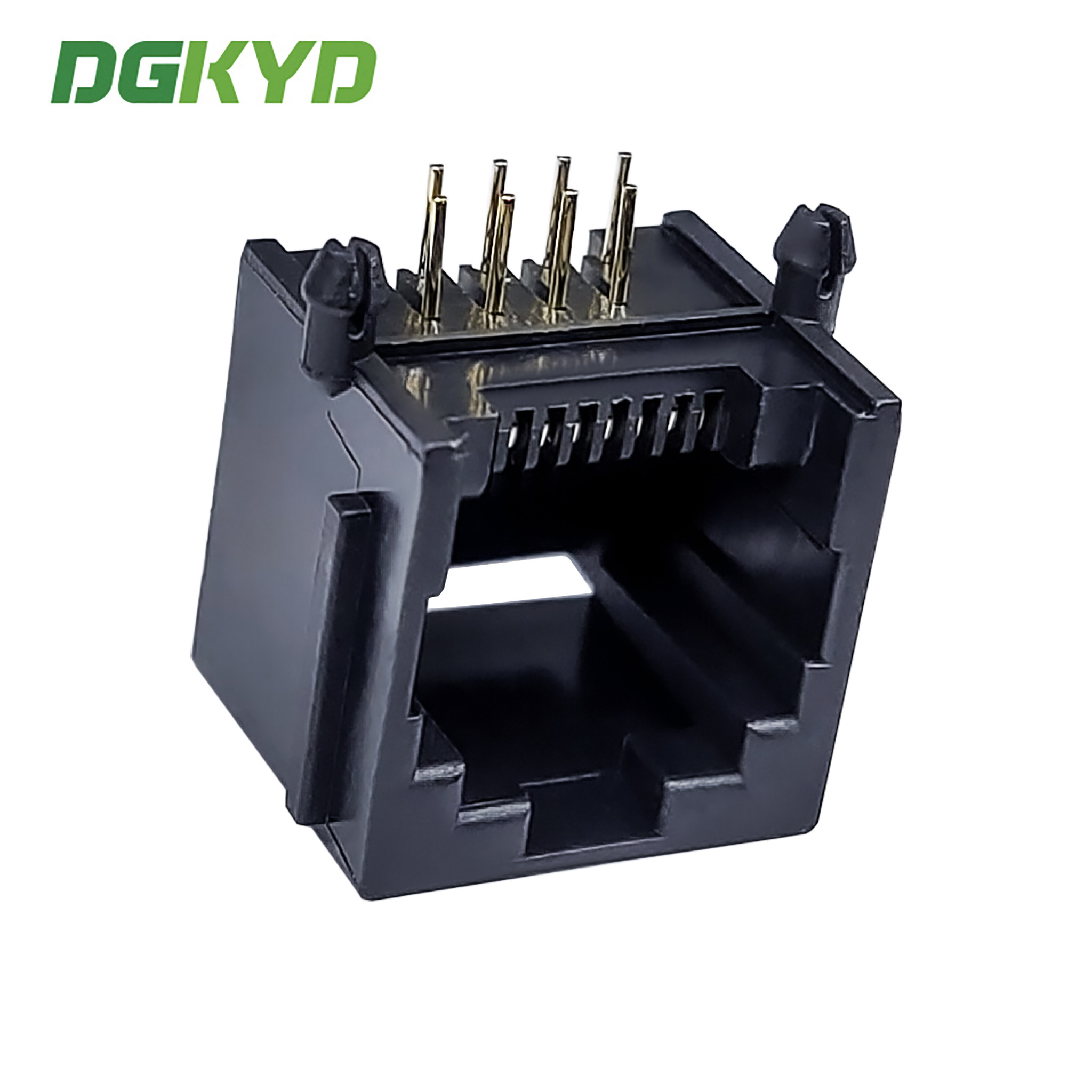

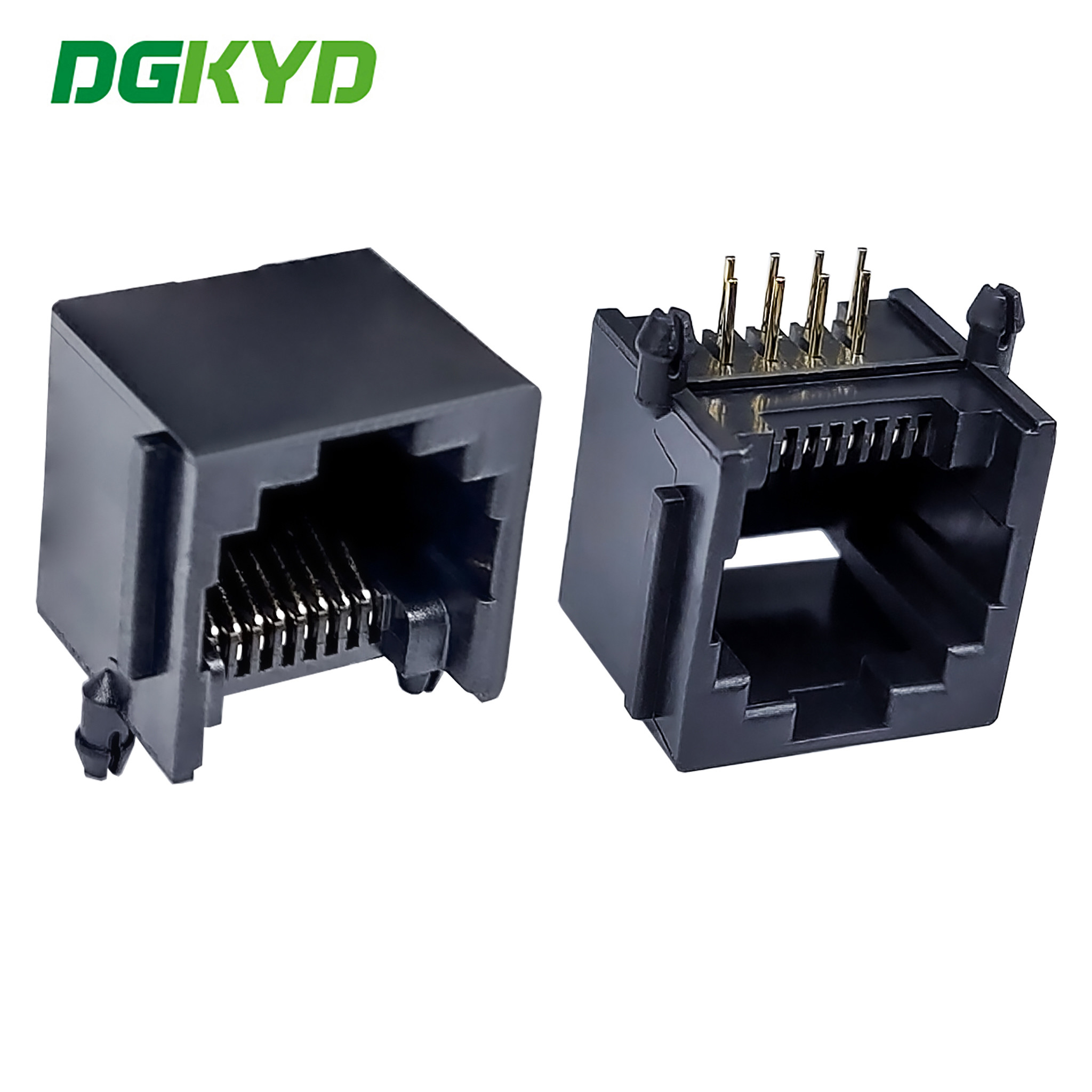

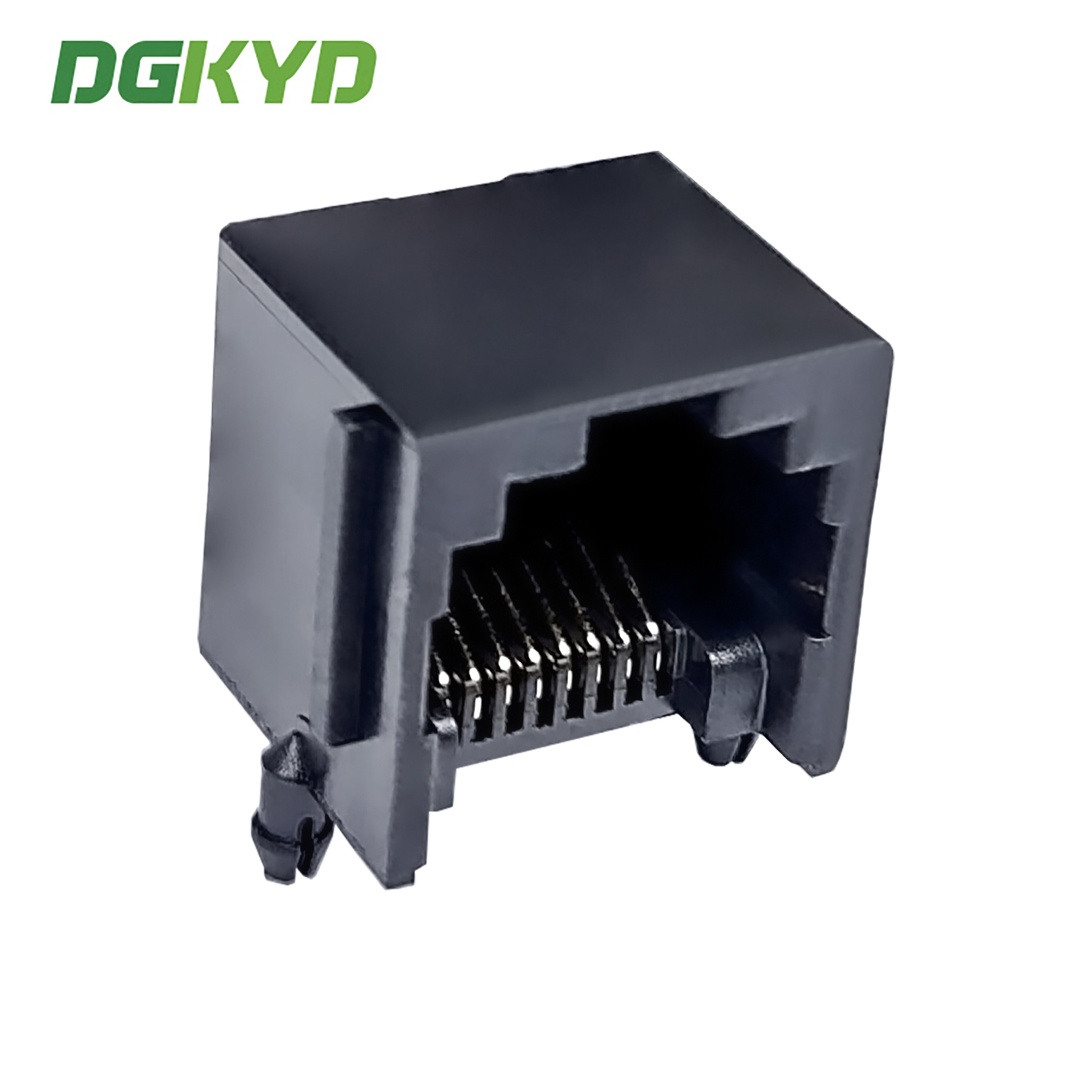

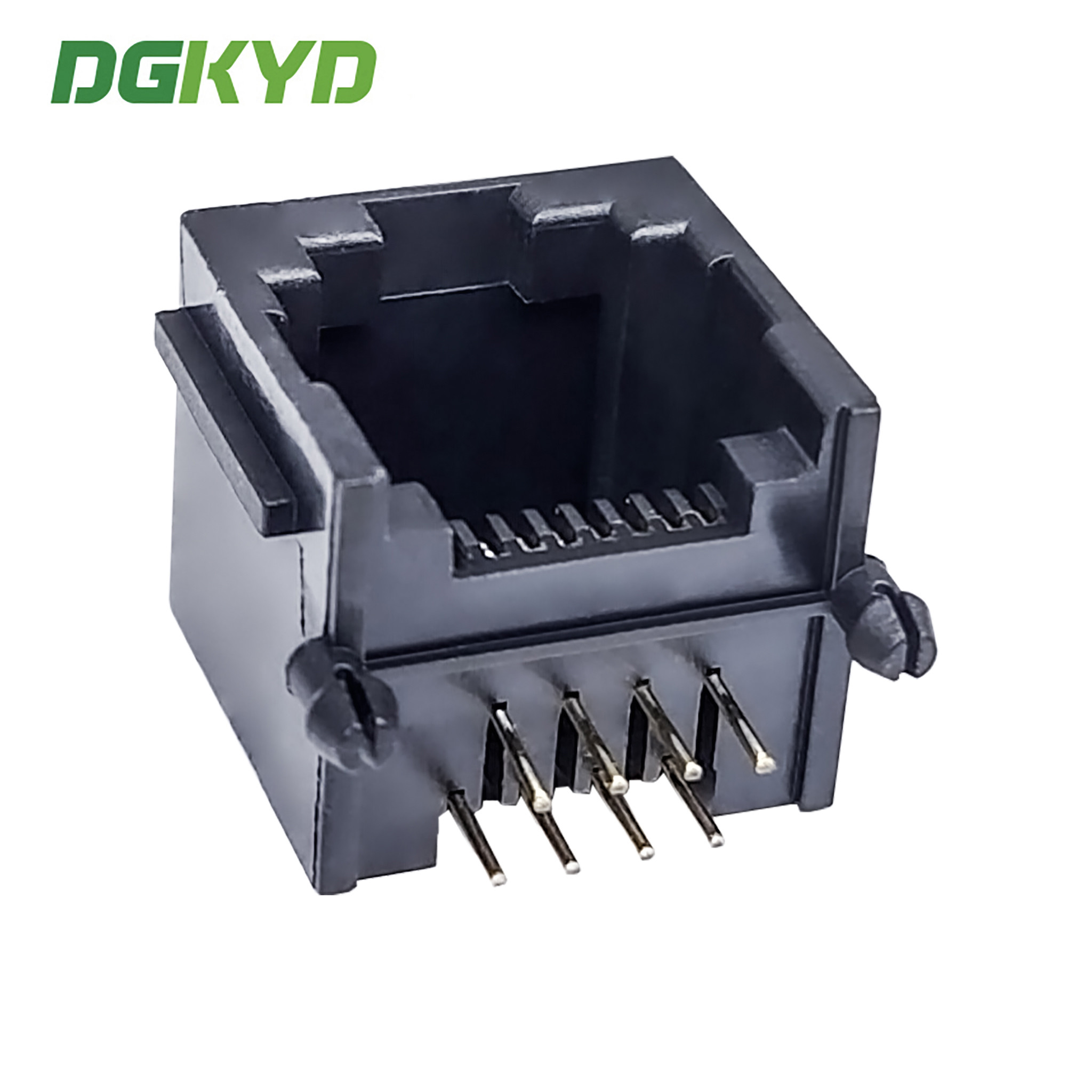

RJ45 all plastic ear mesh port connector 8P8C communication interface DGKYD5521E1188IWA1DY1017
Product Specification Document
Parameters
| Part Number | DGKYD5521E1188IWA1DY1017 | Brand | DGKYD/OEM/ODM |
| Place of Origin | Guangdong of China | Certification | RoHS/CE/FCC/CE/ISO9001/ISO14001 |
| Product Type | Connector-Modular | Connector Style | Jack |
| Jack Type | RJ45 | Connector Type | Modular Jack |
| Latch Style | Standard | Latch | TAB-UP |
| Filter | Without Filter | LED Option | Without LED |
| LED Color | No | Panel Stops | With Panel Stops |
| Shielded | No | Applies To | Printed Circuit Board |
| Performance Speed | 10/100/1000BASE-T/TX | Suitable for welding type | Reflowsolding(Alternative). |
| Port Configuration | Single Ports | Number of Positions | 8 |
| Jack Configuration | 1X1 | Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel | PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating Material | Gold 0.6u | Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel | PCB Mounting Style | Through Hole |
| Termination Method to PC Board | Through Hole-Press-Fit | Board Lock | With/Without Board Lock |
| Housing Material | PBT Polyester | Housing Color | Black |
| Housing Material Temperature | Standard | UL Flammability Rating | UL 94V-0 |
FAQ:
1. Q: Are you trading company or manufacture?
A: We are manufacture. Welcome to our factory.
2. Q: What about your lead time?
A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.
3. Q: Can you provide samples? Are they free?
A: Yes. Usually we can provide 2-3 samples of standard products free for testing.
4. Q: Can I put my own logo on it?
A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
