홈 제품 소개RJ11 RJ12 변압기 시리즈 없이 RJ4557 시리즈RJ45 Ethernet port connector with ears, all plastic black socket 8P8C DGKYD5722E1188IWA1DB9

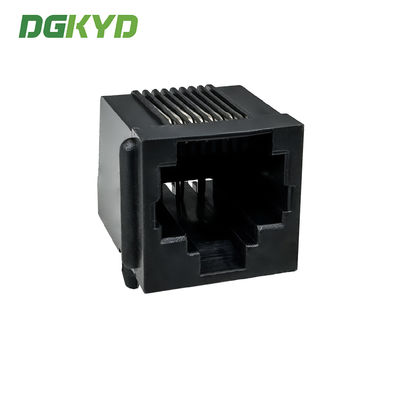

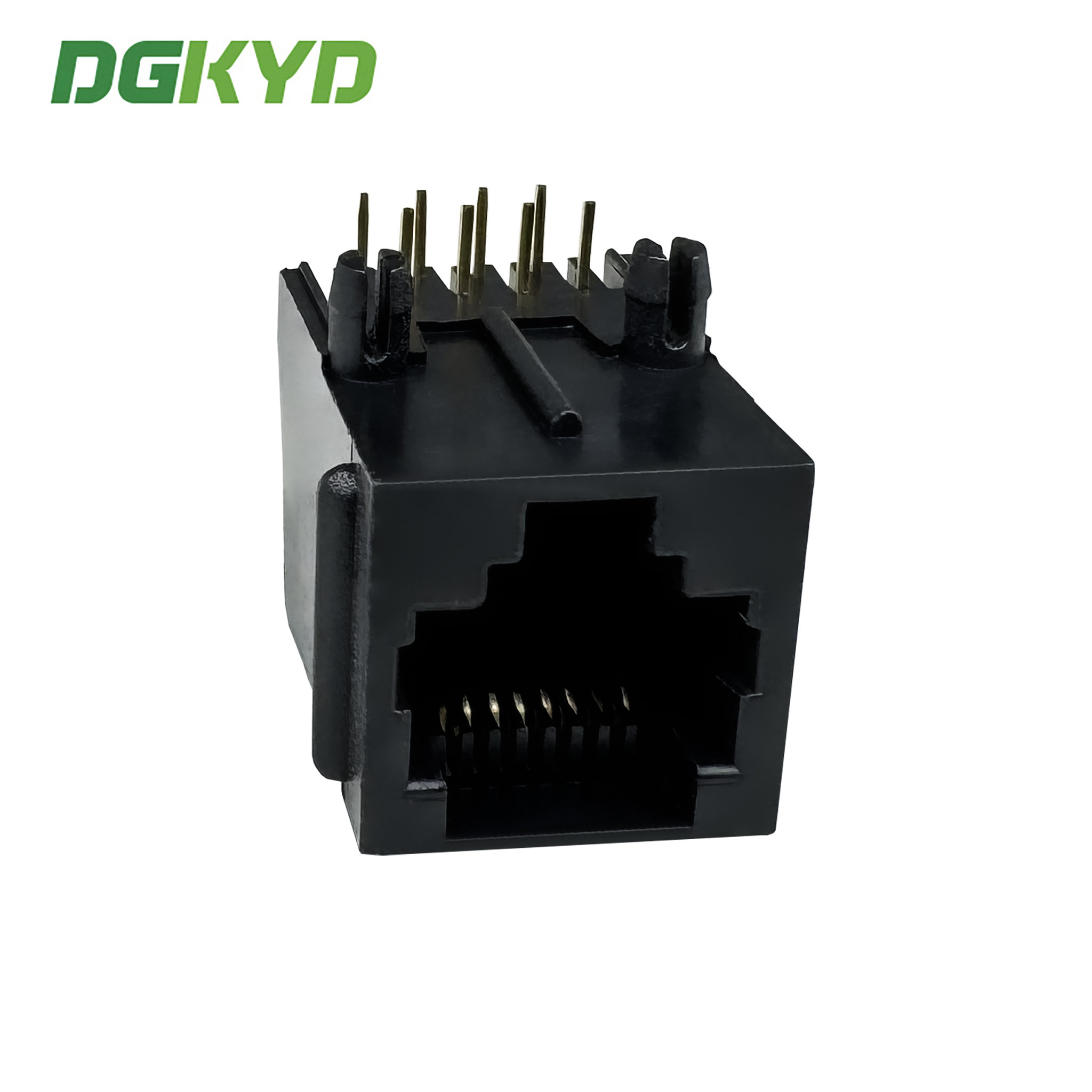

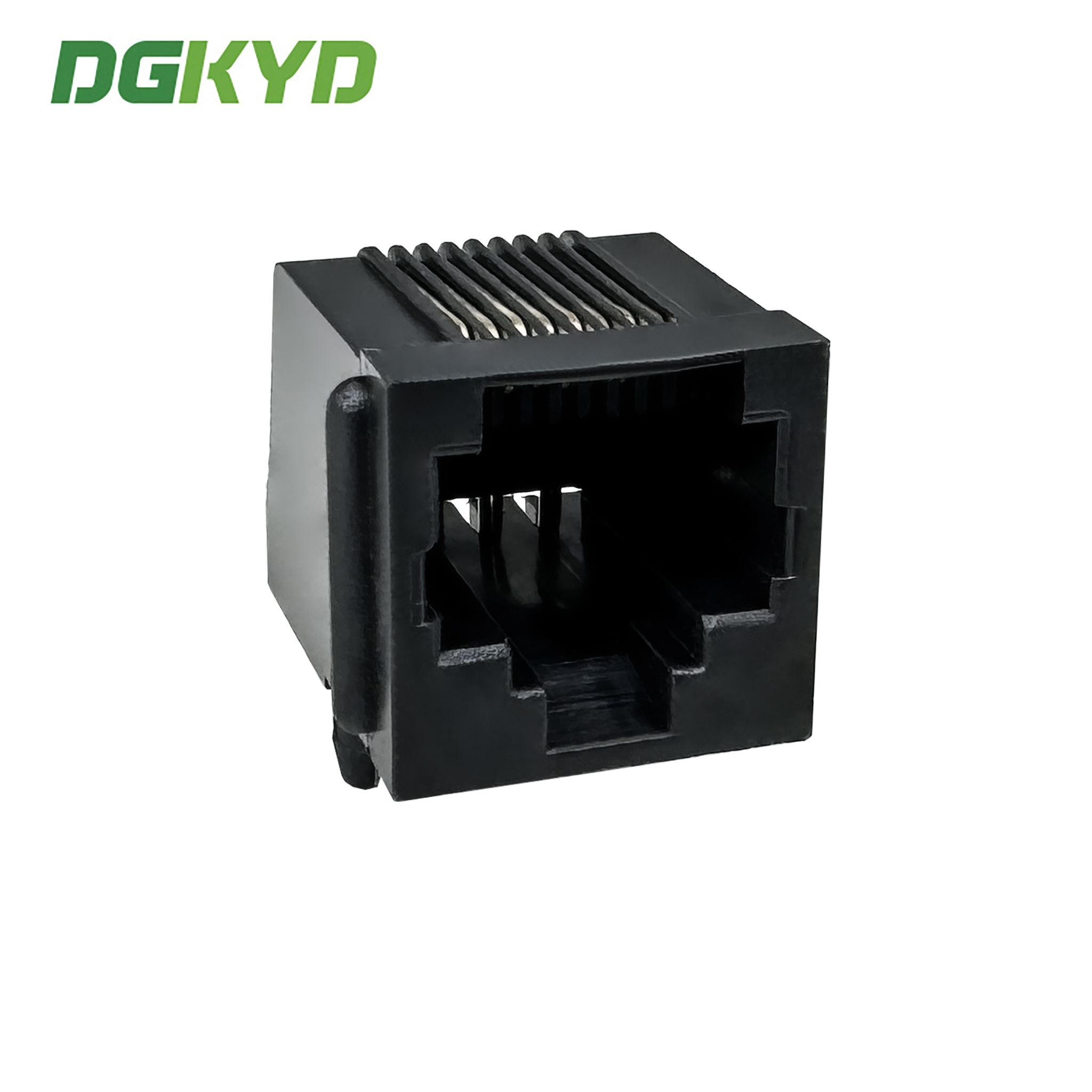

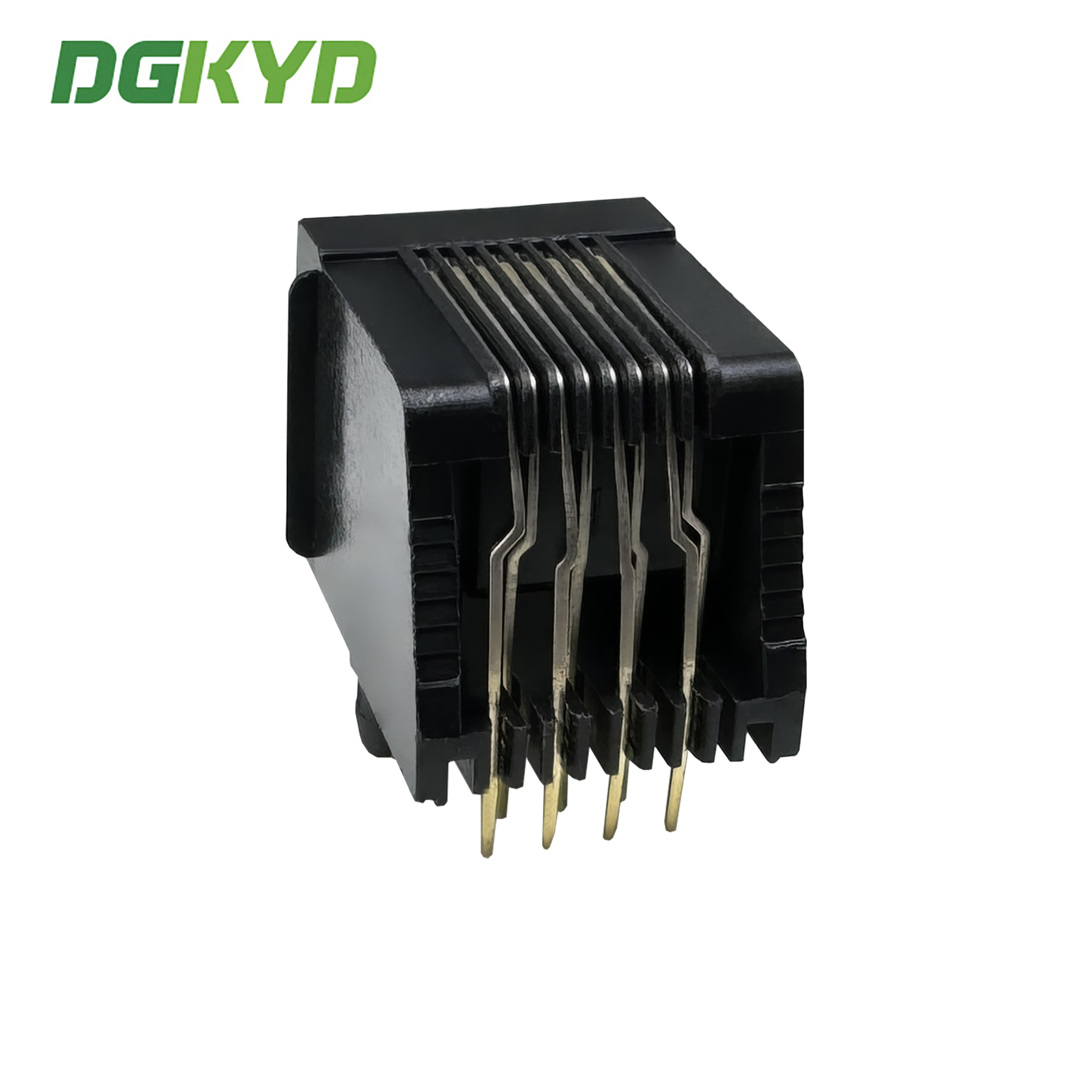

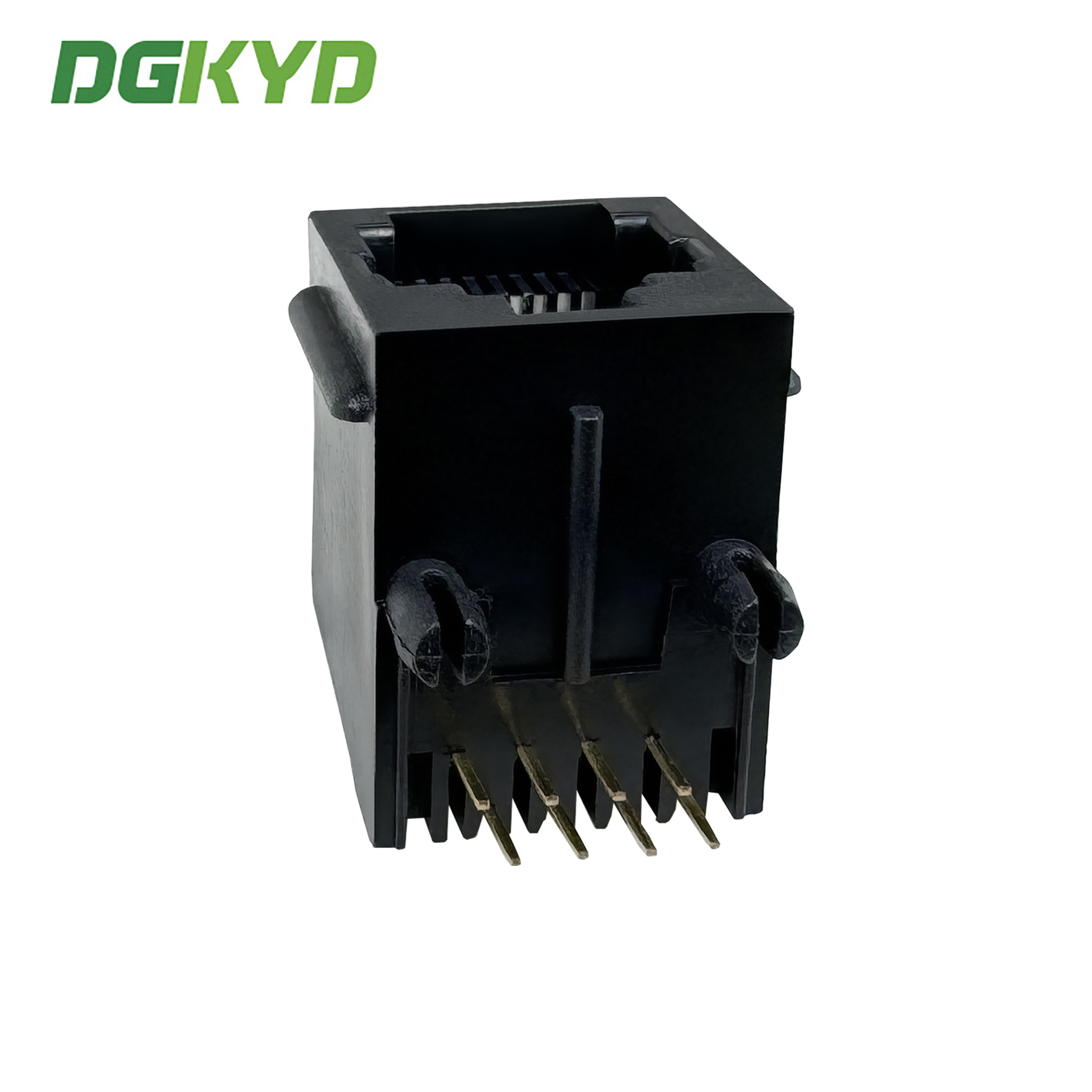

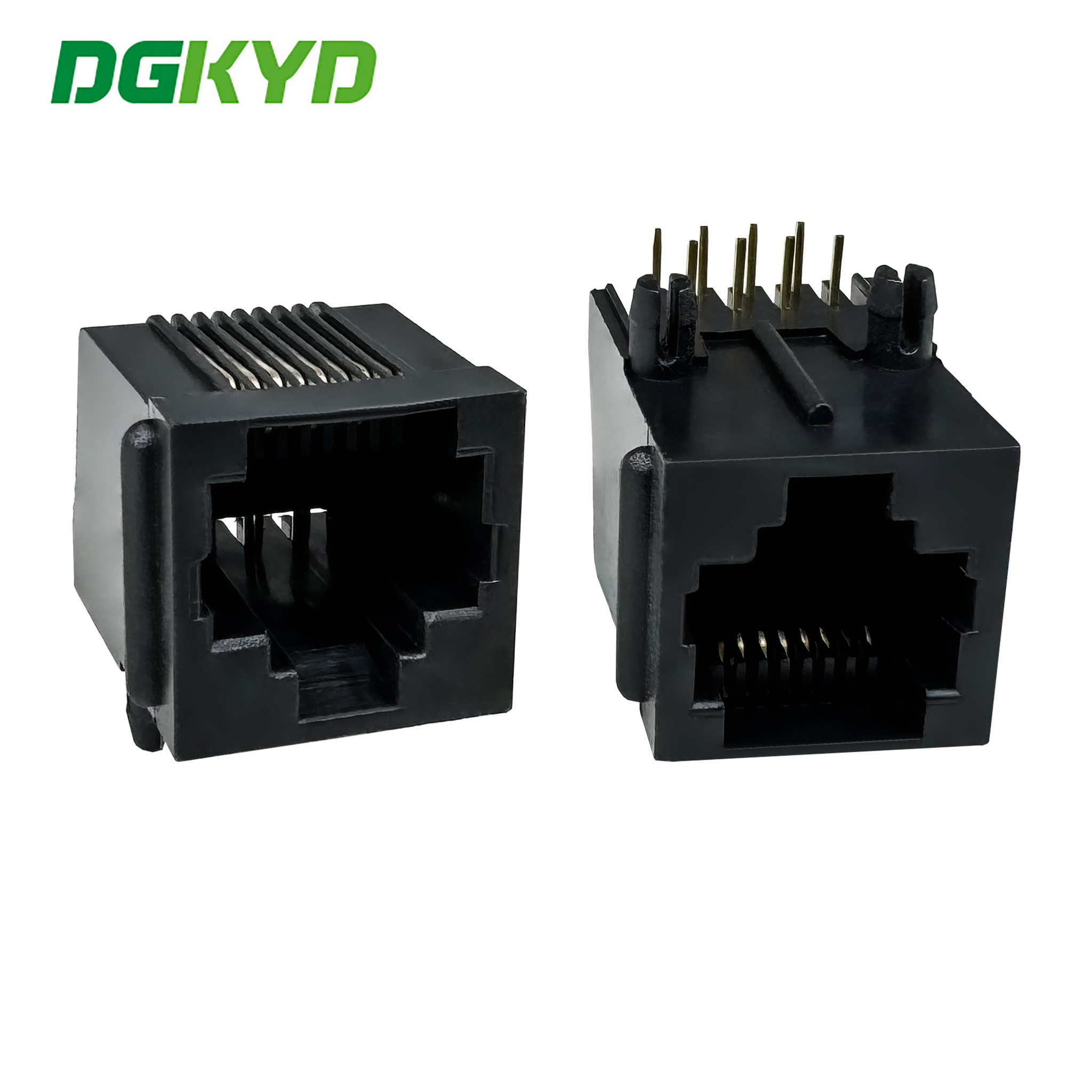

RJ45 Ethernet port connector with ears, all plastic black socket 8P8C DGKYD5722E1188IWA1DB9
RJ45 Ethernet port connector with ears, all plastic black socket 8P8C DGKYD5722E1188IWA1DB9 RJ45 Ethernet port connector with ears, all plastic black socket 8P8C DGKYD5722E1188IWA1DB9 RJ45 Ethernet port connector with ears, all plastic black socket 8P8C DGKYD5722E1188IWA1DB9 RJ45 Ethernet port connector with ears, all plastic black socket 8P8C DGKYD5722E1188IWA1DB9 RJ45 Ethernet port connector with ears, all plastic black socket 8P8C DGKYD5722E1188IWA1DB9
지금 연락

RJ45 Ethernet port connector with ears, all plastic black socket 8P8C DGKYD5722E1188IWA1DB9

최소 주문 수량 : 협상 가능 가격 : 협상 가능
포장 세부 사항 : 상자의 트레이 배달 시간 : 7-14 일
지불 조건 : L/C, D/A, D/P, T/T, 서부 동맹, MoneyGram 공급 능력 : 일 당 60000 PC
원래 장소: 중국의 동복 브랜드 이름: DGKYD
인증: RoHS/CE/FCC/CE/ISO9001/ISO14001 모델 번호: DGKYD5722E1188IWA1DB9

상세 정보
제품명: RJ45 연결기 커넥터 유형: 잭
어플리케이션: PC, 라우터, usb 허브망 rj45 등. 성별: 여성
변신 로봇: 트랜스 없는 RJ45 콘택트 핀에 금도 도금: 1U
작동 온도: -40 ° C ~+85 ° C 보관 온도: -40 ° C ~+85 ° C
한 바늘의 수: 8p8c
강조하다:

RJ45 Ethernet port connector with ears

,

all plastic black 8P8C socket

,

57 Series Ethernet port connector

제품 설명

RJ45 Ethernet Port Connector with Ears, All Plastic Black Socket 8P8C DGKYD5722E1188IWA1DB9
Product Description

RJ45 Ethernet port connector with ears, all plastic black socket 8P8C DGKYD5722E1188IWA1DB9

Product Specification Document

DGKYD5722E1188IWA1DB9.pdf

Part Number DGKYD5722E1188IWA1DB9 Brand DGKYD/OEM/ODM
Place of Origin Guangdong of China Certification RoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type Modular Jack
Latch Style Standard Latch TAB-UP
Filter Without Filter LED Option Without LED
LED Color No Panel Stops With Panel Stops
Shielded No Applies To Printed Circuit Board
Performance Speed 10/100/1000/BASE-T/TX Suitable for welding type Reflowsolding(Alternative)
Port Configuration single Ports Number of Positions 8
Jack Configuration 1X1 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation Side Entry (Right Angle)
Contact Mating Area Plating Material Gold 6u/15u/30u/50u Contact Base Material Phosphor Bronze
Solder Tail Contact Plating Material Tin-Lead over Nickel PCB Mounting Style Through Hole
Termination Method to PC Board Through Hole-Press-Fit Board Lock With/Without Board Lock
Housing Material 1U Polyester Housing Color Black
Housing Material Temperature Standard UL Flammability Rating UL 94V-0
RJ45 Ethernet port connector with ears, all plastic black socket 8P8C DGKYD5722E1188IWA1DB9 0
Technical Specifications
  • Interface type: crystal head application: 10/100/1000BASE-T Ethernet
  • Type: RJ45 built in magnetics
  • Working frequency: high frequency characteristic: filtering, anti-interference
  • Working temperature: 40℃ - 85℃
  • Storage temperature: -40℃ - 85℃
  • Lead free soldering: wave soldering height up to 265℃
Product Features
  • RJ45 full series of integrated circuit accessories
  • Manufacturer direct supply
  • Business mode: Manufacturer
  • Delivery time: on time delivery, around two weeks
  • Customizable options available (LED indicators, shielding, coil ratio, etc.)
  • Meets industry standards for electrical, mechanical, and environmental properties
Performance Parameters
  • Applied to Ethernet, coil ratio: 1CT: 1CT
  • Meet IEEE 802.3 & ANSI X 3.263 standard
  • Open circuit inductance (OCL): 350uH (MIN) @ 100kHz, 0.1VRMS with 8Ma DC Bias
  • Wave soldering process of 265℃ Max meeting the requirements of EU ROHS standard
  • Withstand voltage: 2250VDC 1mA max, 60s
  • Impedance: 100 ohms
  • RJ45 interface meets FCC 68.5 standard
  • DC resistance: 1.5Ω
Company Information
RJ45 Ethernet port connector with ears, all plastic black socket 8P8C DGKYD5722E1188IWA1DB9 1 RJ45 Ethernet port connector with ears, all plastic black socket 8P8C DGKYD5722E1188IWA1DB9 2 RJ45 Ethernet port connector with ears, all plastic black socket 8P8C DGKYD5722E1188IWA1DB9 3 RJ45 Ethernet port connector with ears, all plastic black socket 8P8C DGKYD5722E1188IWA1DB9 4 RJ45 Ethernet port connector with ears, all plastic black socket 8P8C DGKYD5722E1188IWA1DB9 5 RJ45 Ethernet port connector with ears, all plastic black socket 8P8C DGKYD5722E1188IWA1DB9 6 RJ45 Ethernet port connector with ears, all plastic black socket 8P8C DGKYD5722E1188IWA1DB9 7 RJ45 Ethernet port connector with ears, all plastic black socket 8P8C DGKYD5722E1188IWA1DB9 8
Frequently Asked Questions
Q: Are you trading company or manufacture?
A: We are manufacture. Welcome to our factory.
Q: What about your lead time?
A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.
Q: Can you provide samples? Are they free?
A: Yes. Usually we can provide 2-3 samples of standard products free for testing.
Q: Can I put my own logo on it?
A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
