| 최소 주문 수량 : | 1개 조각 | 가격 : | Please contact us to get the latest price. |
|---|---|---|---|
| 포장 세부 사항 : | 상자의 트레이 | 배달 시간 : | 10일 |
| 지불 조건 : | T/T, D/P, D/A, L/C, Western Union, MoneyGram | 공급 능력 : | 100,000개/일 |
| 원래 장소: | 중국의 동복 | 브랜드 이름: | DGKYD |
|---|---|---|---|
| 인증: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | 모델 번호: | DGKYD111B002BA2A4D |
|
상세 정보 |
|||
| 하우징 재료: | PBT 검정색 | 메이팅 영역 도금과 연락하세요: | 선택적인 것을 위한 금 6u / 15u / 30u / 50u |
|---|---|---|---|
| 금속 실드: | 주석 도금된 인광 BROZNE | LED 옵션: | LED로 |
| 걸쇠: | 탭 다운 | 포트 수: | 1 |
| 연락처 수: | 8 | PCB 각도 장착대: | 측면 엔트리 |
| 스틀예를 탑재하세요: | 구멍 | 트랜스 선택: | 트랜스로 |
| 강조하다: | RJ45 Ethernet connector 100Mbps,RJ45 female socket horizontal,RJ45 connector TAB-DOWN 21.3mm |
||
제품 설명

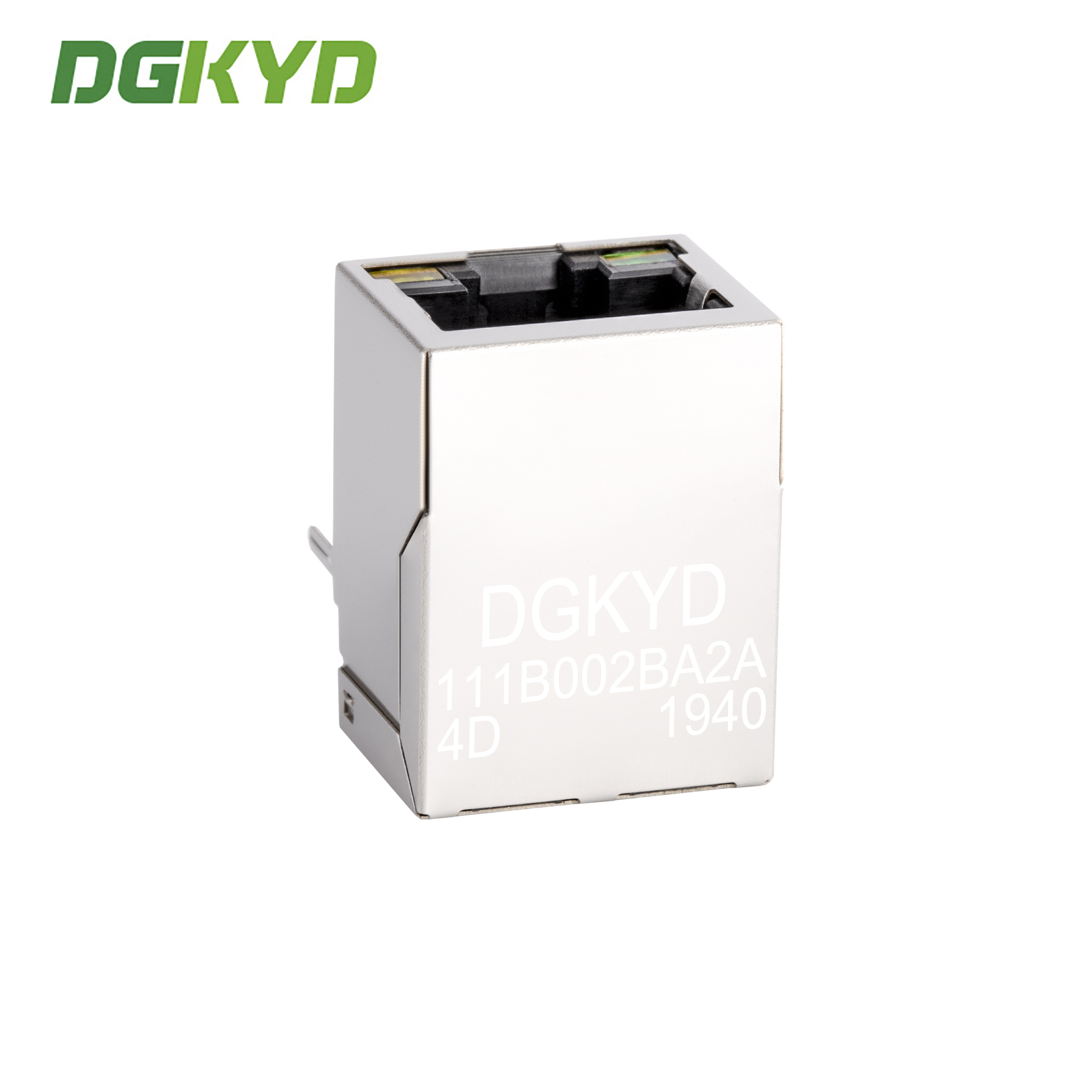

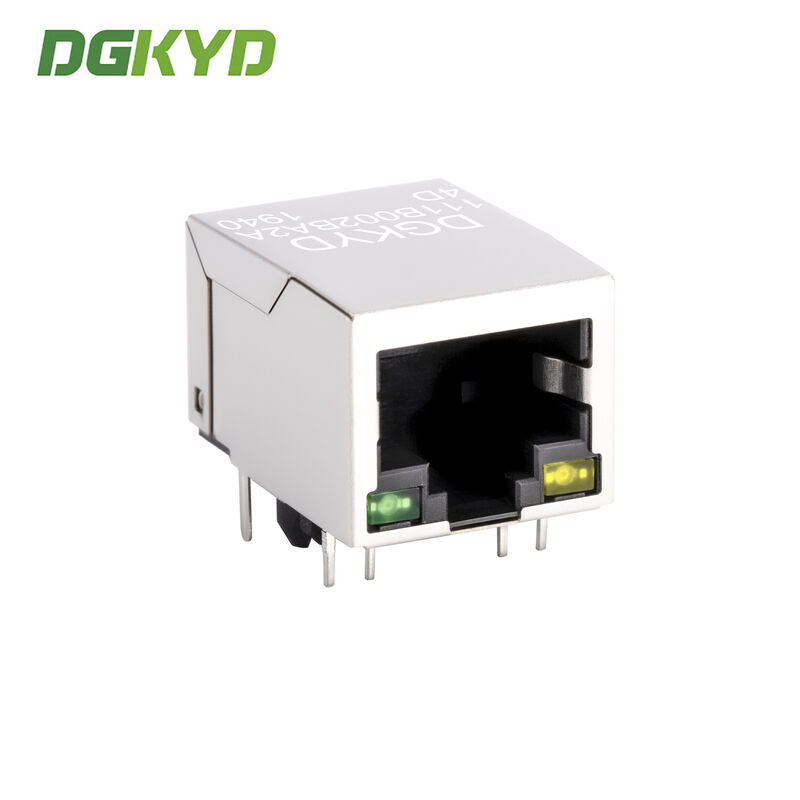

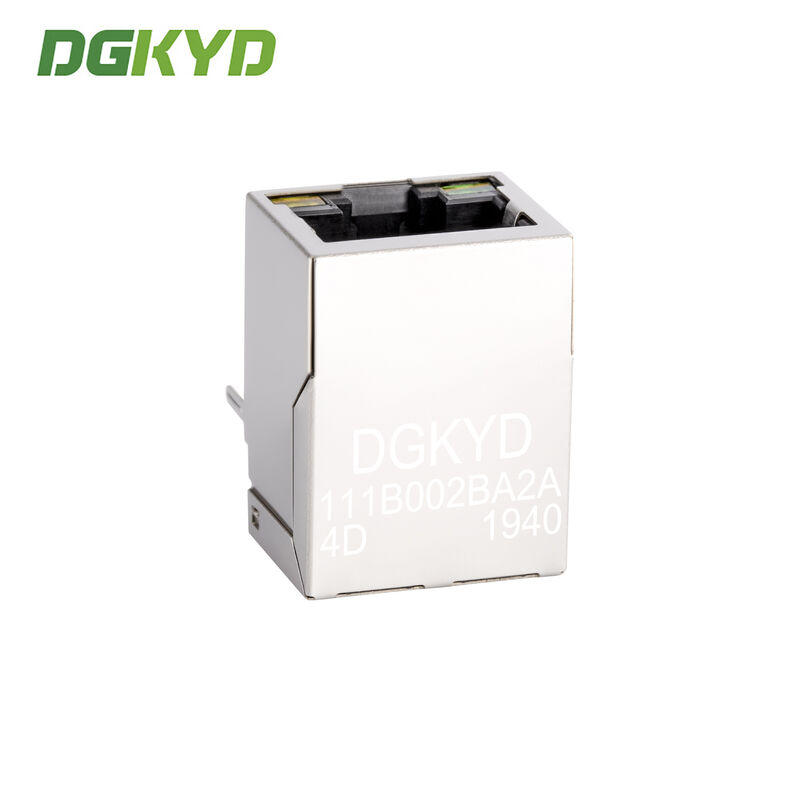

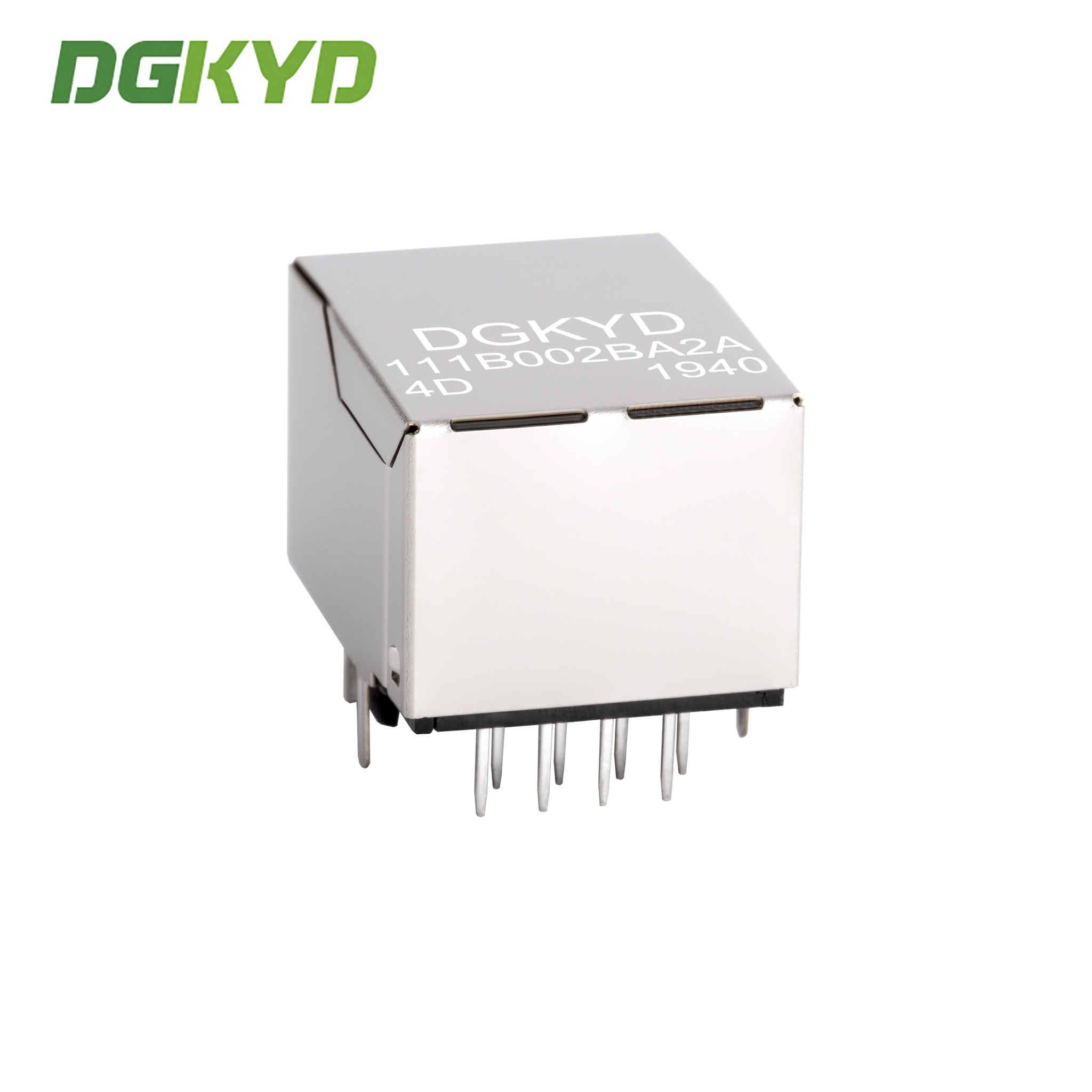

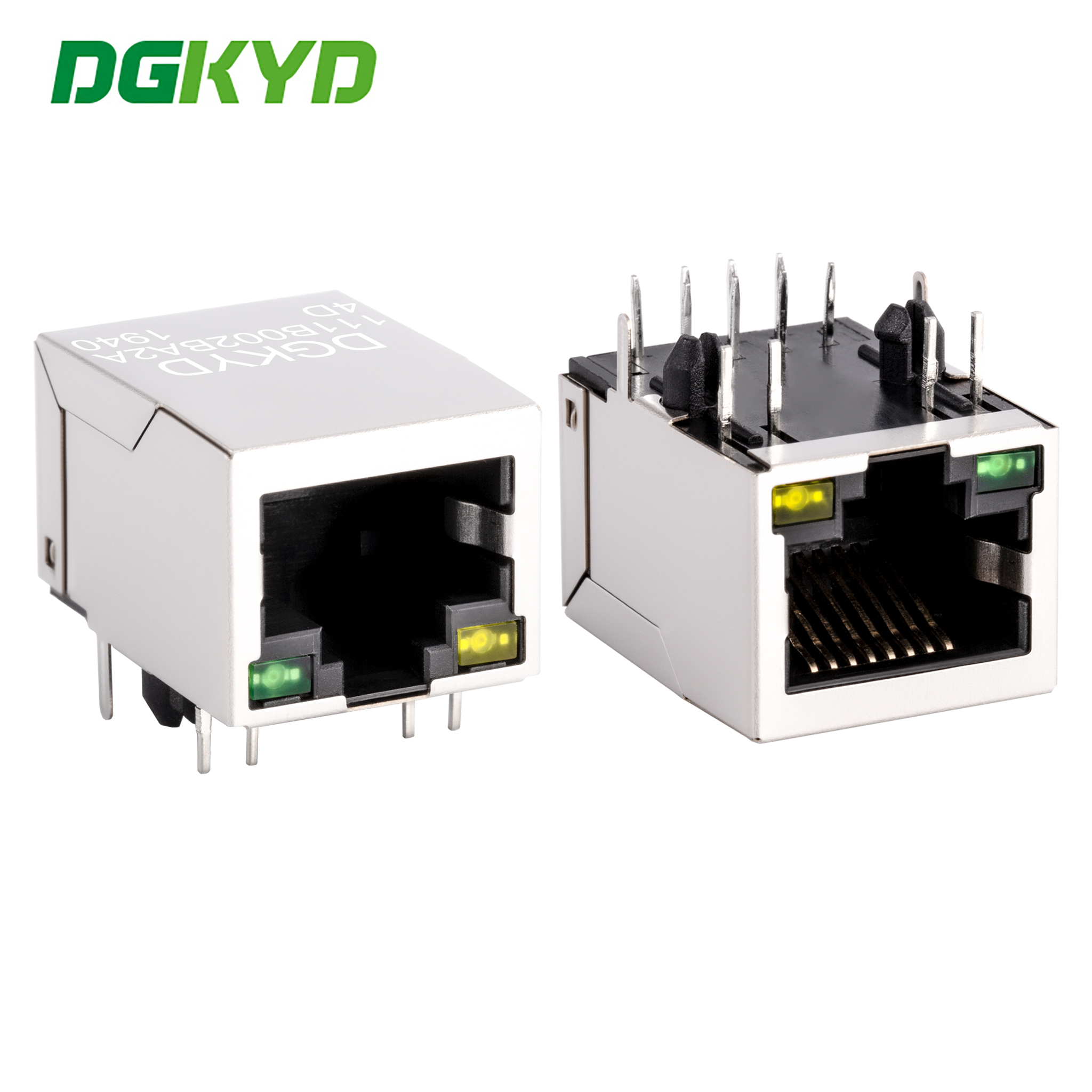

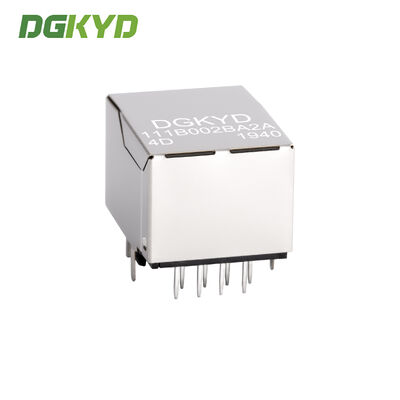

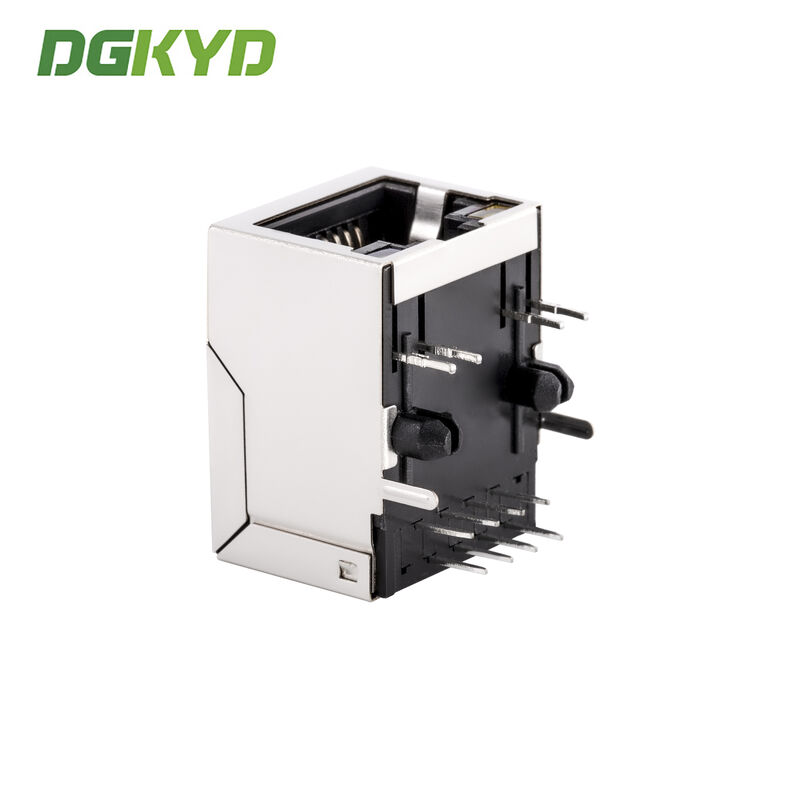

RJ45 Ethernet integrated 100Mbps connector horizontal female socket DGKYD111B002BA2A4D
Download Product Datasheet (PDF)| Part Number | DGKYD111B002BA2A4D |
| Brand | DGKYD/OEM/ODM |
| Product Type | Connector-Modular |
| Connector Style | Jack |
| Jack Type | RJ45 |
| Connector Type | Modular Jack |
| Latch Style | Standard |
| Latch | TAB-DOWN |
| Filter | With Filter |
| LED Option | With LED |
| LED Color | Green/Yellow |
| Panel Stops | With Panel Stops |
| Shielded | With metal shield |
| Applies To | Printed Circuit Board |
| Port Configuration | Single Ports |
| Number of Positions | 8 |
| Jack Configuration | 1X1 |
| Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel |
| PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating | Gold 6u |
| Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel |
| PCB Mounting Style | Through Hole |
| Termination Method to PC Board | Through Hole-Press-Fit |
| Board Lock | With/Without Board Lock |
| Housing Material | PBT Polyester |
| Housing Color | Black |
| Housing Material Temperature | Standard |
| UL Flammability Rating | UL 94V-0 |
The electrical properties of the products meet the industry standards, the appearance and mechanical properties meet the appearance dimensions, the mechanical manufacturing industry standards, and the environmental protection standards. Your satisfaction is the purpose of our service!
