| 최소 주문 수량 : | 1개 조각 | 가격 : | Please contact us to get the latest price. |
|---|---|---|---|
| 포장 세부 사항 : | 상자의 트레이 | 배달 시간 : | 10일 |
| 지불 조건 : | T/T, D/P, D/A, L/C, Western Union, MoneyGram | 공급 능력 : | 100,000개/일 |
| 원래 장소: | 중국의 동복 | 브랜드 이름: | DGKYD |
|---|---|---|---|
| 인증: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | 모델 번호: | DGKYD114B002AB2A1D3 |
|
상세 정보 |
|||
| 성능: | Cat5/5e | 포트 유형: | 조로 편성한 4 공항 |
|---|---|---|---|
| 하우징 재료: | PBT 검정색 | 주도의: | 녹색 / 노랑색 |
| RJ45 커넥터 하이 포트: | 1500Vrms | Rj45 연결기 ocl: | 350uh 분 |
| 탭 방향: | 탭 다운 | 코어 수: | 8 |
| 콘택트 핀에 금도 도금: | 6U | 작동 온도: | -40 ° C ~+85 ° C |
| 보관 온도: | -40 ° C ~+85 ° C | ||
| 강조하다: | Four cell RJ45 connector with Ethernet filter,100Mbps RJ45 network connector,RJ45 1X4 TAB-DOWN/UP connector |
||
제품 설명

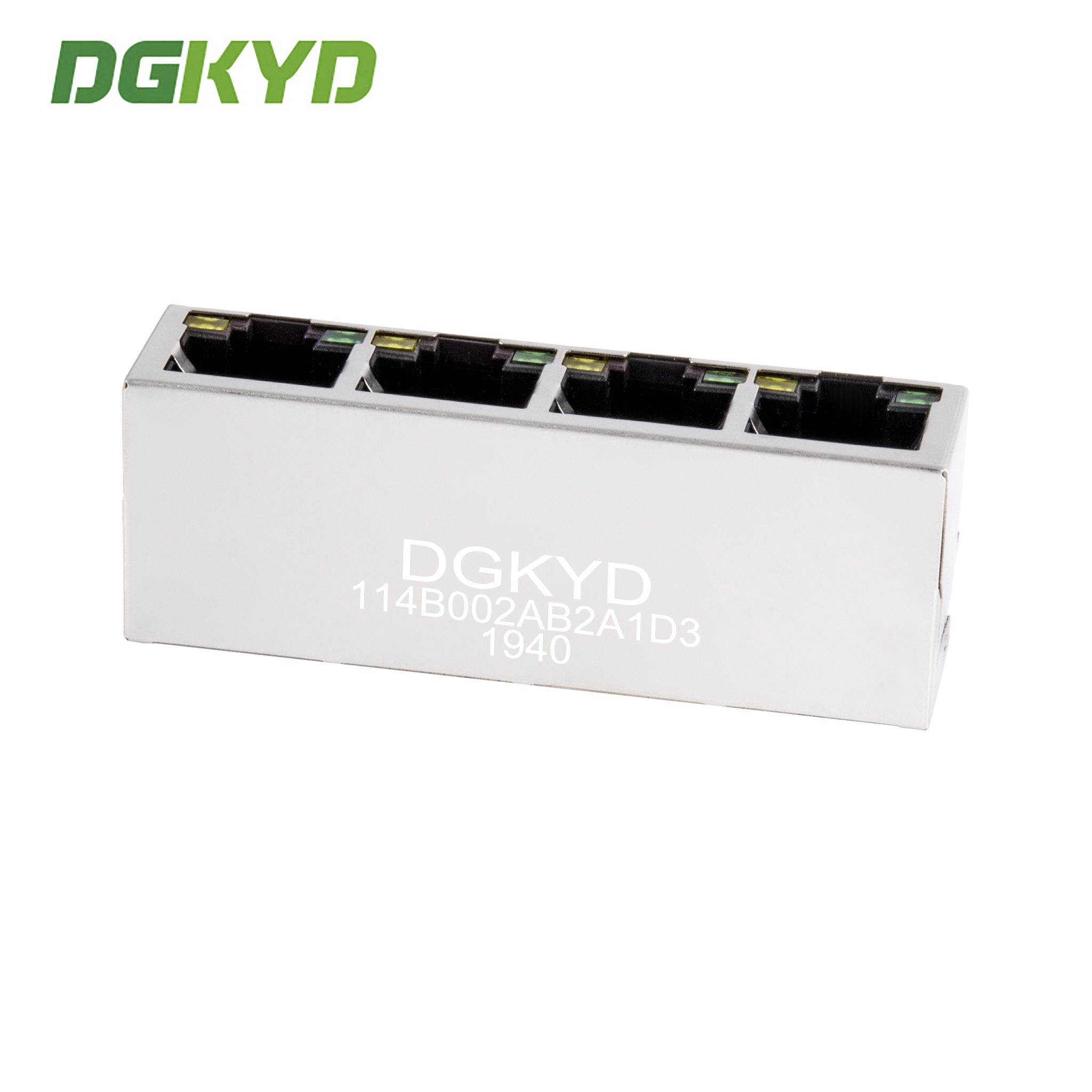

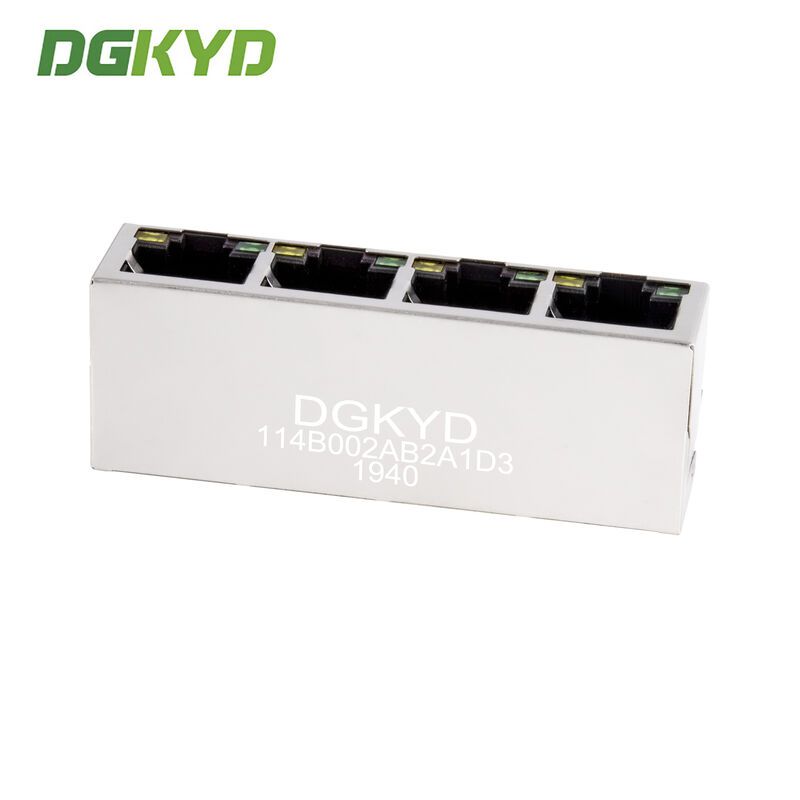

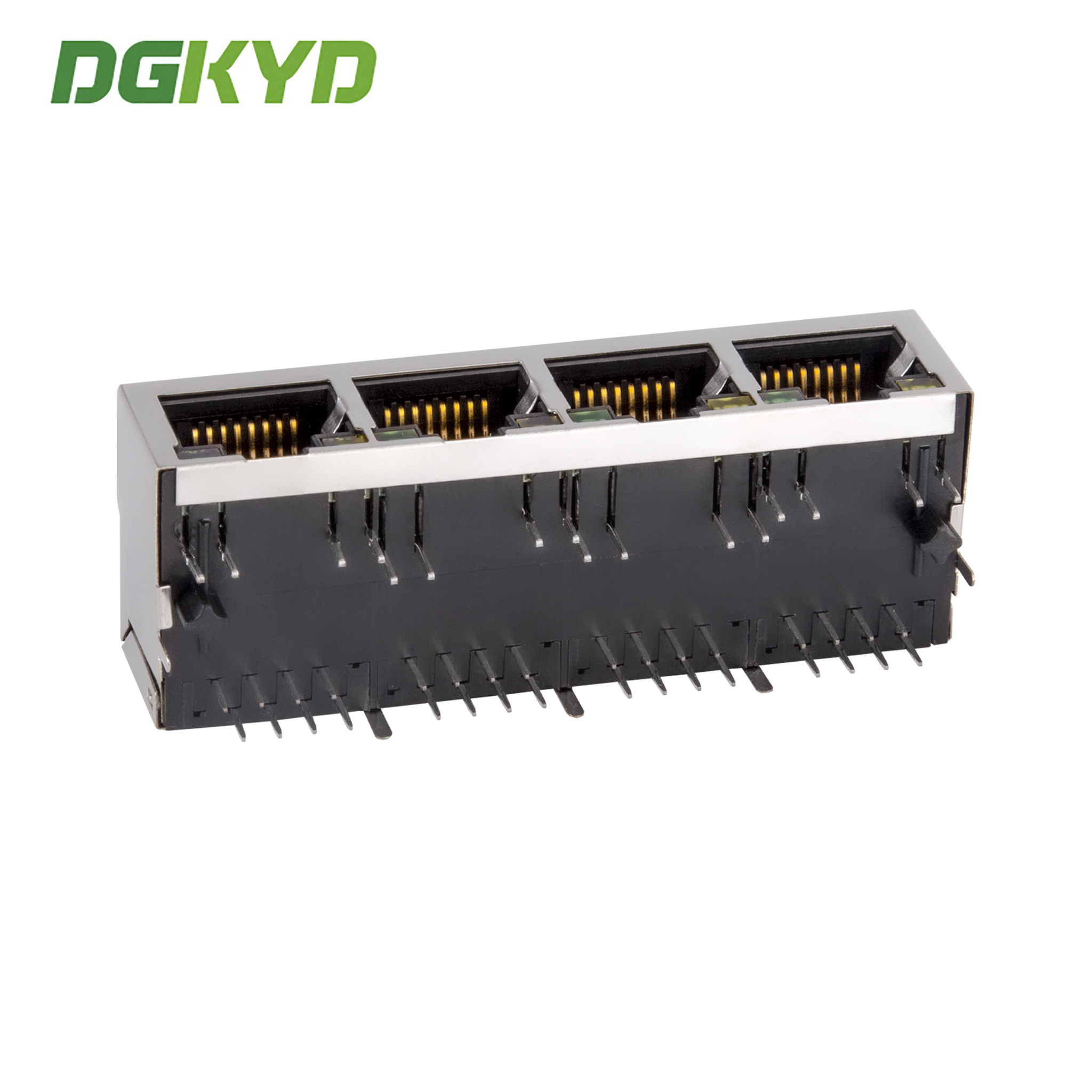

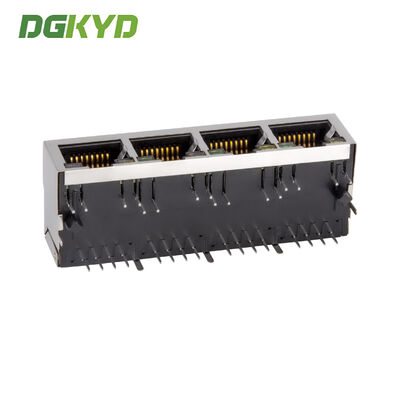

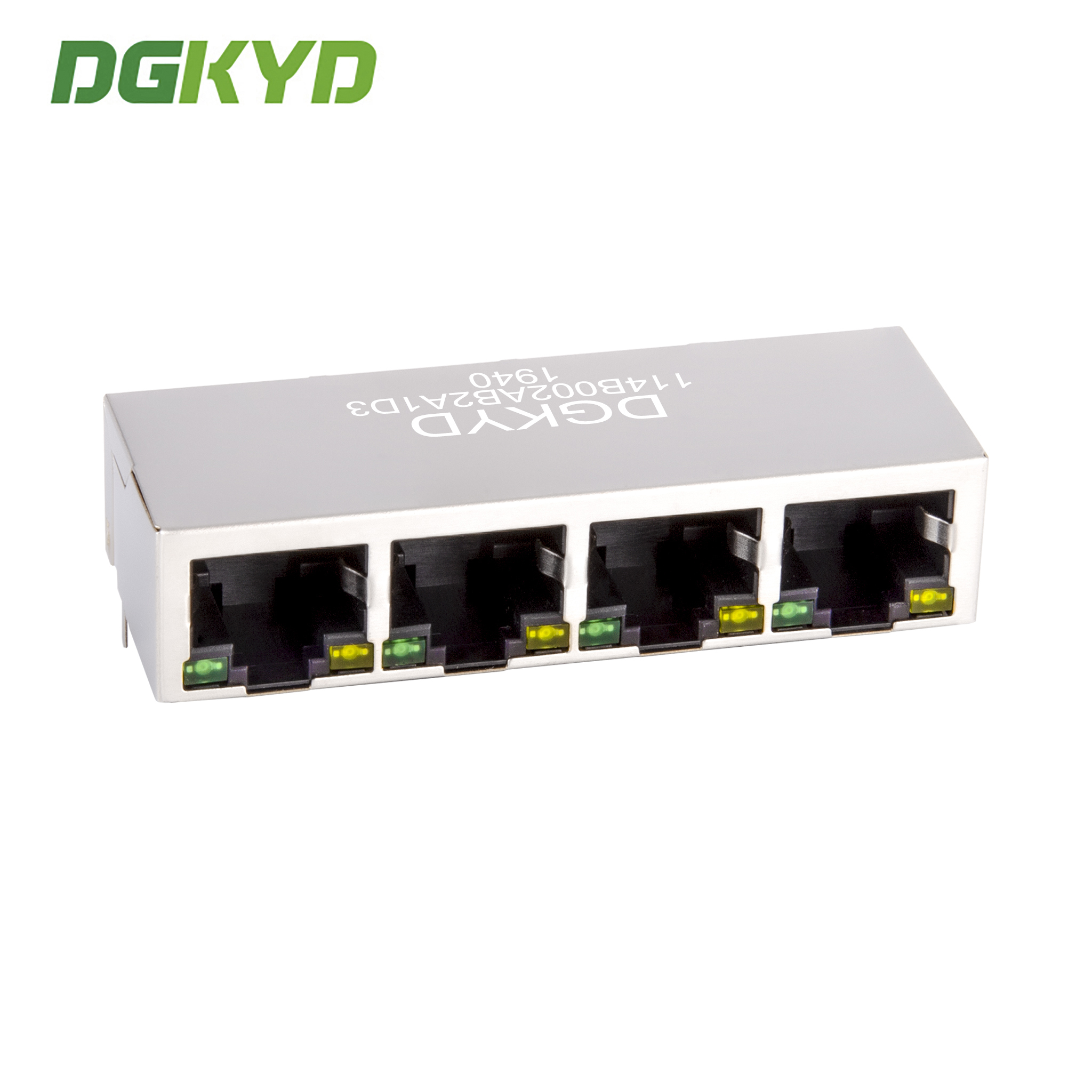

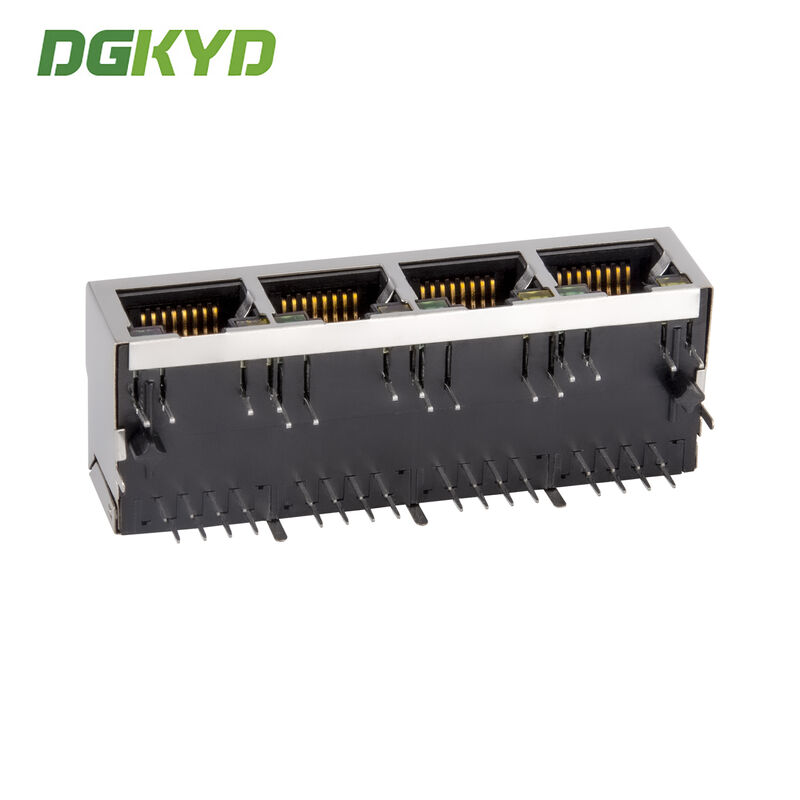

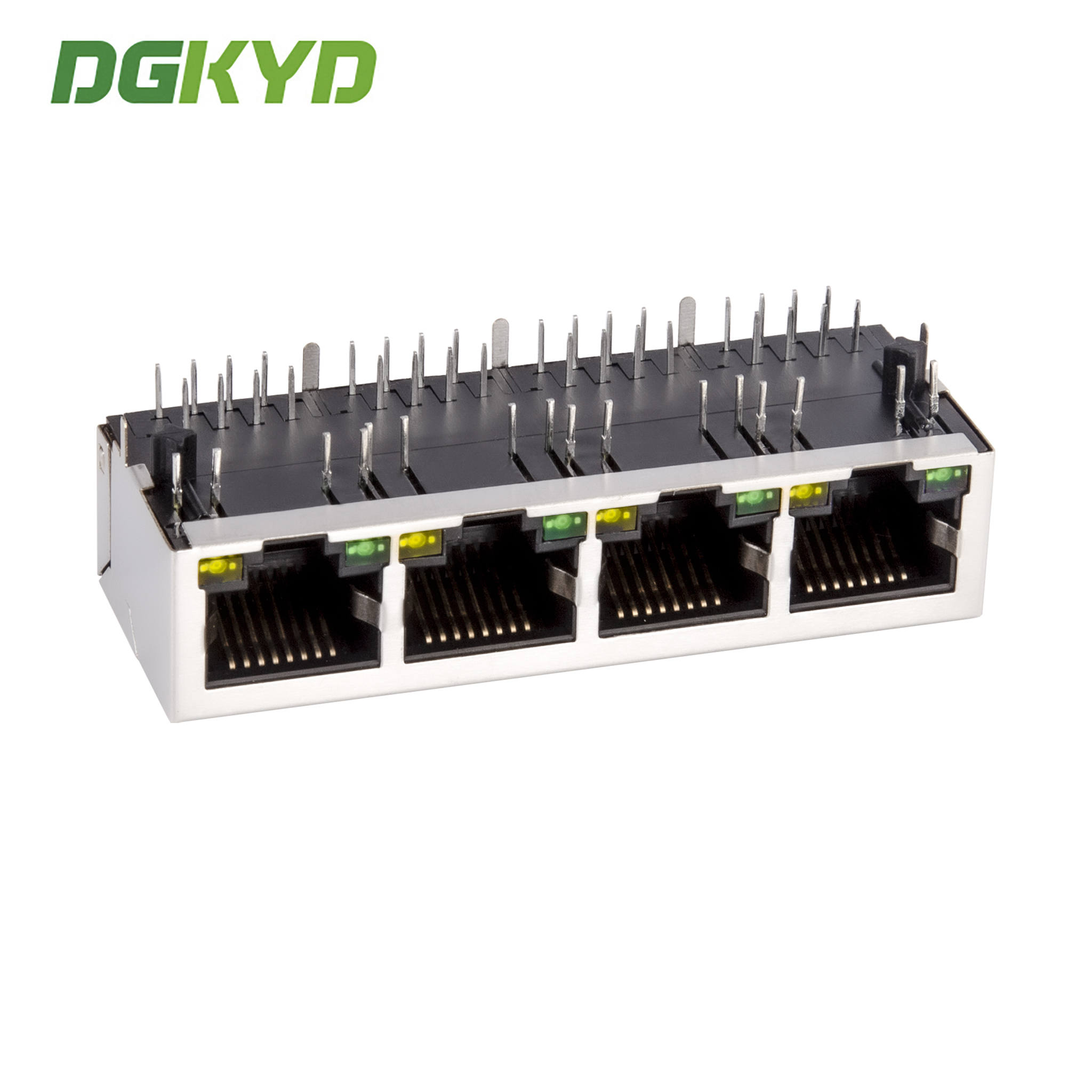

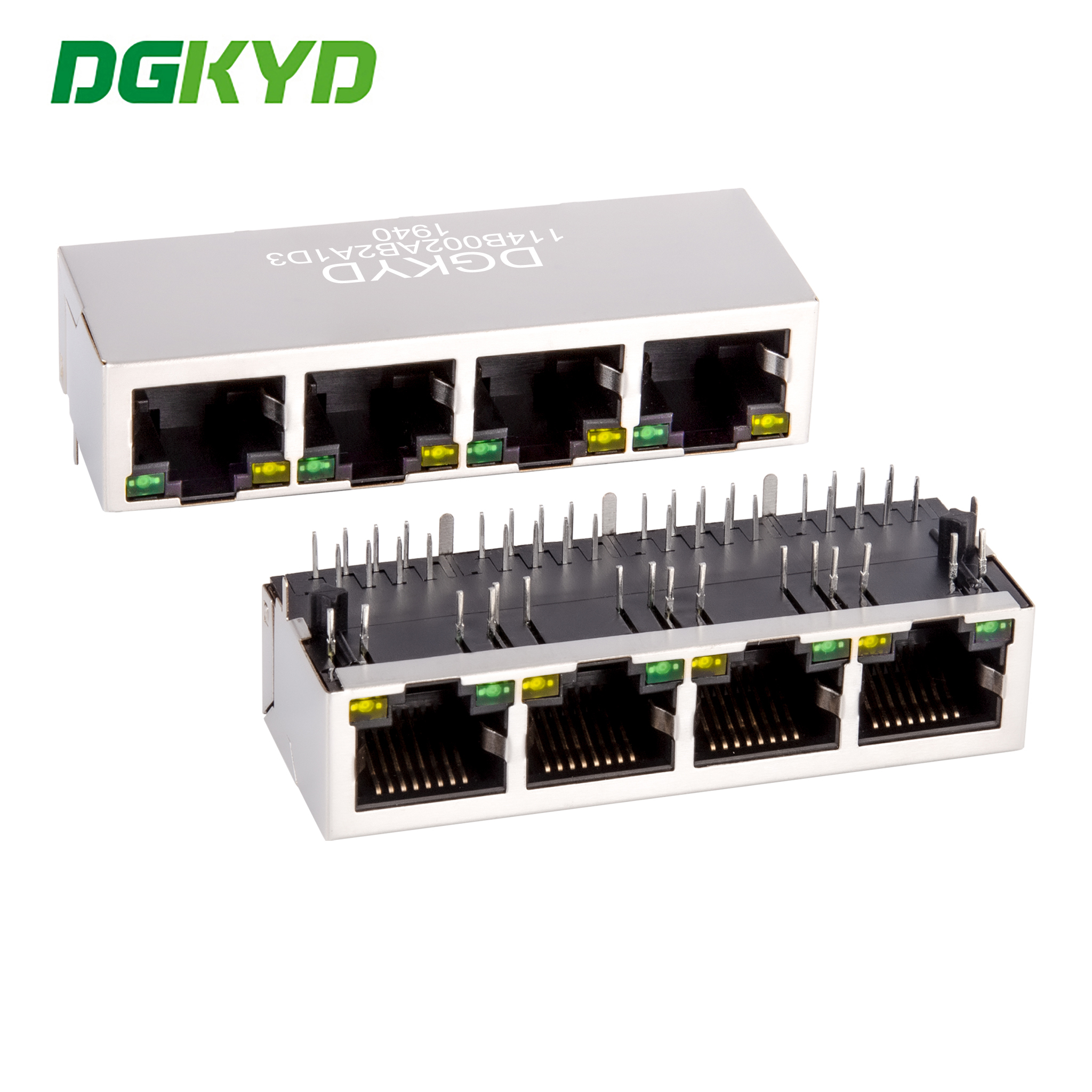

Four cell RJ45 network connector with 100Mbps integrated Ethernet filter DGKYD114B002AB2A1D3
Download Product Documentation| Part Number | DGKYD114B002AB2A1D3 |
|---|---|
| Brand | DGKYD/OEM/ODM |
| Product Type | Connector-Modular |
| Connector Style | Jack |
| Jack Type | RJ45 |
| Connector Type | Modular Jack |
| Latch Style | Standard |
| Latch | TAB-DOWN |
| Filter | With Filter |
| LED Option | With LED |
| LED Color | Green/Yellow |
| Panel Stops | With Panel Stops |
| Shielded | With metal shield |
| Applies To | Printed Circuit Board |
| Port Configuration | 1X4 Ports |
| Number of Positions | 8 |
| Jack Configuration | 1X4 |
| Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel |
| PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating | Gold 6u |
| Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel |
| PCB Mounting Style | Through Hole |
| Termination Method to PC Board | Through Hole-Press-Fit |
| Board Lock | With/Without Board Lock |
| Housing Material | PBT Polyester |
| Housing Color | Black |
| Housing Material Temperature | Standard |
| UL Flammability Rating | UL 94V-0 |
The electrical properties of the products meet the industry standards, the appearance and mechanical properties meet the appearance dimensions, the mechanical manufacturing industry standards, and the environmental protection standards. Your satisfaction is the purpose of our service!
Integrated RJ45 connector main used to:
