Custom Shield 8p8c SMT Rj45 Keystone Jack , Extra Low Profile Ethernet Connector KRJ-85A85MMNL

최소 주문 수량 :	1 조각	가격 :	Please contact us to get the latest price.
포장 세부 사항 :	상자의 트레이	배달 시간 :	10 일
지불 조건 :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	공급 능력 :	100K PCS/DAY

원래 장소:	중국의 동복	브랜드 이름:	DGKYD
인증:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	모델 번호:	KRJ-85A85MMNL

상세 정보
모듈 식 잭 및 플러그 인터페이스 유형:	트랜스 없는 RJ45	커넥터 스타일:	잭
성별:	여성	차폐:	예
높이 프로파일:	여분 저자세	성능 카테고리:	CAT 3/5/6
방식을 탑재하세요:	smt	OEM/ODM:	예
위치/연락처 수:	8P8c (RJ45, 이더넷)	콘택트 핀에 금도 도금:	G/Fu
저장 온도:	-40 ° C ~+85 ° C	작동 온도:	-40 ° C ~+85 ° C
강조하다:	low profile RJ45 keystone jack , SMT RJ45 Ethernet connector , 8p8c RJ45 jack without transformer

제품 설명

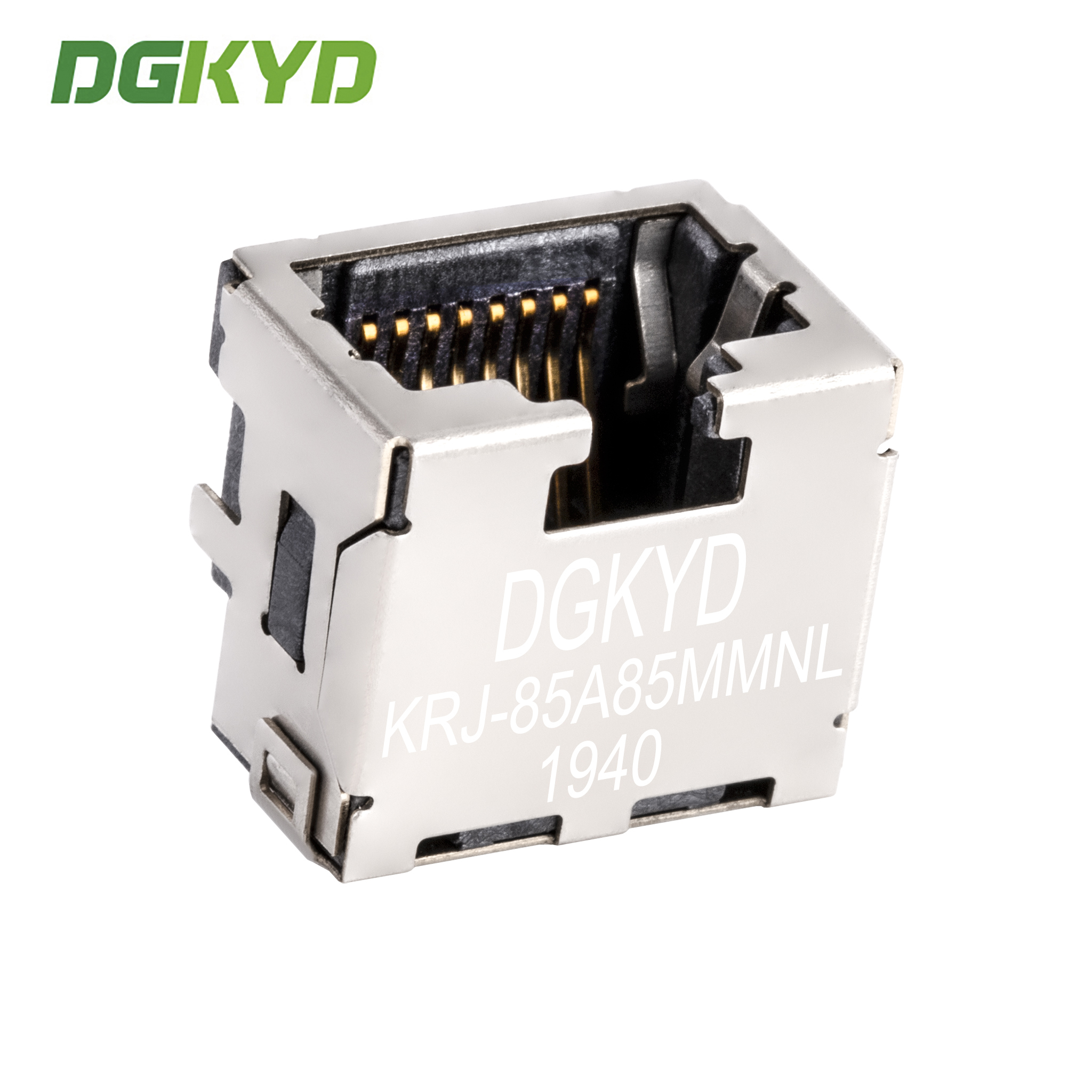

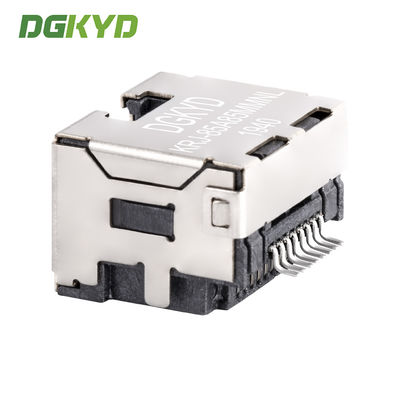

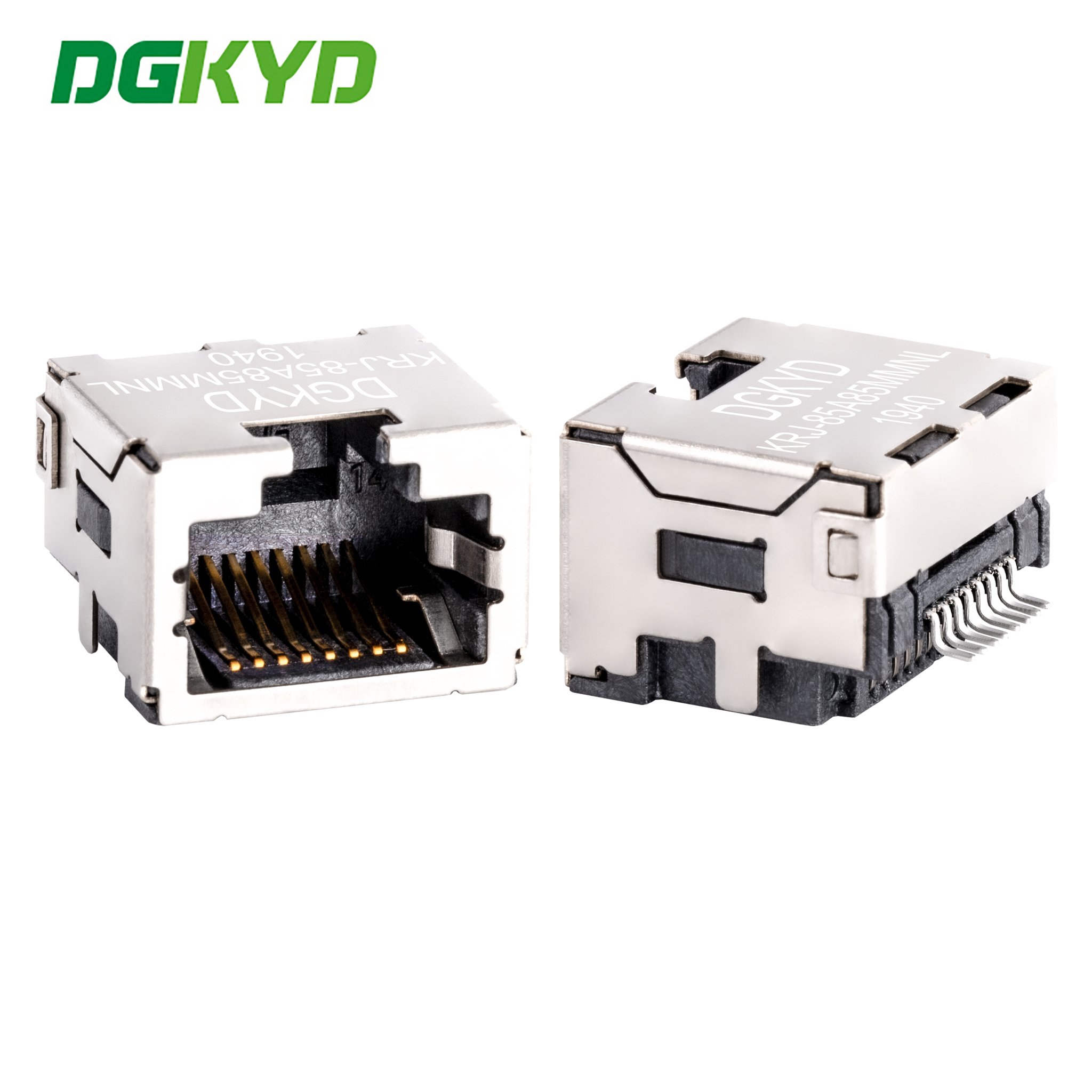

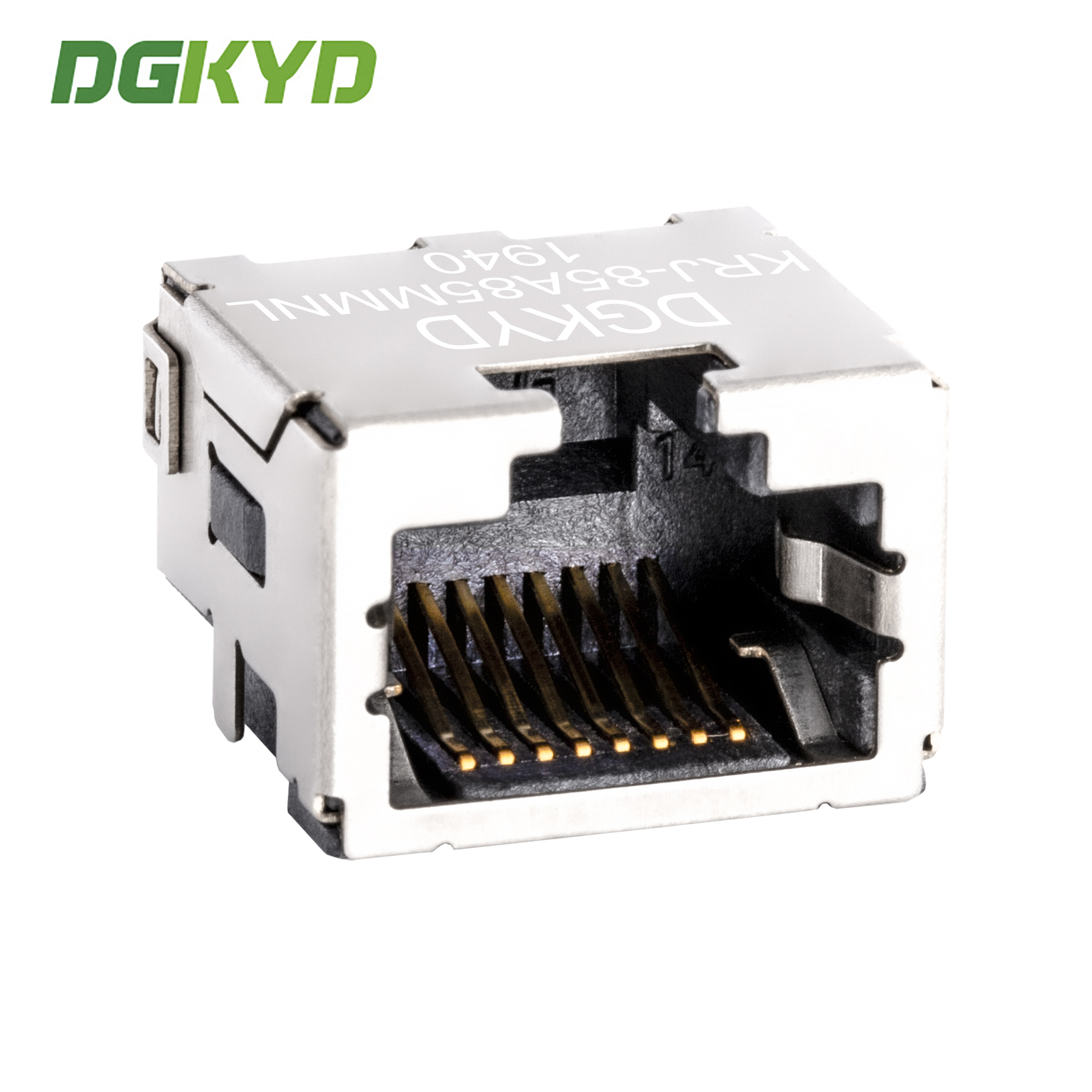

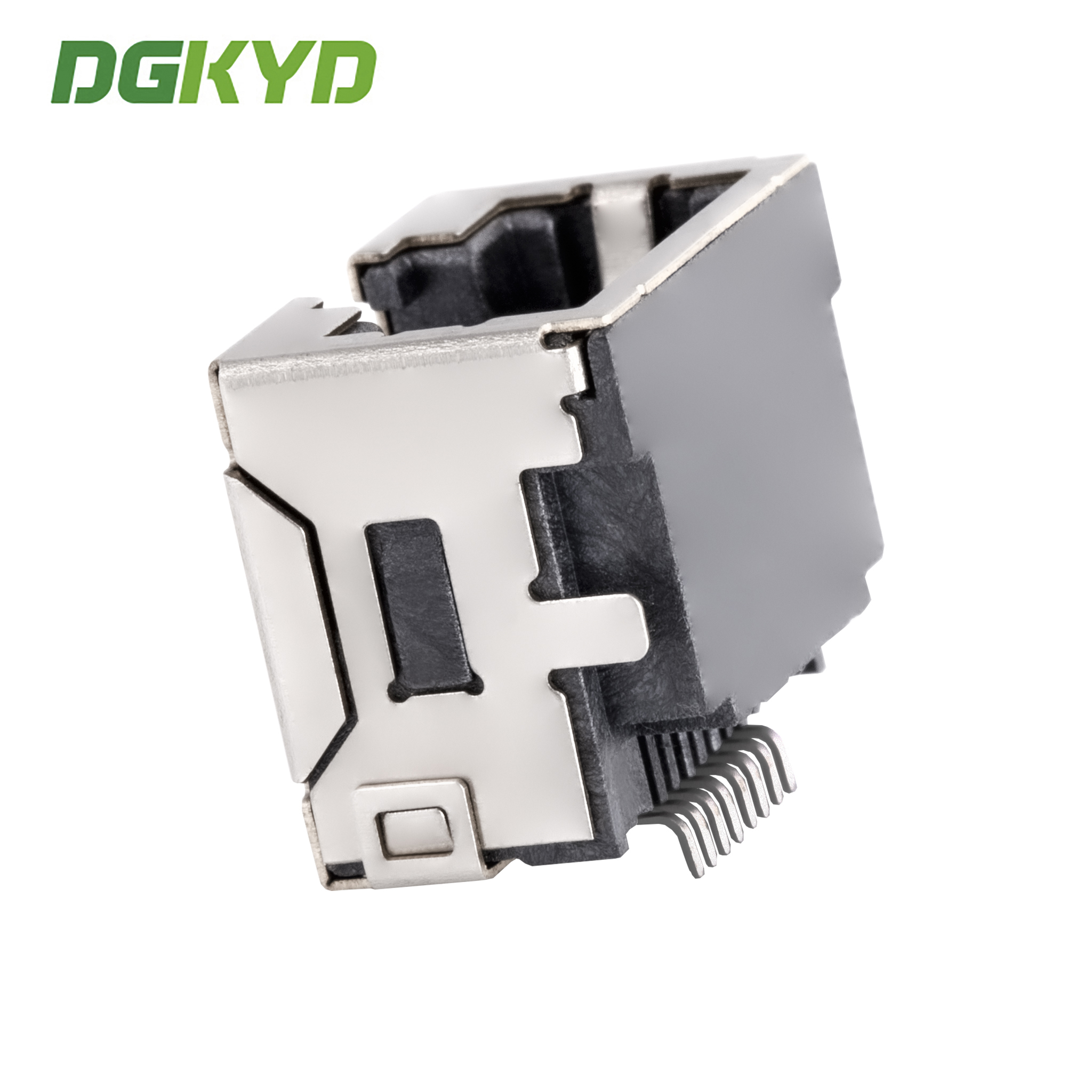

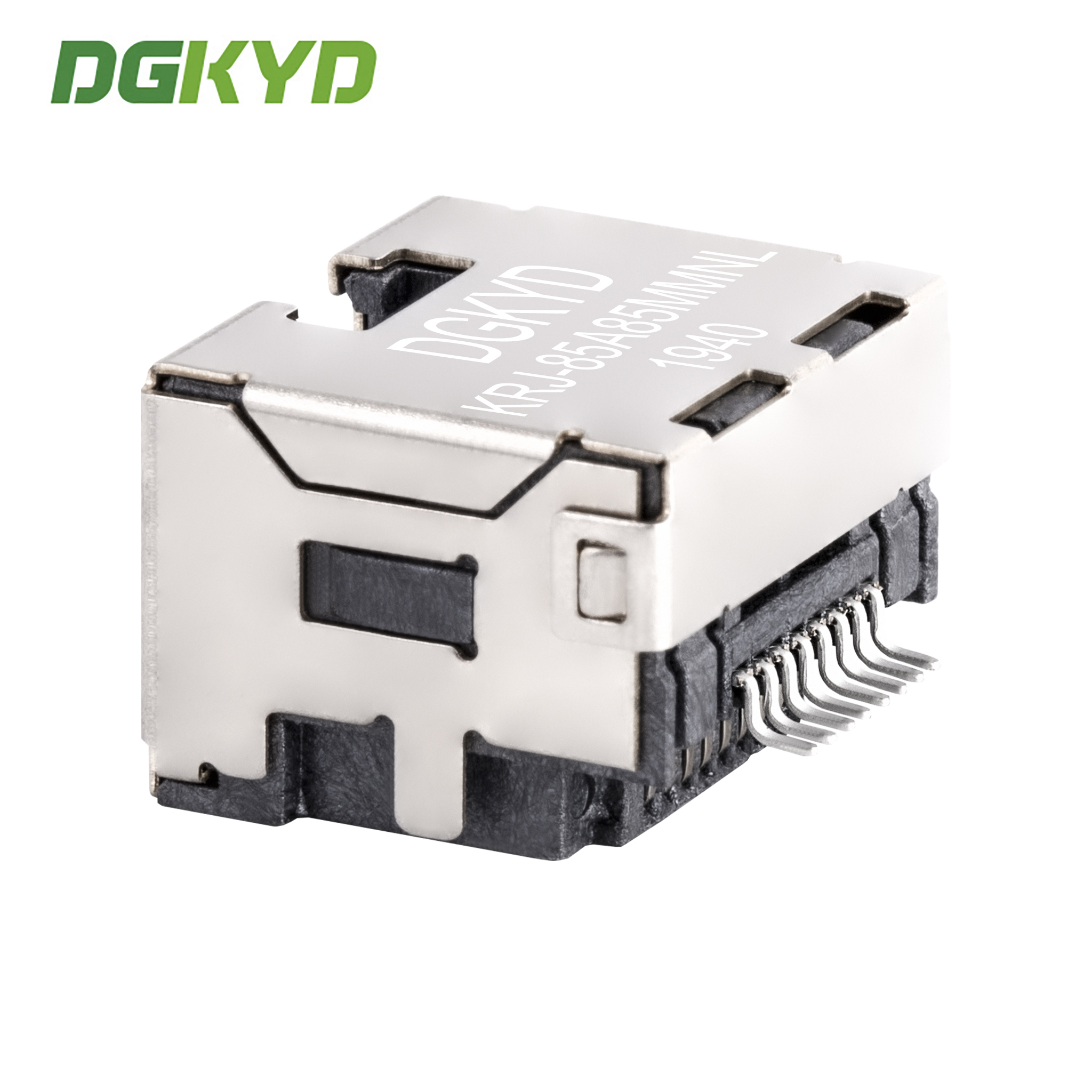

Custom Shield 8p8c SMT Rj45 Keystone Jack, Extra Low Profile Ethernet Connector KRJ-85A85MMNL

Product Description

Custom Shield 8p8c SMD Rj45 Keystone Jack, Extra Low Profile Ethernet Connector KRJ-85A85MMNL

Product Specification Document: KRJ-85A85MMNL.pdf

Parameters

Part Number	KRJ-85A85MMNL	Brand	DGKYD/OEM/ODM
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-UP
Filter	Without Filter	LED Option	Without LED
LED Color	No	Panel Stops	With Panel Stops
Shielded	With metal shield	Applies To	Printed Circuit Board
Port Configuration	Single Ports	Number of Positions	8
Jack Configuration	1X1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating	Gold G/Fu	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	LCP Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

Our Strengths

Interface type: crystal head application: 10 / 100 / 1000BASE-T Ethernet
Type: RJ45 built in magnetics
Working frequency: high frequency characteristic: filtering, anti-interference
Working temperature: -40℃ to 85℃
Storage temperature: -40℃ to 85℃
Lead free soldering: wave soldering height up to 265℃

RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply

Business mode: Manufacturer
Delivery time: on time delivery, around two weeks
Specs for choices:
- LED indicator light (green, yellow, red, orange, blue, bi-color LED)
- Shield with EMI fingers or not
- Coil ratio of magnetic core
- Magnetics circuit diversification optional
- Contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)
- Plastic housing material (PBT,PA46,PA9T, LCP)
The electrical properties of the products meet the industry standards, the appearance and mechanical properties meet the appearance dimensions, the mechanical manufacturing industry standards, and the environmental protection standards. Your satisfaction is the purpose of our service!

Q: Are you trading company or manufacture?

A: We are manufacture. Welcome to our factory.

Q: What about your lead time?

A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.

Q: Can you provide samples? Are they free?

A: Yes. Usually we can provide 2-3 samples of standard products free for testing.

Q: Can I put my own logo on it?

A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
