담당자 : Nicole Zhuo
전화 번호 : +86 18925835585
WhatsApp : +8618925835585
| 최소 주문 수량 : | 협상 | 가격 : | Please contact us to get the latest price. |
|---|---|---|---|
| 포장 세부 사항 : | 판지에 있는 550Tray | 배달 시간 : | 10 일 |
| 지불 조건 : | T/T, D/P, D/A, L/C, Western Union, MoneyGram | 공급 능력 : | 100K PCS/DAY |
| 원래 장소: | 중국의 동복 | 브랜드 이름: | DGKYD |
|---|---|---|---|
| 인증: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | 모델 번호: | DGKYD211Q639DF5A7CBS1057 |
|
상세 정보 |
|||
| 제품 유형: | RJ45 | 캡슐화 방법: | 표면 장착 장치 |
|---|---|---|---|
| PCB 마운트 스타일: | SMD | 모양: | 구형 |
| 방패: | 놋쇠 | 핀 수 12개: | 10 |
| 코어 수: | 8 | 치수 (mm): | 15.5*21.5*11.35 |
| 콘택트 핀에 금도 도금: | 6U | 작동 온도: | -40 ℃ ~ 85 ℃ |
| 저장 온도: | -40 ℃ ~ 85 ℃ | ||
| 강조하다: | 10G Ethernet RJ45 connector,SMT surface mount RJ45 socket,RJ45 female socket with transformer |
||
제품 설명

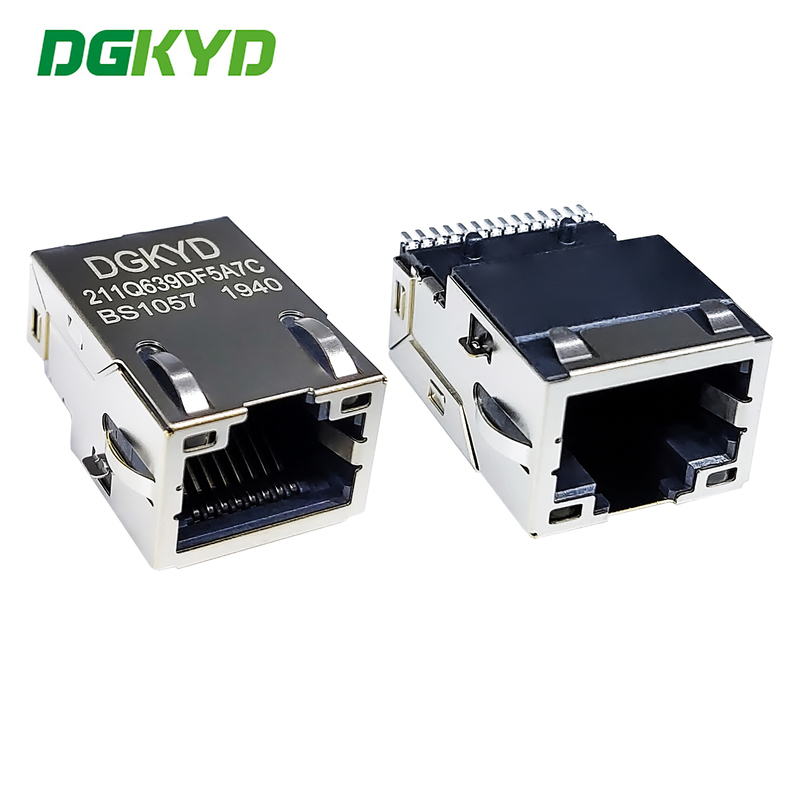

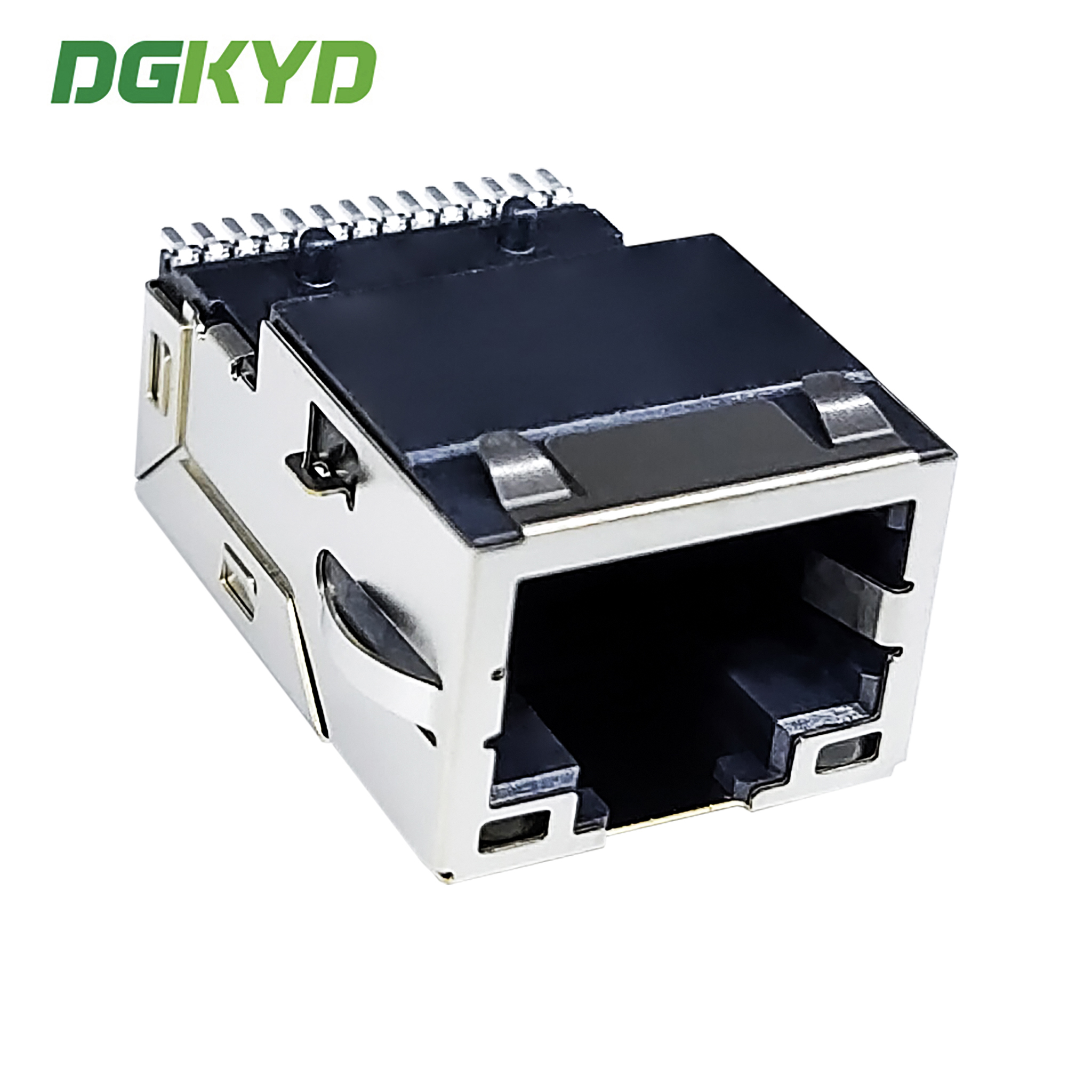

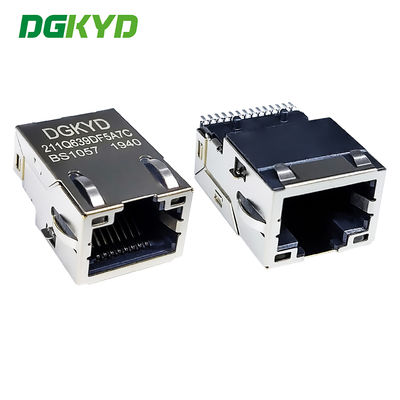

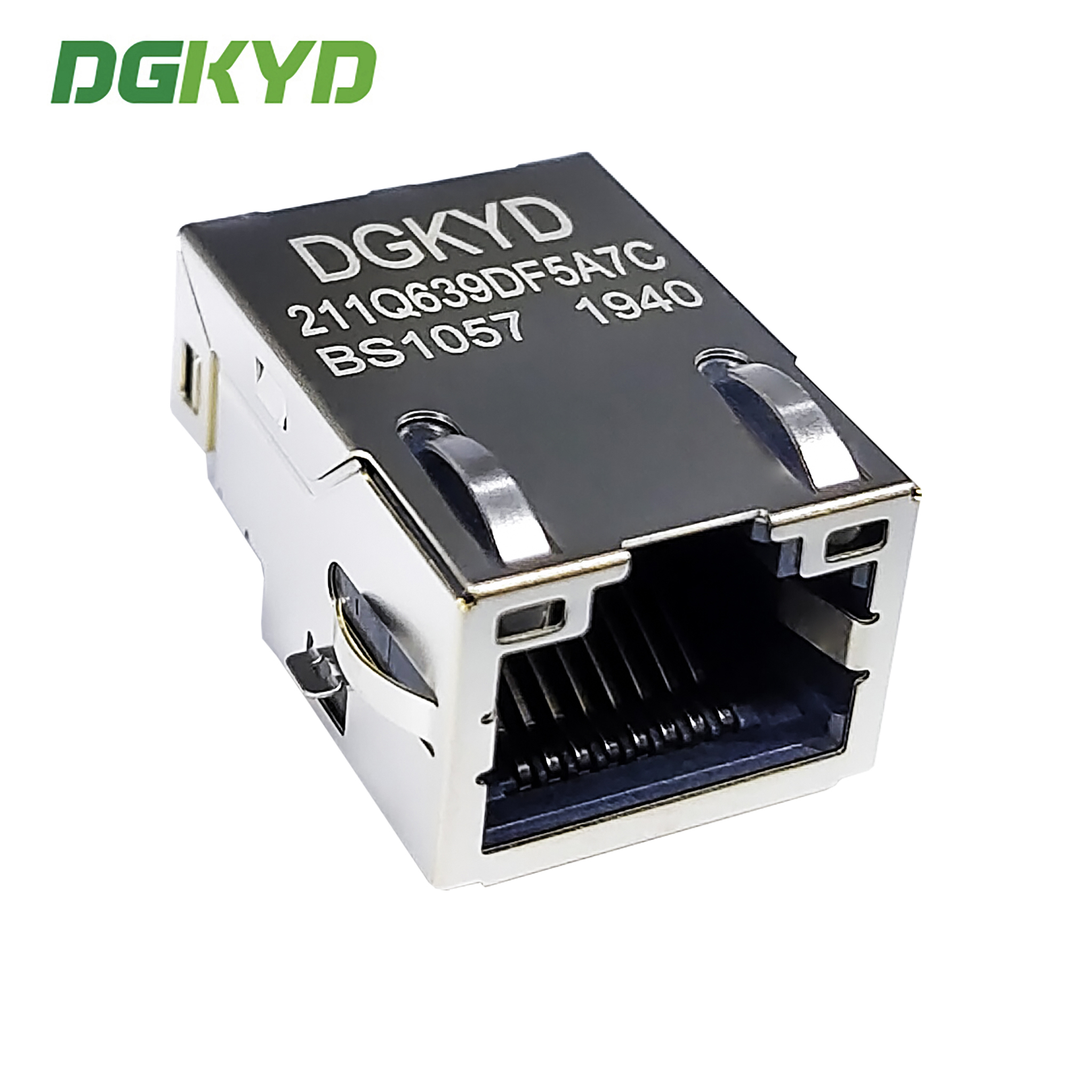

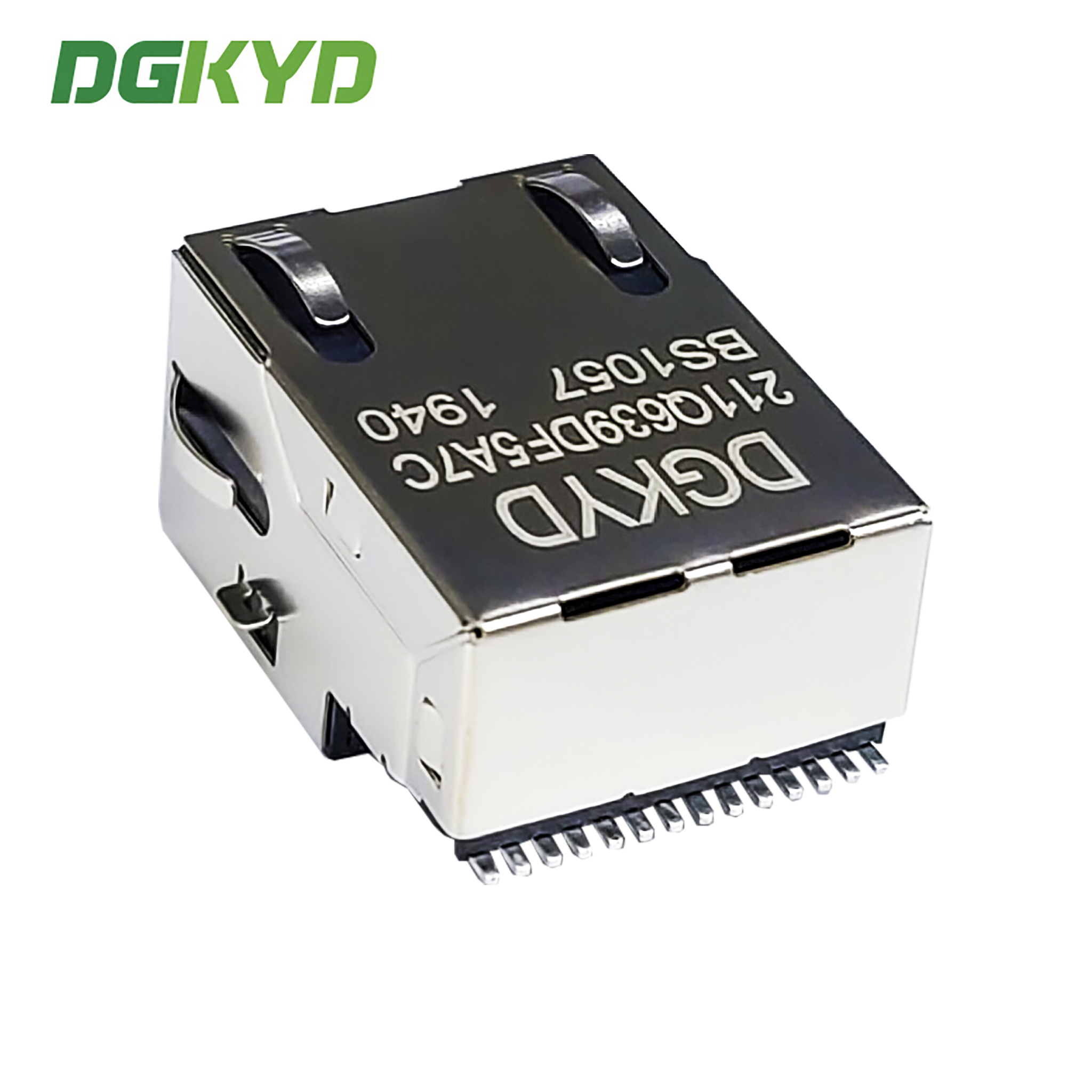

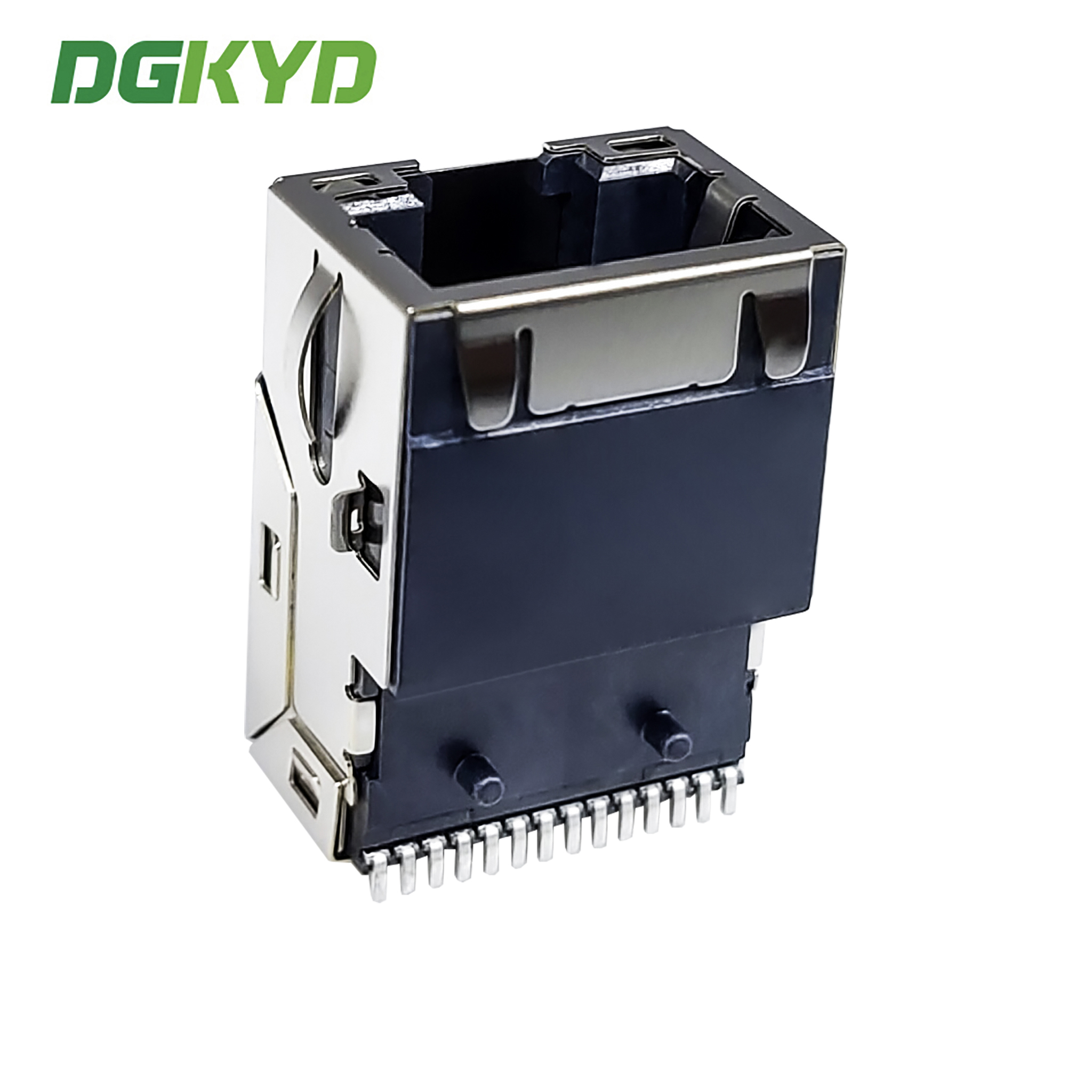

RJ45 connector 10G Ethernet filter SMT sinking board surface mount Ethernet port socket RJ45 female socket DGKYD211Q639DF5A7CBS1057
DGKYD211Q639DF5A7CBS1057(10G).pdf
| Part Number | DGKYD211Q639DF5A7CBS1057 | Brand | DGKYD/OEM/ODM |
|---|---|---|---|
| Product Type | Connector-Modular | Connector Style | Jack |
| Jack Type | RJ45 | Connector Type | Modular Jack |
| Latch Style | Standard | Latch | TAB-UP |
| Filter | With Filter | LED Option | With LED |
| LED Color | Green/Orange-Yellow | Panel Stops | With Panel Stops |
| Shielded | With metal shield | Applies To | Printedout Circuit Board |
| Port Configuration | Single Ports | Number of Positions | 10 |
| Jack Configuration | 1X1 | Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel | PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating | Gold 6u | Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel | PCB Mounting Style | Through Hole |
| Termination Method to PC Board | Through Hole-Press-Fit | Board Lock | With/Without Board Lock |
| Housing Material | LCP Polyester | Housing Color | Black |
| Housing Material Temperature | Standard | UL Flammability Rating | UL 94V-0 |
RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply
A: We are manufacture. Welcome to our factory.
A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.
A: Yes. Usually we can provide 2-3 samples of standard products free for testing.
A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
