RJ45 sinking board 100Mbps integrated filter with light strip shielding DGKYD1311B257CF5W4CBD057

지금 연락

RJ45 sinking board 100Mbps integrated filter with light strip shielding DGKYD1311B257CF5W4CBD057

최소 주문 수량 :	1개	가격 :	Please contact us to get the latest price.
포장 세부 사항 :	상자의 트레이	배달 시간 :	10일
지불 조건 :	T/T,D/P,D/A,L/C,웨스턴 유니온,MoneyGram	공급 능력 :	100,000개/일

원래 장소:	중국의 동복	브랜드 이름:	DGKYD
인증:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	모델 번호:	DGKYD1311B257CF5W4CBD057
문서:	DGKYD1311B257CF5W4CBD057.pdf

상세 정보
제품명:	극 저조도 RJ45 연결기	성능:	100BASE-tx
주도의:	그린 오렌지 / 노랑색	포트:	단일 포트
마운트 스타일:	담그다	방패:	포스 포어 구리 니켈 도금
OEM/ODM:	예	위치/연락처 수:	8p10c (RJ45, 이더넷)
콘택트 핀에 금도 도금:	6U	보관 온도:	-40°C~+85°C
작동 온도:	-40°C~+85°C
강조하다:	RJ45 sinking board with light strip , 100Mbps RJ45 integrated filter , RJ45 with transformer shielding

제품 설명

RJ45 Sinking Board 100Mbps Integrated Filter with Light Strip Shielding

Part Number: DGKYD1311B257CF5W4CBD057

Product Documentation

Download Product Specification Document (PDF)

Technical Specifications

Part Number	DGKYD1311B257CF5W4CBD057
Brand	DGKYD/OEM/ODM
Product Type	Connector-Modular
Connector Style	Jack
Jack Type	RJ45
Connector Type	Modular Jack
Latch Style	Standard
Latch	TAB-UP
Filter	With Filter
LED Option	With LED
LED Color	Green-Orange/Yellow
Panel Stops	With Panel Stops
Shielded	With metal shield
Applies To	Printed Circuit Board
Port Configuration	Single Ports
Number of Positions	10
Jack Configuration	1X1
Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel
PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating	Gold 6u
Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel
PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit
Board Lock	With/Without Board Lock
Housing Material	LCP Polyester
Housing Color	Black
Housing Material Temperature	Standard
UL Flammability Rating	UL 94V-0

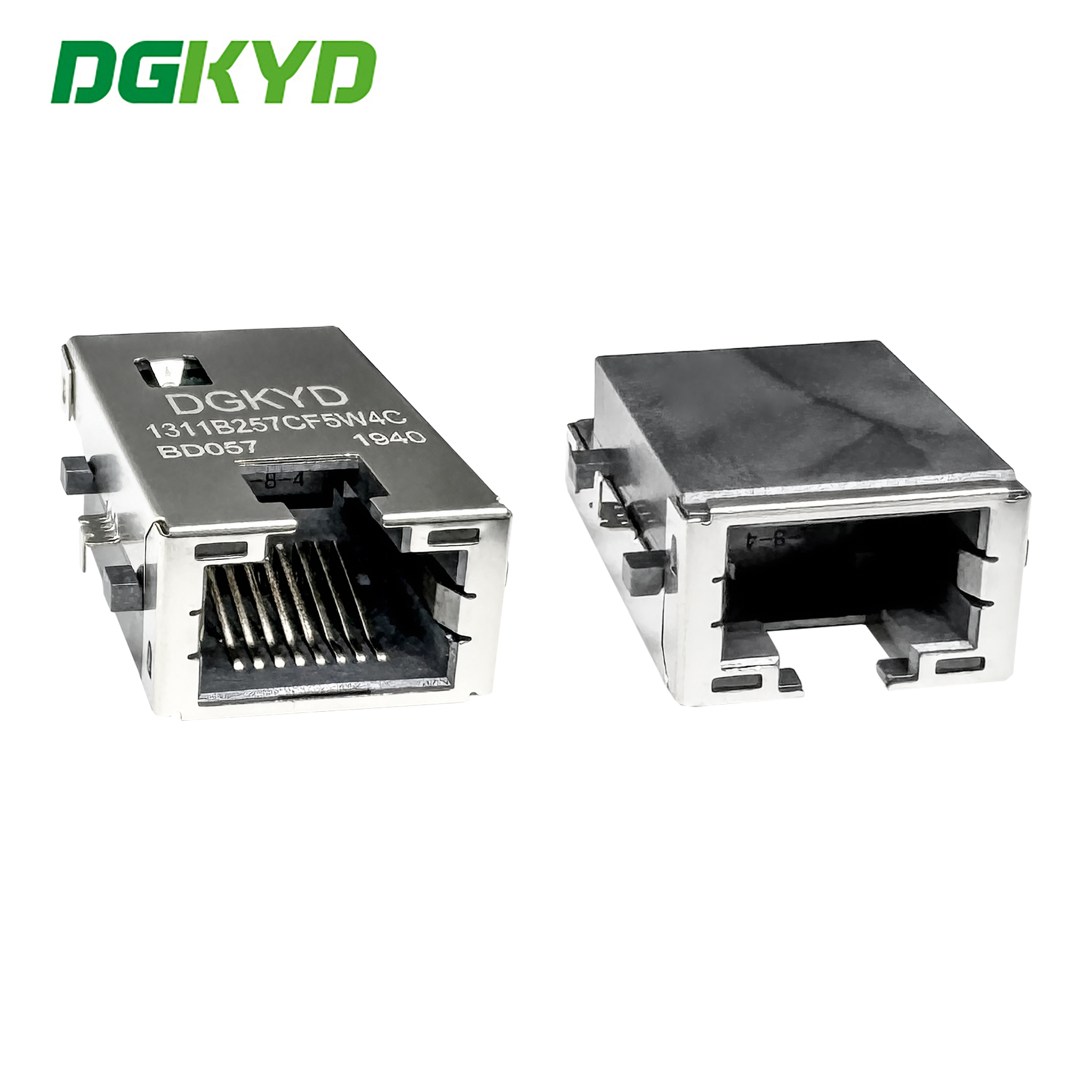

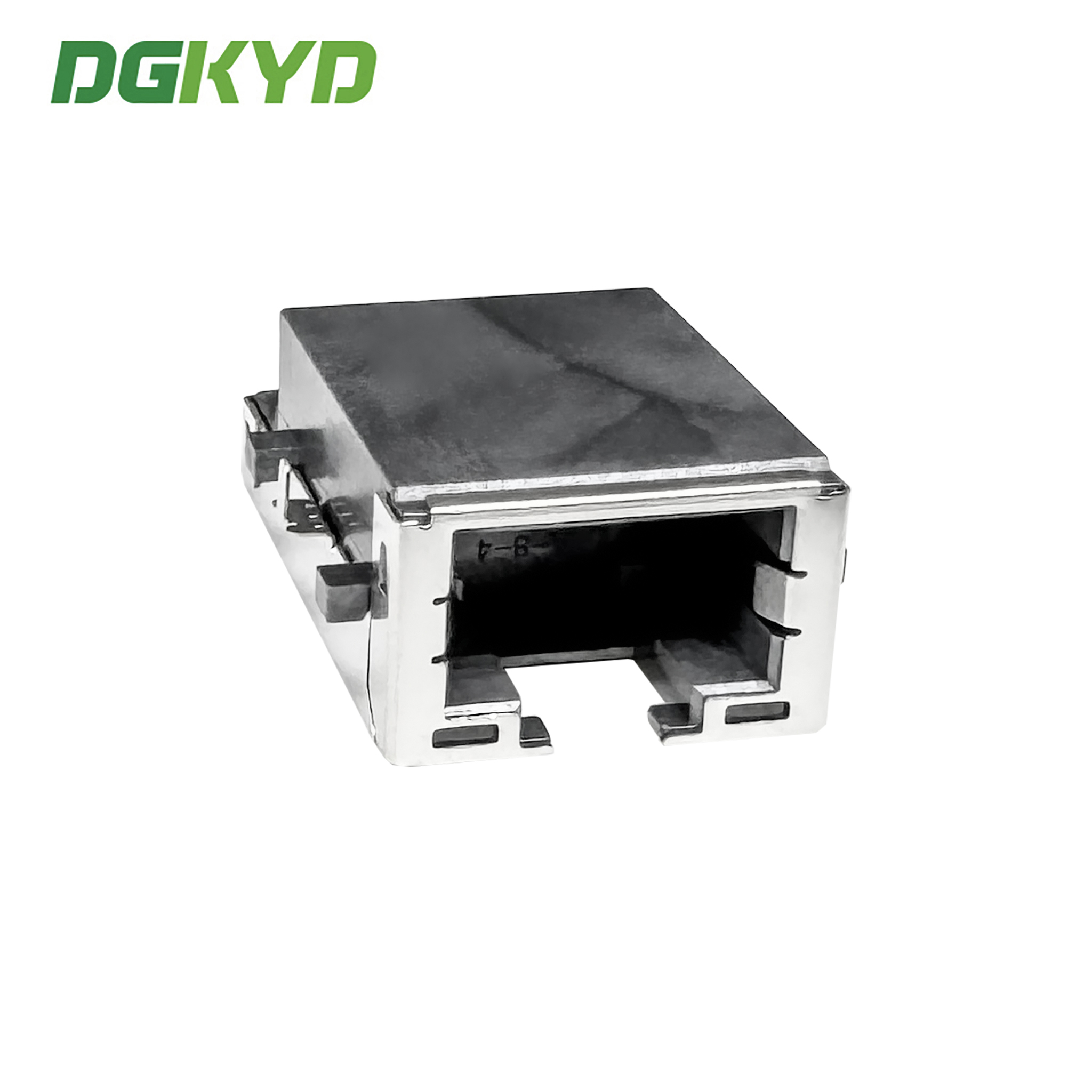

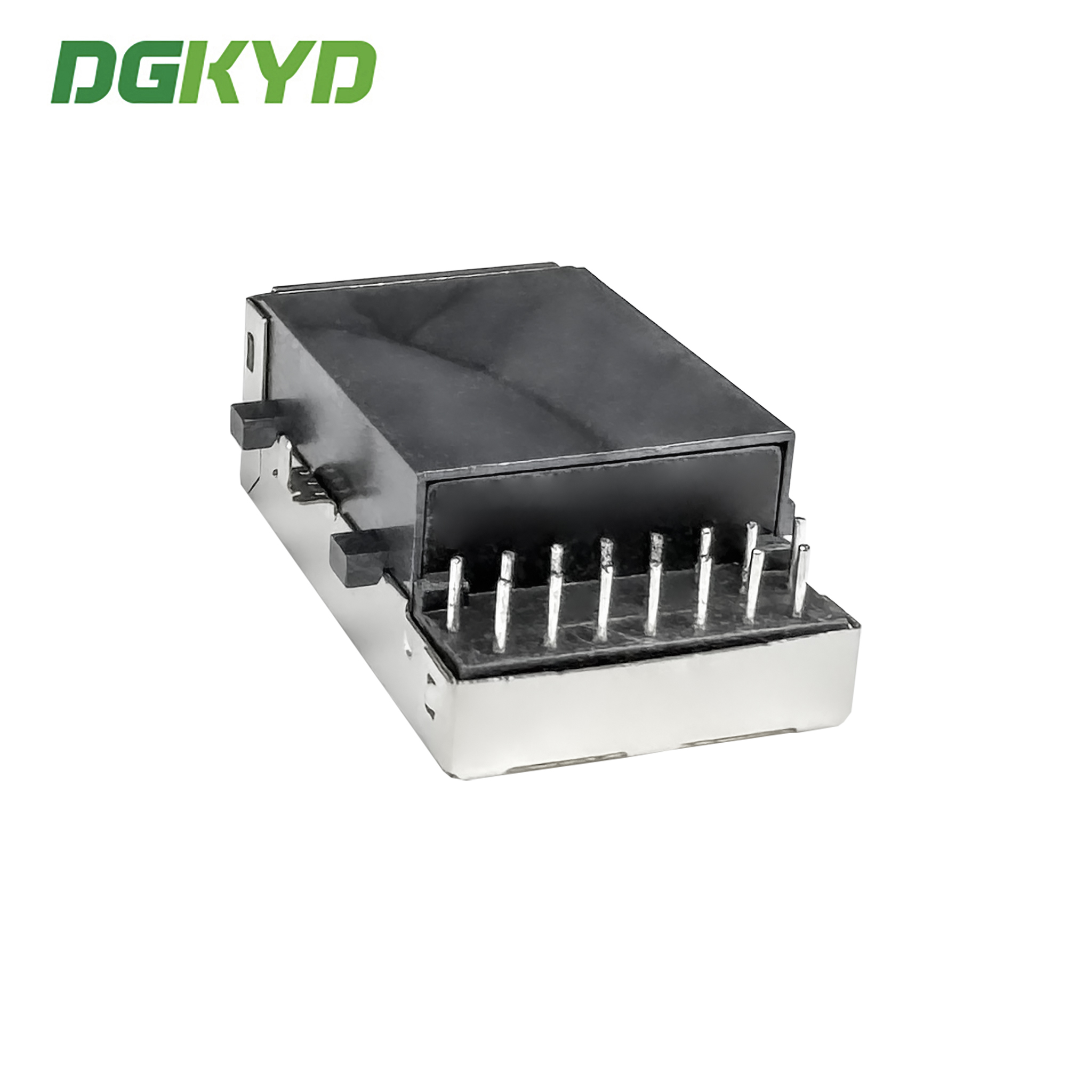

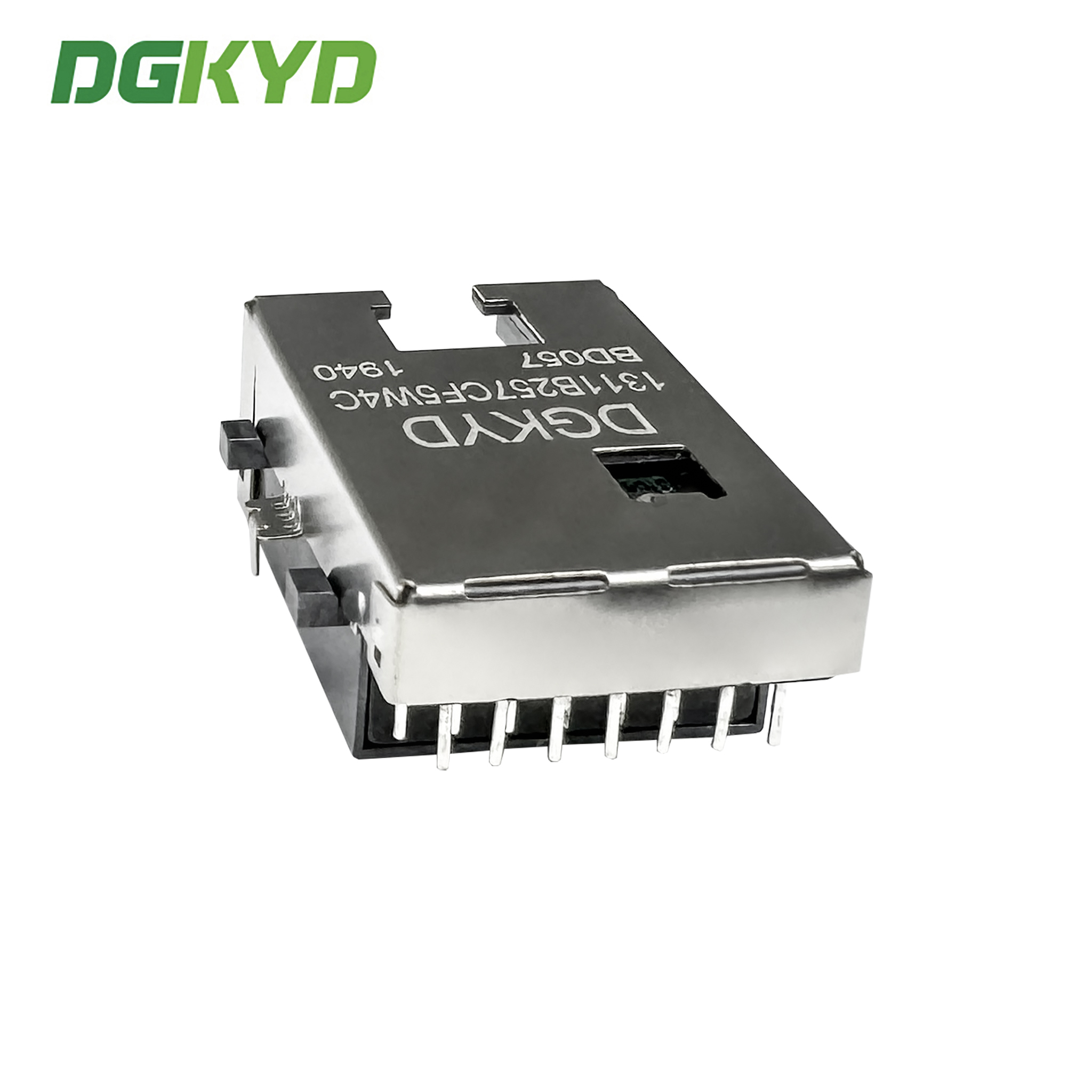

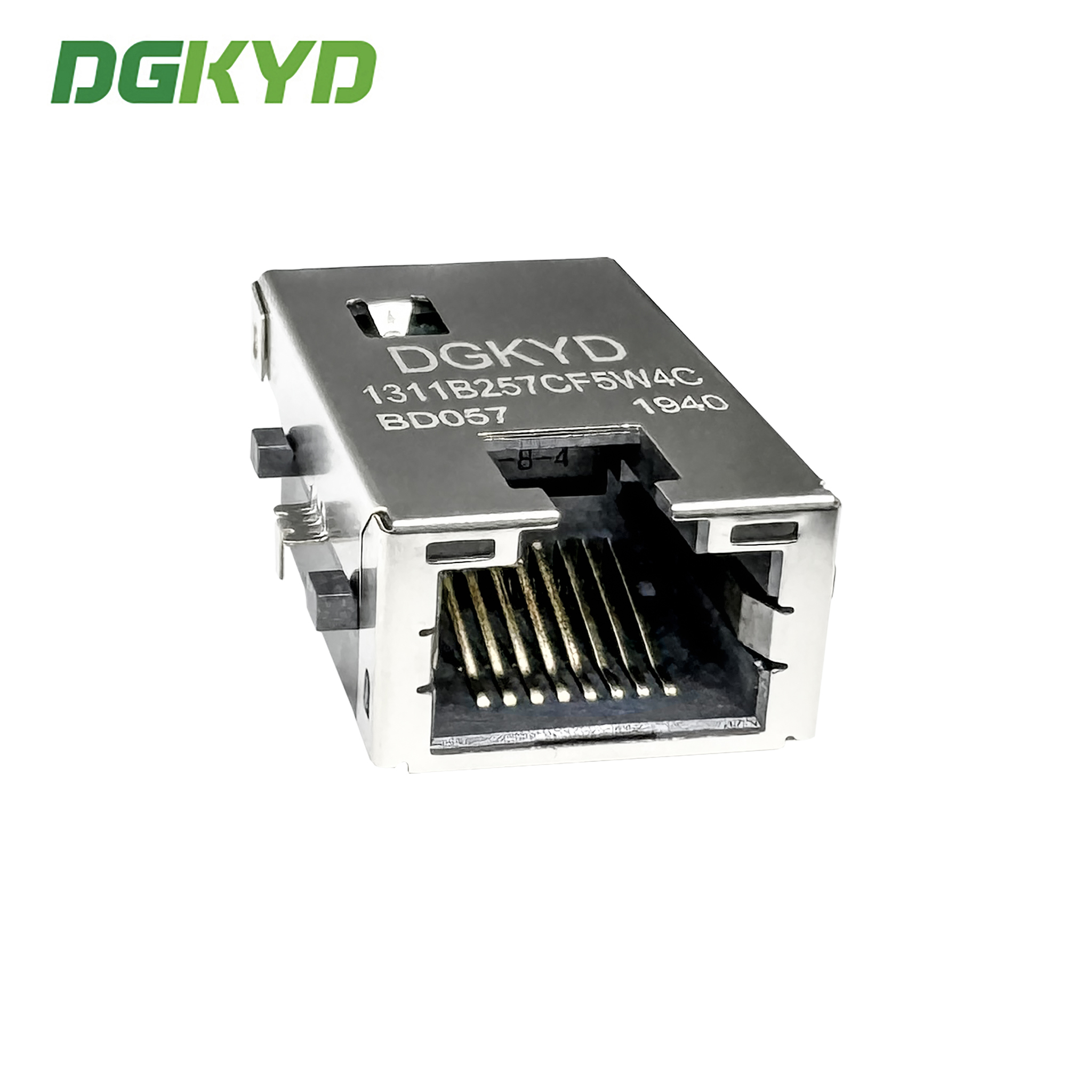

Product Images

Product Features

Interface type: RJ45 connector for 10/100/1000BASE-T Ethernet applications
Built-in magnetics for signal integrity
High-frequency filtering and anti-interference capabilities
Operating temperature: -40°C to 85°C
Storage temperature: -40°C to 85°C
Lead-free soldering compatible with wave soldering up to 265°C

Manufacturing Capabilities

Direct manufacturer supply of RJ45 integrated circuit accessories
Reliable delivery within approximately two weeks
Customizable options including LED indicator colors (green, yellow, red, orange, blue, bi-color)
EMI shielding options available
Multiple magnetic core coil ratios
Various contact gold plating thicknesses (FU, 3U, 6U, 15U, 30U, 50U)
Multiple housing material options (PBT, PA46, PA9T, LCP)
Products meet industry standards for electrical, mechanical, and environmental performance

Frequently Asked Questions

Q: Are you a trading company or manufacturer?

A: We are a manufacturer. Welcome to visit our factory.

Q: What about your lead time?

A: For products in stock, delivery within 5-7 working days after payment. For customized and out-of-stock products, delivery time depends on order quantity.

Q: Can you provide samples? Are they free?

A: Yes. We typically provide 2-3 samples of standard products free for testing.

Q: Can I put my own logo on it?

A: Yes. With 11 years of OEM experience, we are fully capable of customizing products to your specifications.
