| 최소 주문 수량 : | 1개 조각 | 가격 : | Please contact us to get the latest price. |
|---|---|---|---|
| 포장 세부 사항 : | 상자의 트레이 | 배달 시간 : | 10일 |
| 지불 조건 : | T/T, D/P, D/A, L/C, Western Union, MoneyGram | 공급 능력 : | 100K PCS/DAY |
| 원래 장소: | 중국의 동복 | 브랜드 이름: | DGKYD |
|---|---|---|---|
| 인증: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | 모델 번호: | DGKYD52T1188AB1A1D20B4 |
|
상세 정보 |
|||
| 범주: | 모듈러 잭 | 구성 요소 유형: | PCB 잭 |
|---|---|---|---|
| 유형: | RJ45 | 자기: | 없음 |
| 성능 카테고리: | 고양이 3시 5분 | 인세션 타입: | 측면 엔트리 |
| 방식을 탑재하세요: | 담그다 | OEM/ODM: | 예 |
| 위치/연락처 수: | 8P8c (RJ45, 이더넷) | 콘택트 핀에 금도 도금: | 6U |
| 보관 온도: | -40 ° C ~+85 ° C | 작동 온도: | -40 ° C ~+85 ° C |
| 강조하다: | RJ45 vertical network socket with light strip,8P8C shielded RJ45 socket gold plating,6U RJ45 socket without transformer |
||
제품 설명

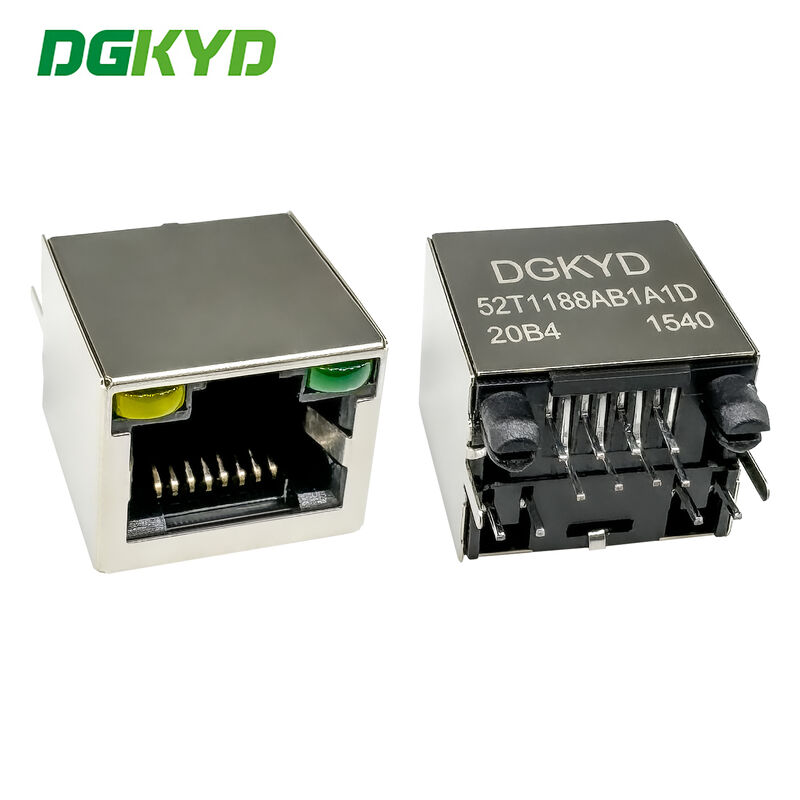

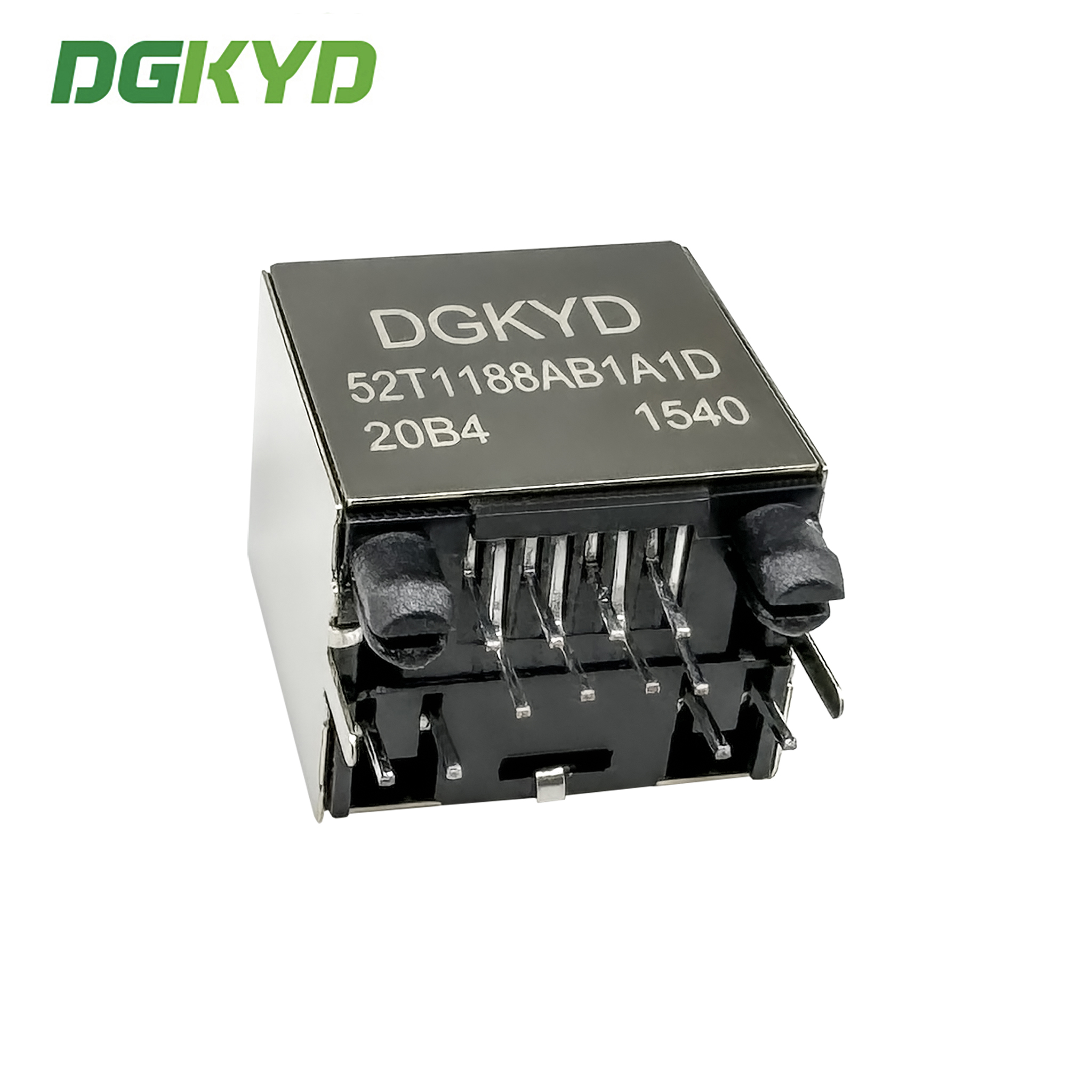

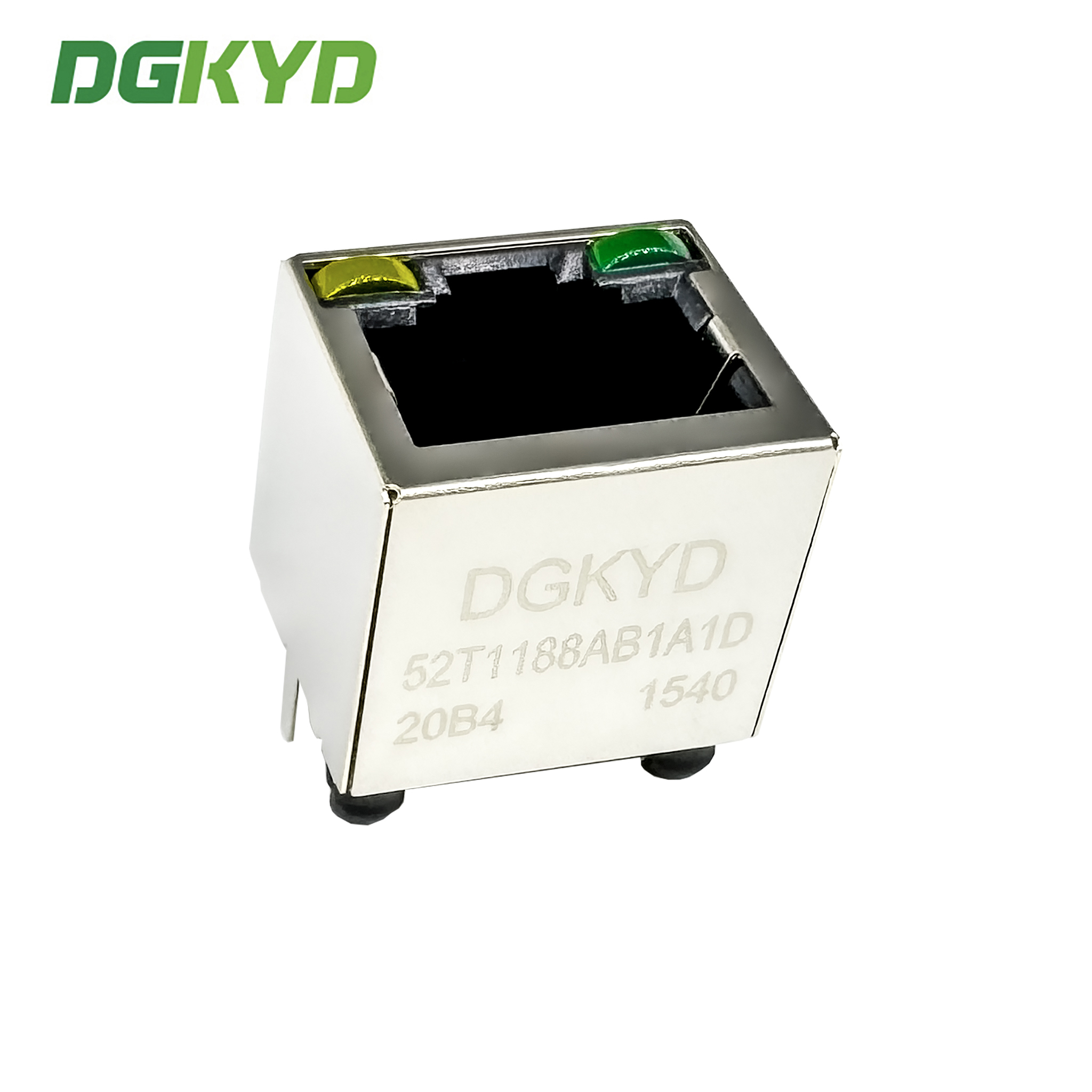

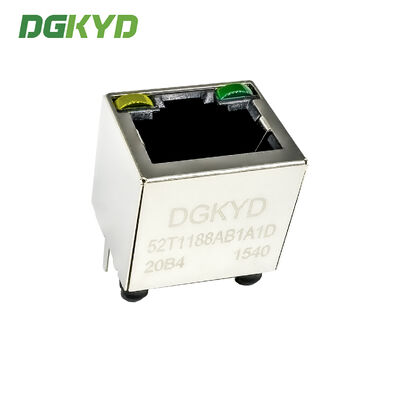

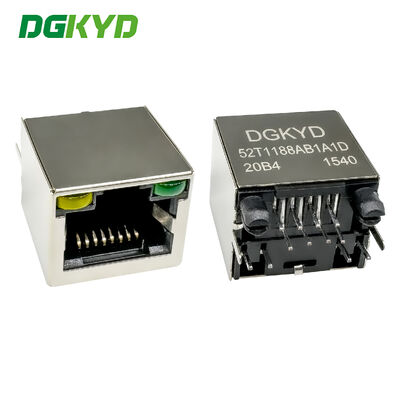

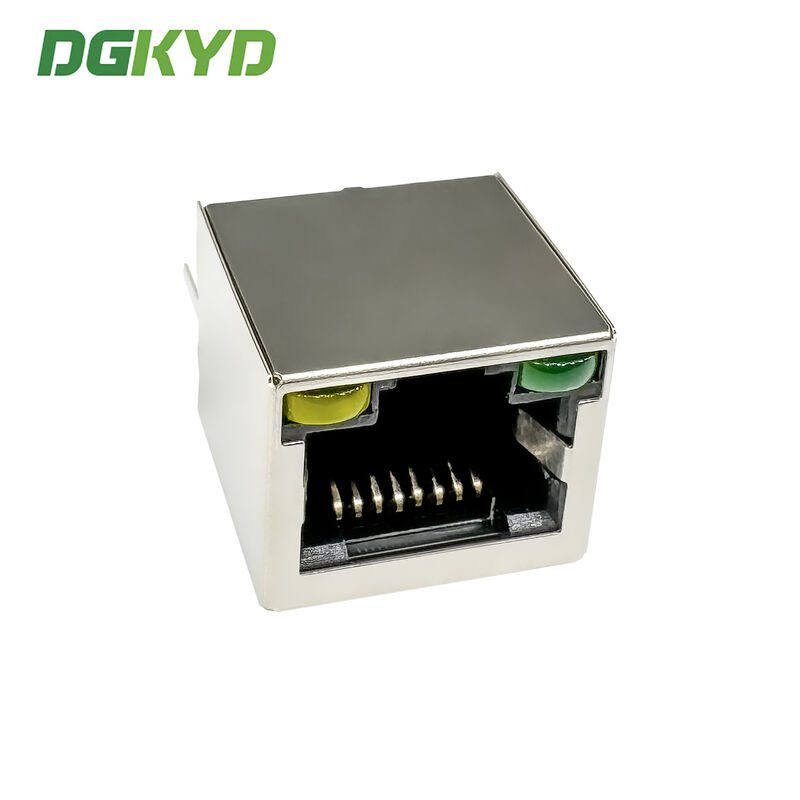

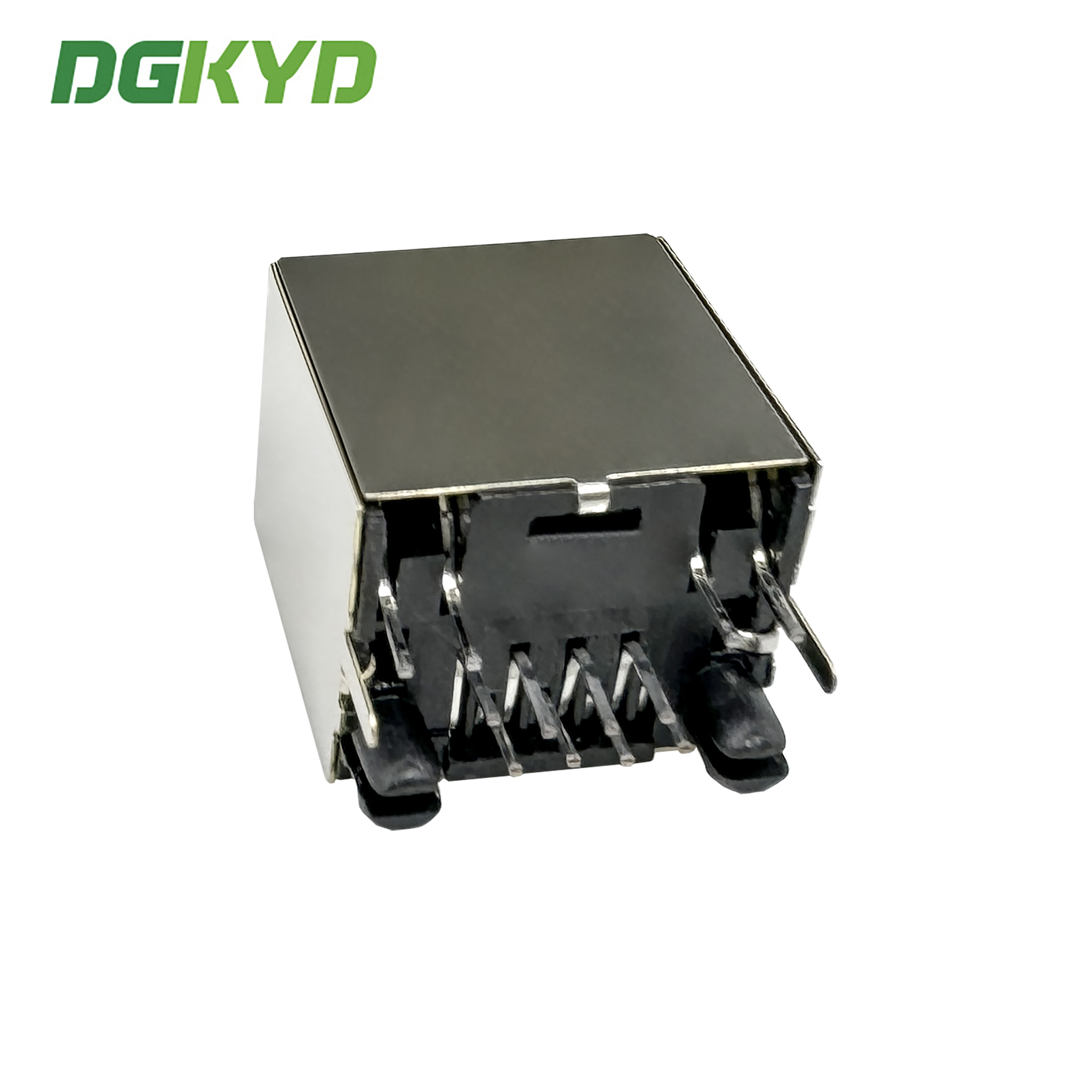

RJ45 vertical network socket 8P8C with light strip shielding gold plating 6U DGKYD52T1188AB1A1D20B4
Product Specification Document| Part Number | DGKYD52T1188AB1A1D20B4 |
| Brand | DGKYD/OEM/ODM |
| Product Type | Connector-Modular |
| Connector Style | Jack |
| Jack Type | RJ45 |
| Connector Type | Modular Jack |
| Latch Style | Standard |
| Latch | TAB-UP |
| Filter | Without Filter |
| LED Option | With LED |
| LED Color | Yellow/Green |
| Panel Stops | With Panel Stops |
| Shielded | With metal shield |
| Applies To | Printed Circuit Board |
| Port Configuration | Single Ports |
| Number of Positions | 8 |
| Jack Configuration | 1X1 |
| Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel |
| PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating | Gold 6u |
| Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel |
| PCB Mounting Style | Through Hole |
| Termination Method to PC Board | Through Hole-Press-Fit |
| Board Lock | With/Without Board Lock |
| Housing Material | PBT Polyester |
| Housing Color | Black |
| Housing Material Temperature | Standard |
| UL Flammability Rating | UL 94V-0 |
RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply
The electrical properties of the products meet the industry standards, the appearance and mechanical properties meet the appearance dimensions, the mechanical manufacturing industry standards, and the environmental protection standards. Your satisfaction is the purpose of our service!
