| 최소 주문 수량 : | 1개 조각 | 가격 : | Please contact us to get the latest price. |
|---|---|---|---|
| 포장 세부 사항 : | 상자의 트레이 | 배달 시간 : | 10일 |
| 지불 조건 : | T/T, D/P, D/A, L/C, Western Union, MoneyGram | 공급 능력 : | 100,000개/일 |
| 원래 장소: | 중국의 동복 | 브랜드 이름: | DGKYD |
|---|---|---|---|
| 인증: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | 모델 번호: | KRJ-109NL |
|
상세 정보 |
|||
| 애플리케이션: | PCB | 유형: | RJ45 |
|---|---|---|---|
| 성별: | 여성 | 하우징 재질: | PBT 검정색 |
| 메이팅 영역 도금과 연락하세요: | 골드 6u'' 도금 | LED 옵션: | 녹색 / 노랑색 |
| 걸쇠: | 탭 다운 | 포트 수: | 8 |
| 작동 온도: | -40 ℃ ~ 85 ℃ | 보관 온도: | -40 ° C ~+85 ° C |
| 콘택트 핀에 금도 도금: | 6U | 방패: | 놋쇠 |
| 강조하다: | RJ45 connector with transformer,industrial Ethernet switch socket,100Mbps network filter interface |
||
제품 설명
RJ45 Connector 100Mbps Filter Network Socket Industrial Ethernet Switch Interface KRJ-109NL
RJ45 connector 100Mbps filter network socket industrial Ethernet switch interface KRJ-109NL
Download Product Datasheet (PDF)
Technical Specifications
Specification
Details
Part Number
KRJ-109NL
Brand
DGKYD/OEM/ODM
Product Type
Connector-Modular
Connector Style
Jack
Jack Type
RJ45
Connector Type
Modular Jack
Latch Style
Standard
Latch
TAB-DOWN
Filter
With Filter
LED Option
With LED
LED Color
Green/Yellow
Panel Stops
With Panel Stops
Shielded
With metal shield
Applies To
Printed Circuit Board
Port Configuration
Single Ports
Number of Positions
8
Jack Configuration
1X1
Terminals per Port
8
Shield Material
Copper Alloy preplated with Nickel
PCB Mounting Orientation
Side Entry (Right Angle)
Contact Mating Area Plating
Gold 6u
Contact Base Material
Phosphor Bronze
Solder Tail Contact Plating Material
Tin-Lead over Nickel
PCB Mounting Style
Through Hole
Termination Method to PC Board
Through Hole-Press-Fit
Board Lock
With/Without Board Lock
Housing Material
PBT Polyester
Housing Color
Black
Housing Material Temperature
Standard
UL Flammability Rating
UL 94V-0

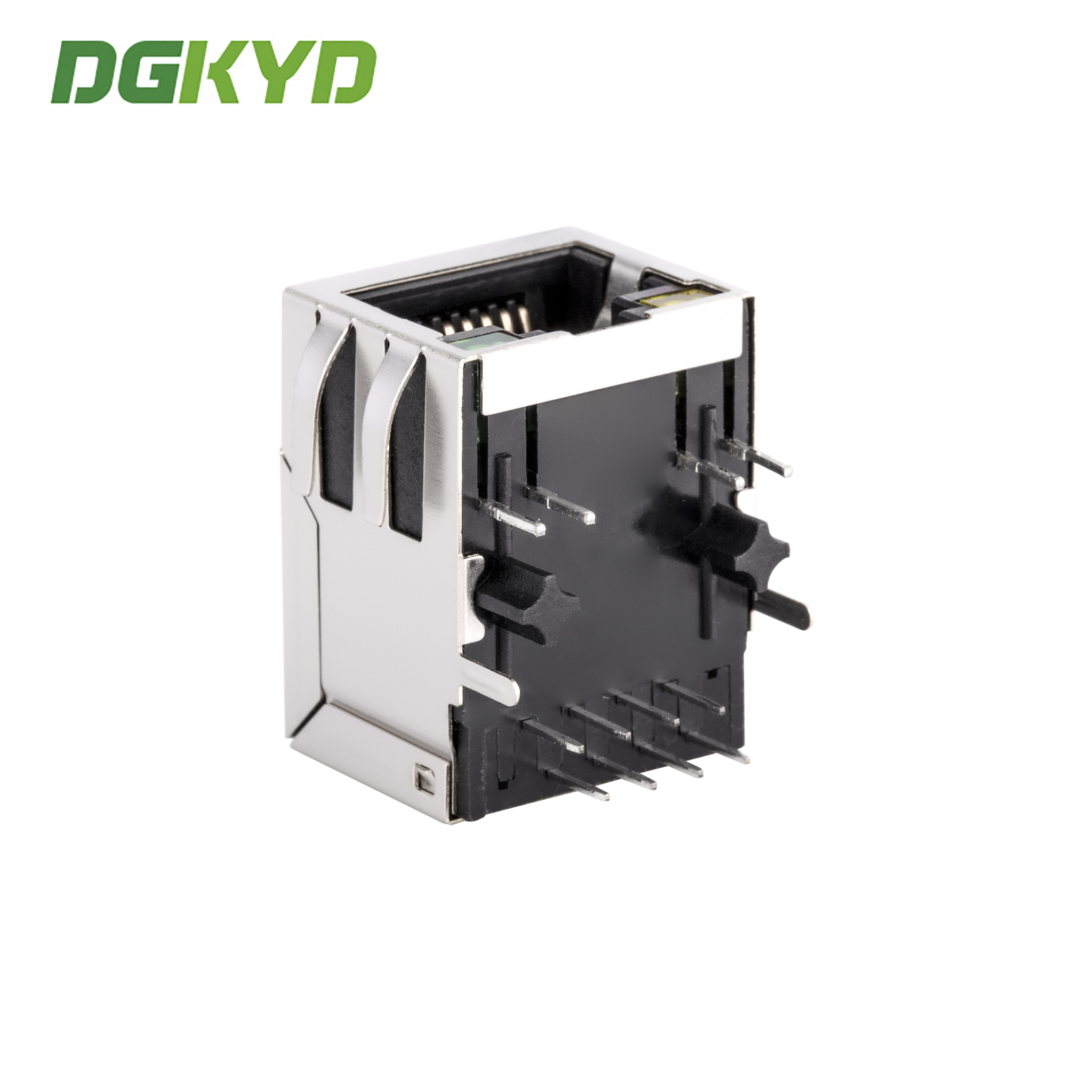

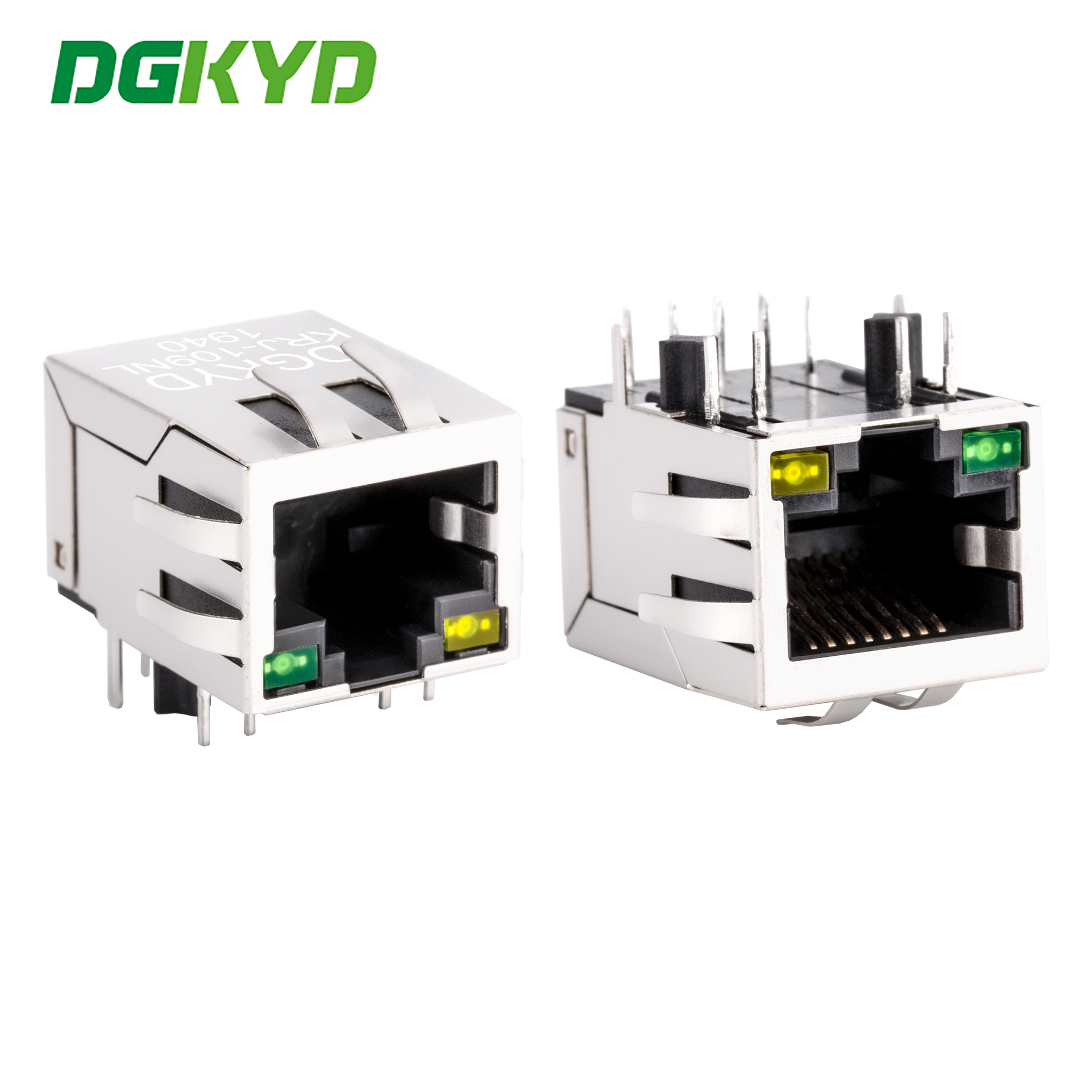

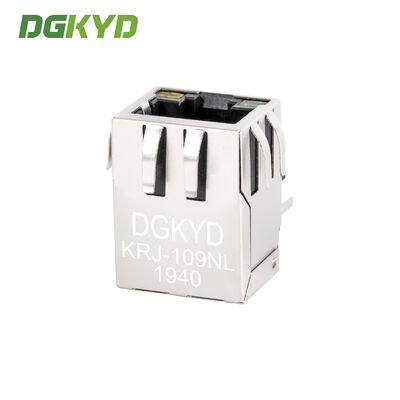

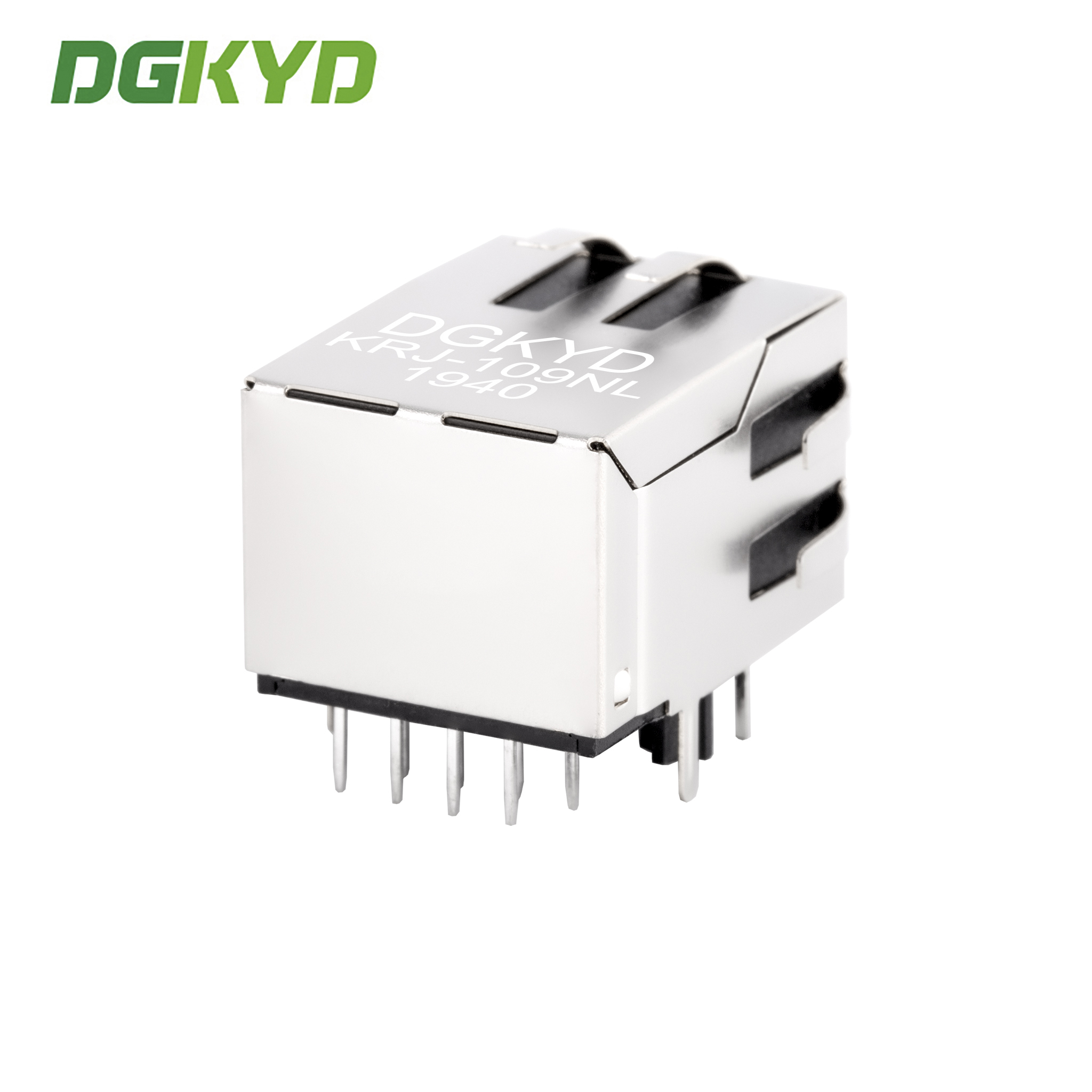

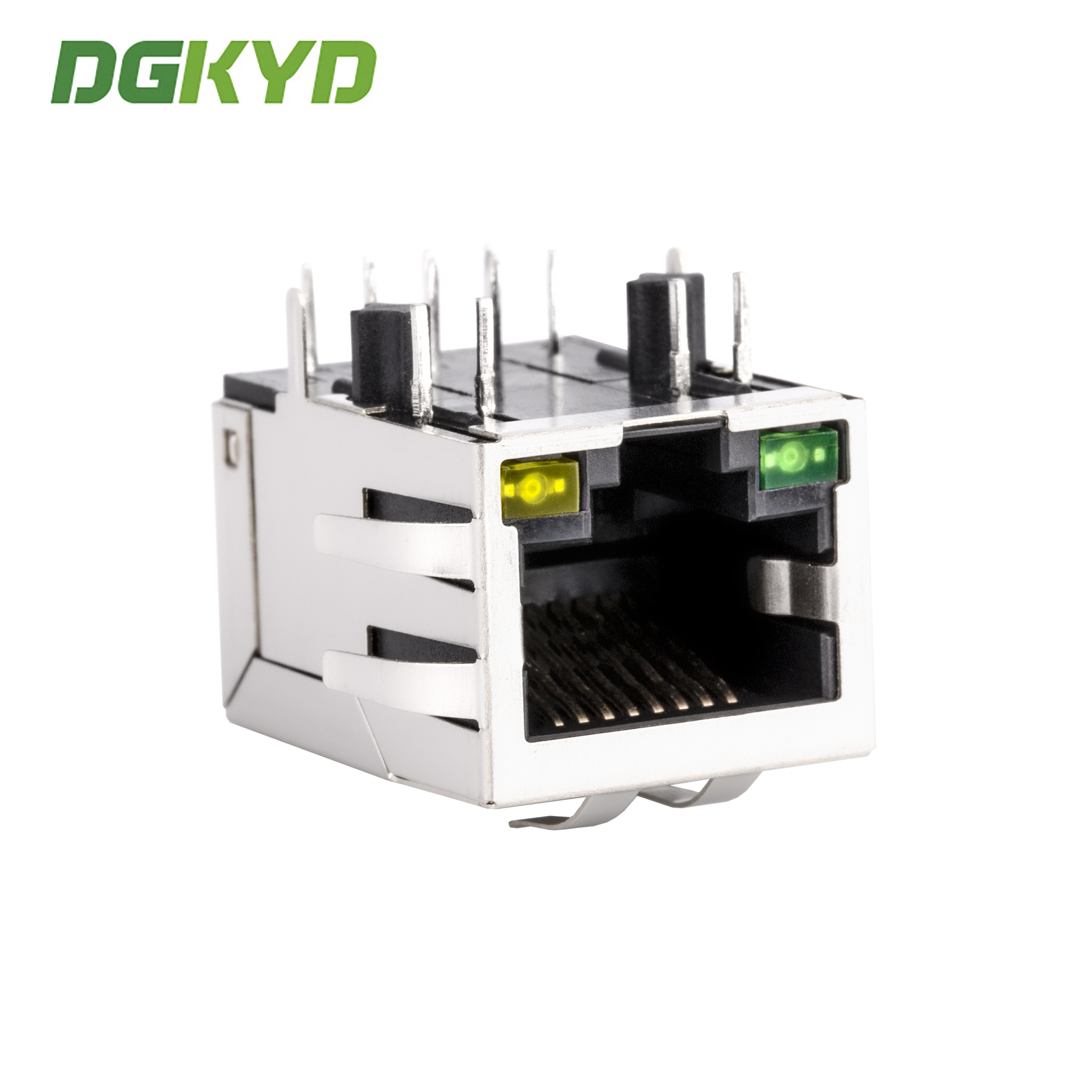

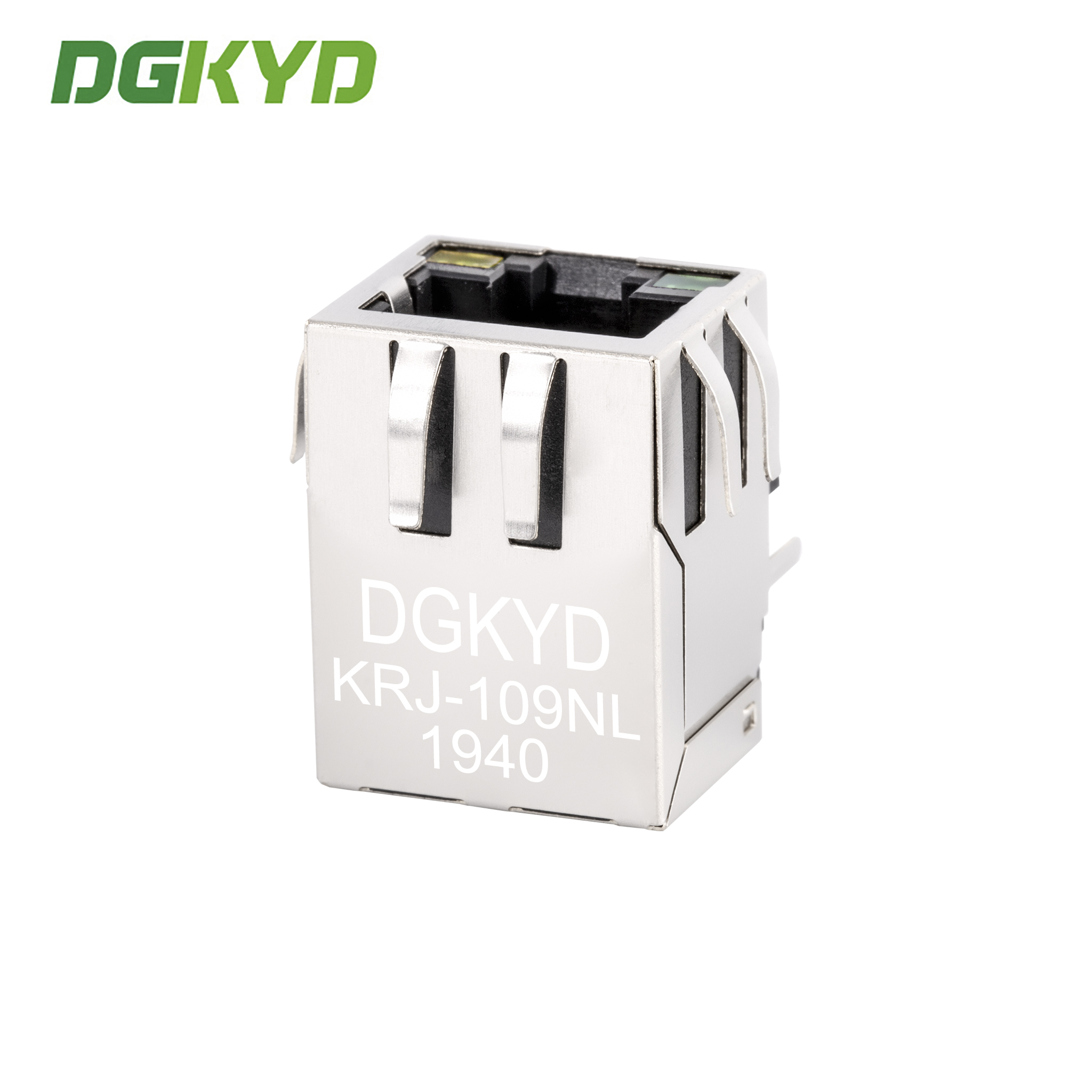

Product Images
Manufacturer Information
Product Features
The electrical properties of the products meet the industry standards, the appearance and mechanical properties meet the appearance dimensions, the mechanical manufacturing industry standards, and the environmental protection standards. Your satisfaction is the purpose of our service!
Frequently Asked Questions
Q: Are you trading company or manufacture?
A: We are manufacture. Welcome to our factory.
Q: What about your lead time?
A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.
Q: Can you provide samples? Are they free?
A: Yes. Usually we can provide 2-3 samples of standard products free for testing.
Q: Can I put my own logo on it?
A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
