| 최소 주문 수량 : | 1개 조각 | 가격 : | Please contact us to get the latest price. |
|---|---|---|---|
| 포장 세부 사항 : | 상자의 트레이 | 배달 시간 : | 10일 |
| 지불 조건 : | T/T, D/P, D/A, L/C, Western Union, MoneyGram | 공급 능력 : | 100,000개/일 |
| 원래 장소: | 중국의 동복 | 브랜드 이름: | DGKYD |
|---|---|---|---|
| 인증: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | 모델 번호: | DGKYD211B083CD2A4D |
|
상세 정보 |
|||
| 하우징 재질: | PBT 검정색 | 주도의: | 예 |
|---|---|---|---|
| RJ45 연결기 속도: | Cat 5 | RJ45 커넥터 하이 포트: | 1500Vrms |
| Rj45 연결기 ocl: | 350uh 분 | 탭 방향: | 탭 업 |
| 코어 수: | 8 | 치수(mm): | 15.95*21.35*13.6 |
| 콘택트 핀에 금도 도금: | 6U | 작동 온도: | -40 ° C ~+85 ° C |
| 보관 온도: | -40 ° C ~+85 ° C | ||
| 강조하다: | RJ45 Ethernet port with transformer,100Mbps shielded RJ45 connector,RJ45 connector with integrated transformer |
||
제품 설명

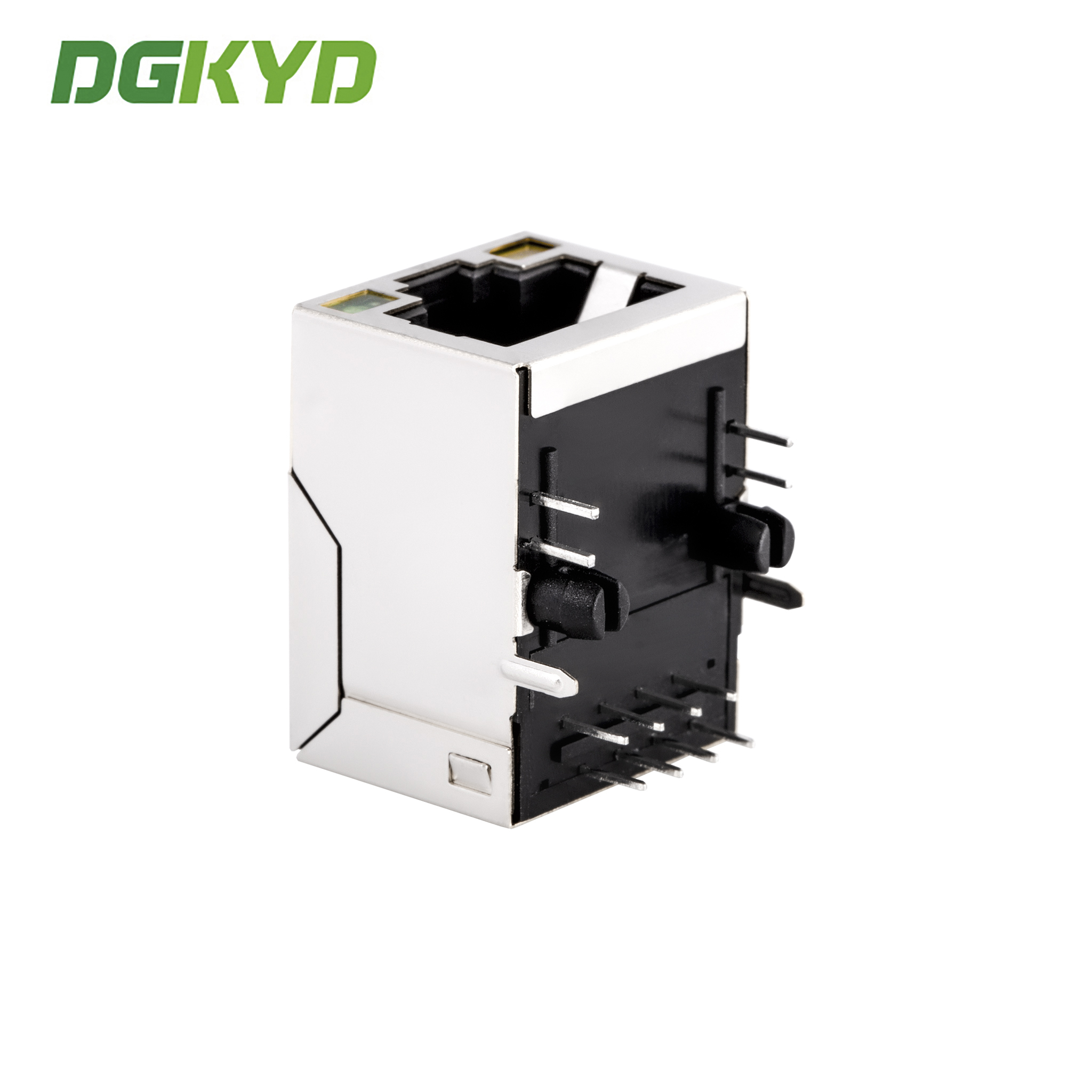

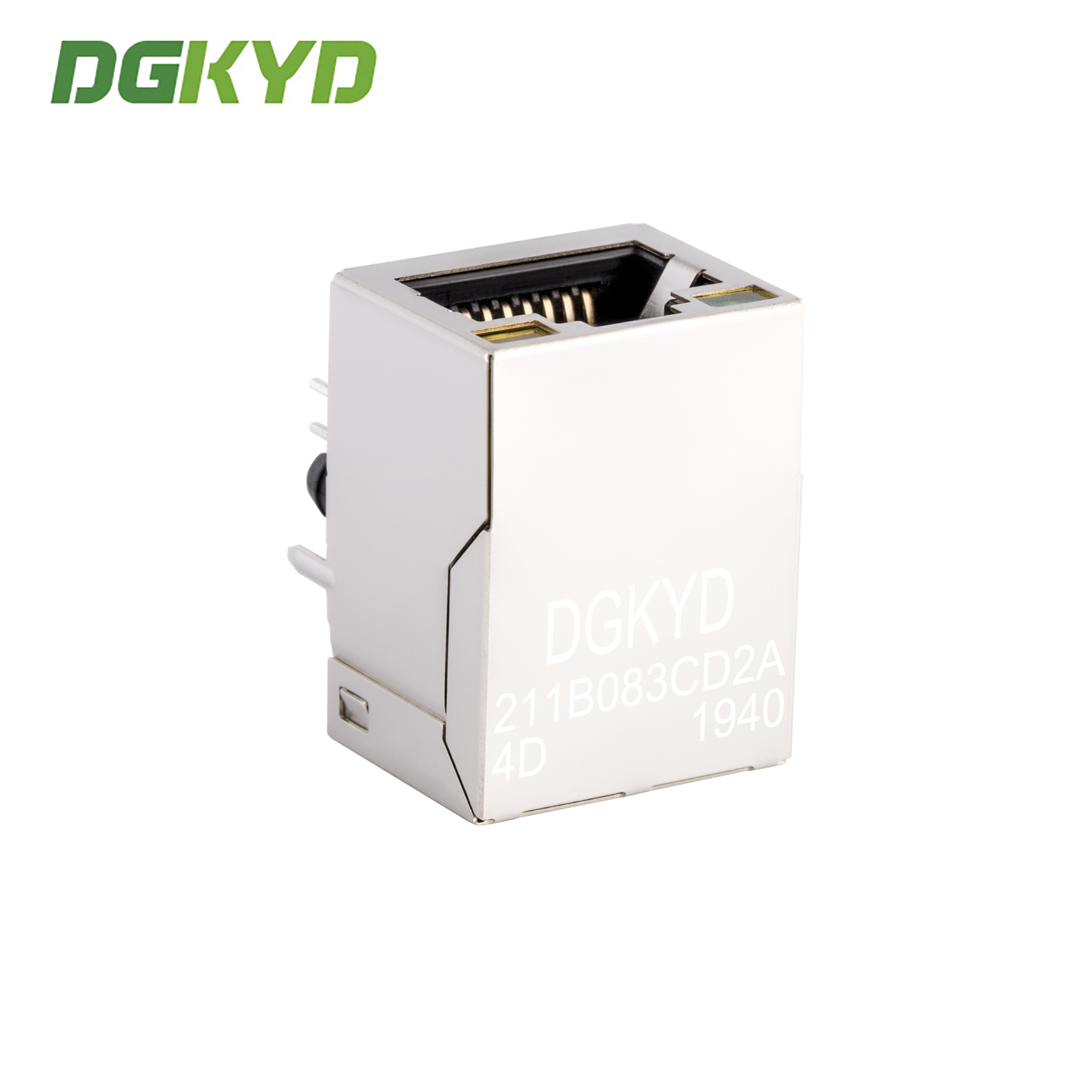

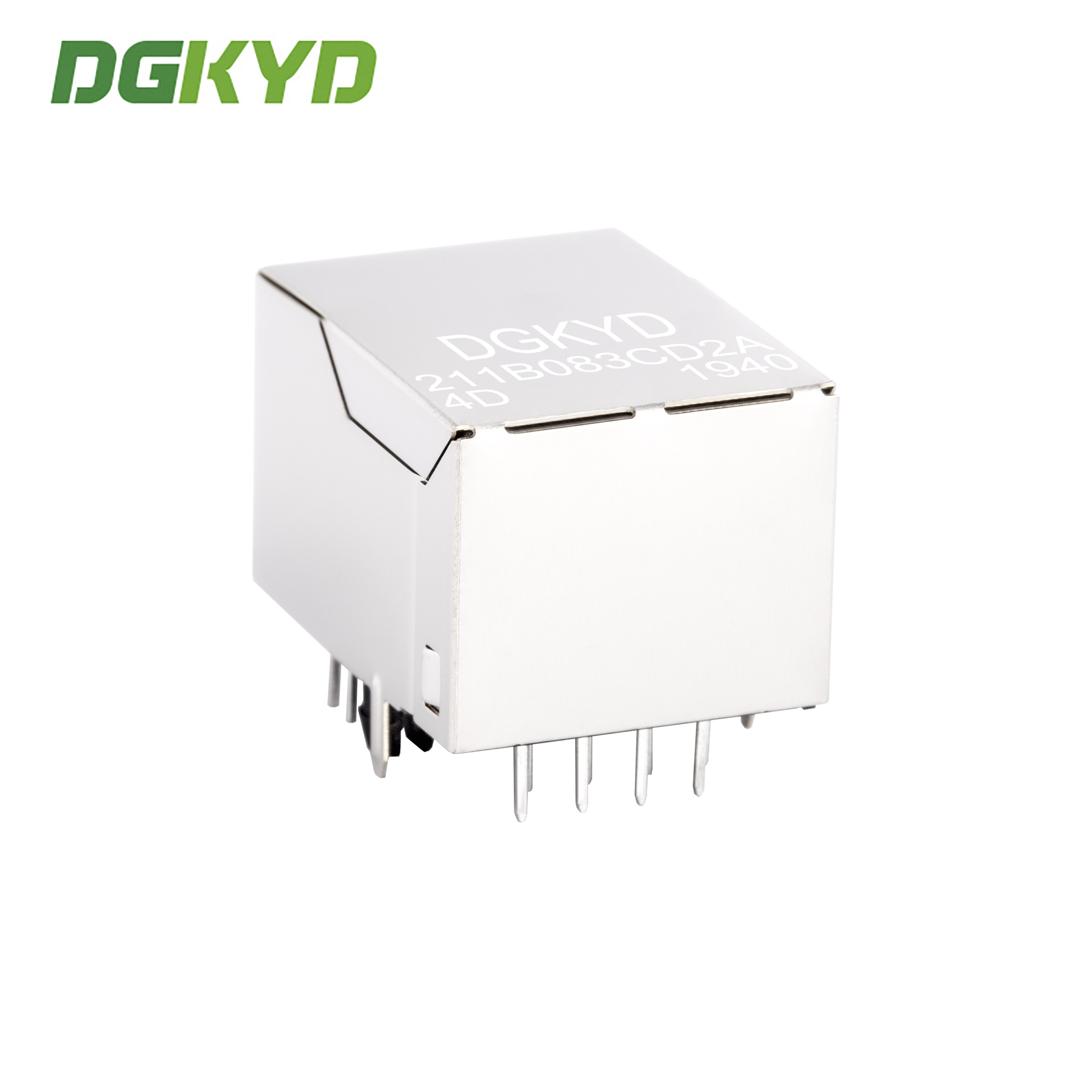

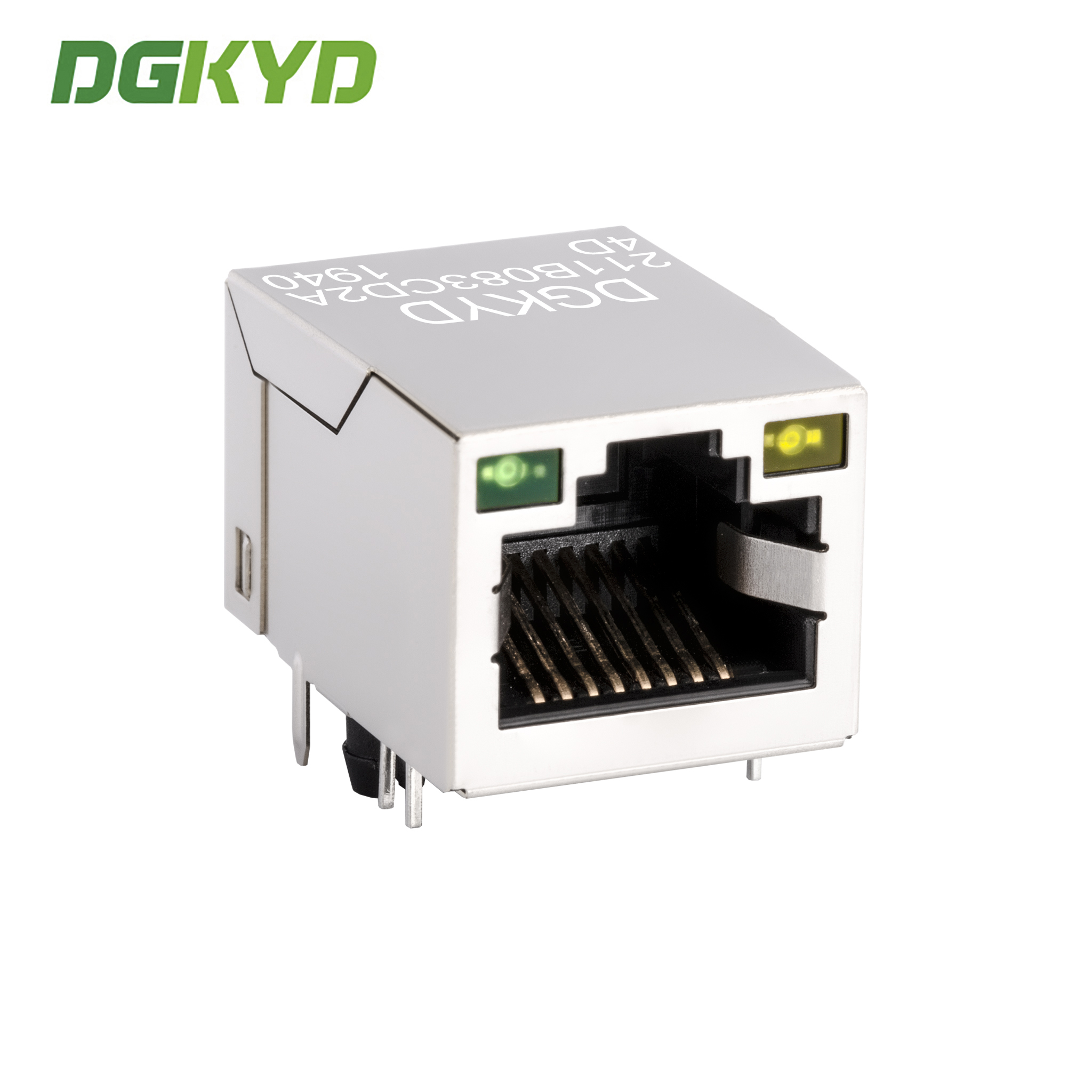

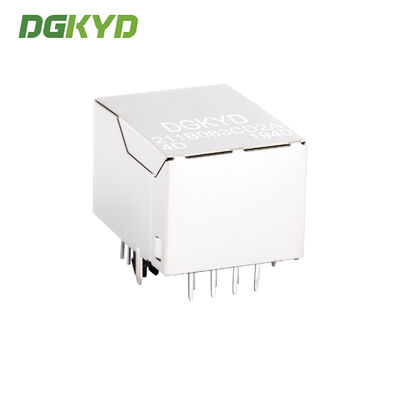

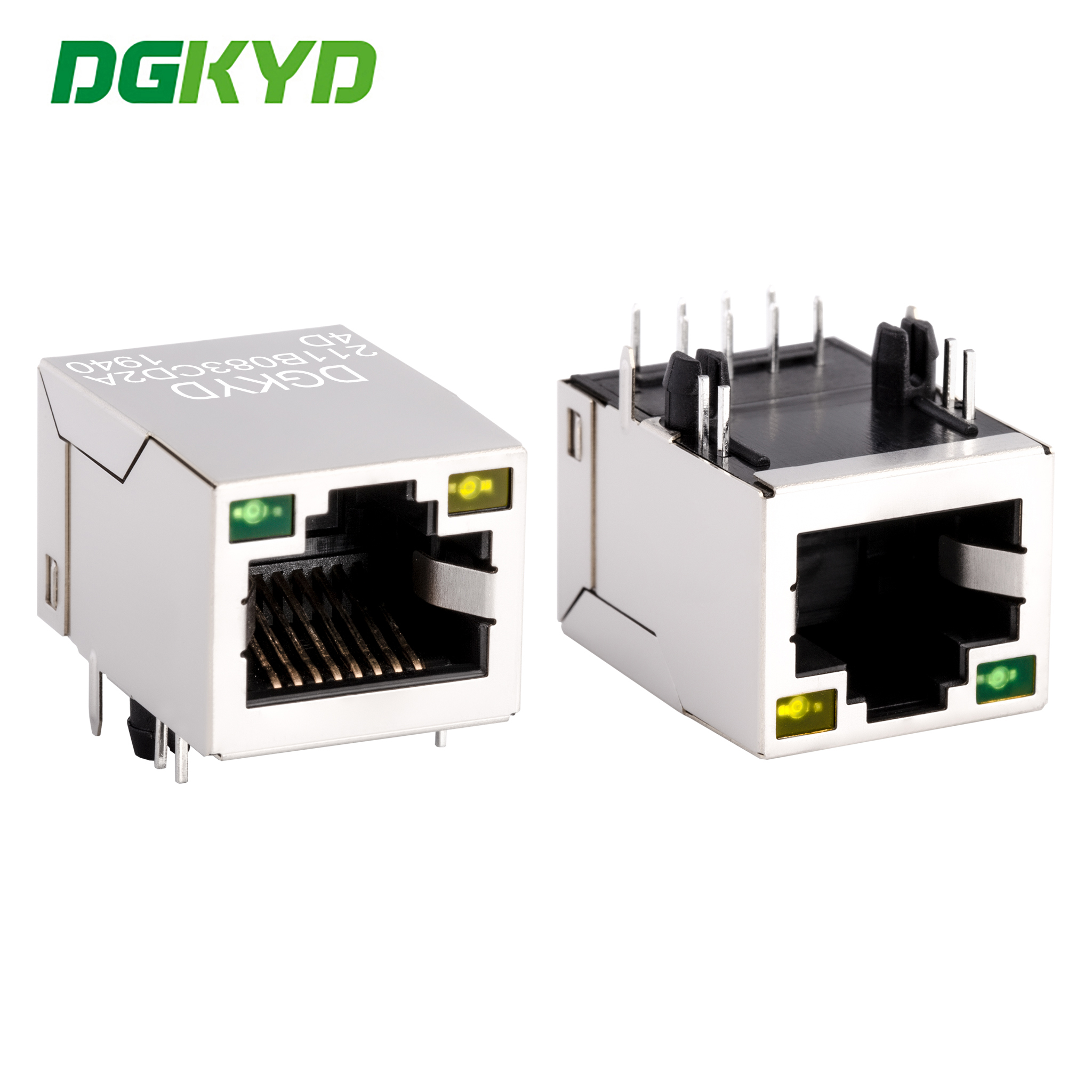

RJ45 100Mbps Ethernet port connector with built-in integrated transformer and shielding DGKYD211B083CD2A4D.
Download Product Datasheet (PDF)| Specification | Details |
|---|---|
| Part Number | DGKYD211B083CD2A4D |
| Brand | DGKYD/OEM/ODM |
| Product Type | Connector-Modular |
| Connector Style | Jack |
| Jack Type | RJ45 |
| Connector Type | Modular Jack |
| Latch Style | Standard |
| Latch | TAB-UP |
| Filter | With Filter |
| LED Option | With LED |
| LED Color | Green/Yellow |
| Panel Stops | With Panel Stops |
| Shielded | With metal shield |
| Applies To | Printed Circuit Board |
| Port Configuration | Single Ports |
| Number of Positions | 8 |
| Jack Configuration | 1X1 |
| Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel |
| PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating | Gold 6u |
| Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel |
| PCB Mounting Style | Through Hole |
| Termination Method to PC Board | Through Hole-Press-Fit |
| Board Lock | With/Without Board Lock |
| Housing Material | PBT Polyester |
| Housing Color | Black |
| Housing Material Temperature | Standard |
| UL Flammability Rating | UL 94V-0 |
The electrical properties of the products meet the industry standards, the appearance and mechanical properties meet the appearance dimensions, the mechanical manufacturing industry standards, and the environmental protection standards. Your satisfaction is the purpose of our service!
