담당자 : Nicole Zhuo
전화 번호 : +86 18925835585
WhatsApp : +8613538542087
| 최소 주문 수량 : | 협상 가능 | 가격 : | 협상 가능 |
|---|---|---|---|
| 포장 세부 사항 : | 통에서 트레이 | 배달 시간 : | 7-14days |
| 지불 조건 : | L/C, D/A, D/P, T/T, 웨스턴 유니온, 머니그램 | 공급 능력 : | 일 당 60000 PC |
| 원래 장소: | 중국의 동완 | 브랜드 이름: | DGKYD |
|---|---|---|---|
| 인증: | RoHS/CE/FCC/CE/ISO9001/ISO14001 | 모델 번호: | DGKYDCB421188B1W6SB |
|
상세 정보 |
|||
| 제품 이름: | 차폐와 RJ45 커넥터 잭 | 접속구의 형태: | 잭 |
|---|---|---|---|
| 적용: | PC, 라우터, usb 허브망 rj45 등. | 성별: | 여성 |
| 트랜스: | 트랜스 없는 RJ45 | 높이 프로파일: | 여분 저자세 |
| 강조하다: | Countersunk 4.2 SMT RJ45 Connector,RJ45 Connector Jack With Shield,Single RJ45 Connector Jack |
||
제품 설명

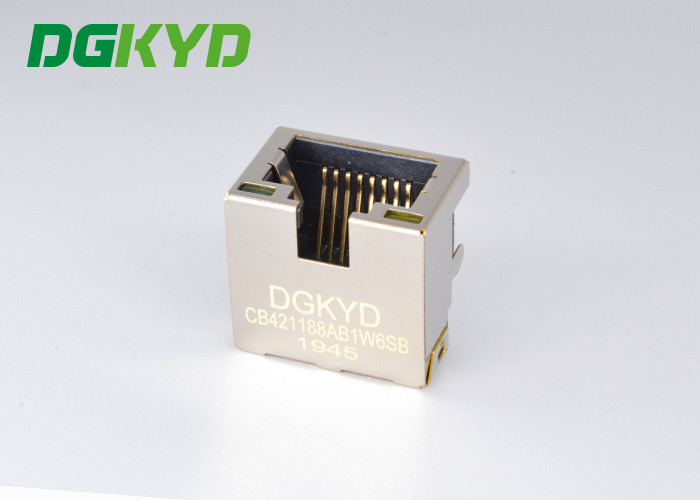

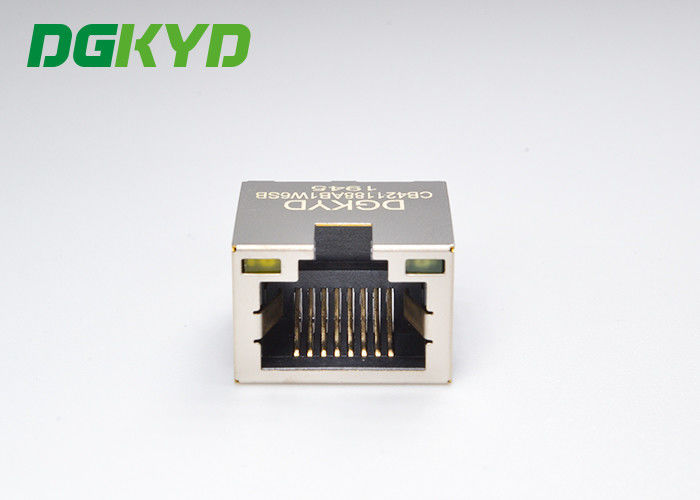

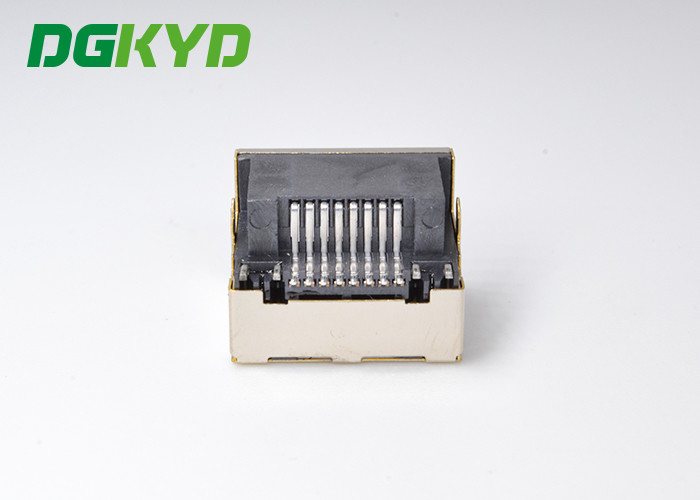

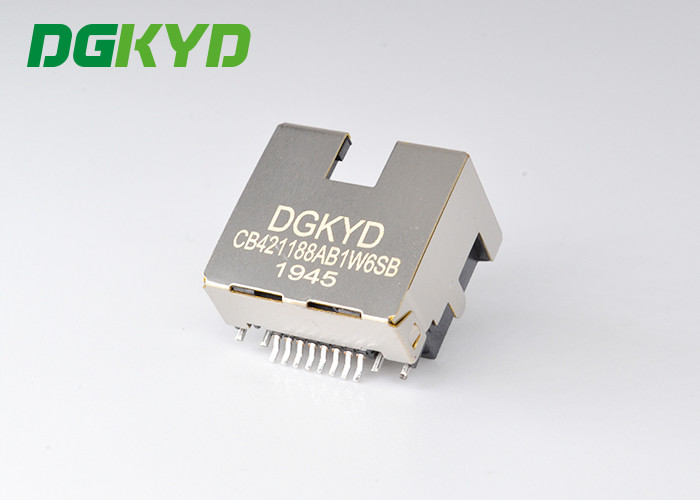

RJ45 connector single countersunk 4.2 SMD With shield With LED 8p8c
Paramters
| ATTRIBUTE | ATTRIBUTE VALUE |
| TEMPERATURE | -40 to +85℃ |
| GROUNDING OPTIONS | Panel Ground and PCB Ground |
| SHIELD PLATING MATERIAL | NICKEL |
| SHIELD EMI TABS | YES |
| SHIELD | METAL SHIELD |
| ROHS COMPLIANT | YES |
| PANEL STOP | NONE |
| PCB MOUNT ANGLE | SIDE ENTRY |
| PACKAGE | SMT |
| CONNECTOR & CONTACT TERMINAATES TO | Printed Circuit Board |
| NUMBER OF PORTS | 1X1 |
| NUMBER OF CONTACTS | 8 |
| LED OPTION | L-Yellow / R-Green |
| LATCH ORIENTATION | LATCH DOWN |
| HOUSING MATERIAL | LCP UL94V-0 |
| CONTACT MATING AREA PLATING | GOLD FLASH PLATING |
| CONNECTOR TYPE | RJ45 |
| CONNECTOR MATERIAL COLOR | BLACK |
Drawing
Pictures
Our Service
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
100% Guarantee Qualtiy
•Manufactured Under Strict Controls.
•100% Tested (Not Just Batch Tested)
•DGKYD Is OEM Of FOXCONN For 6 Years
•Successful Customer: PANASONIC/FOXCONN/HUAWEI/ZTE…
Competitive Price And Service
•More Competitive Price Than Pulse Tyco Halo And Amphenol
•Delivery Time:1-2 Weeks After Orders
•Free Samples Are Available
•Provide New Design For Customer Requirements
DGKYD Corporate Policy
•The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction
Through Continuous Improvements In Quality, Delivery And Service
• DGKYD Is Committed To And Expects Quality Performance From Every Employee
• The Company Standard Is Defect-Free Products And Services
