| 최소 주문 수량 : | 1 | 가격 : | $0.90-1.50 |
|---|
| 원래 장소: | 광동, 중국 | 브랜드 이름: | DGKYD |
|---|---|---|---|
| 모델 번호: | DGKYD811B198FF5A10DQ057 |
|
상세 정보 |
|||
| 유형: | RJ45 | 포장: | 담그다 |
|---|---|---|---|
| 성별: | 여성 | 주택 자료: | LCP 검정색 |
| LED 옵션: | 그린 오렌지 / 노랑색 | 걸쇠: | 위로 |
| 포트 수: | 1 | 연락처 수: | 8 |
| PCB 각도 장착대: | 측면 엔트리 | 방식을 탑재하세요: | 구멍을 통해 |
| 성능 속도: | 10/100base-t | 포트 구성: | 하나의 |
| 위치 수: | 6 | 항구 당 터미널: | 8 |
| 쉴드 재질: | 니켈로 미리 판으로 만든 구리 합금 | ||
| 강조하다: | RJ45 single port connector 100Mbps,RJ45 connector with dual-color LED,single port RJ45 with warranty |
||

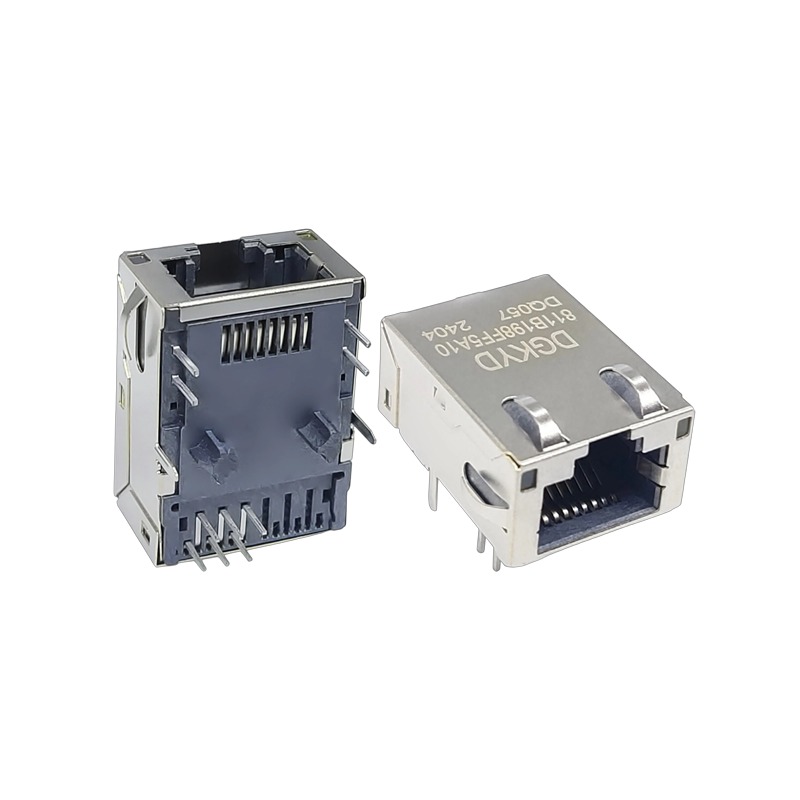

제품 설명
Dual-Color LED with pins 1, 2, 3, 7, 8, 9 excluded for specialized network applications.
| Part Number | DGKYD811B198FF5A10DQ057 | Brand | DGKYD/OEM/ODM |
| Place of Origin | Guangdong of China | Certification | IATF16949/ISO9001/ISO14001/CE/UL/FCC/Reach/RoHS |
| Product Type | Connector-Modular | Connector Style | Jack |
| Jack Type | RJ45 | Connector Type | Modular Jack |
| Latch Style | Standard | Latch | Up |
| Filter | With Filter | LED Option | With LED |
| LED Color | Green-Orange/Yellow | Panel Stops | With Panel Stops |
| Shielded | Yes | Applies To | Printed Circuit Board |
| Performance Speed | 10/100BASE-T | Grounding Options | Panel Ground and PCB Ground |
| Port Configuration | Single | Number of Positions | 6 |
| Jack Configuration | 1 x 1 | Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel | PCB Mounting Orientation | Side Entry (Right Angle) |

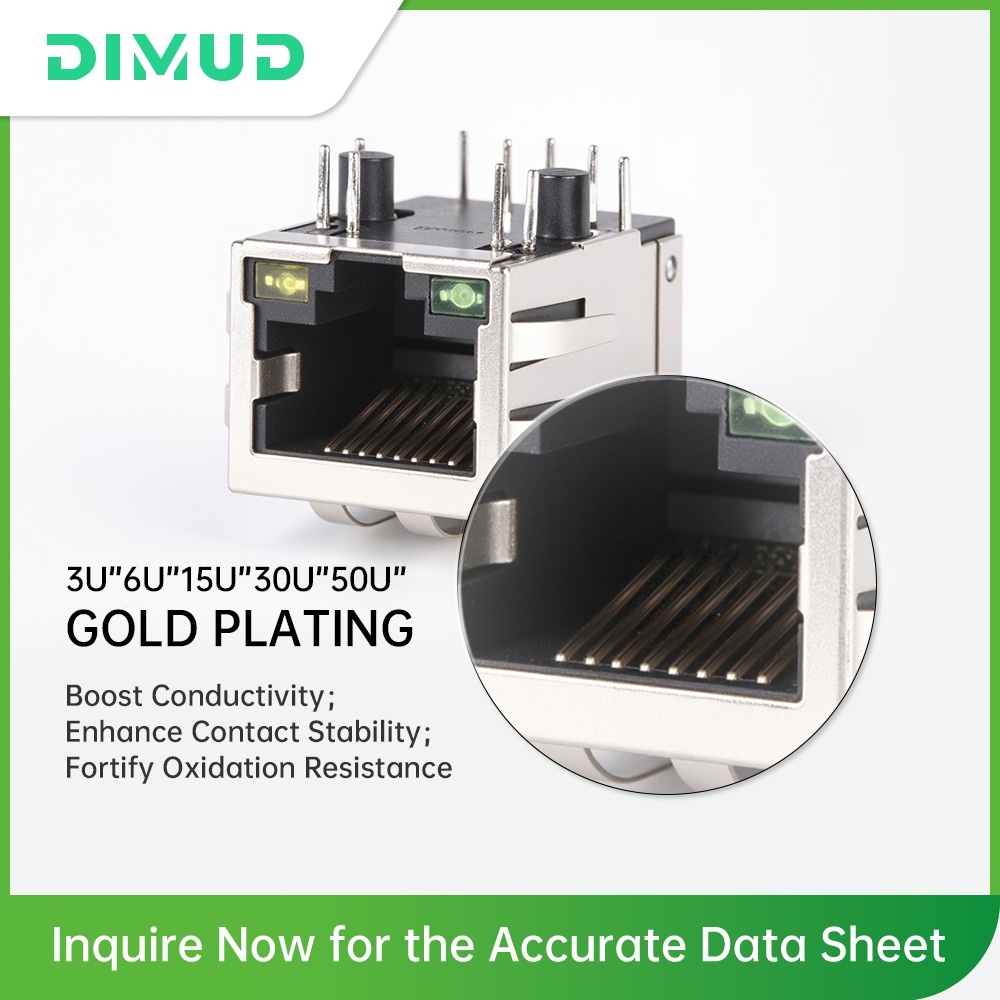

| Contact Mating Area Plating Material | Gold 6u/15u/30u/50u | Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel | PCB Mounting Style | Through Hole |
| Termination Method to PC Board | Through Hole-Press-Fit | Board Lock | With/Without Board Lock |
| Housing Material | LCP Polyester | Housing Color | Black |
| Housing Material Temperature | Standard | UL Flammability Rating | UL 94V-0 |
