| 최소 주문 수량 : | 1 | 가격 : | $0.90-1.20 |
|---|
| 원래 장소: | 광동, 중국 | 모델 번호: | DGKYD211Q072FF5A4D |
|---|
|
상세 정보 |
|||
| 유형: | RJ45 | 주택 자료: | PBT 검정색 |
|---|---|---|---|
| LED 옵션: | 녹색/주황색 및 노란색 | 걸쇠: | TAB-위로 |
| 핀 수: | 10 | 연락처 수: | 8 |
| 작동 온도: | -40 Ｃ ~ 85 Ｃ | PCB 마운트 스타일: | 담그다 |
| 변신 로봇: | 트랜스로 | 캡슐화 방법: | 단일 인라인 패키지 |
| 금도금: | 6U | 성능 속도: | 10/100/1000/10g base-t |
| 쉴드 재질: | 니켈로 미리 판으로 만든 구리 합금 | 접촉 도금 재료: | 골드 6U |
| 접촉 기본 재료: | 형광 청동 | ||
| 강조하다: | RJ45 network jack with LED,10P8C gold plated connector,dual-color LED RJ45 port |
||
제품 설명

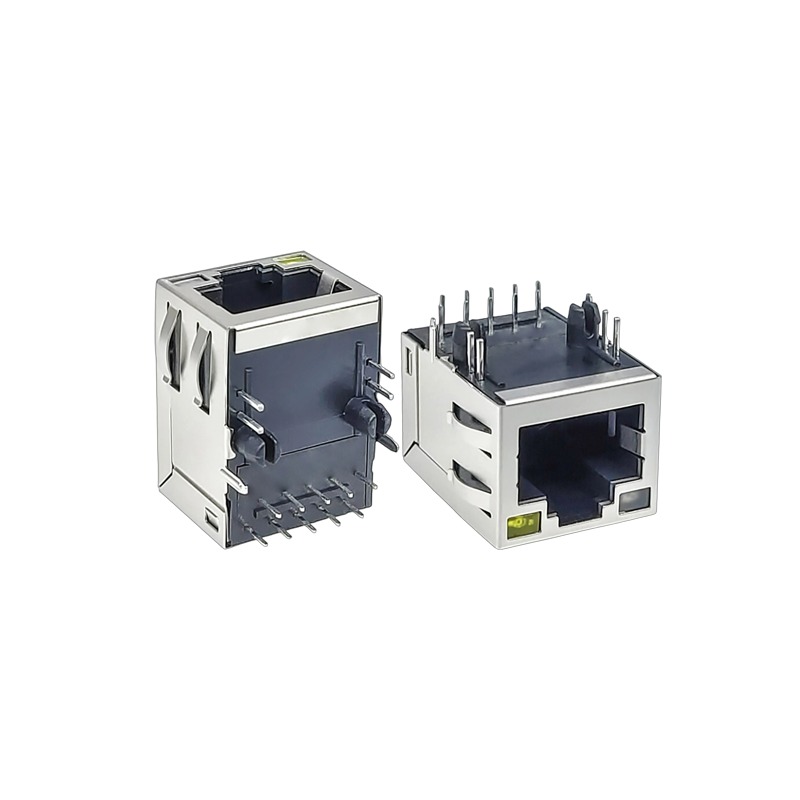

| Part Number | DGKYD211Q072FF5A4D | Brand | DGKYD/OEM/ODM |
|---|---|---|---|
| Place of Origin | Guangdong of China | Certification | IATF16949/ISO9001/ISO14001/CE/UL/FCC/Reach/RoHS |
| Product Type | Connector-Modular | Connector Style | Jack |
| Jack Type | RJ45 | Connector Type | Modular Jack |
| Latch Style | Standard | Latch | Tab-UP |
| Filter | With Filter | LED Option | With LED |
| LED Color | Green-Orange & Yellow | Panel Stops | With Panel Stops |
| Shielded | Yes | Applies To | Printed Circuit Board |
| Performance Speed | 10/100/1000/10G BASE-T | Grounding Options | Panel Ground and PCB Ground |
| Port Configuration | Single | Number of Positions | 10 |
| Jack Configuration | 1 x 1 | Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel | PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating Material | Gold 6u | Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel | PCB Mounting Style | Through Hole |
| Termination Method to PC Board | Through Hole-Press-Fit | Board Lock | With/Without Board Lock |
| Housing Material | PBT Polyester | Housing Color | Black |
| Housing Material Temperature | Standard | UL Flammability Rating | UL 94V-0 |
