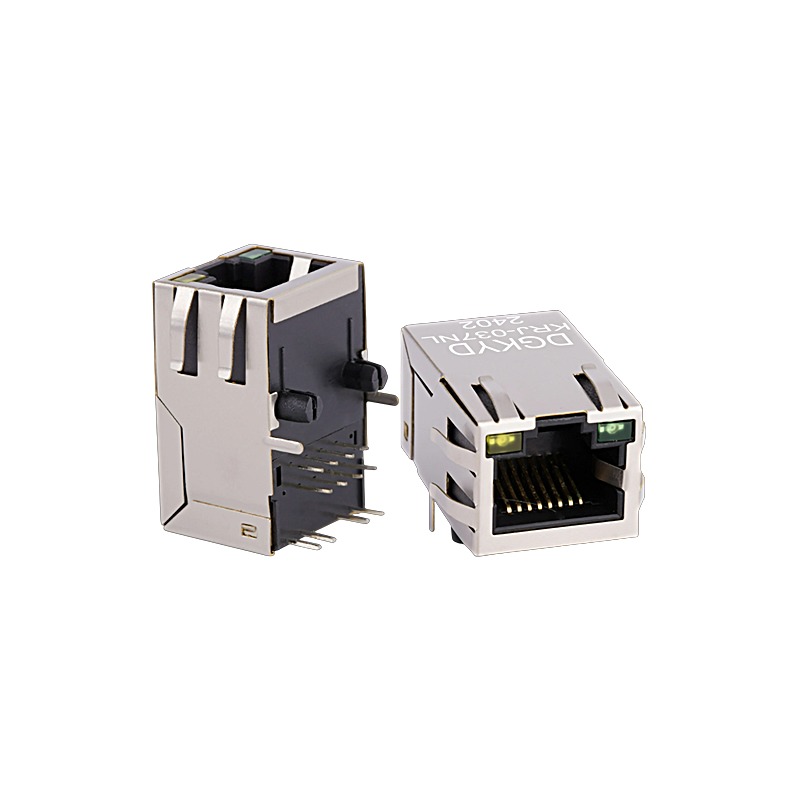

RJ45 Single Port Connector 100Mbps with LED Yellow Green for PCB

최소 주문 수량 :	1	가격 :	$0.54-0.70

원래 장소:	광동, 중국	모델 번호:	KRJ-037NL

상세 정보
유형:	RJ45	포장:	담그다
성별:	여성	주택 자료:	PBT 검정색
LED 옵션:	Yellow&Green	걸쇠:	위로
포트 수:	1	연락처 수:	8
PCB 각도 장착대:	측면 엔트리	방식을 탑재하세요:	구멍을 통해
성능 속도:	10/100/1000/10g base-t	포트 구성:	하나의
잭 구성:	1 Ｘ 1	항구 당 터미널:	8
쉴드 재질:	니켈로 미리 판으로 만든 구리 합금
강조하다:	RJ45 single port connector 100Mbps , RJ45 PCB connector with LED , yellow green LED RJ45 connector

제품 설명

Factory Direct Supply: Single Port, 100Mbps, LED - Equipped & Shielded RJ45 Transformer for Computer Connectors

Product Specifications

Part Number	KRJ-037NL	Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong of China	Certification	ISO16949/ISO9001/ISO14001/CE/UL/FCC/Reach/RoHS
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	Up
Filter	With Filter	LED Option	With LED
LED Color	Yellow/Green	Panel Stops	With/Without Panel Stops
Shielded	Yes	Applies To	Printed Circuit Board
Performance Speed	10/100/1000/10G BASE-T	Grounding Options	Panel Ground and PCB Ground
Port Configuration	Single	Number of Positions	8
Jack Configuration	1 x 1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)

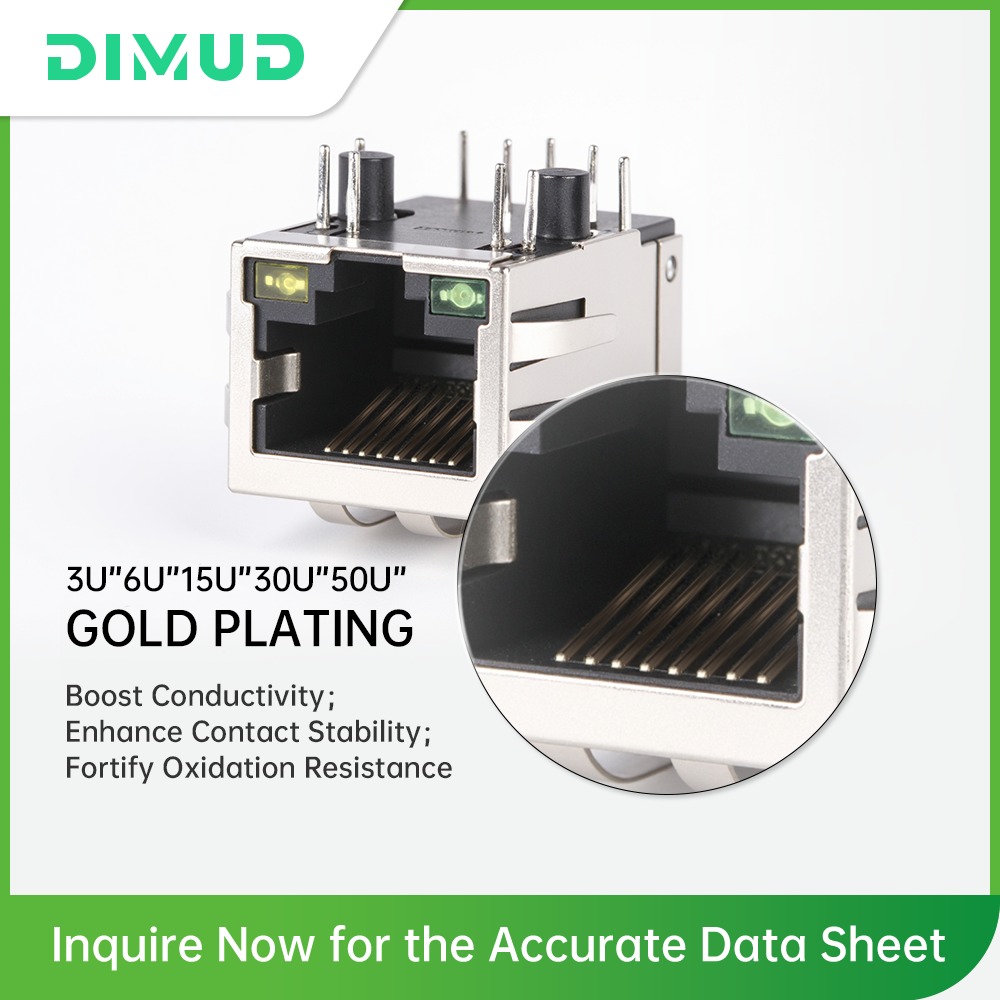

Contact Mating Area Plating Material	Gold 6u/15u/30u/50u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PBT Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0
