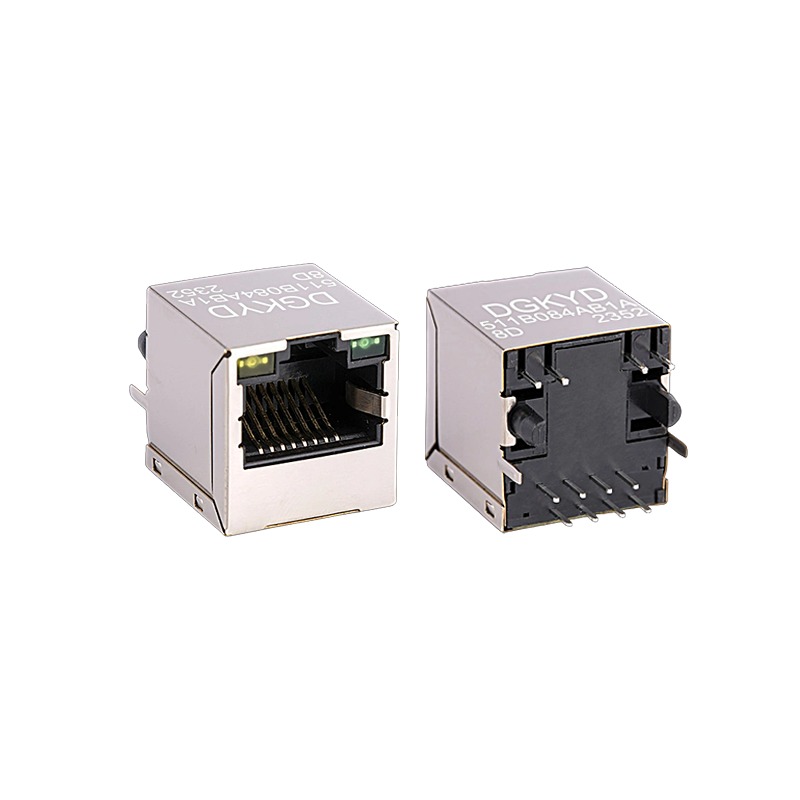

RJ45 Female Connector 180-Degree Vertical with 100Mbps Filter

최소 주문 수량 :	1

원래 장소:	광동, 중국	브랜드 이름:	DGKYD
모델 번호:	DGKYD511B084AB1A8D

상세 정보
커넥터 유형:	RJ45	성별:	여성
LED 색상:	노란색/녹색	도금:	골드 도금 6U/15U/30U/50U
주택 자료:	PBT 폴리에스테르	필터:	필터로
래치 방식:	표준	걸쇠:	위로
성능 속도:	10/100/1000/10g base-t	포트 구성:	하나의
위치 수:	8	항구 당 터미널:	8
쉴드 재질:	니켈로 미리 판으로 만든 구리 합금	PCB 마운팅 방향:	측면 진입 (직각)
접촉 기본 재료:	형광 청동
강조하다:	RJ45 female connector 180-degree vertical , RJ45 connector with 100Mbps filter , single port RJ45 vertical connector

제품 설명

180-Degree Vertical RJ45 Ethernet Connector Jack-Up Orientation with 100Mbps Integrated Filter

Product Specifications

Part Number	DGKYD511B084AB1A8D
Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong of China
Certification	IATF16949/ISO9001/ISO14001/CE/UL/FCC/Reach/RoHS
Product Type	Connector-Modular
Connector Style	Jack
Jack Type	RJ45
Connector Type	Connector Assembly
Latch Style	Standard
Latch	Up
Filter	With Filter
LED Option	With LED
LED Color	Yellow/Green
Panel Stops	Without Panel Stops
Shielded	Yes
Applies To	Printed Circuit Board
Performance Speed	10/100/1000/10G BASE-T
Grounding Options	Panel Ground and PCB Ground
Port Configuration	Single
Number of Positions	8
Jack Configuration	1 x 1
Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel
PCB Mounting Orientation	Side Entry (Right Angle)

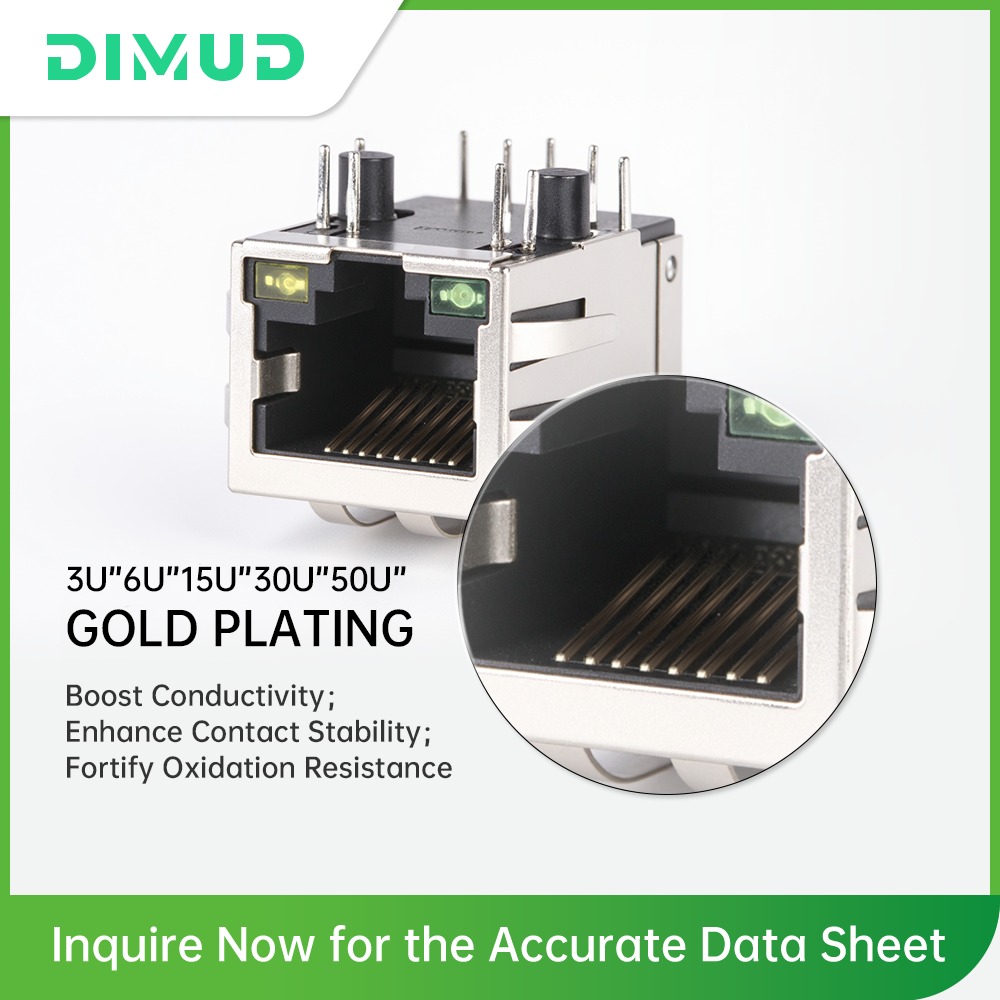

Contact Mating Area Plating Material	Gold 6u/15u/30u/50u
Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel
PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit
Board Lock	With/Without Board Lock
Housing Material	PBT Polyester
Housing Color	Black
Housing Material Temperature	Standard
UL Flammability Rating	UL 94V-0
