| 최소 주문 수량 : | 1 | 가격 : | $0.20-0.30 |
|---|
| 원래 장소: | 광동, 중국 | 브랜드 이름: | DGKYD |
|---|---|---|---|
| 모델 번호: | DGKYD52241188AC2A3DY1027, 잭 커넥터 |
|
상세 정보 |
|||
| 유형: | RJ45, 헤더 및 PCB 용기 | LED 색상: | 녹색 / 노랑색 |
|---|---|---|---|
| 도금: | 골드 도금 G/푸 | 주택 자료: | PA46 폴리에스테르 |
| 래치 방식: | 표준 | 걸쇠: | TAB-위로 |
| 필터: | 필터 없이 | LED 옵션: | LED로 |
| 성능 속도: | 10/100/1000/10g base-t | 위치 수: | 8 |
| 항구 당 터미널: | 8 | 쉴드 재질: | 니켈로 미리 판으로 만든 구리 합금 |
| 짝짓기 도금에 연락하십시오: | 금 G/푸 | 접촉 기본 재료: | 형광 청동 |
| 작동 온도: | -40C ~ 85C | ||
| 강조하다: | RJ45 connector with LED,PCB mount RJ45 connector,8P8C RJ45 connector green yellow |
||
제품 설명

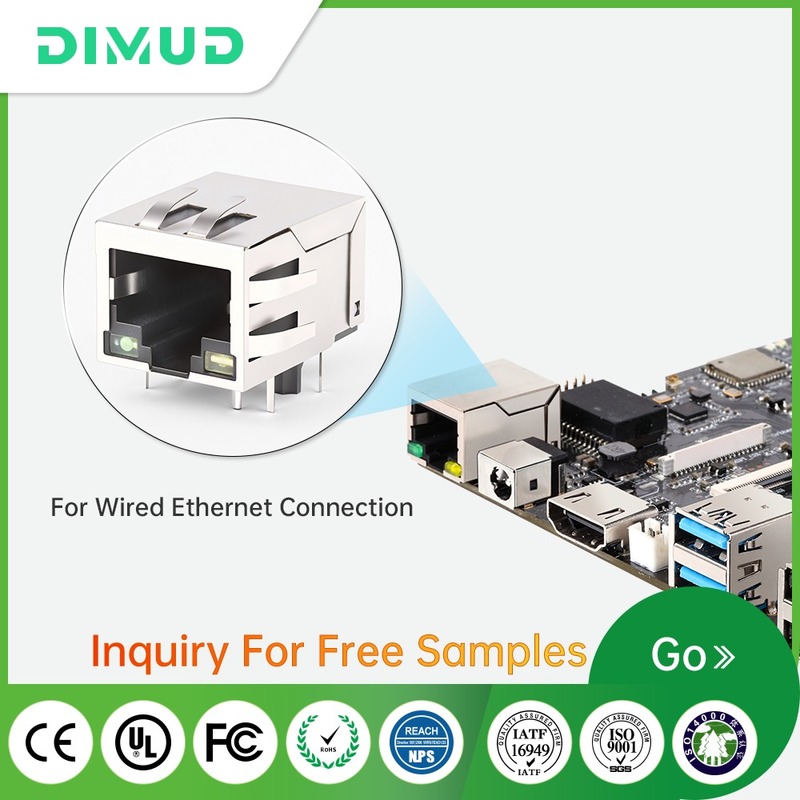

This 180 degree direct insertion RJ45 connector (8P8C) features LED lights and is designed for network interface applications. The part number is DGKYD52241188AC2A3DY1027.
| Part Number | DGKYD52241188AC2A3DY1027 |
|---|---|
| Brand | DGKYD/OEM/ODM |
| Place of Origin | Guangdong of China |
| Certification | IATF16949/ISO9001/ISO14001/CE/UL/FCC/Reach/RoHS |
| Product Type | Connector-Modular |
| Connector Style | Jack |
| Jack Type | RJ45 |
| Connector Type | Modular Jack |
| Latch Style | Standard |
| Latch | TAB-UP |
| Filter | Without Filter |
| LED Option | With LED |
| LED Color | Green/Yellow |
| Panel Stops | With Panel Stops |
| Shielded | Yes |
| Applies To | Printed Circuit Board |
| Performance Speed | 10/100/1000/10G BASE-T |
| Grounding Options | Panel Ground and PCB Ground |
| Port Configuration | Single ports |
| Number of Positions | 8 |
| Jack Configuration | 1 x 1 |
| Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel |
| PCB Mounting Orientation | Side Entry (Right Angle) |

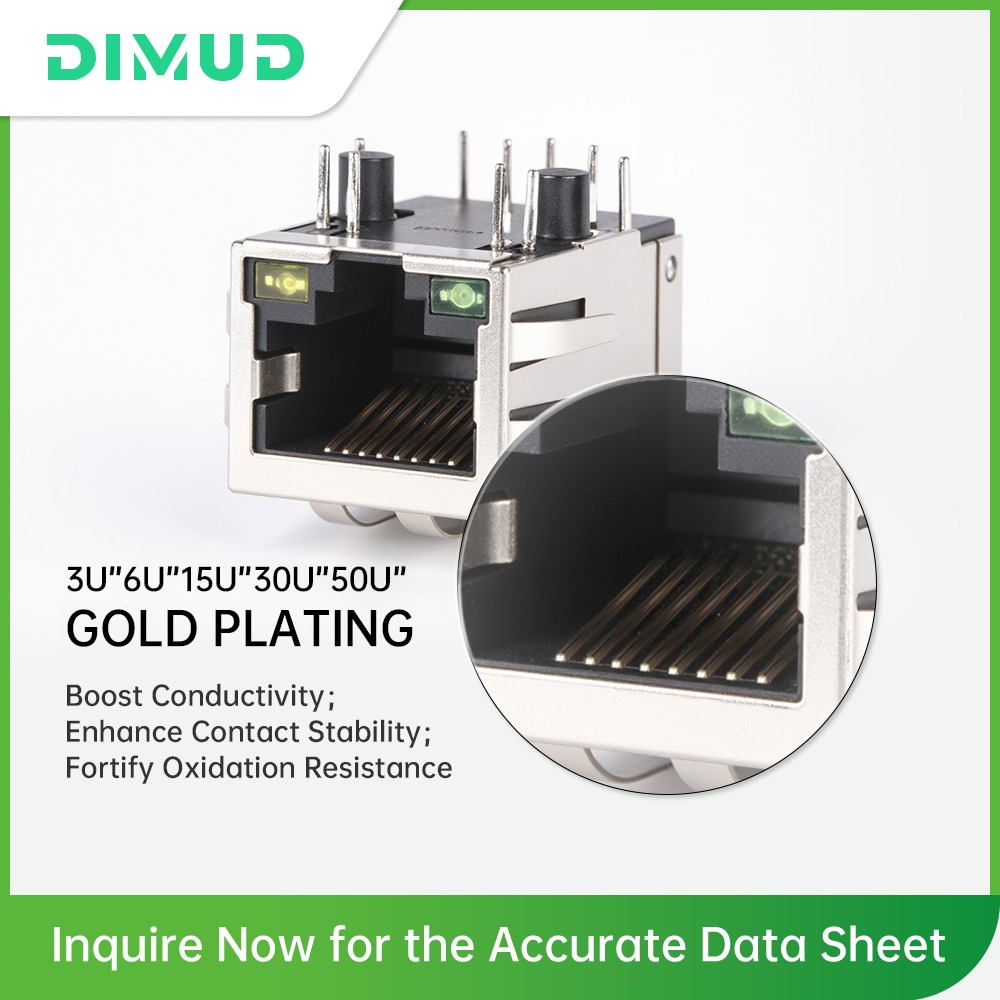

| Contact Mating Area Plating Material | Gold G/Fu |
| Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel |
| PCB Mounting Style | Through Hole |
| Termination Method to PC Board | Through Hole-Press-Fit |
| Board Lock | With/Without Board Lock |
| Housing Material | PA46 Polyester |
| Housing Color | Black |
| Housing Material Temperature | Standard |
| UL Flammability Rating | UL 94V-0 |
