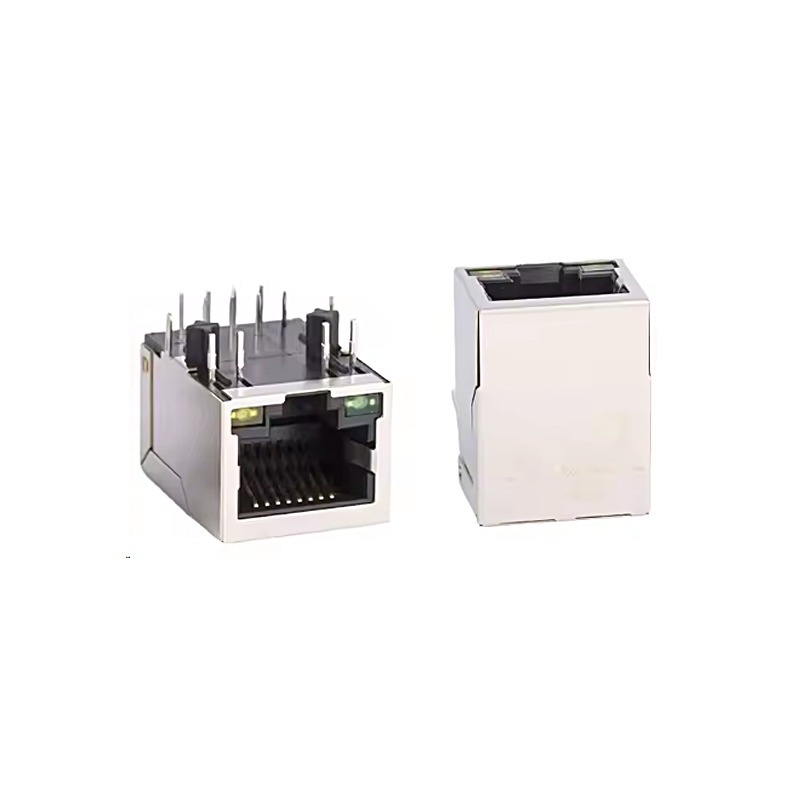

Industrial RJ45 Female Connector 10/100 Base-T with LED 8P8C

최소 주문 수량 :	1	가격 :	$0.51-0.85

원래 장소:	광동, 중국	브랜드 이름:	DGKYD
모델 번호:	KRJ-406CNL

상세 정보
유형:	RJ45	성별:	여성
주택 자료:	PBT 검정색	접촉 도금:	골드 6U ''
쉴드 재질:	니켈로 미리 판으로 만든 구리 합금	LED 옵션:	LED로
LED 색상:	녹색으로 만들고 노랗게 되세요	연락처 수:	8
트랜스 선택:	트랜스로	성능 속도:	10/100 베이스-티
포트 구성:	하나의	종료 방법:	홀 프리 피트를 통해
장착 스타일:	구멍을 통해	장착 방향:	측면 진입 (직각)
UL 인화성 등급:	UL 94V-0
강조하다:	Industrial RJ45 female connector with LED , 8P8C RJ45 connector 10/100 Base-T , Single port RJ45 connector with warranty

제품 설명

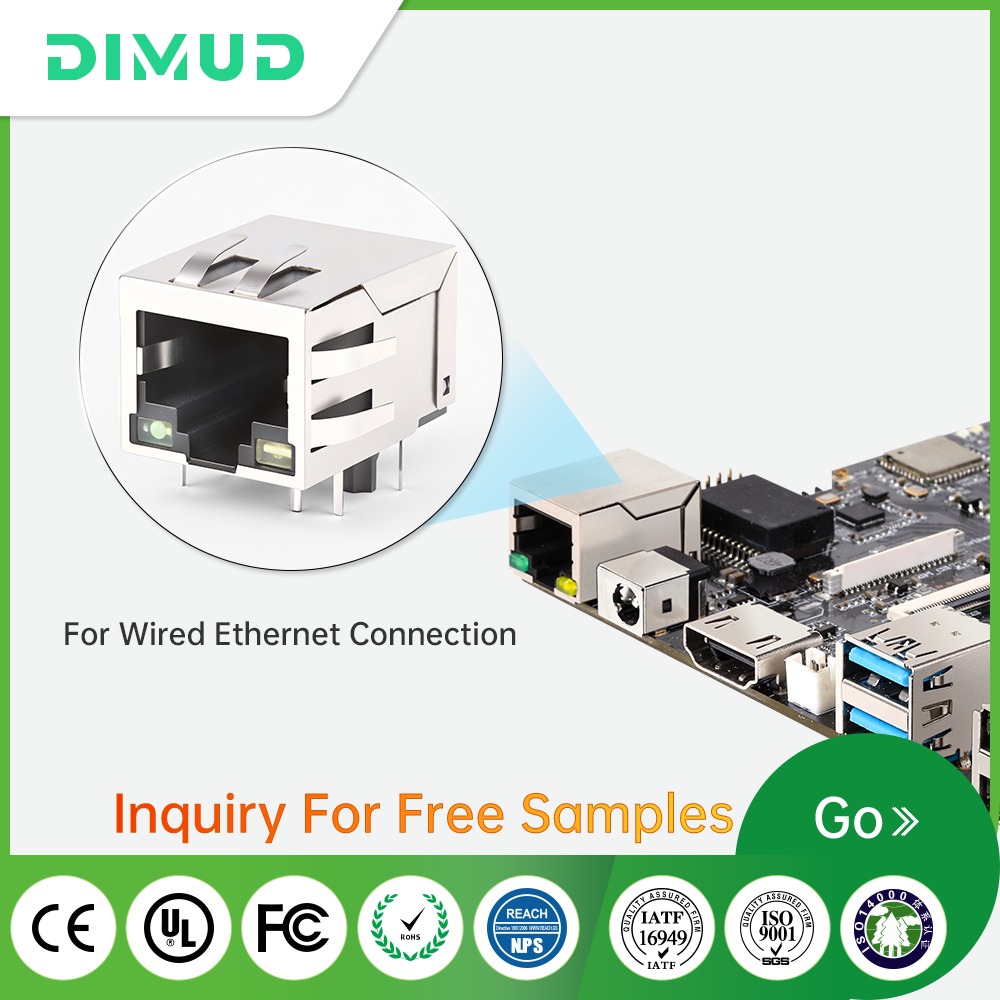

Industrial Grade 10/100 Base T Ethernet Connectors

Surface Mount CAT5E RJ45 Female Connector with LEDs and Integrated Magnetics PCB

High-performance industrial-grade RJ45 connector designed for 10/100 BASE-T Ethernet applications. Features integrated magnetics, LED indicators, and robust construction for reliable operation in demanding environments.

Product Specifications

Part Number	KRJ-406CNL
Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong of China
Certification	ISO16949/ISO9001/ISO14001/CE/UL/FCC/Reach/RoHS
Product Type	Connector-Modular
Connector Style	Jack
Jack Type	RJ45
Connector Type	Modular Jack
Latch Style	Standard
Latch	Down
Filter	With Filter
LED Option	With LED
LED Color	Green & Yellow
Shielded	Yes
Performance Speed	10/100 BASE-T
Port Configuration	Single
Number of Positions	8
Shield Material	Copper Alloy preplated with Nickel

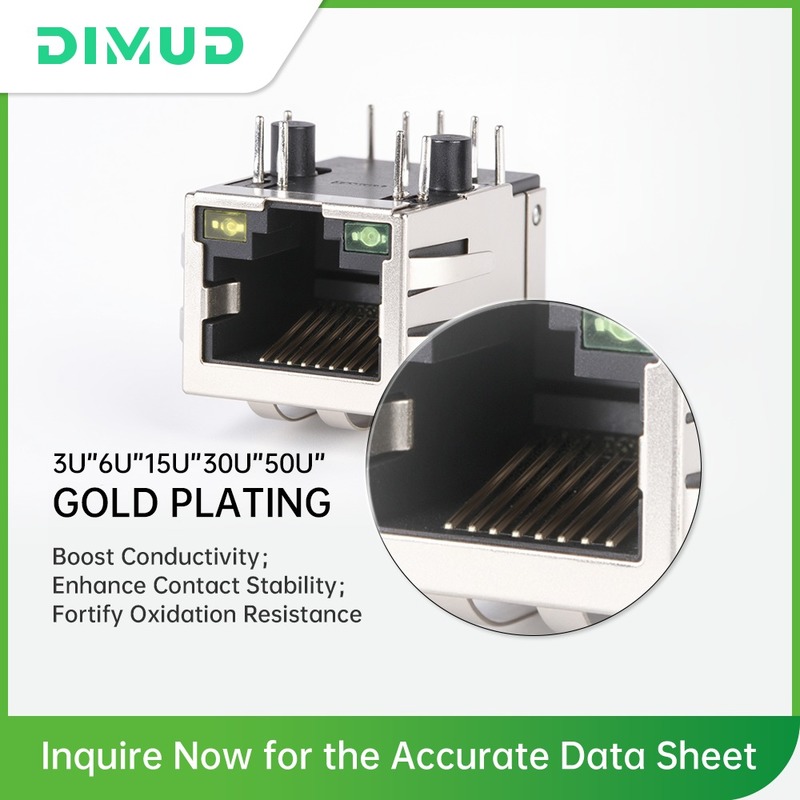

Contact Mating Area Plating Material	Gold 6u/15u/30u/50u for optional
Contact Base Material	Phosphor Bronze
Housing Material	PBT Polyester
UL Flammability Rating	UL 94V-0
